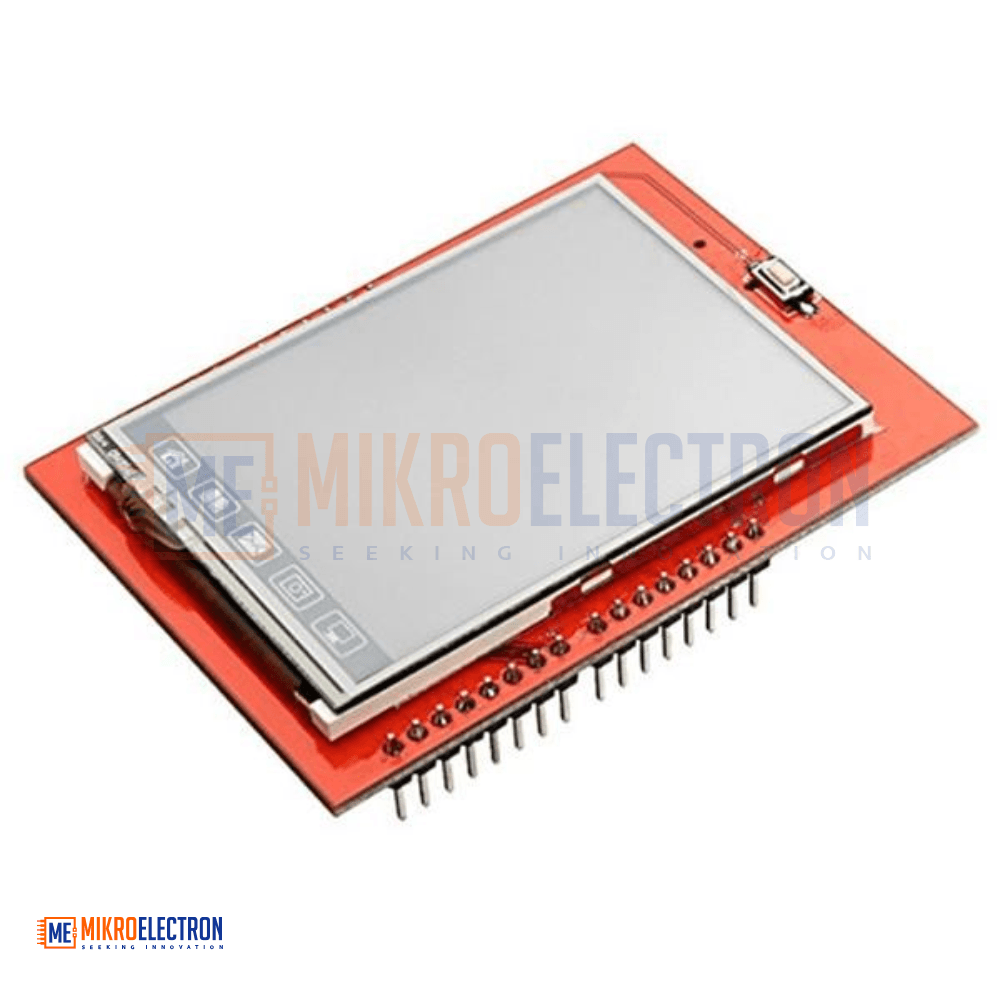

2.4 Inch TFT LCD Shield Touch

Description:

The shield is fully assembledtested and ready to go. No wiringno soldering! Simply plug it in and load up our library - you'll have it running in under 10 minutes! Works best with any classic Arduin (UNO/Duemilanove/Diecimila). This shield does NOT work with the Mega Arduin but its going to be half the speed of the Uno-type boards because of the way the Mega rearranges all the pins (there is no way to get around this!) This shield is not Leonardo-compatible

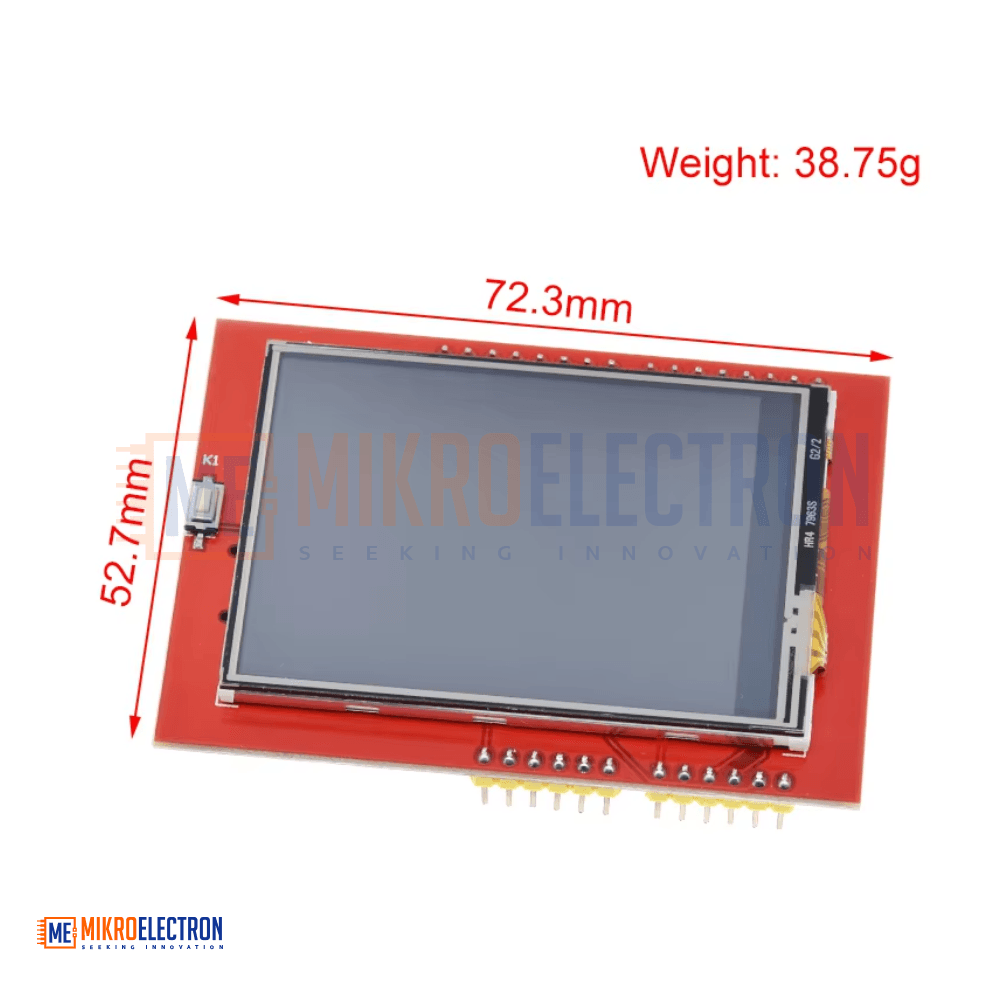

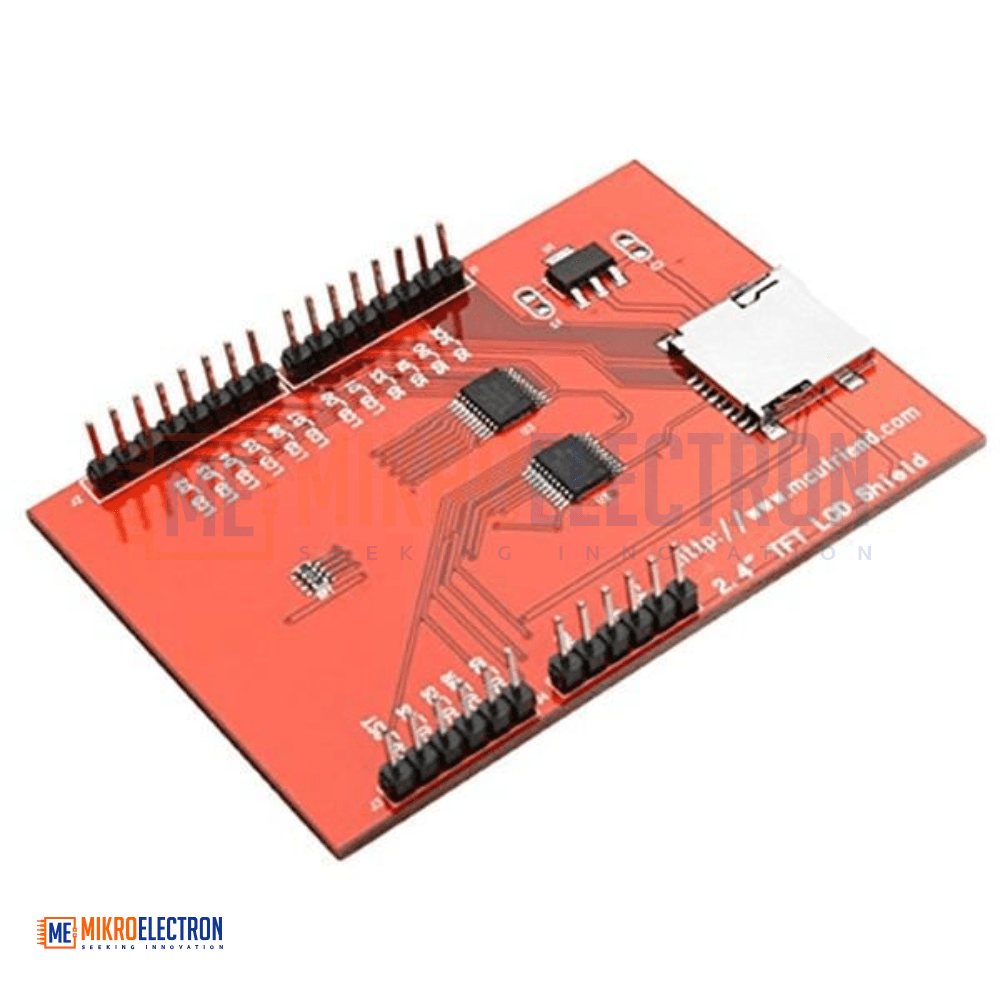

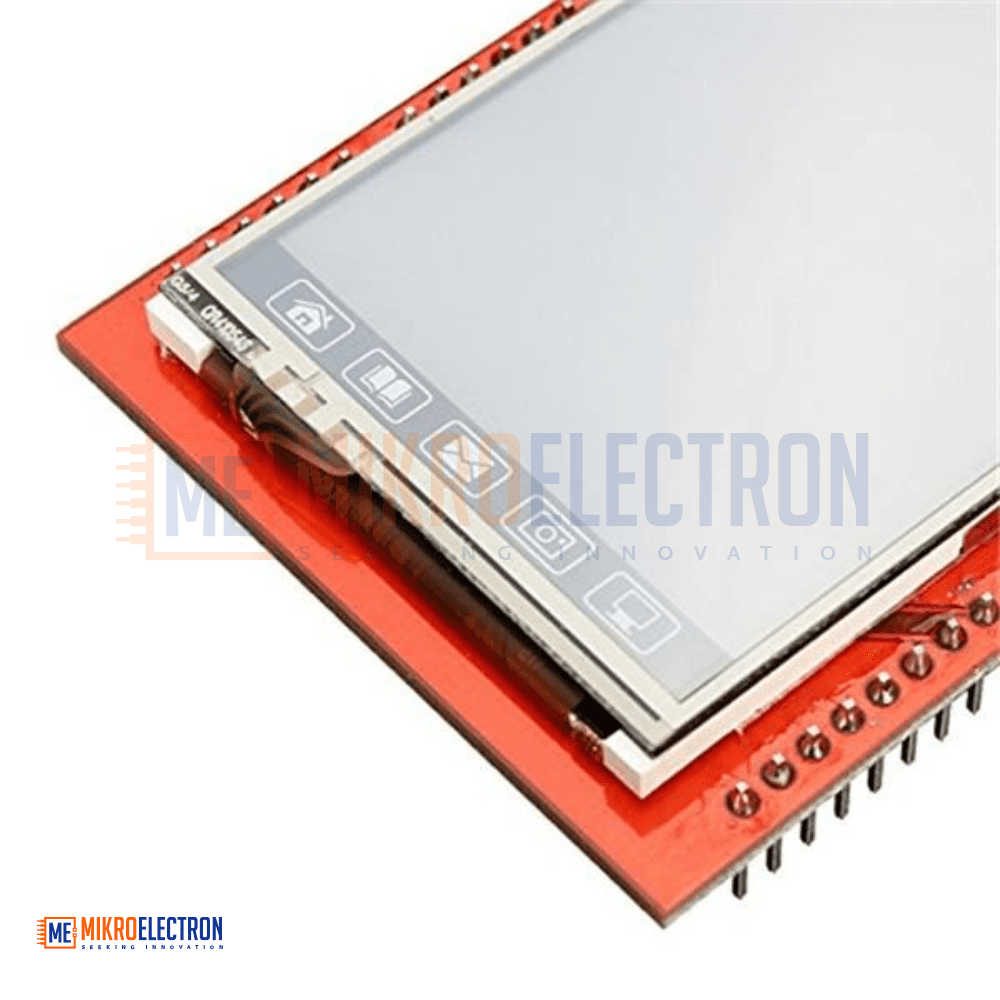

Spice up your Arduin project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colorful (18-bit 262000 different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonusthis display has a resistive touchscreen attached to it alreadyso you can detect finger presses anywhere on the screen.

Features:

  • 2.4" diagonal LCD TFT display
  • 240x320 resolution18-bit (262000) color
  • spfd5408 controller with built in video RAM buffer
  • 8 bit digital interfaceplus 4 control lines

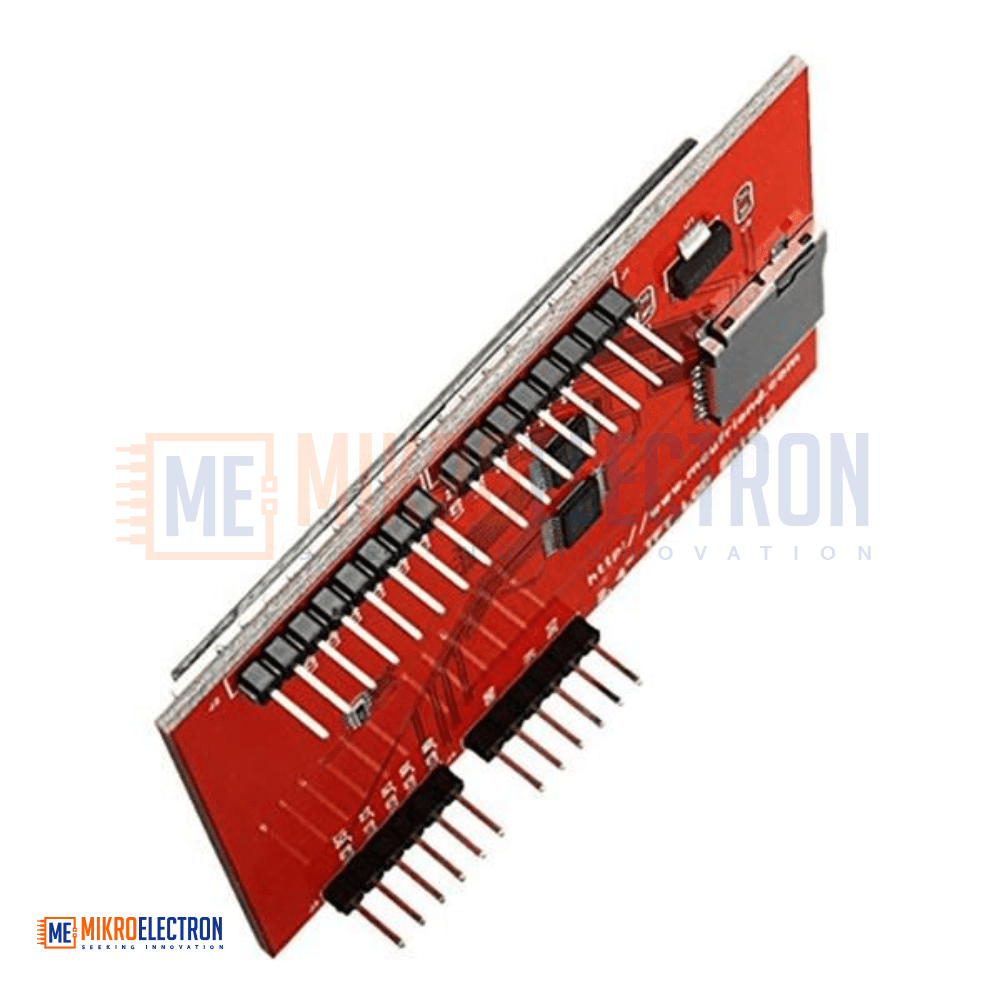

  • Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 23 and analog 4 and 5. Pin 12 is available if not using the microSD
  • Works with any Arduin '328 or Mega (Leonardo not supported yet)
  • 5V compatible! Use with 3.3V or 5V logic
  • Onboard 3.3V 300mA LDO regulator
  • 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
  • 4-wire resistive touchscreen

12 JD
Quantity
0 in stock
12 JD 1+ units
11.4 JD 10+ units
10.8 JD 25+ units
10.2 JD 100+ units
