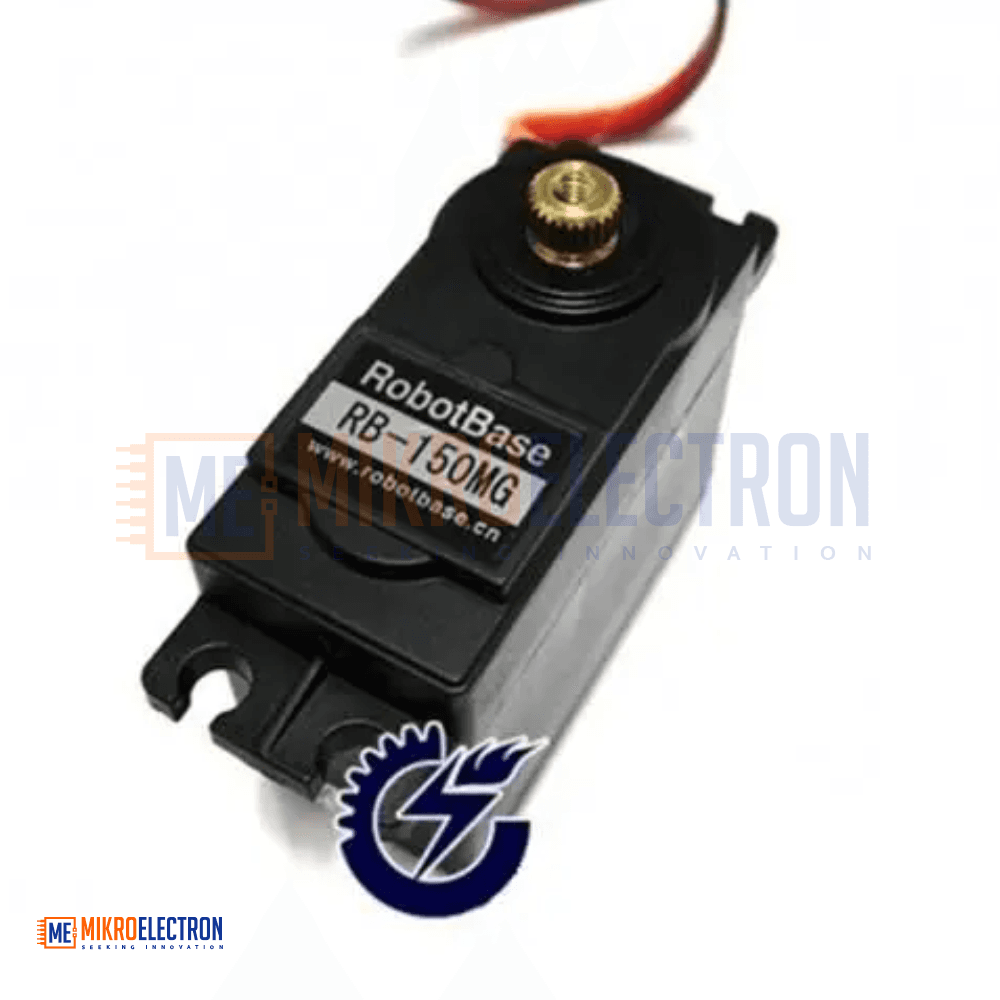

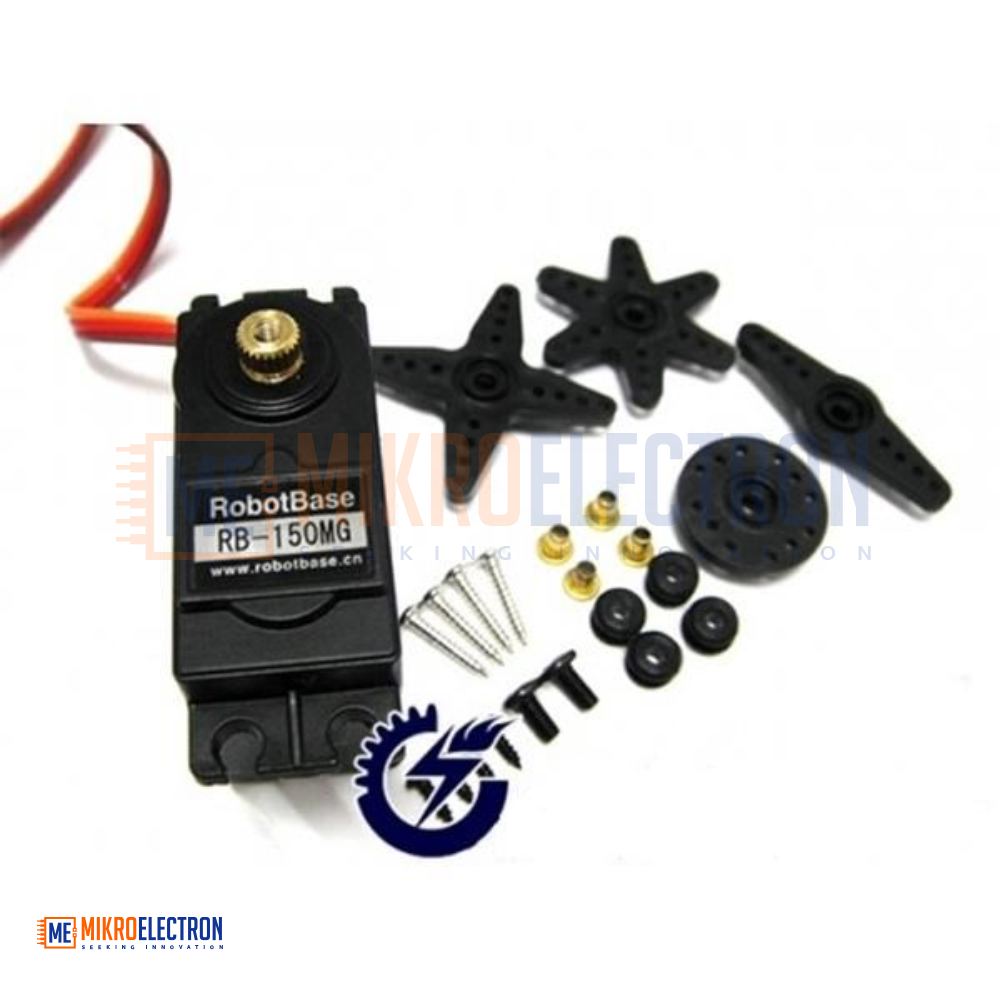

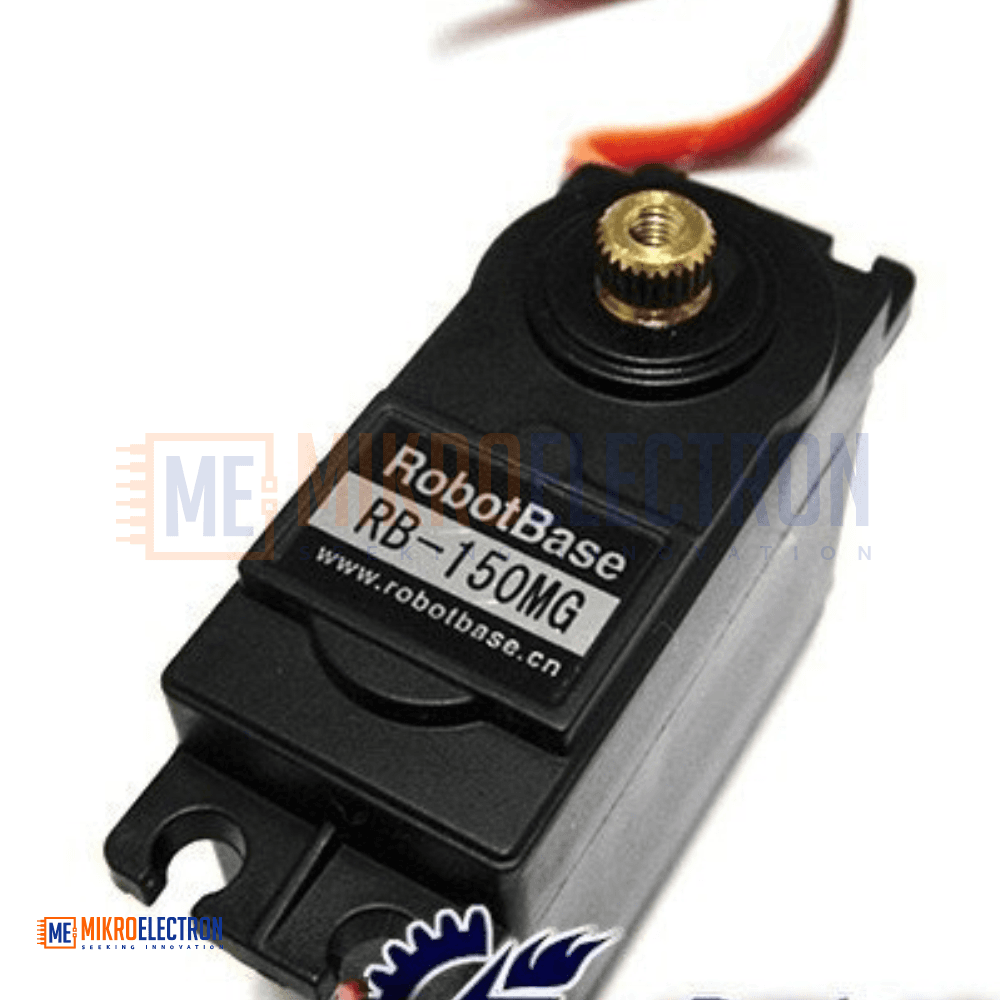

RB-150MG 180 degree Metal Servo

Description:

The RB - 150MG is the Alsrobot newest generation of metal teeth servo with large torque anglewhich features brush DCcoreless motorinternal non-iron rotorhigh energy conversion efficiencyhigh activating braking response speedreliable operation stabilitygood adaptive capabilitylow electromagnetic interferencesmall volumelight weightconductive plastic potentiometer with good precision. The motor’s integrated circuit (IC) adopts digital chip and power switch to make up for H bridge circuit. The  voltage controls in bipolar driver mode with fast response speedsmall range of non response zonehigh positioning accuracygood compatibility and anti-jamming capability which is suitable for robot and model airplane field.

Features:

  • Control System: +Pulse Width Control 1500usec Neutral
  • Operating Voltage: 5-7.2 Volts
  • Operating Temperature Range: 0 to +60 Degree C
  • Operating Speed (6.0V):0.16sec/60°at no load
  • Operating Speed (7.2V):0.14sec/60°at no load
  • Stall Torque: 13kg·cm (5.0V); 15kg·cm (6.0V); 16kg·cm (7.2V);
  • Current Drain (6.0V):7.9mA/idle and 180mA no load operating
  • Current Drain (7.2V):15.8mA/idle and 220mA no load operating
  • Dead Band Width: 10usec
  • Connector Wire Length: 300mm

28 JD
Quantity
11 in stock
28 JD 1+ units
26.6 JD 10+ units
25.2 JD 25+ units
23.8 JD 100+ units
