XBee 1mW - Series 1

Description:

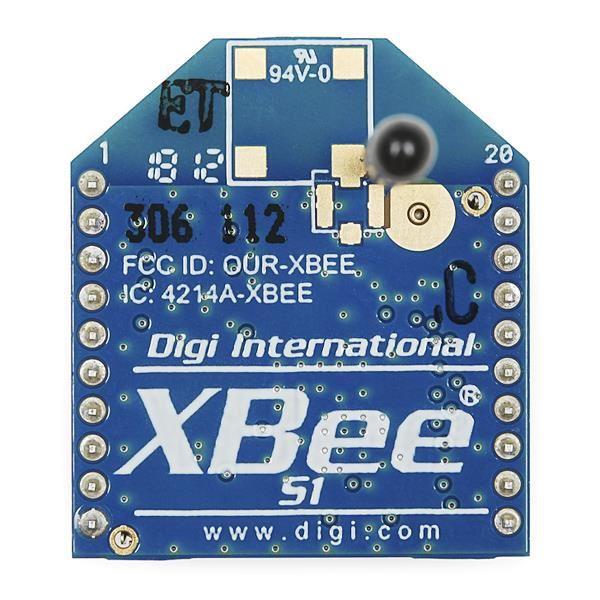

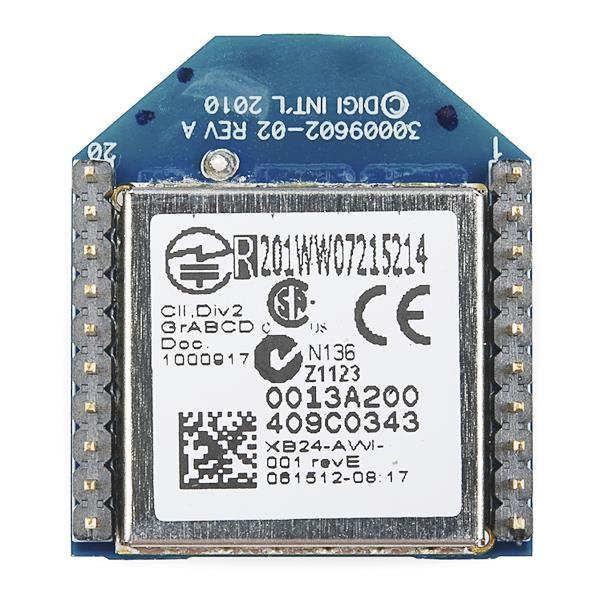

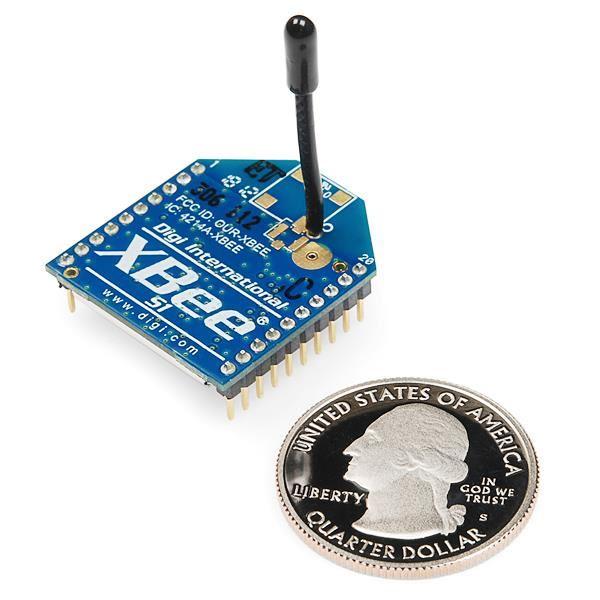

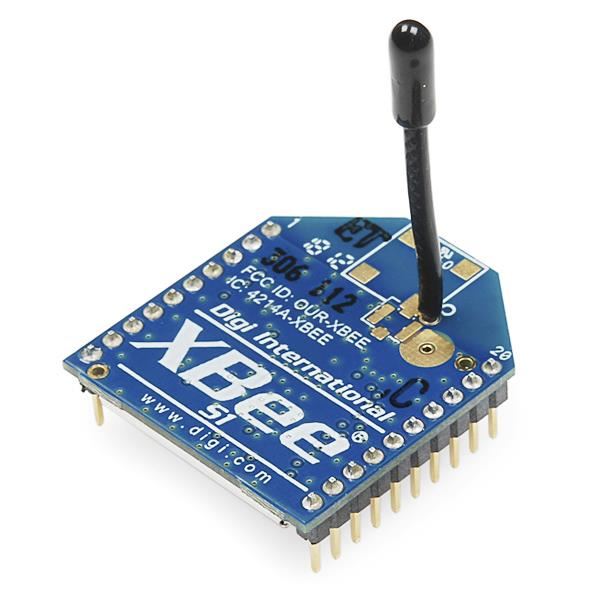

 This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollerscomputerssystemsreally anything with a serial port! Point to point and multi-point networks are supported

Note: If you are using these outside of the United Statesplease check with your local laws regarding radio communication.

Features:

  •  3.3V @ 50mA
  • 250kbps Max data rate
  • 1mW output (+0dBm)
  • 300ft (100m) range
  • Wire antenna
  • Fully FCC certified
  • 6 10-bit AD
  • C input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set

Documents:

30 JD
Quantity
8 in stock
30 JD 1+ units
28.5 JD 10+ units
27 JD 25+ units
25.5 JD 100+ units
