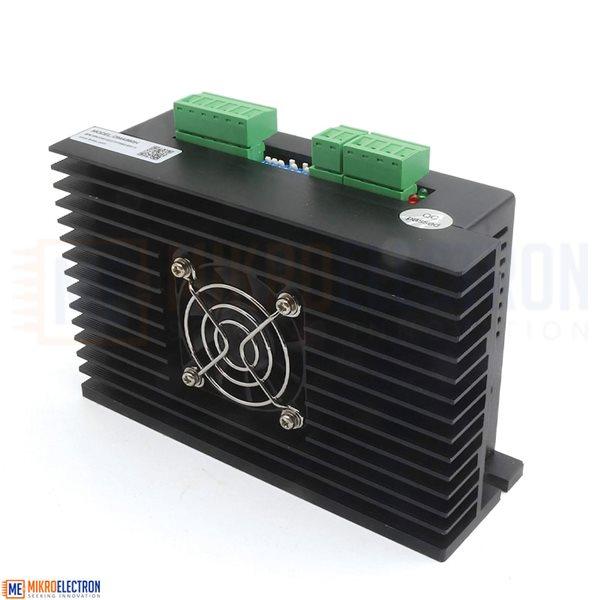

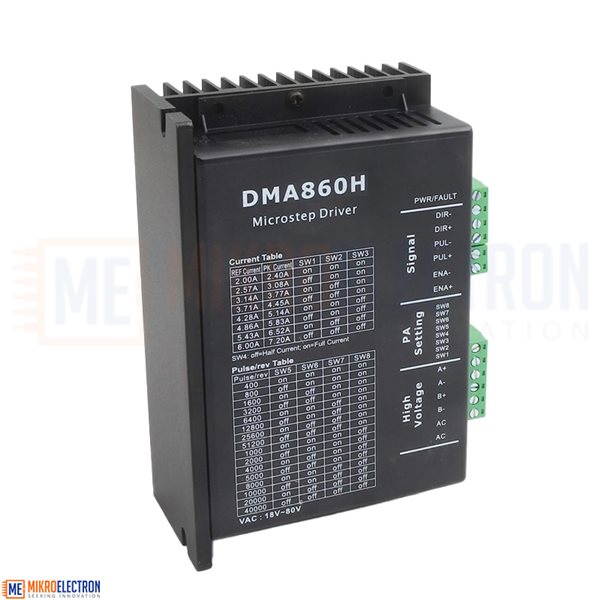

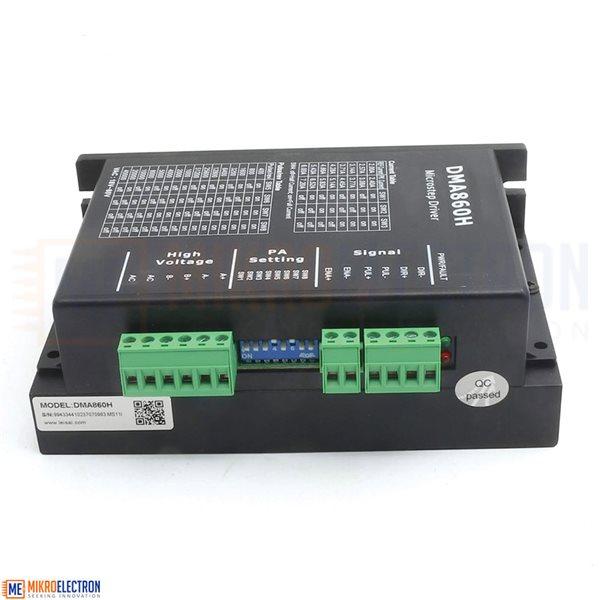

DMA860H Stepper Motor Driver 200KHz Controller 7.2A High Voltage


DMA860H Stepper Driver for Stepping Motor Driving
This DMA860H driver is the new vision of MA860H step driver, these two models are replaceable. DMA860H stepping driver is stepper motor driver widely used in CNC routers, CNC laser machine, cnc plasma machine etc.

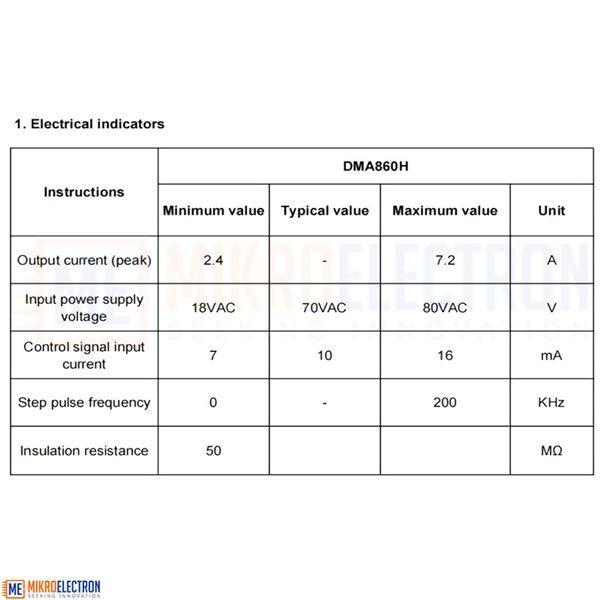

DMA860H Leadshine Driver Specifications:

Item Model


Working Power

VDC 24-100V

VAC 18-80V

Peak Current


Impulse Frequency


Storage Temperature

-20 - 65

Control Method

32-bit DSP Digital Controller Method


Apprex. 151mm*96mm*53mm

Fit for 57/86 system stepping motor driver

Suitable for 2-phase and 4-phase motors

Stepper driver controls the stepper motor moving, move direction and moving steps. Step driver micro the motor steps, so ensure the precision.


It could drive 4 wire and 8 wire 2 phase stepper motor
Input voltage: 18-80VDC
Current area: 7.2A
Pulse input frequency up to 200KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current, phase-error protection
For Nema23 Nema34 Nema42 Stepper Motor
Voltage input: 18-80VAC

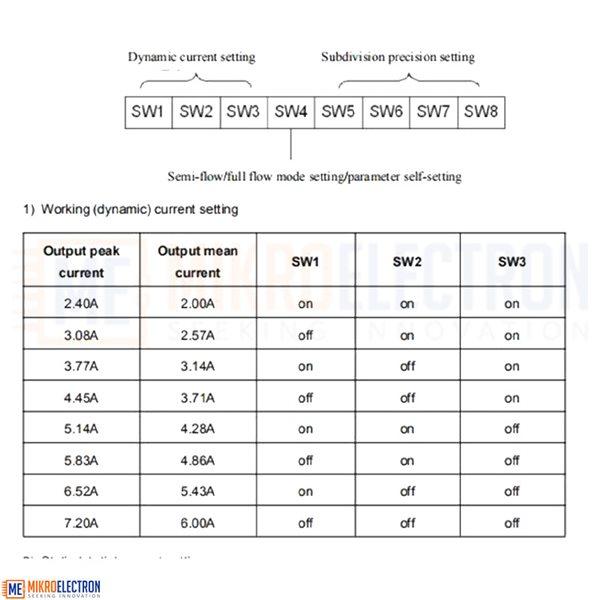

Maximum current: 7.2A, resolution: 0.1A

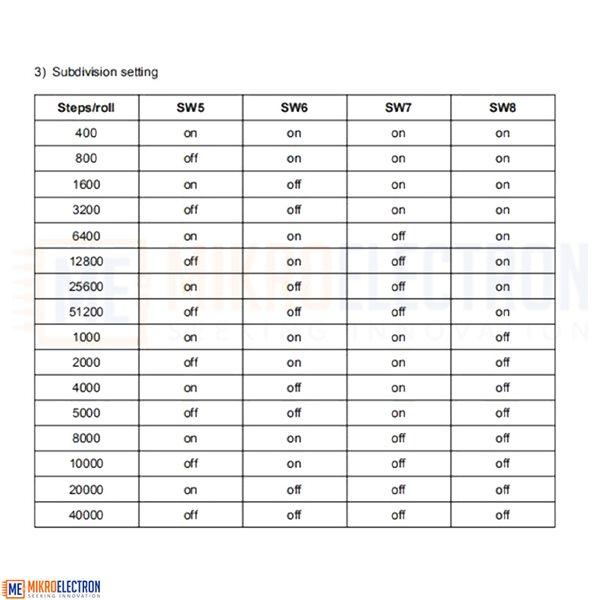

Micro steps: 400-51200

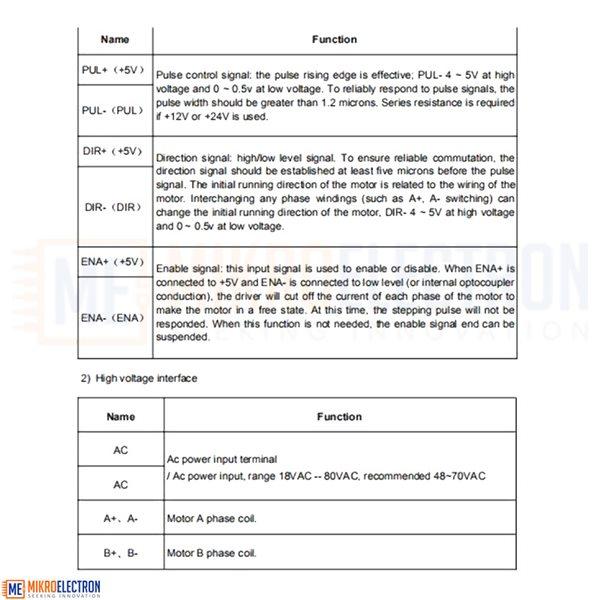

Signal input: differential/single end, pulse/direction or double pulse

Kit include:

1 x PCS DM860 stepper motor driver
