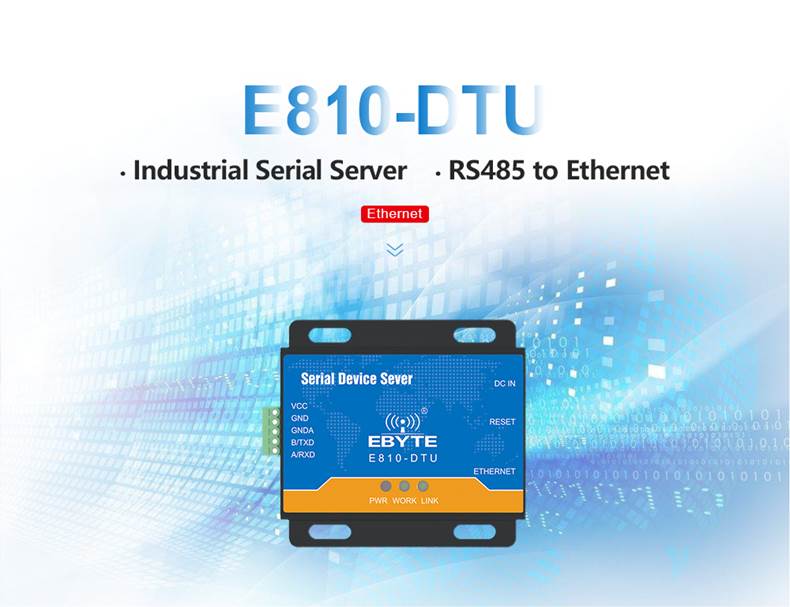

E810-DTU(RS485)-V2.0 - RS485/RS232 to Ethernet Convertor

Description:

E810-DTU(RS485)-V2.0 is a RS485 to Ethernet single serial port server. It supports data transparent transmission between RJ45 network port and RS485/RS232. The module is equipped with a M0+ series of 32-bit processors, fast and efficient. It has an adaptive network speed (up to 100M full duplex), and has four communication mechanisms, TCP Server, TCP Client, UDP Server, and UDP Client.

E810-DTU(RS485)-V2.0 enables the RS485 RTU to immediately have TCP/IP network interface function, which extends the operation range of the RTU (Remote Terminal Unit).

No.	Specification	Description
1	Size	66 * 66 *21.6mm
2	Weight	79±1g
3	PCB process	2 layers, SMT, lead-free
4	Connector	RS485/RS232：153.81mm
5	Supply voltage	8~28V DC. Note: Higher than 28V will cause permanent damage
6	UART standard	300~256000 bps
7	Serial communication level	---
8	Ethernet specification	RJ45, 10/100Mbps
9	Network protocol	IP, TCP/UDP, ARP, ICMP, IPV4
10	IP Acquisition	Static IP, DHCP
11	DNS	Available
12	User configuration	PC software, AT command configuration, Web page configuration
13	Simple transparent transmission	TCP Server, TCP Client, UDP Server, UDP Client
14	TCP Server connection	Max. 6 channel of TCP connections
15	Software	RF Setting
16	Package mode	200 bytes per package
17	Operating current	77.0314mA@12V (RS485) 74.5635mA@12V (RS232)
18	Operating temperature	-40 ~ +85℃
19	Operating humidity	10% ~ 90%，relative humidity, no condensation
20	Storage temperature	-40 ~ +125℃
