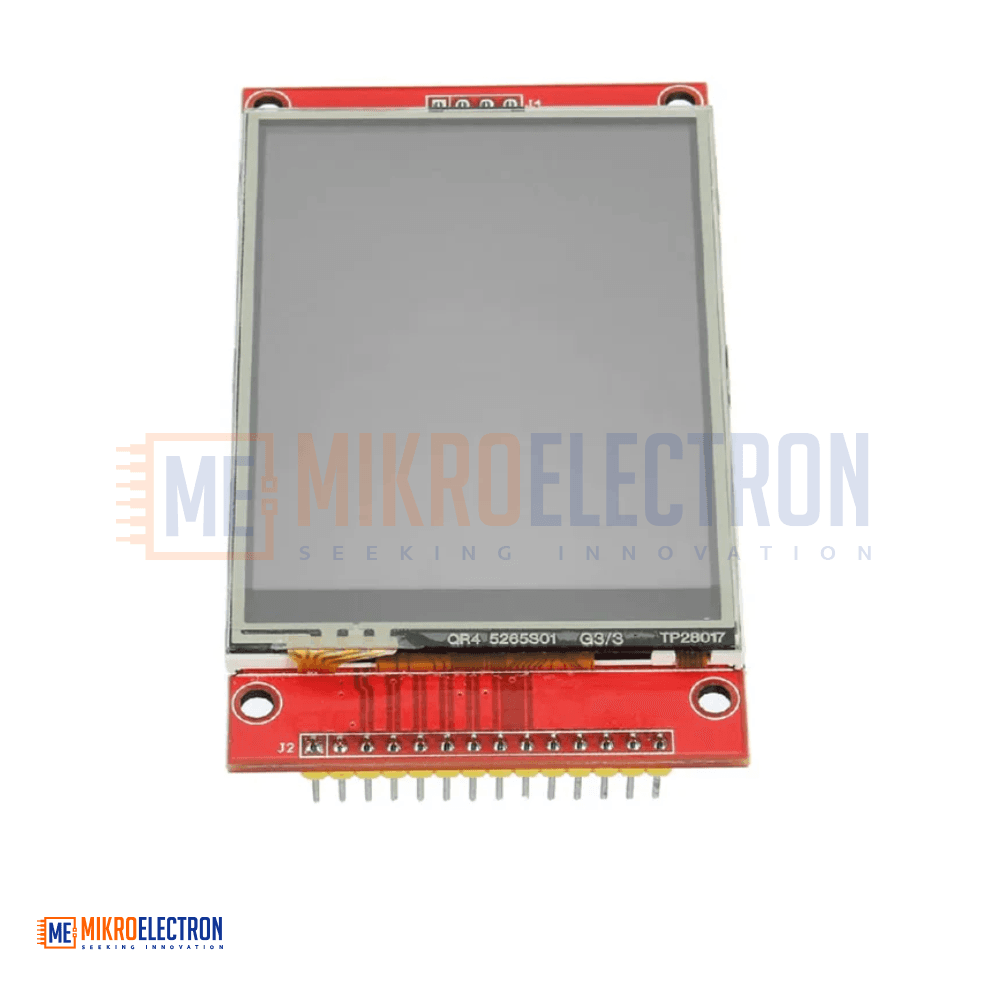

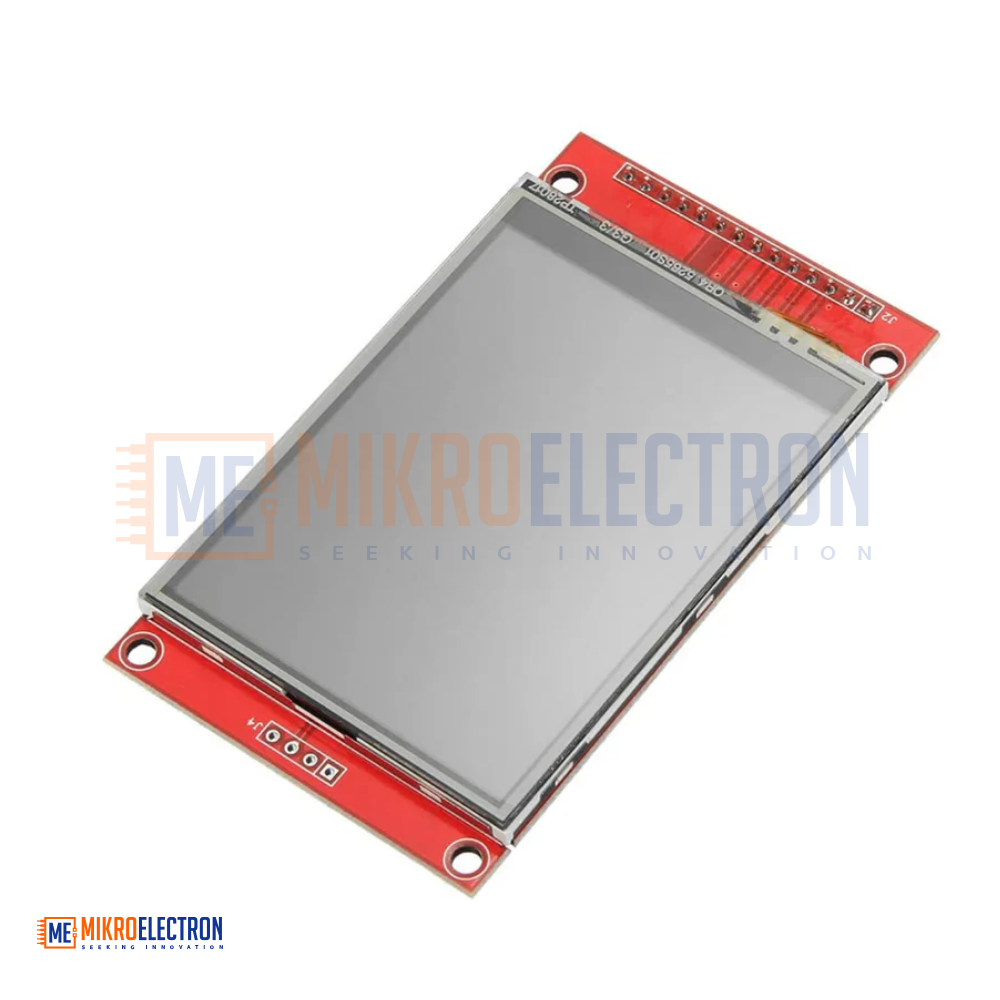

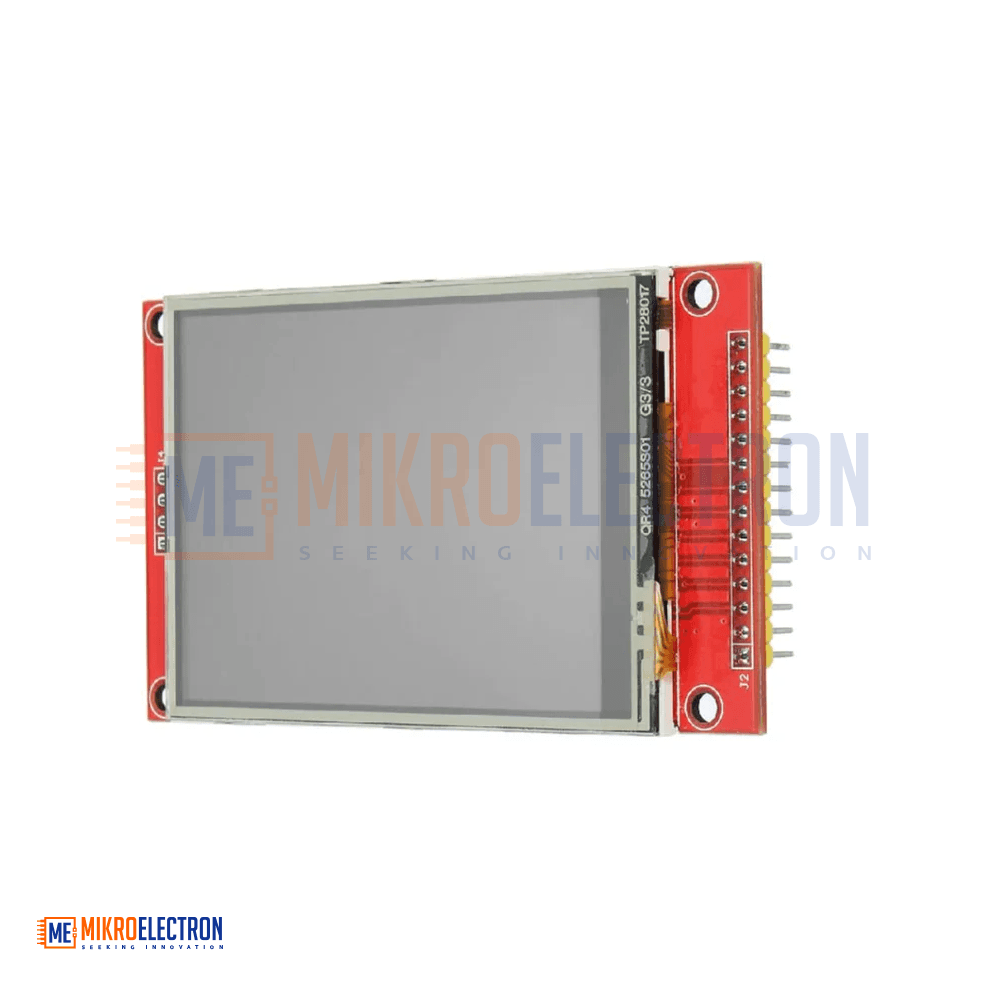

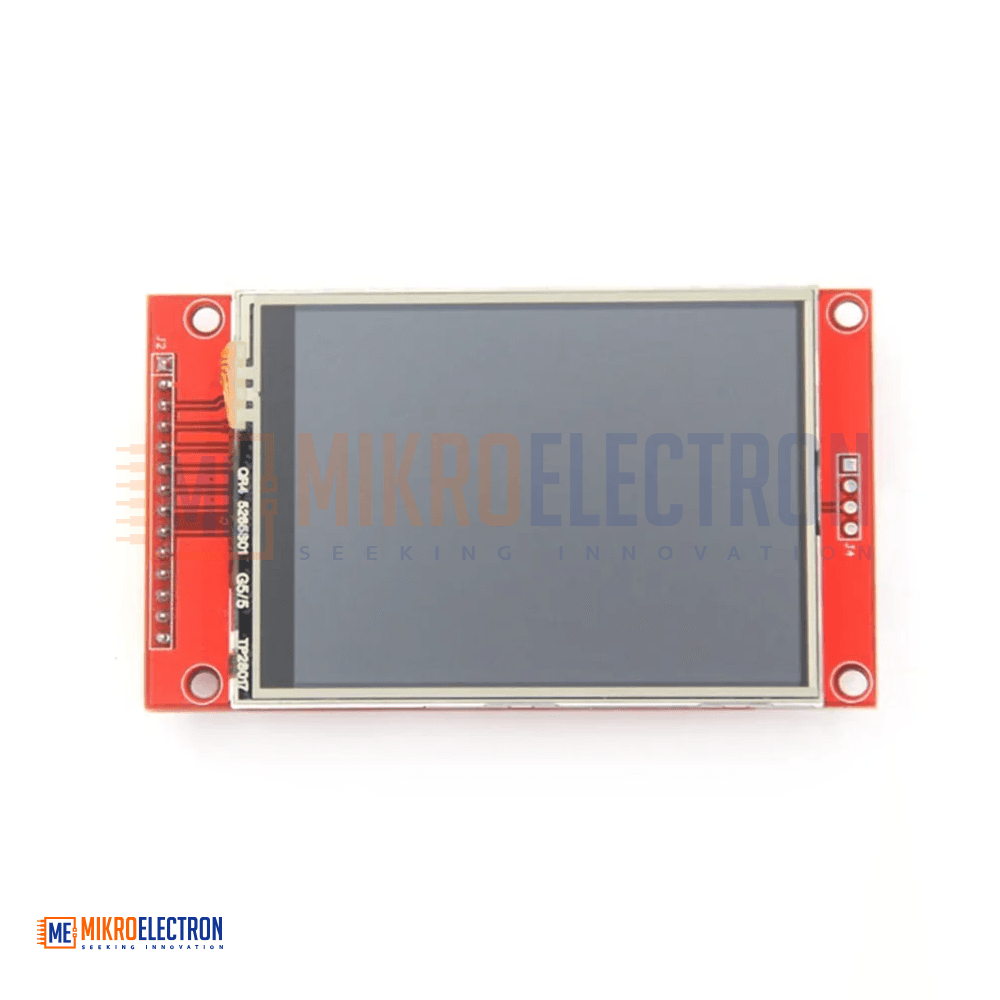

2.8" SPI TFT LCD Display Touch Panel 240X320 with PCB 5V/3.3V STM32
Out Of Stock
The 2.8" SPI TFT LCD Display with Touch Panel is a vibrant 240x320 resolution color screen powered by the ILI9341 driver IC. It supports both 3.3V and 5V logic, making it compatible with Arduino, STM32, Raspberry Pi, and similar microcontrollers. The integrated resistive touch panel and SPI interface require only 4 IO pins, simplifying wiring. Perfect for embedded GUIs, IoT dashboards, DIY electronics, and interactive control panels.
شاشة TFT LCD مقاس 2.8 إنش مع لوحة لمس وواجهة SPI هي شاشة ملونة بدقة 240×320 بكسل مدعومة بشريحة التحكم ILI9341. تعمل مع منطق 3.3 فولت و5 فولت، وتتوافق مع Arduino وSTM32 وRaspberry Pi وغيرها من المتحكمات. توفر لوحة اللمس المدمجة وواجهة SPI اتصالاً سهلاً يحتاج إلى 4 منافذ IO فقط. مثالية لواجهات المستخدم المدمجة، ولوحات IoT، والمشاريع التفاعلية الإلكترونية.
The 2.8" SPI TFT LCD Display with Touch Panel is a high-quality color display module designed for embedded systems and microcontroller-based projects. With a sharp 240 x 320 pixel resolution and a 262K color depth, it delivers crisp graphics and smooth visuals suitable for menus, dashboards, and graphical user interfaces.
The module is driven by the popular ILI9341 controller IC and communicates over the SPI serial interface, needing only 4 IO pins from your microcontroller. This makes it an ideal choice for pin-limited platforms such as Arduino UNO, Nano, Mega, STM32, ESP32, and Raspberry Pi. The onboard level-shifting circuitry allows the screen to work safely with both 3.3V and 5V logic, eliminating the need for external converters.
The integrated resistive touch panel adds interactive control to your project, while the white LED backlight ensures clear visibility even in bright environments. The display uses an a-Si TFT active matrix with RGB vertical stripe pixel arrangement, optimized for the 6 o'clock viewing direction.
Specifications
- Display Type: TFT LCD with Resistive Touch Panel
- Screen Size: 2.8 inch
- Resolution: 240 (RGB) x 320 pixels
- Driver IC: ILI9341
- Interface: SPI Serial (requires at least 4 MCU IO pins)
- Color Depth: 262K / 65K colors
- Driver Element: a-Si TFT Active Matrix
- Pixel Arrangement: RGB vertical stripe
- Backlight: White LED
- Viewing Direction: 6 o'clock
- Logic Voltage: 3.3V and 5V compatible
- Active Display Area: 36.72 (W) x 48.96 (H) mm

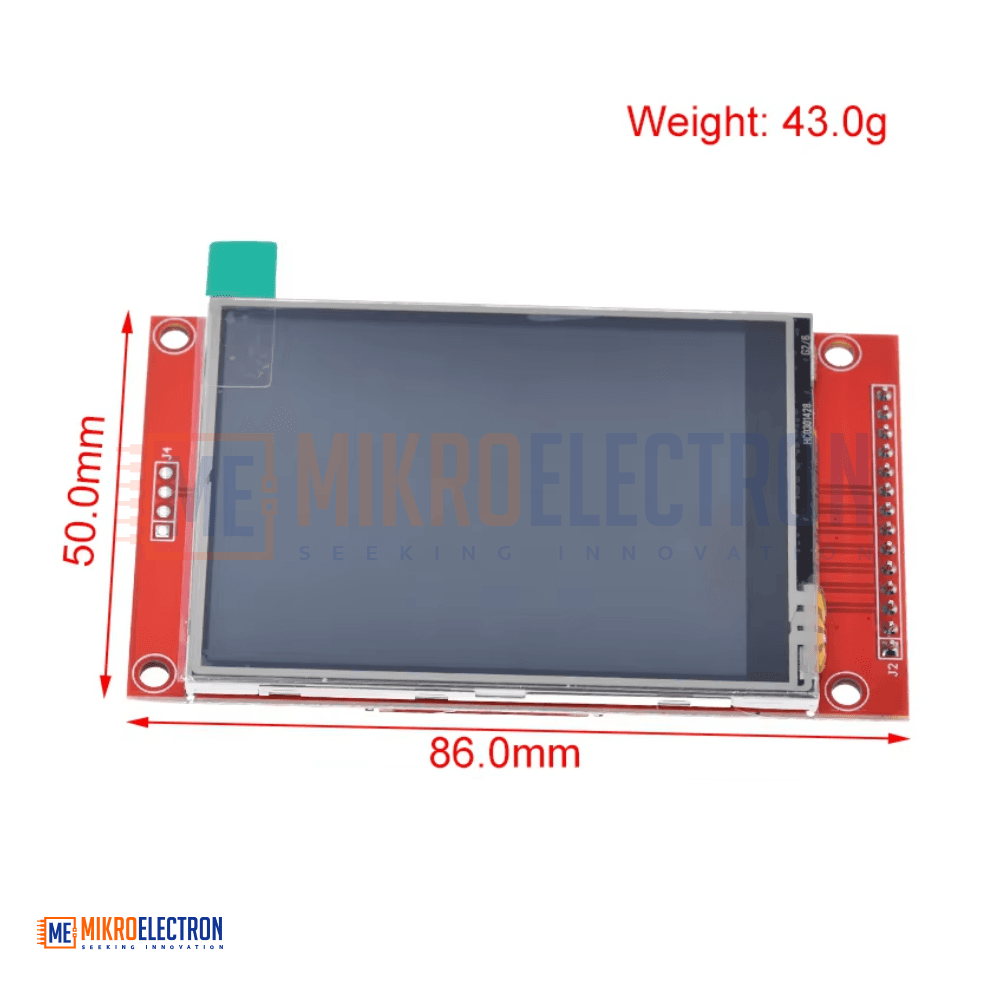

- Module Size: 8.5 x 4.8 cm

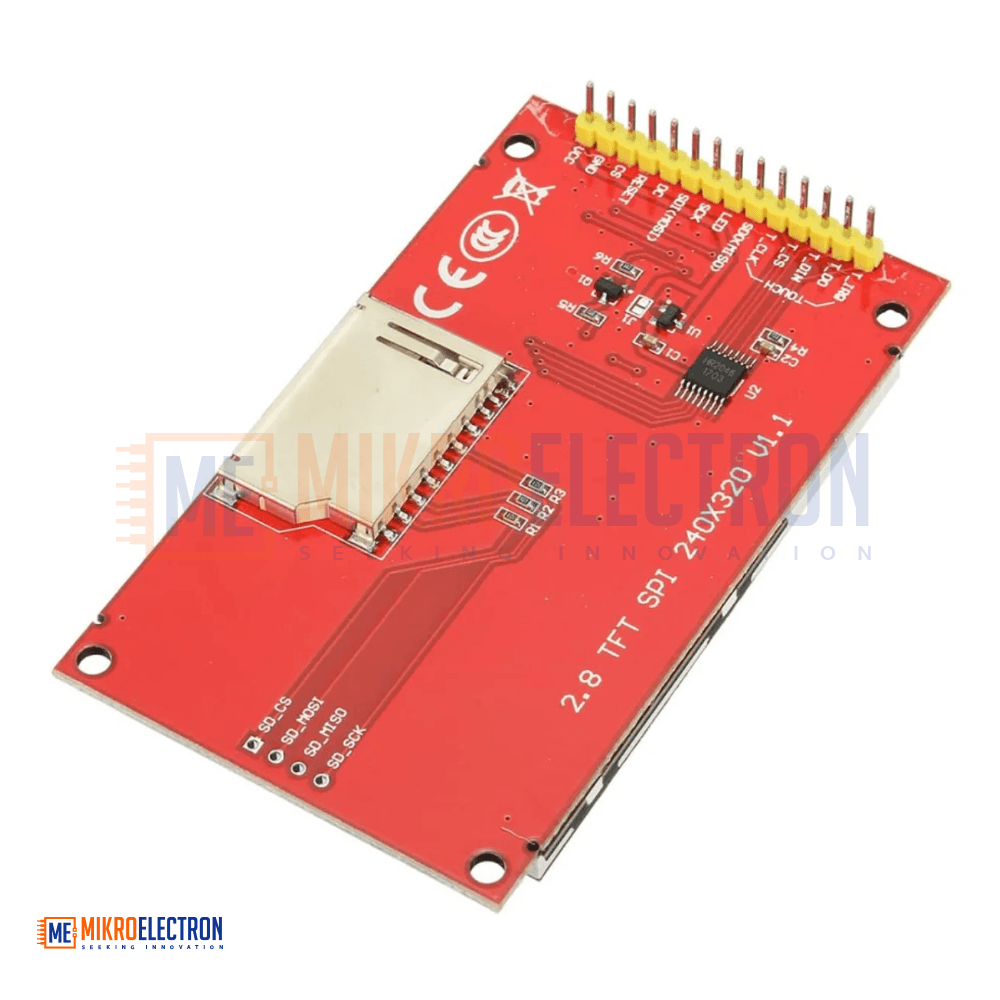

- PCB Adapter: Included for easy wiring and power regulation
Applications
- Embedded graphical user interfaces (GUIs)
- IoT dashboards and smart home control panels
- Arduino, STM32, and ESP32 display projects
- Raspberry Pi compact display add-ons
- Industrial HMI prototypes
- DIY game consoles and handheld devices
- Educational electronics and STEM kits
- Data visualization for sensors and instruments
- Interactive control panels with touch input
