24V 10A AC DC Adapter Power Supply
Out Of Stock
The 24V 10A AC to DC Power Supply is a professional switching adapter that converts AC 110V/220V into a stable 24V DC output with up to 10A of current and 240W of total power. Built with a durable metal housing and featuring an adjustable output voltage (±10%), it provides safe and reliable performance for LED strip lighting, CCTV cameras, and security systems. Certified by CCC, FCC, and CE, this universal regulated switching converter is a dependable choice for both professional installations and DIY projects.
مزوّد طاقة بنظام التبديل بجهد 24 فولت وتيار 10 أمبير يحوّل التيار المتردد 110/220 فولت إلى تيار مستمر مستقر بجهد 24 فولت وقدرة إجمالية تبلغ 240 واط. مصنوع بهيكل معدني متين مع إمكانية ضبط الجهد بنسبة ±10%، ويوفّر أداءً موثوقًا وآمنًا لتشغيل شرائط إضاءة LED وكاميرات المراقبة وأنظمة الأمان. حاصل على شهادات CCC وFCC وCE، مما يجعله خيارًا مثاليًا للمشاريع الاحترافية والشخصية على حدٍ سواء.
The 24V 10A AC to DC Power Supply Adapter is a high-performance switched-mode power supply (SMPS) designed to deliver clean, stable, and efficient DC power for a wide range of electronic, lighting, and security applications. It converts a selectable AC input of 110V or 220V (50/60Hz) into a precisely regulated 24V DC output capable of supplying up to 10 amperes of continuous current, with a total output power of 240W maximum.

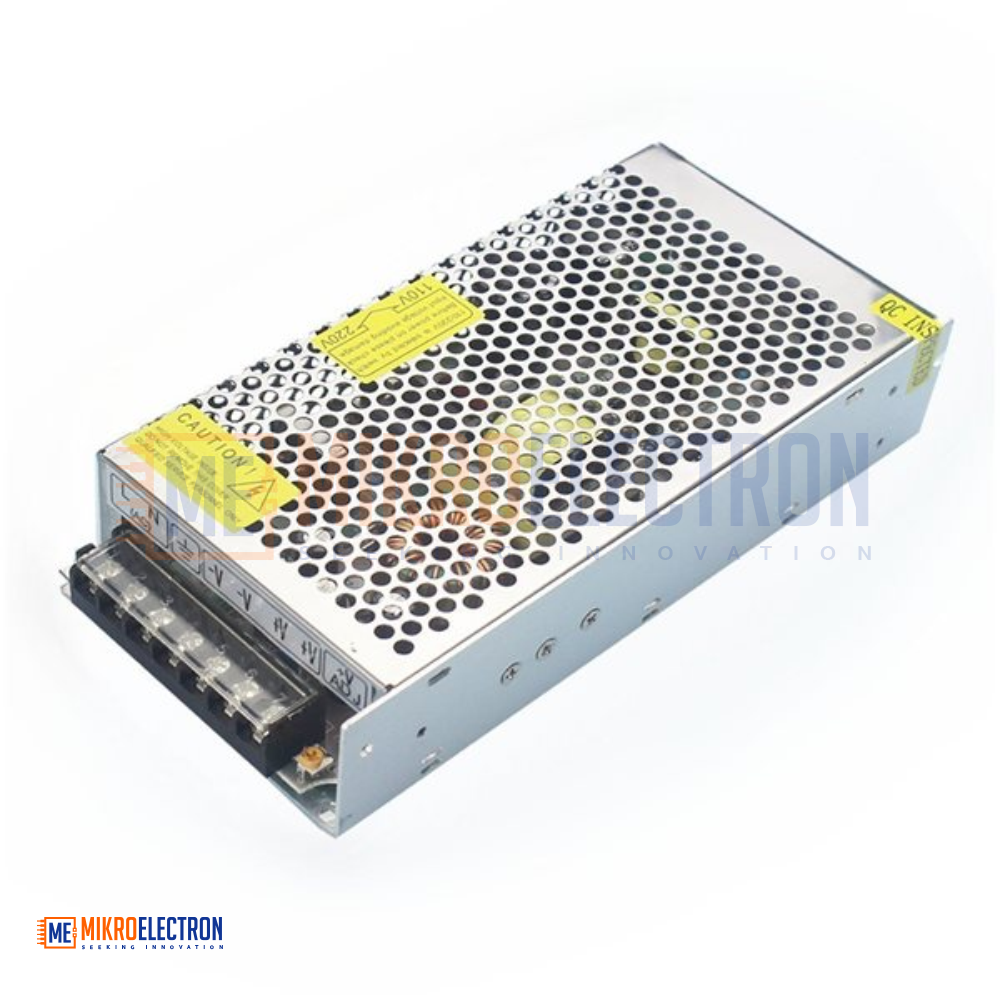

The unit is housed in a rugged metal enclosure that provides excellent mechanical protection and contributes to efficient thermal performance. A small +V ADJ potentiometer is included, allowing fine-tuning of the output voltage by approximately ±10% to match the exact requirements of sensitive devices.

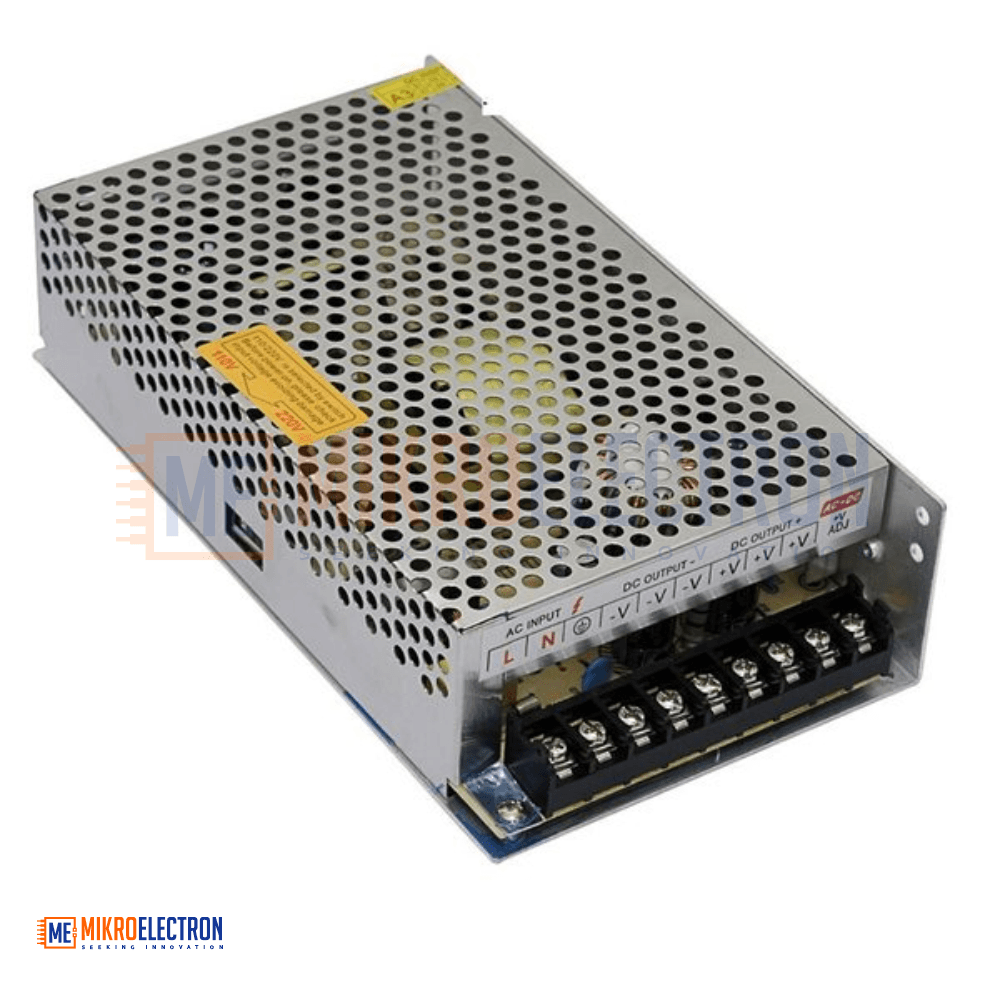

The terminal block offers clearly labeled connection points: L and N for AC power input, +V and -V for DC output, plus the +V ADJ for voltage adjustment, making wiring straightforward for any qualified installer. A voltage selector switch allows the user to choose between 110V (for USA and similar grids) and 220V (for most of Europe, Asia, and the Middle East) before powering the unit on.
This adapter is widely used to power LED strip lights, RGB modules, CCTV cameras, surveillance systems, 3D printers, automation controllers, and DC motors, offering the stability, safety, and durability required for both professional installations and home projects.
Important Safety Notes:
- High voltage inside the unit. Do not remove the cover during operation.
- The 110V/220V selector switch must be set correctly before powering the unit on to avoid permanent damage. Use 110V for the USA.
- The product does not include installation instructions, wiring cable, on/off switch, or mounting screws.
- Professional installation by a qualified electrician is highly recommended.
Specifications
- Brand / Model Reference: ALITOVE DC 24V 10A 240W
- Input Voltage: AC 110V / 220V (selectable via switch)
- Input Frequency: 50/60 Hz
- Output Voltage: DC 24V (adjustable ±10% via +V ADJ)
- Output Current: 10A
- Output Power: 240W maximum
- Fix Screw Hole Diameter: 2.5 mm (0.1 inch)
- Working Temperature: -10°C to +50°C
- Storage Temperature: -20°C to +60°C
- Environmental Humidity: 10% – 95%
- Material: Metal housing with electronic components
- Safety Compliance: CCC, FCC, CE
- Connection Terminals:
- L / N: AC power input
- +V: DC power output (positive)
- -V: DC power output (negative)
- +V ADJ: Output voltage adjustment (±10%)
Applications
- LED strip lighting (single-color and RGB)
- LED modules, panels, and signage
- CCTV cameras and surveillance systems
- Home and commercial security systems
- 3D printers (RepRap, Prusa-style builds)
- CNC machines and stepper motor drivers
- Industrial automation and control systems
- DC motors and pumps
- Advertising LED displays and light boxes
- Telecom and networking equipment
- DIY electronics and prototyping projects
