24V12v stepper motor drives the simple speed regulation and reverse rotation controller module PWM pulse signal generator
This 24V/12V stepper motor controller module generates PWM pulse signals for speed regulation and reverse rotation. Designed for simple motor control, it offers adjustable frequency, duty cycle, and direction switching, making it ideal for DIY automation, robotics, and motor testing.
وحدة تحكم المحرك الخطوي 24V/12V تقوم بتوليد إشارات PWM للتحكم في السرعة والاتجاه العكسي. مصممة للتحكم البسيط بالمحركات، وتوفر إمكانية ضبط التردد، دورة التشغيل، وتبديل الاتجاه، مما يجعلها مثالية لمشاريع الأتمتة DIY، الروبوتات، واختبارات المحركات.

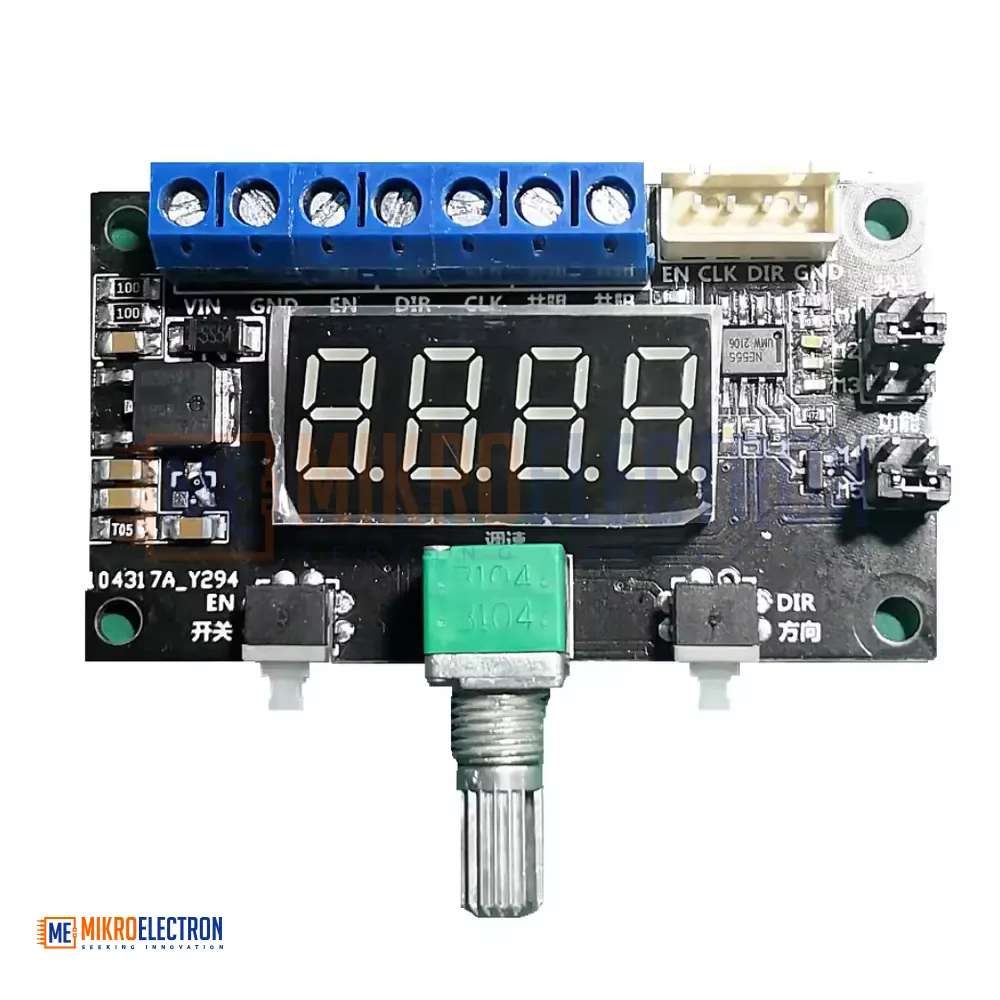

The Stepper Motor PWM Pulse Signal Generator Controller Module is a compact and efficient control solution for 12V and 24V stepper motors. It allows simple speed regulation, direction control, and stable operation using PWM signals, making it suitable for testing and automation projects.
Specifications:
Input Voltage: 12V / 24V DC
Control Signal: PWM pulse output
Adjustable Parameters: Frequency and duty cycle
Functions: Speed control, reverse rotation, start/stop
Output Type: Stepper motor pulse signal (for driver input)
1. This module is a pulse generation module that provides control signals to the stepper driver.
In order to control the stepper motor, a driver must be equipped.
2. This simple controller+stepper motor drive+stepper motor+DC power supply can form a simple control platform.
3. The controller has three low-frequency signals: high 5.4k-160khz, middle 540-16.6khz, and low 80-2.4khz, which can be used to select jumpers.
4. It can generate pulse signals or PWM signals, and can choose jumpers.
5. Measurement frequency: PUL and common cathode.
