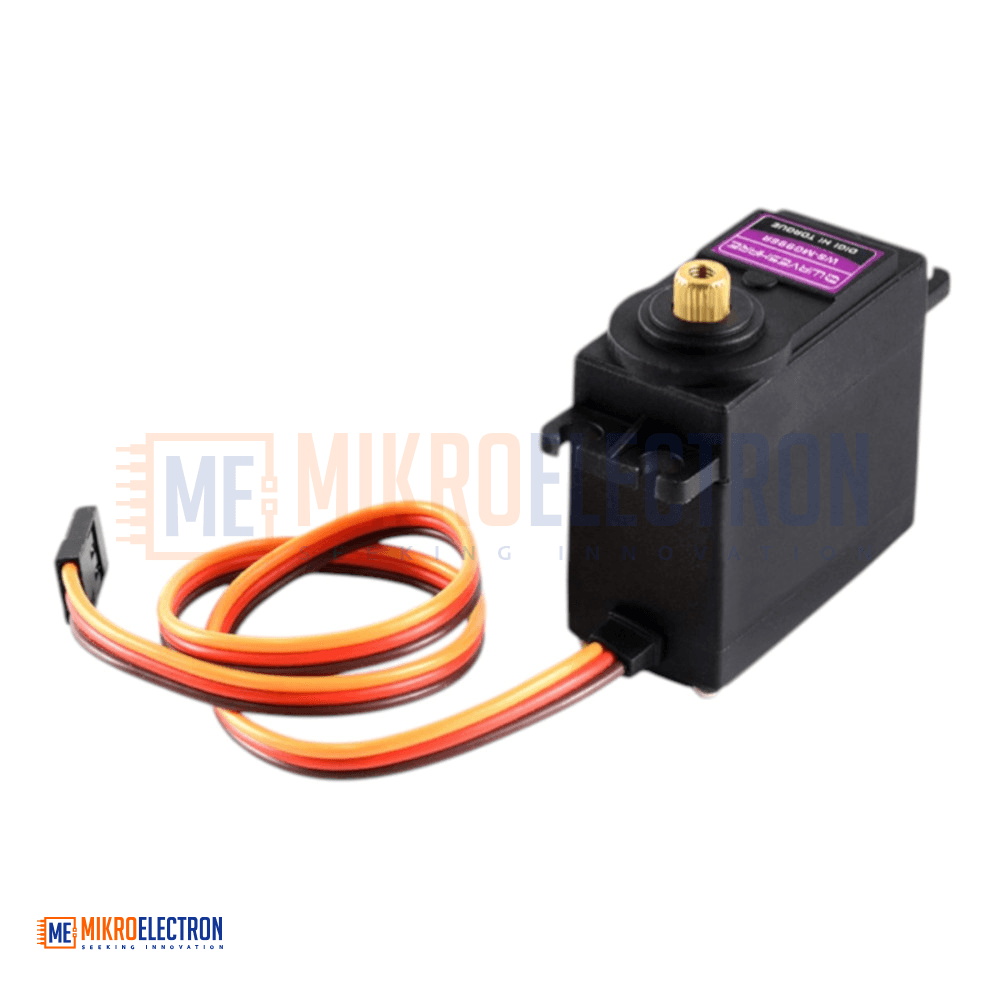

270 Degree servos MG996R
MG996R 270° Servo Motor is a high-torque servo designed for robotics, RC models, automation systems, and mechanical control applications. Featuring an extended 270-degree rotation range, all-metal gears, and dual ball bearings, it delivers excellent durability, precision, and smooth operation. Operating from 4.8V to 7.2V, the servo provides up to 15 kg·cm torque, making it suitable for demanding projects requiring strong and reliable motion control. Compatible with most standard RC receiver connectors, the MG996R is widely used in robotic arms, RC vehicles, boats, aircraft, and educational engineering projects.
محرك السيرفو MG996R بزاوية دوران 270 درجة هو سيرفو عالي العزم مصمم لتطبيقات الروبوتات والنماذج اللاسلكية وأنظمة التحكم الميكانيكية. يتميز بمدى دوران موسع يصل إلى 270 درجة مع تروس معدنية بالكامل ومحامل كروية مزدوجة لضمان المتانة والدقة وسلاسة الحركة. يعمل بجهد يتراوح بين 4.8 فولت و7.2 فولت ويوفر عزم دوران يصل إلى 15 كجم·سم، مما يجعله مناسبًا للمشاريع التي تتطلب قوة وتحكمًا موثوقًا. يتوافق مع معظم مستقبلات RC القياسية ويستخدم على نطاق واسع في الروبوتات والطائرات والسيارات والقوارب اللاسلكية.
The MG996R 270° Servo Motor is a powerful actuator designed for applications requiring high torque, extended rotational travel, and reliable performance. Unlike standard servos that typically operate within a 180° range, this version provides approximately 270 degrees of rotation, offering greater flexibility in mechanical design and motion control.
Built with all-metal gears, the servo delivers enhanced strength and wear resistance compared to plastic-gear alternatives. The inclusion of dual ball bearings improves rotational smoothness, reduces friction, and increases operational lifespan.
The servo operates within a voltage range of 4.8V to 7.2V, producing up to 15 kg·cm stall torque at 6V. Its fast response time and high torque make it suitable for robotics, RC vehicles, automation systems, pan-tilt mechanisms, and industrial prototypes.

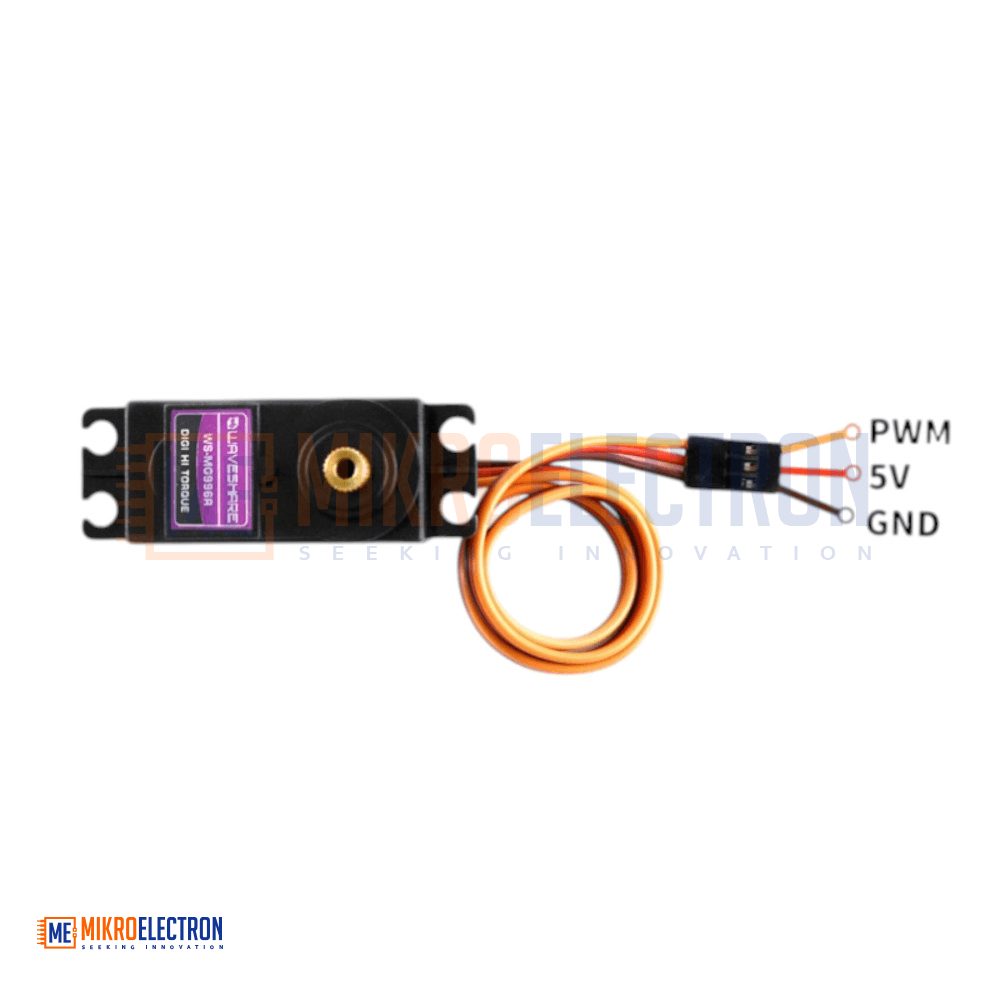

Compatible with most standard RC receiver connectors, the MG996R can be controlled directly from RC transmitters, servo controllers, microcontrollers such as Arduino, and various embedded control systems.
Specifications
| Specification | Details |
|---|---|
| Model | MG996R |
| Rotation Range | 270° |
| Servo Type | High-Torque Servo |
| Weight | 55 g |

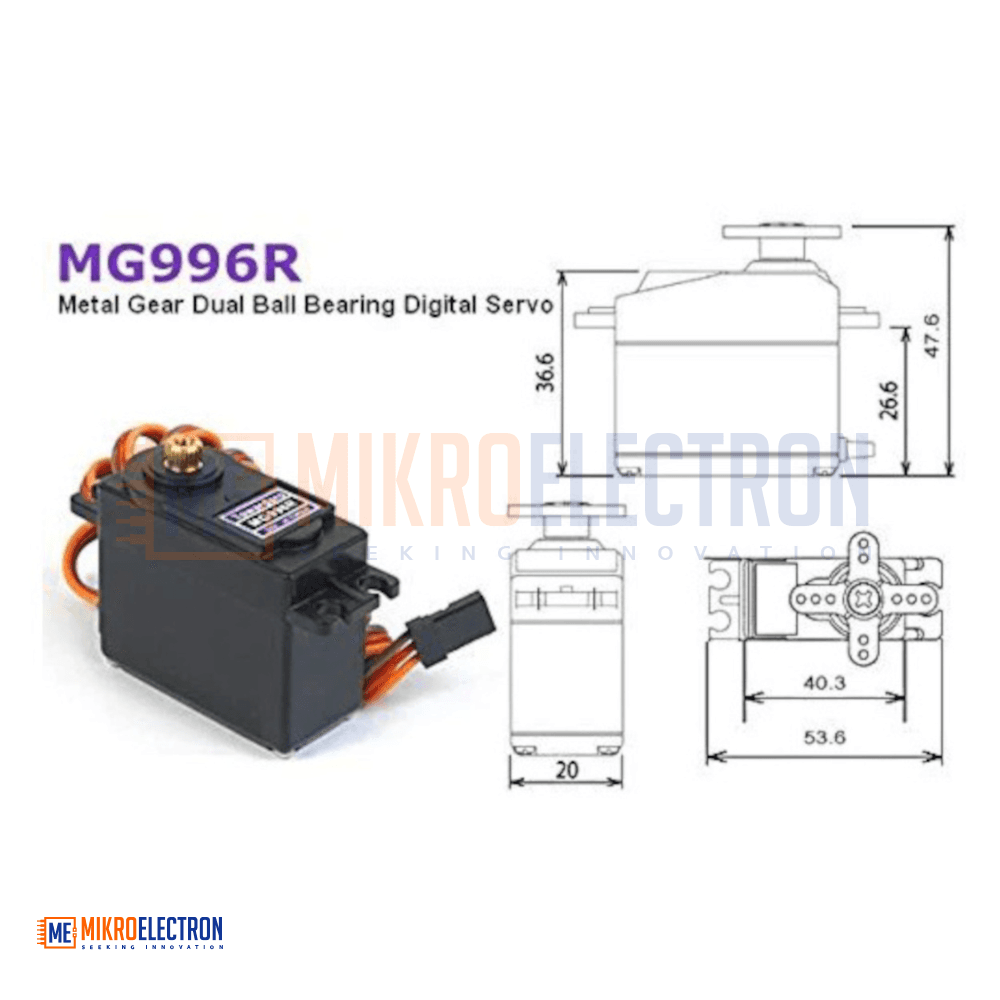

| Dimensions | 40 × 19 × 43 mm |
| Operating Voltage | 4.8V – 7.2V DC |
| Gear Material | Full Metal Gears |
| Bearing Type | Dual Ball Bearings |
| Connector Wire Length | 30 cm (11.81 in) |
| Speed @ 4.8V | 0.17 sec / 60° (No Load) |
| Speed @ 6.0V | 0.13 sec / 60° (No Load) |
| Torque @ 4.8V | 13 kg·cm |
| Torque @ 6.0V | 15 kg·cm |
| Control Signal | Standard PWM Servo Signal |
| Connector Compatibility | Standard RC Receiver Connectors |
Applications
- Robotic arms and manipulators
- Humanoid robots
- RC cars and trucks
- RC boats and ships
- RC airplanes
- RC helicopters
- Pan-tilt camera systems
- Automation and control systems
- Educational robotics projects
- Mechanical positioning systems
- DIY engineering projects
- Smart actuator applications
- Industrial prototypes
- Motion control mechanisms
