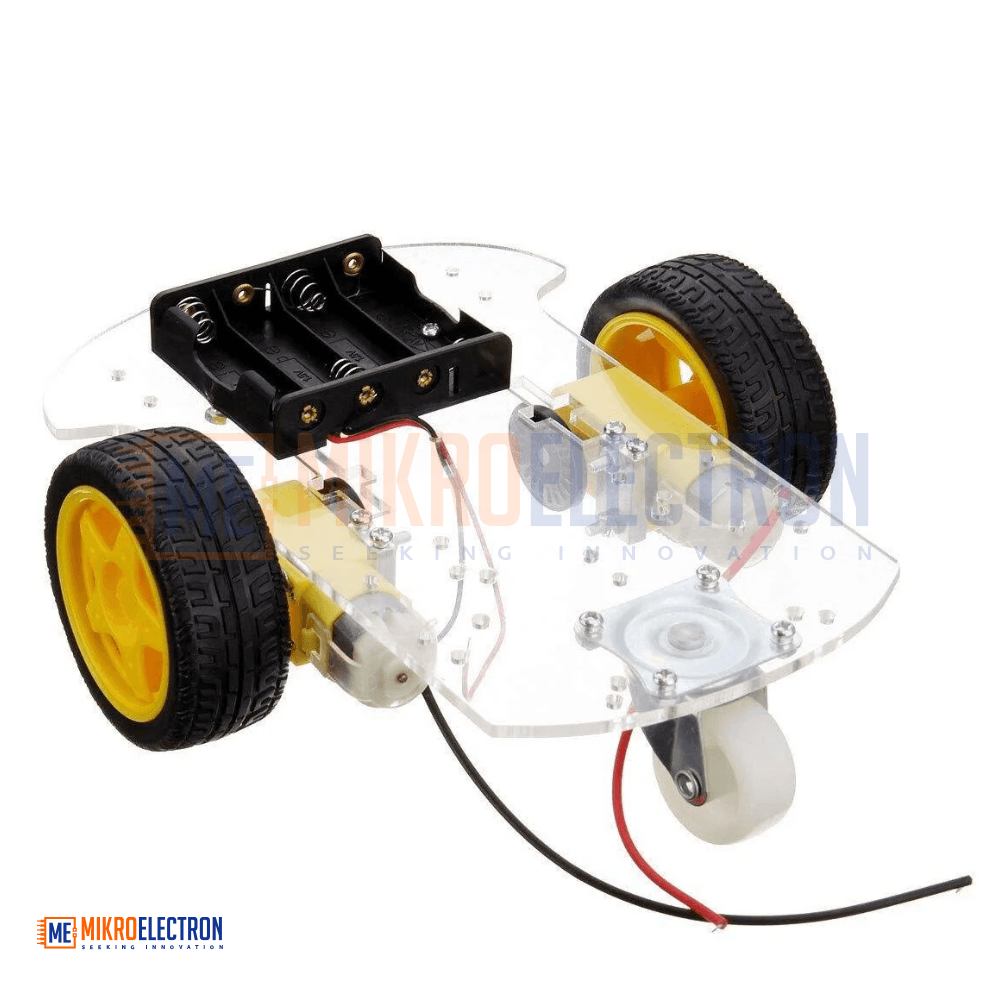

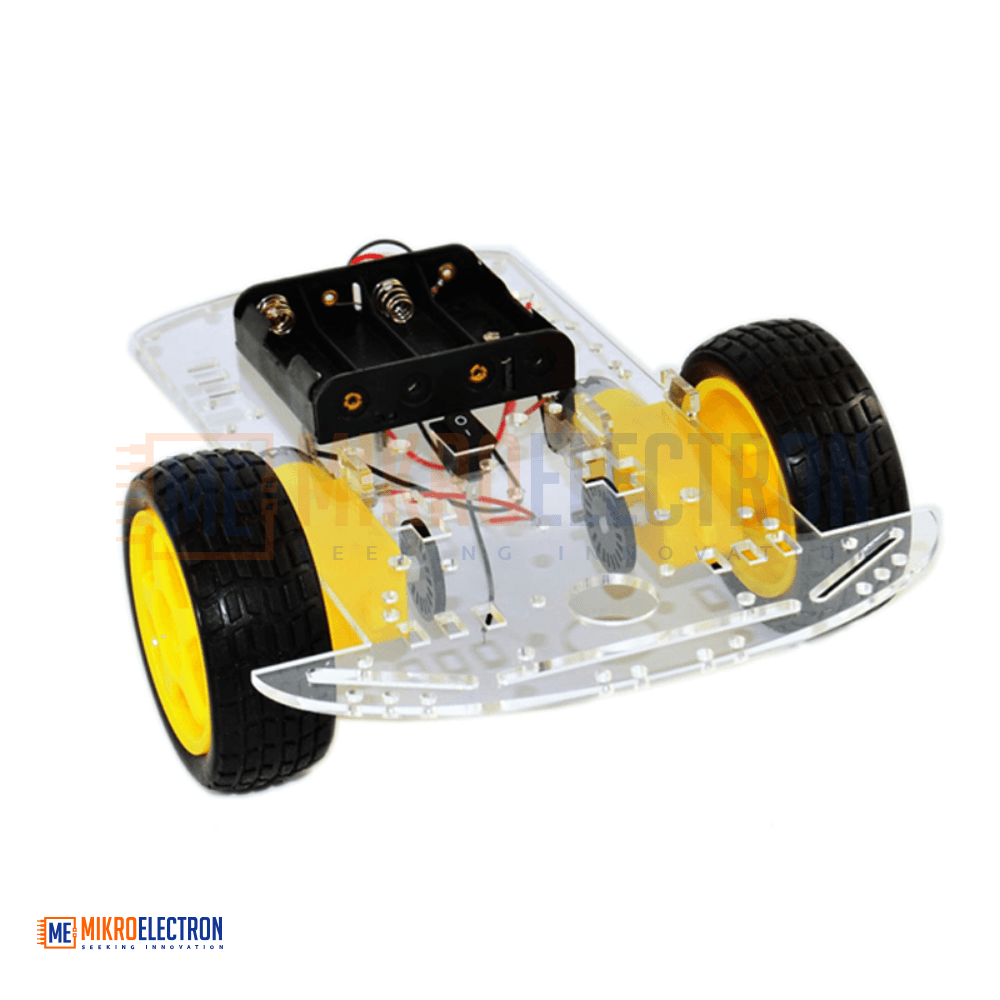

2WD Smart Robot Car Chassis (v2)
The 2WD Smart Robot Car Chassis (V2) is a versatile robotic platform designed for Arduino, robotics, and educational projects. Featuring two 1:48 DC gear motors, encoder wheels, universal caster wheel, and a battery holder, it provides stable movement and easy assembly. The chassis supports applications such as line tracking, obstacle avoidance, speed measurement, and wireless remote control. Its lightweight transparent acrylic structure makes it ideal for DIY robotics learning and automation experiments.
هيكل 2WD Smart Robot Car Chassis (V2) هو منصة روبوت تعليمية وعملية مخصصة لمشاريع الأردوينو والروبوتات. يحتوي على محركين تروس DC بنسبة 1:48 مع عجلات ترميز Encoder وعجلة حرة وصندوق بطاريات، مما يوفر حركة مستقرة وسهولة في التركيب. يدعم تطبيقات تتبع الخطوط، تجنب العوائق، قياس السرعة، والتحكم اللاسلكي. يتميز بهيكل أكريليك شفاف وخفيف الوزن مناسب للتجارب التعليمية ومشاريع الروبوتات الذكية.
The 2WD Smart Robot Car Chassis (V2) is a compact and easy-to-assemble robotic vehicle platform developed for educational robotics, automation projects, and DIY electronics applications. The chassis features a simple mechanical structure that allows quick installation and flexible hardware integration.

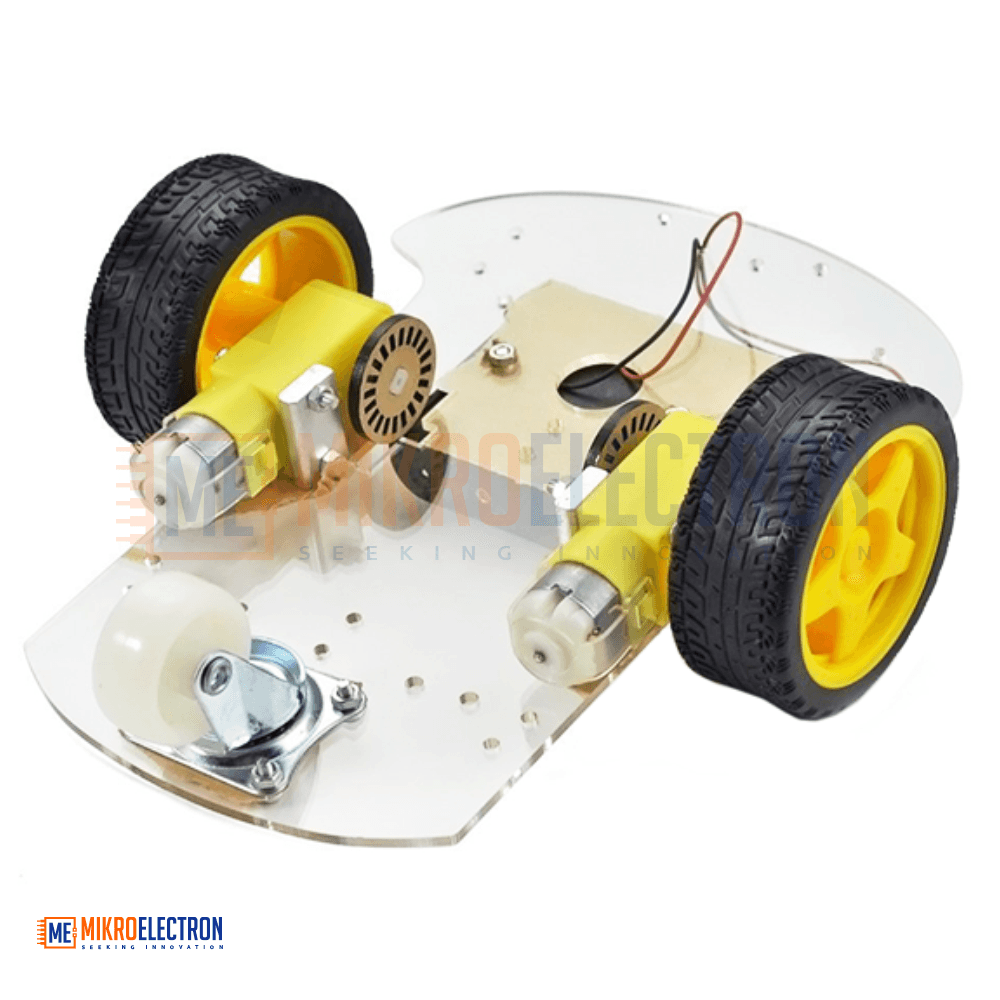

Equipped with two DC gear motors with 1:48 reduction ratio, the platform delivers stable movement and reliable torque for various robotics applications. Included encoder code wheels enable speed measurement and distance tracking, making the chassis suitable for intelligent motion control projects.

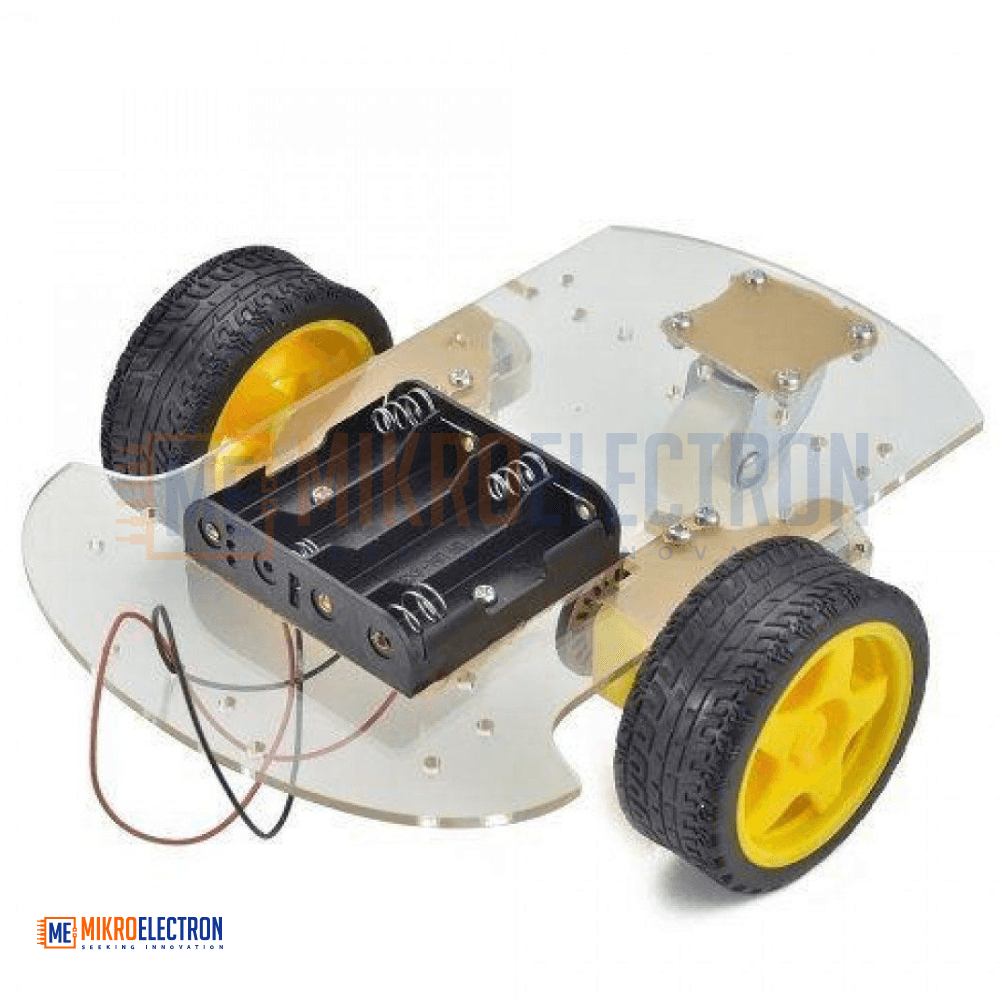

The kit also includes a universal caster wheel, transparent acrylic chassis plate, battery holder for four AA batteries, mounting hardware, and a screwdriver for assembly convenience. The chassis can be combined with sensors and controllers to create robots capable of line following, obstacle avoidance, wireless control, and autonomous navigation.
Its lightweight design and compatibility with Arduino and other microcontroller platforms make it an excellent choice for students, hobbyists, and robotics enthusiasts.
Specifications
- Product Type: 2WD Smart Robot Car Chassis Kit
- Version: V2
- Drive System: 2-Wheel Drive (2WD)
- Chassis Material: Transparent acrylic
- Gear Motor Ratio: 1:48
- Motor Voltage Range: 3V – 6V DC
- Universal Wheel: Included
- Battery Holder: 4 × AA Battery Box

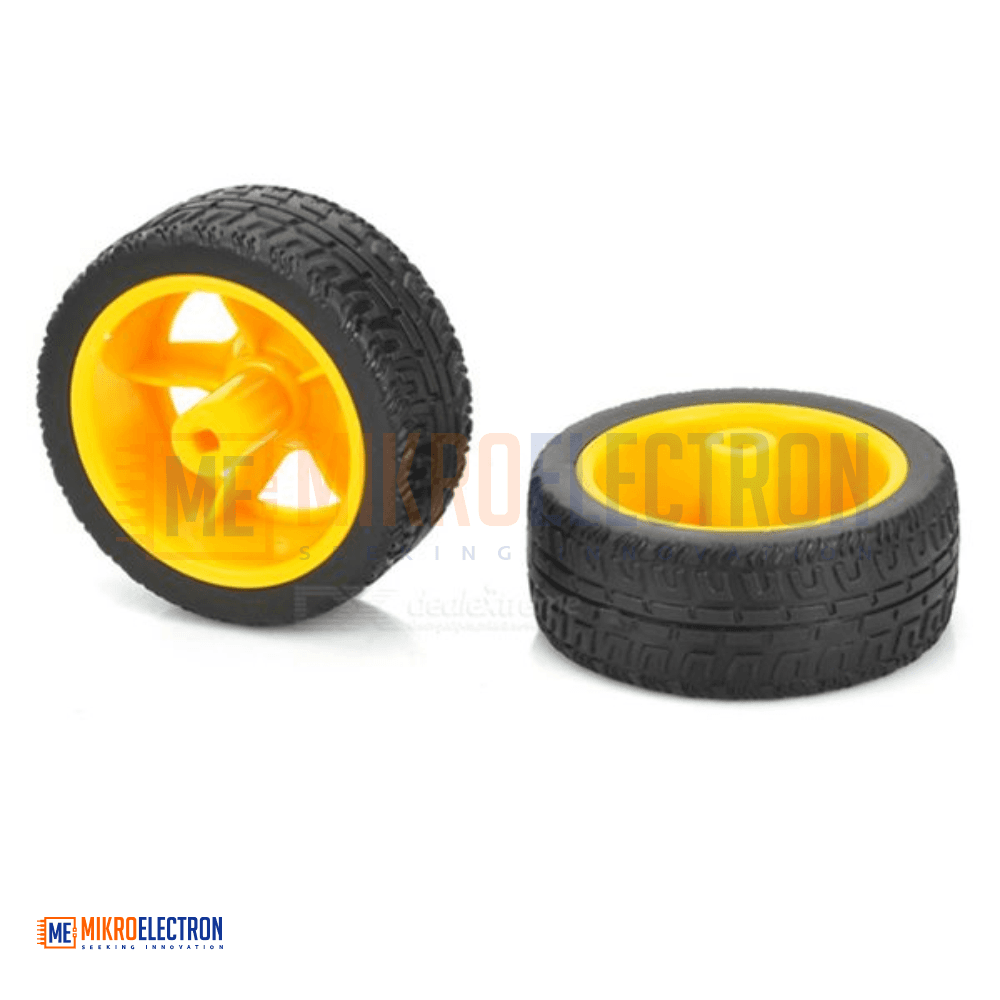

- Wheel Size: 7 × 7 × 2.6cm
- Chassis Size: 19.7 × 12.5cm
- Noise Level: ≤ 65dB
Motor Specifications
@ DC 3V
- Current: 160mA
- No-load Speed: 120 RPM
- Load Speed: 100 RPM
- Torque: 0.45 kg.cm
@ DC 6V
- Current: 220mA
- No-load Speed: 200 RPM
- Load Speed: 175 RPM
- Torque: 1.0 kg.cm
@ DC 7.2V
- Current: 250mA
- No-load Speed: 250 RPM
- Load Speed: 210 RPM
- Torque: 1.5 kg.cm
Motor Dimensions
- Size: 65 × 18 × 22mm

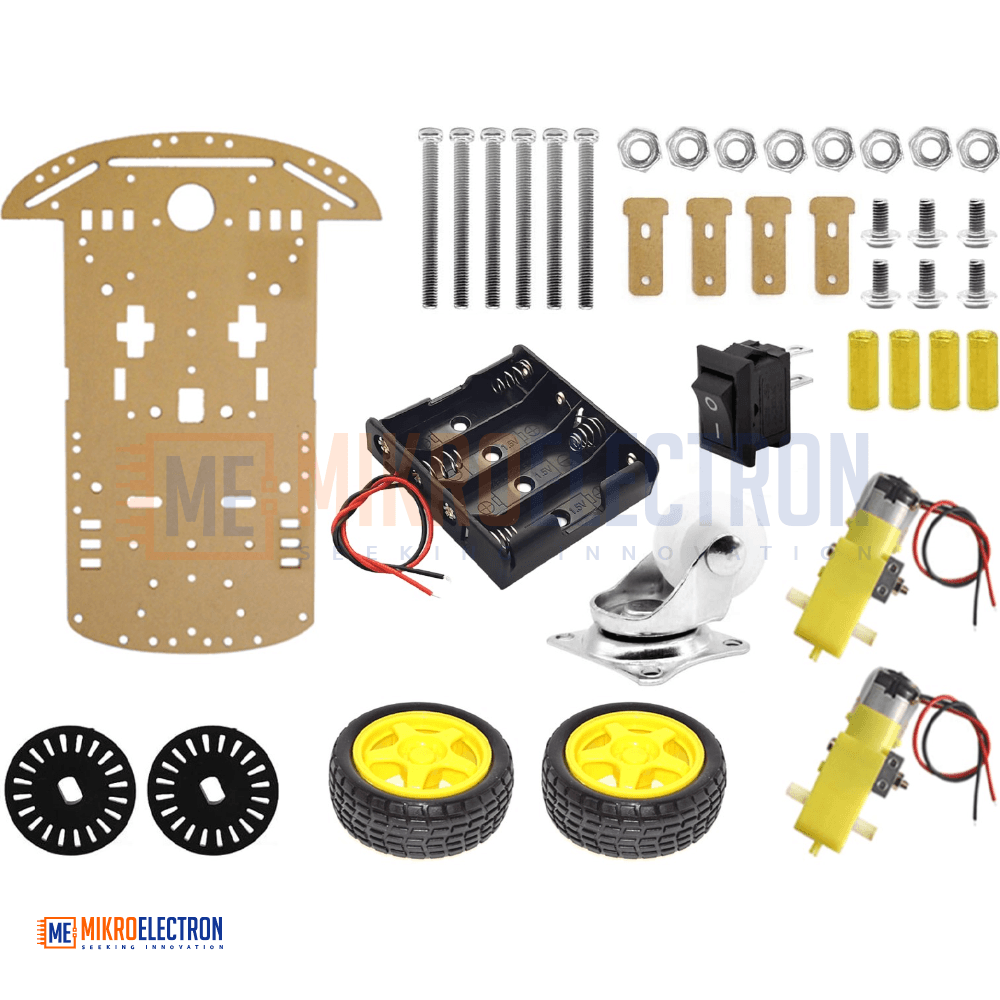

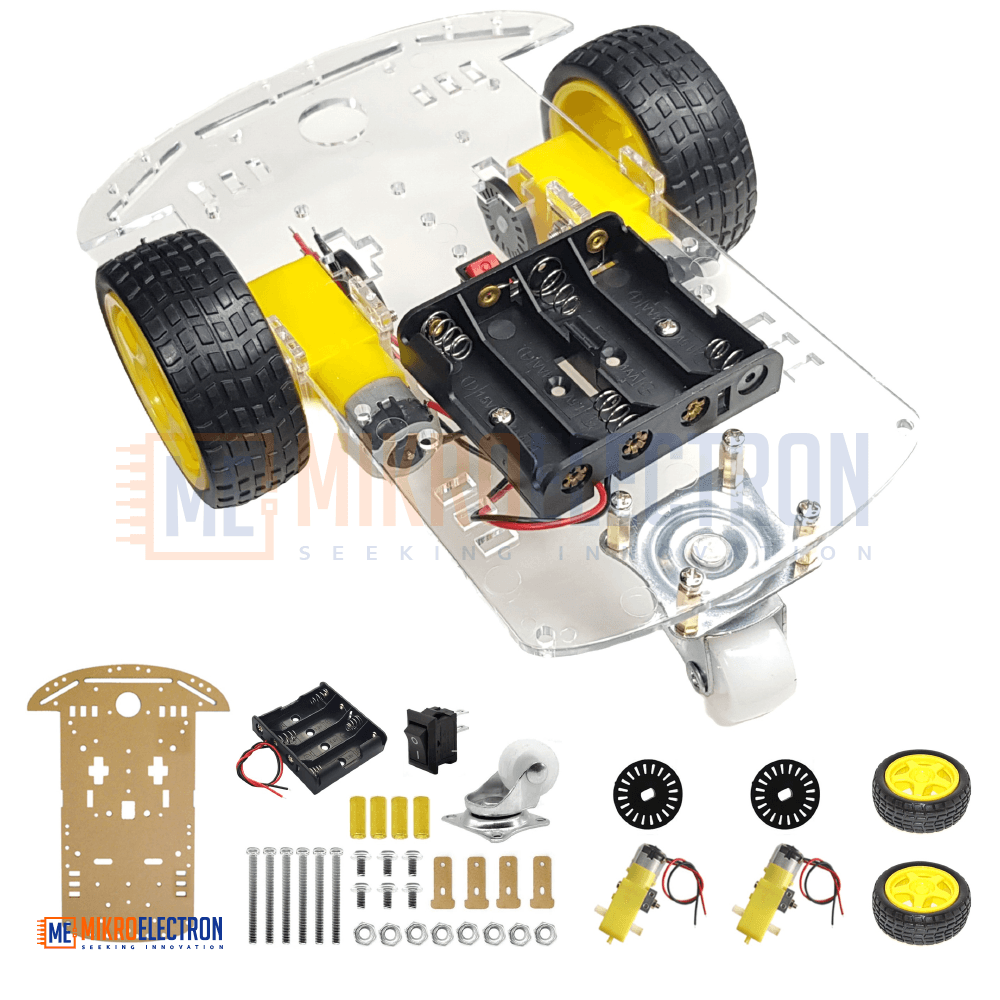

Package Includes
- 1 × Car Chassis
- 2 × DC Gear Motors (1:48)
- 2 × Car Tires
- 2 × Encoder Code Wheels
- 1 × Universal Wheel
- 1 × Battery Holder
- Screws and Nuts Set
- 1 × Screwdriver
- Metal mounting joints
Applications
- Arduino robotics projects
- Line follower robots
- Obstacle avoidance robots
- Wireless remote-control vehicles
- Educational STEM learning
- Speed and distance measurement experiments
- Autonomous navigation projects
- DIY smart car development
