500W 0-110v DC Power Supply Speed Control 6A Mach3 for 220V 110V 0.5KWER11 CNC Spindle

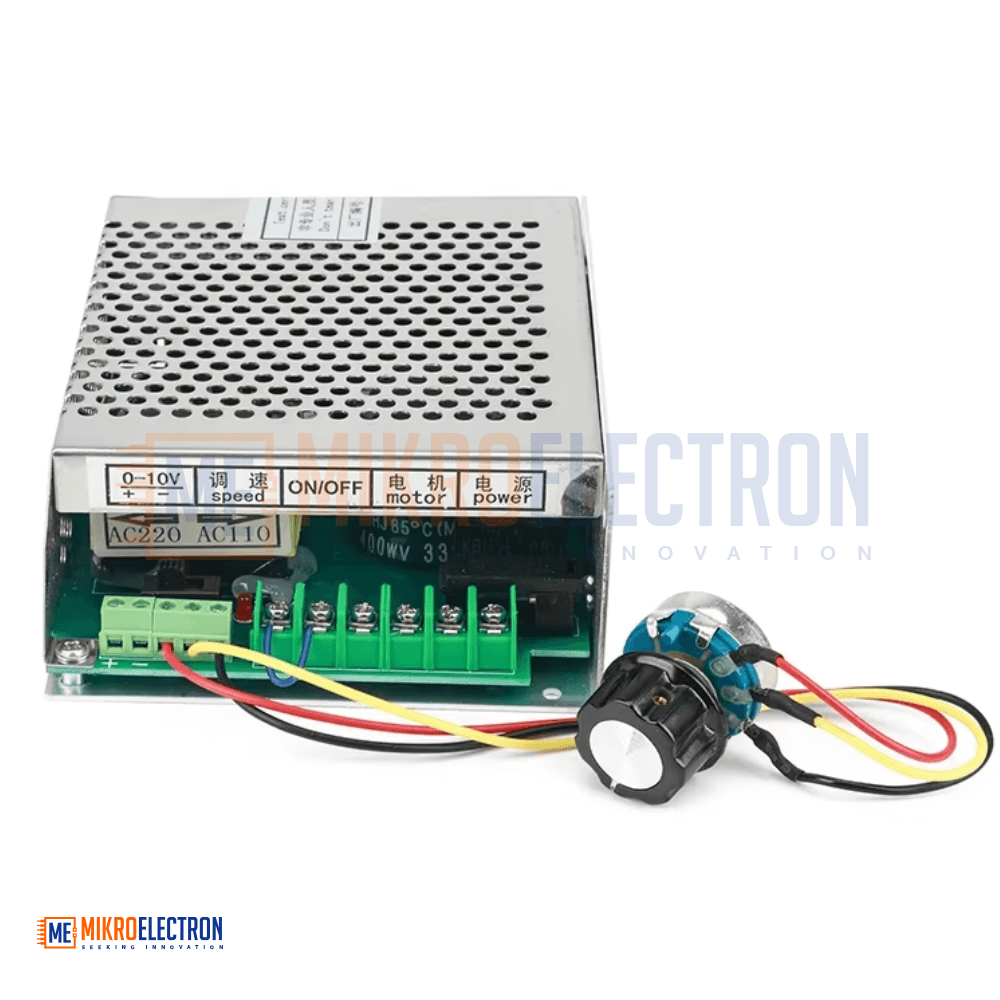

The 500W CNC Spindle Power Supply with Speed Controller is a compact, all-in-one driver designed to power and regulate 0.5KW ER11 CNC spindle motors. It accepts AC 220V or 110V input and delivers a smooth 0–100V DC output at up to 6A. With a built-in speed governor, ON/OFF switch, and 0–10V external control input, it is fully Mach3 compatible and protected against overload and short circuits for reliable workshop use.
مزود طاقة لمحرك سبندل CNC بقدرة 500 واط مع متحكم بالسرعة، حل متكامل وصغير الحجم لتشغيل وتنظيم محركات السبندل من نوع ER11 بقدرة 0.5 كيلوواط. يعمل بدخل تيار متردد 220 فولت أو 110 فولت، ويوفر خرج تيار مستمر سلس بين 0 و100 فولت وبتيار يصل إلى 6 أمبير. يحتوي على منظم سرعة، مفتاح تشغيل/إيقاف، ومدخل تحكم خارجي 0–10 فولت، ومتوافق بالكامل مع Mach3، مع حماية من الحمل الزائد ودوائر القصر.
The 500W CNC Spindle Power Supply is purpose-built for hobbyists, makers, and small workshops running 0.5KW ER11 spindle motors on desktop CNC routers and engraving machines. Instead of needing a separate transformer, rectifier, and speed controller, this unit combines all three into a single compact aluminum enclosure, making wiring and installation straightforward.

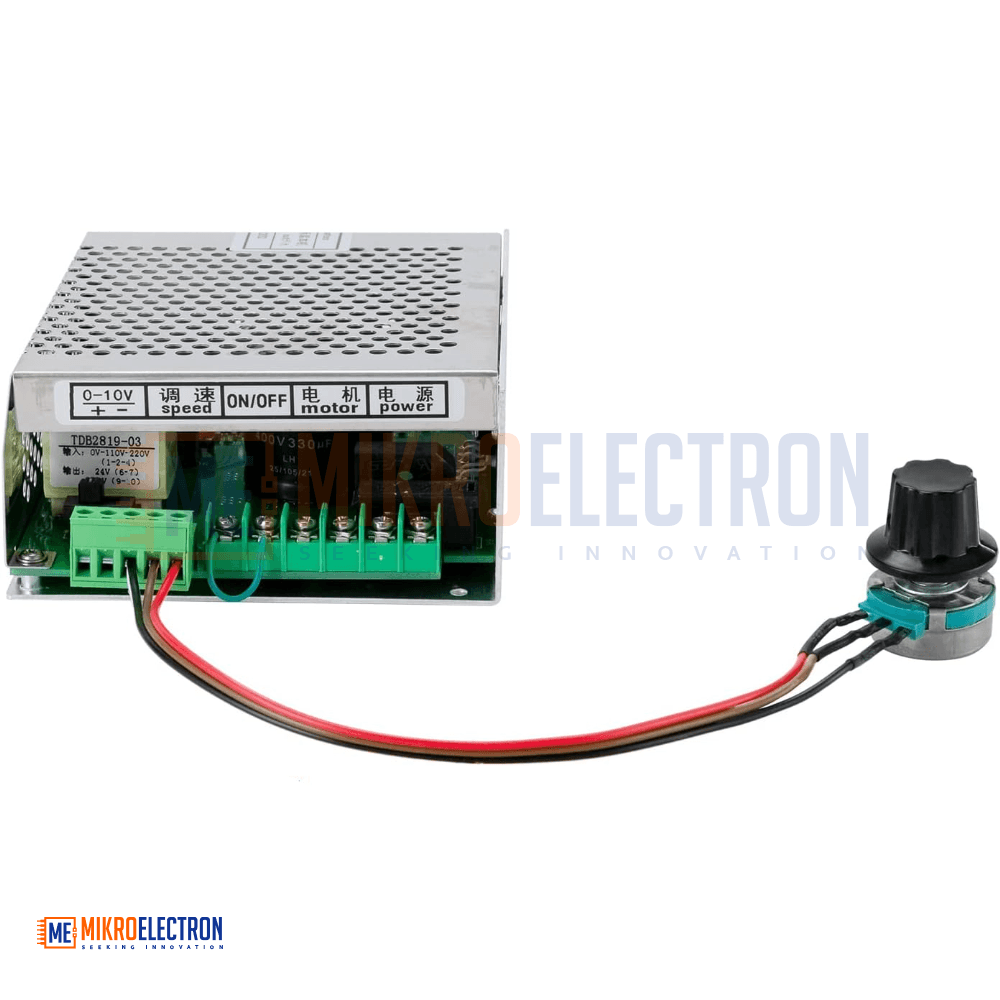

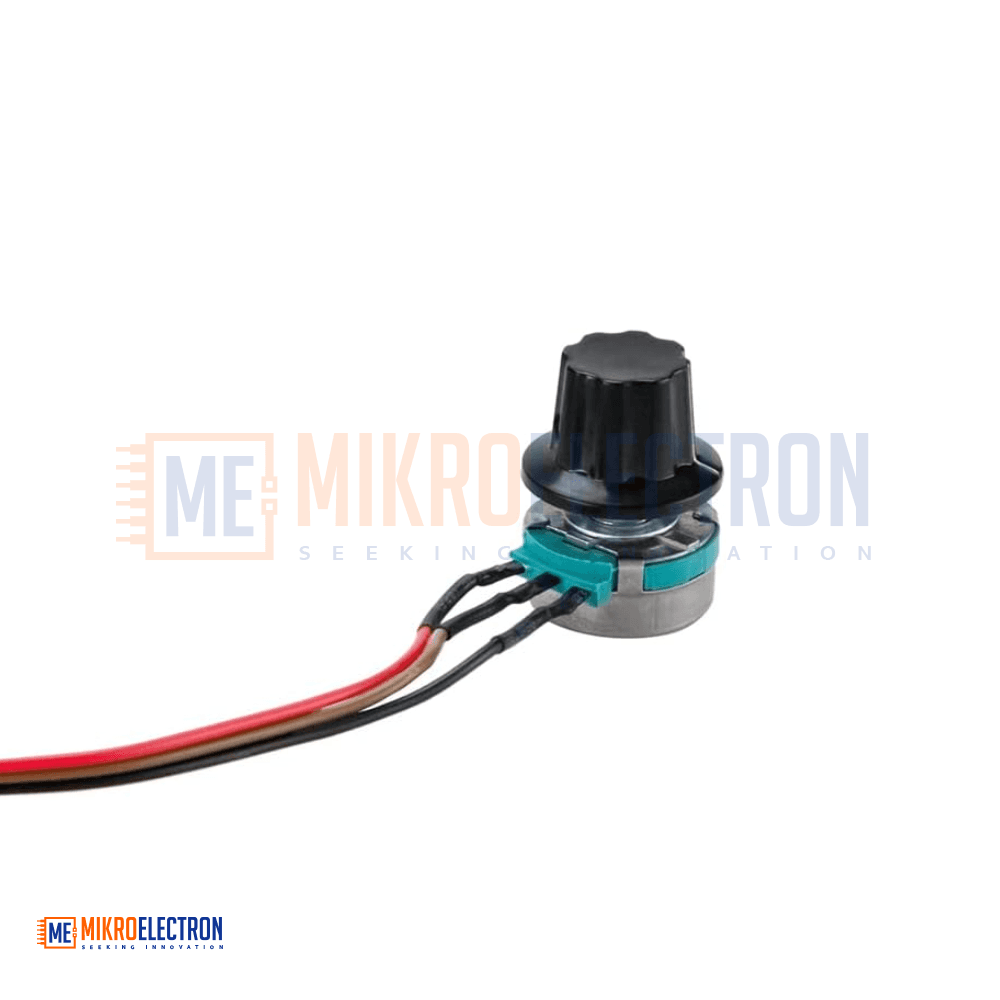

Power input is switchable between AC 220V and AC 110V, allowing the unit to be used across different mains standards — just make sure the input selector is set correctly before powering on. The output is a clean 0–100V DC at up to 6A, with spindle speed adjustable either by the onboard potentiometer or remotely via the 0–10V analog input, which is the standard interface used by Mach3, GRBL break-out boards, and most CNC controllers.
A dedicated ON/OFF terminal lets the controller start and stop the spindle automatically from G-code, while built-in overload and short-circuit protection safeguards both the spindle motor and the supply itself during long cutting sessions.

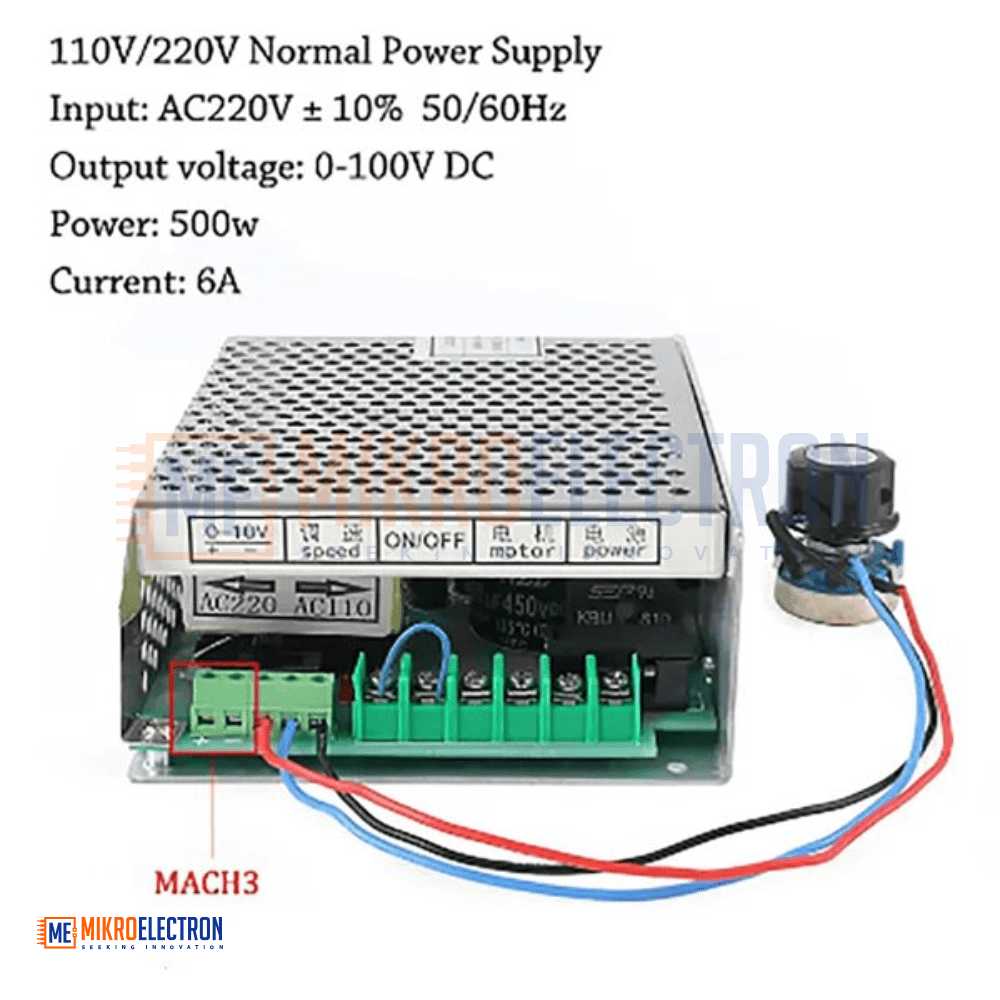

Specifications
- Model use: 0.5KW ER11 CNC Spindle Driver
- Input voltage: AC 220V ±10% (default) — switchable to AC 110V
- Input frequency: 50/60 Hz
- Output voltage: 0–100V DC (adjustable)
- Maximum output current: 6A
- Rated power: 500W
- Speed control input: 0–10V analog

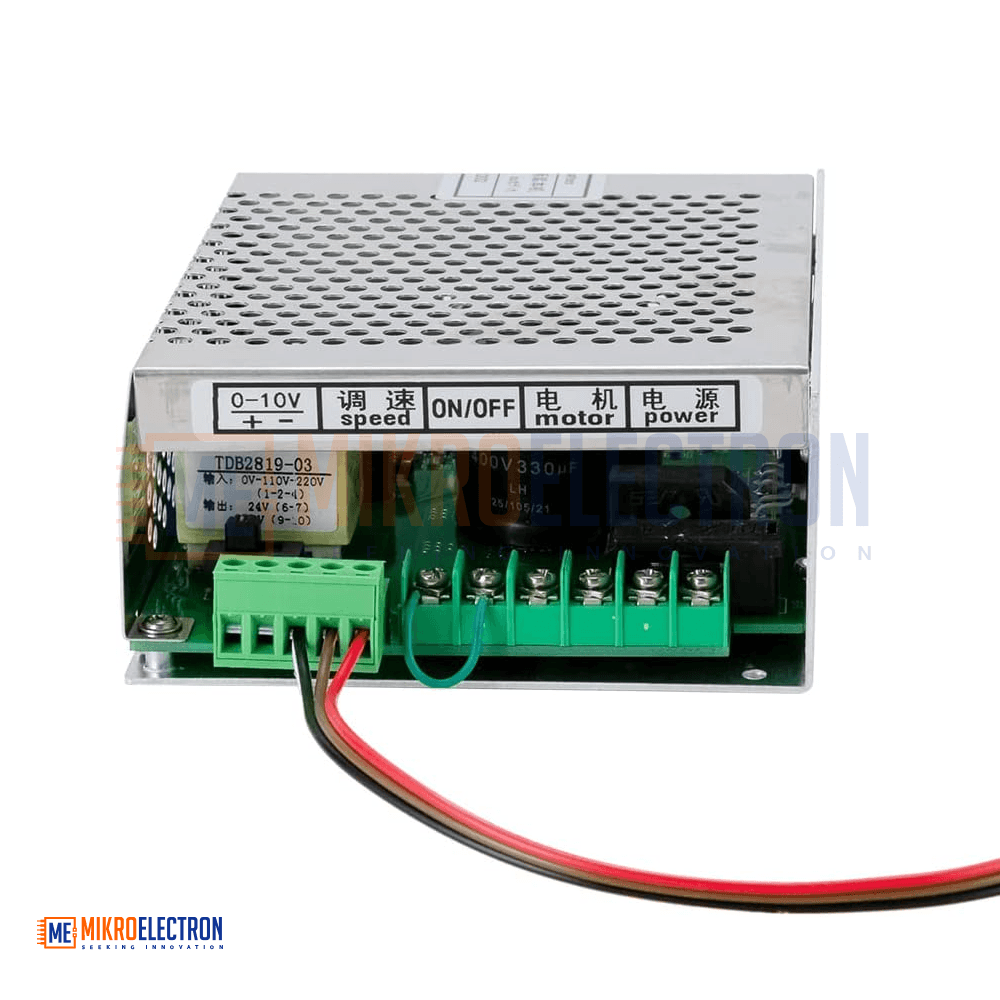

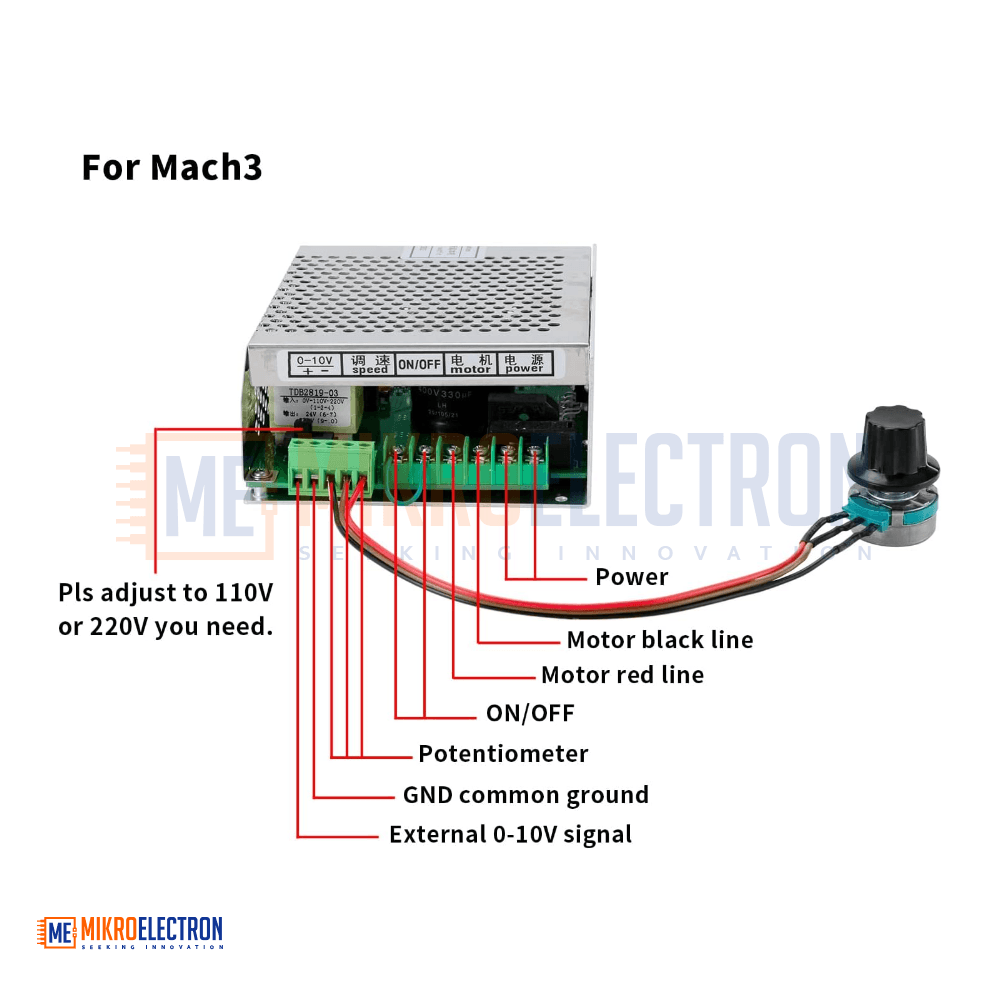

- Control terminals: ON/OFF, Motor (+/−), Power (AC), 0–10V (+/−)
- Protection: Overload + short-circuit
- Mach3 compatible: Yes
- Cooling: Ventilated metal enclosure
- Mounting: Side-flange chassis with screw holes

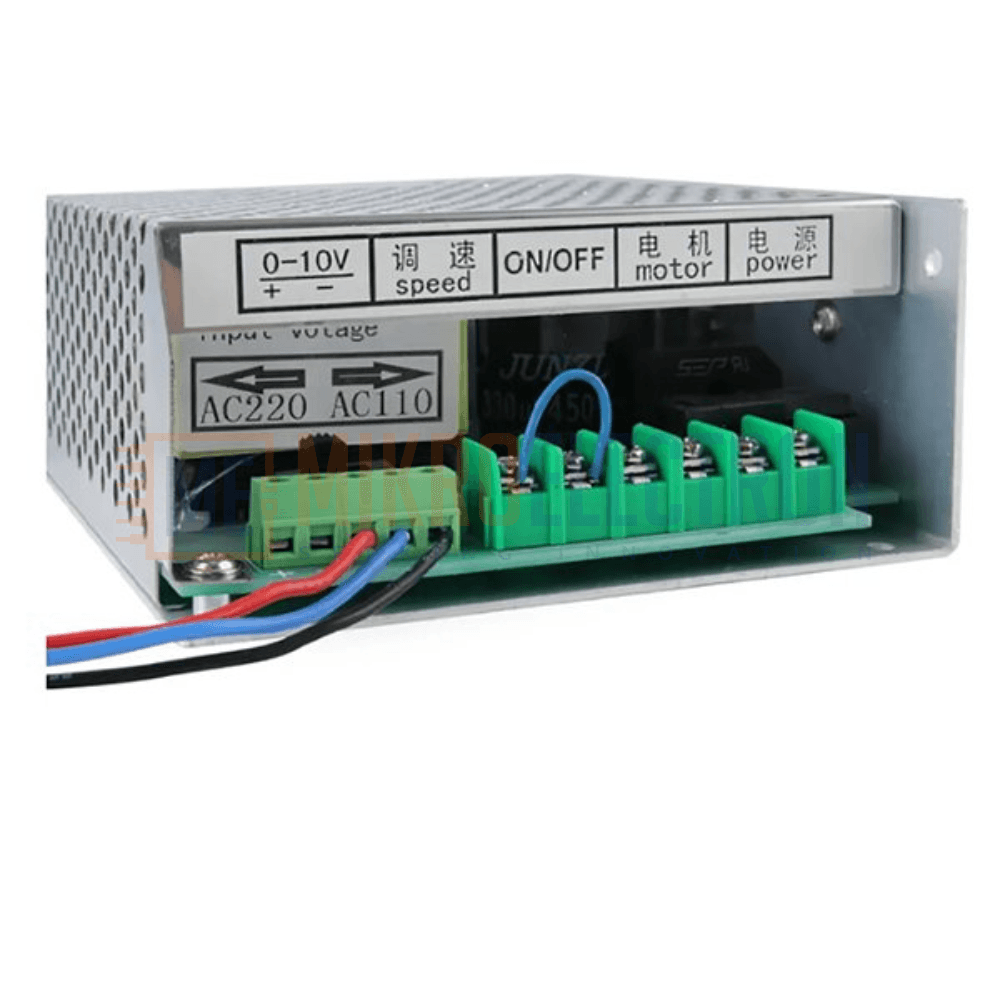

Note: When using a 110V AC mains supply, you must move the input voltage selector to the 110V position before connecting power. Failing to do so may damage the unit.
Applications
- Desktop CNC routers and engraving machines using 500W ER11 spindles
- PCB milling and prototyping stations
- Jewelry engraving and small mold making
- Hobbyist and educational CNC builds (Mach3, GRBL, LinuxCNC setups)
- Replacement driver for failed or aging spindle power supplies
- Sign making, woodworking, and acrylic cutting workshops
