500W Cooled Air Cooled Spindle Kit ER11 CNC Spindle Motor + 52mm Clamps + 13pcs ER11 + Mach3 Power Supply Speed Governo 3000-12000 RPM/Min
Out Of Stock

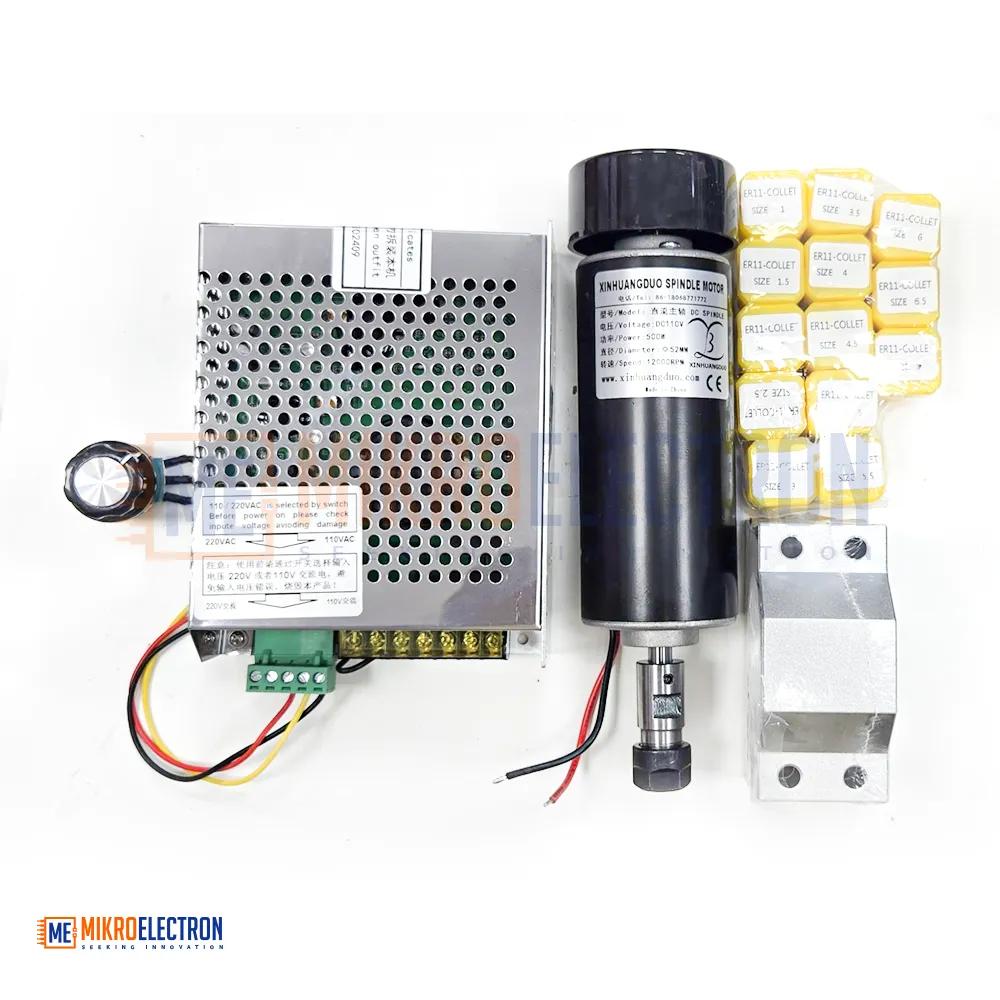

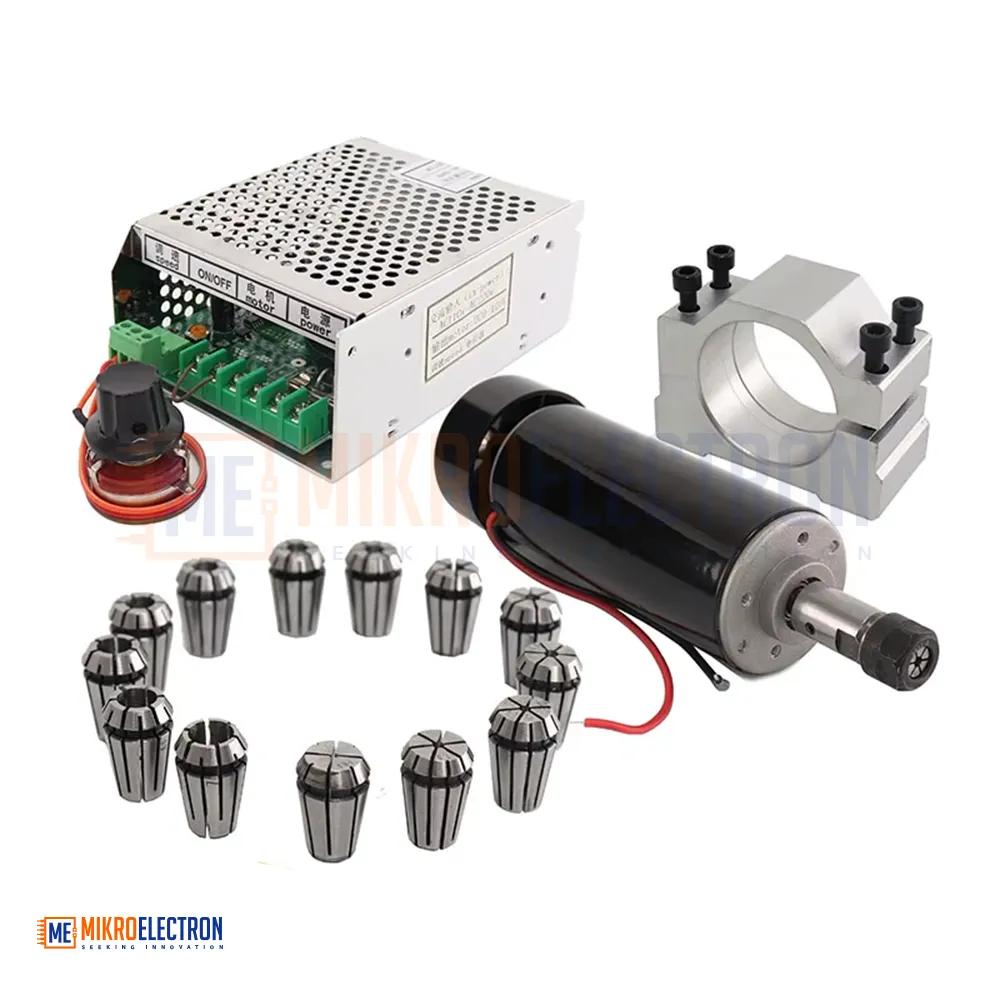

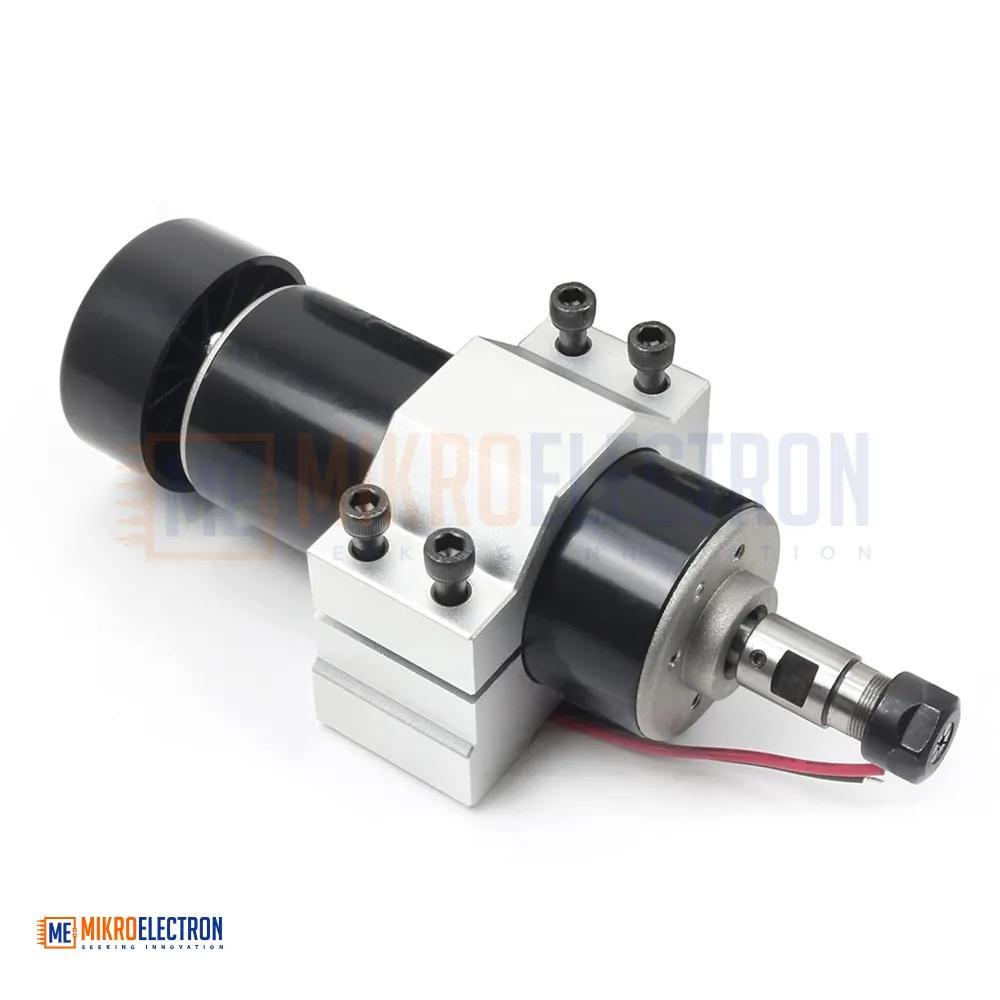

The 500W Air-Cooled Spindle Motor Kit is a complete, high-performance spindle solution for small to medium-sized CNC routers and engraving machines. Designed for precision machining, it features a 500W spindle motor with ER11 collet chuck, capable of running at variable speeds from 3000 to 12000 RPM, controlled via the included Mach3-compatible speed controller and power supply unit AC 220v / 110v To DC 0-110V Driver. The kit includes a 52mm aluminum mounting clamp, ensuring secure attachment to most CNC frames, and a 13-piece ER11 collet set, supporting a wide range of tool diameters. This air-cooled spindle provides efficient performance and reliability without the need for complex water cooling systems.
The 500W Air-Cooled Spindle Motor Kit is a complete, high-performance spindle solution for small to medium-sized CNC routers and engraving machines. Designed for precision machining, it features a 500W spindle motor with ER11 collet chuck, capable of running at variable speeds from 3000 to 12000 RPM, controlled via the included Mach3-compatible speed controller and power supply unit.
The kit includes a 52mm aluminum mounting clamp, ensuring secure attachment to most CNC frames, and a 13-piece ER11 collet set, supporting a wide range of tool diameters. This air-cooled spindle provides efficient performance and reliability without the need for complex water cooling systems.
Specifications:
Spindle Motor Power: 500W
Cooling Method: Air-cooled (internal fan)
Speed Range: 3000 – 12000 RPM (adjustable)
Input Voltage: 100–120V / 220V (AC, via included power supply)
Collet Type: ER11

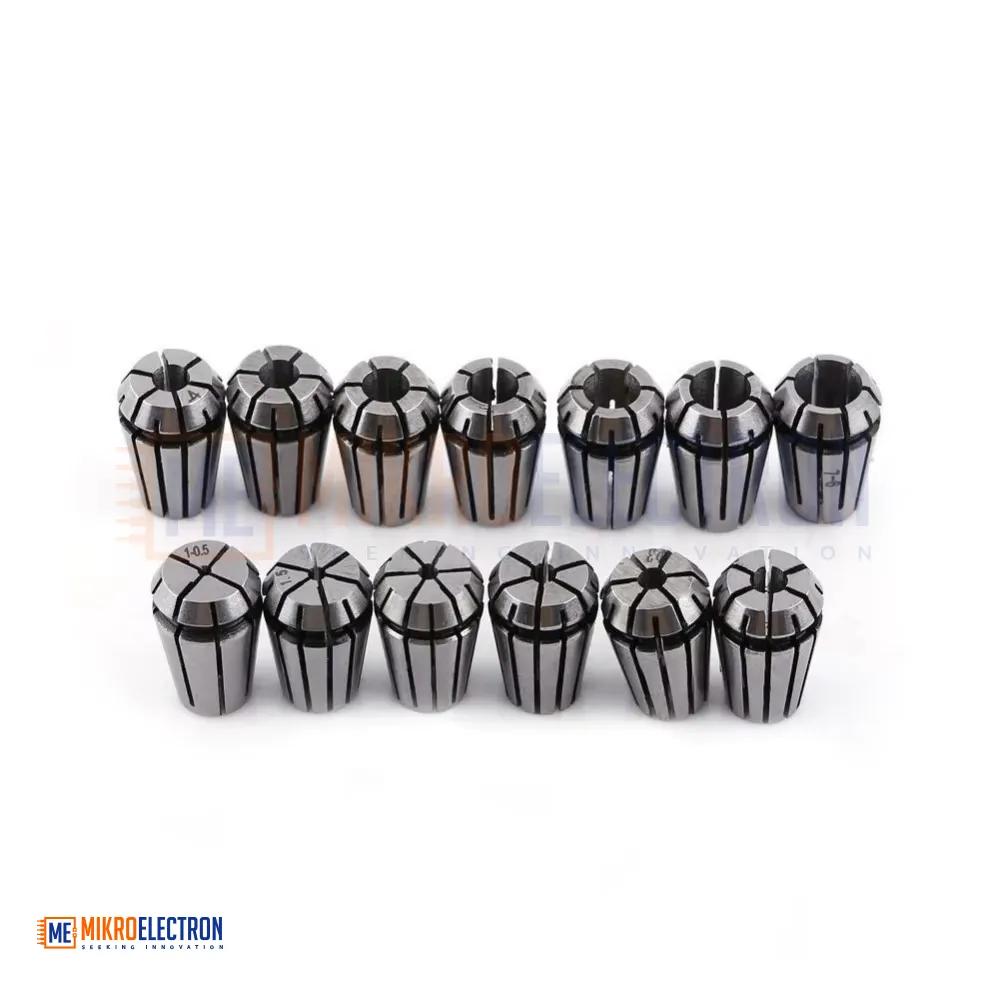

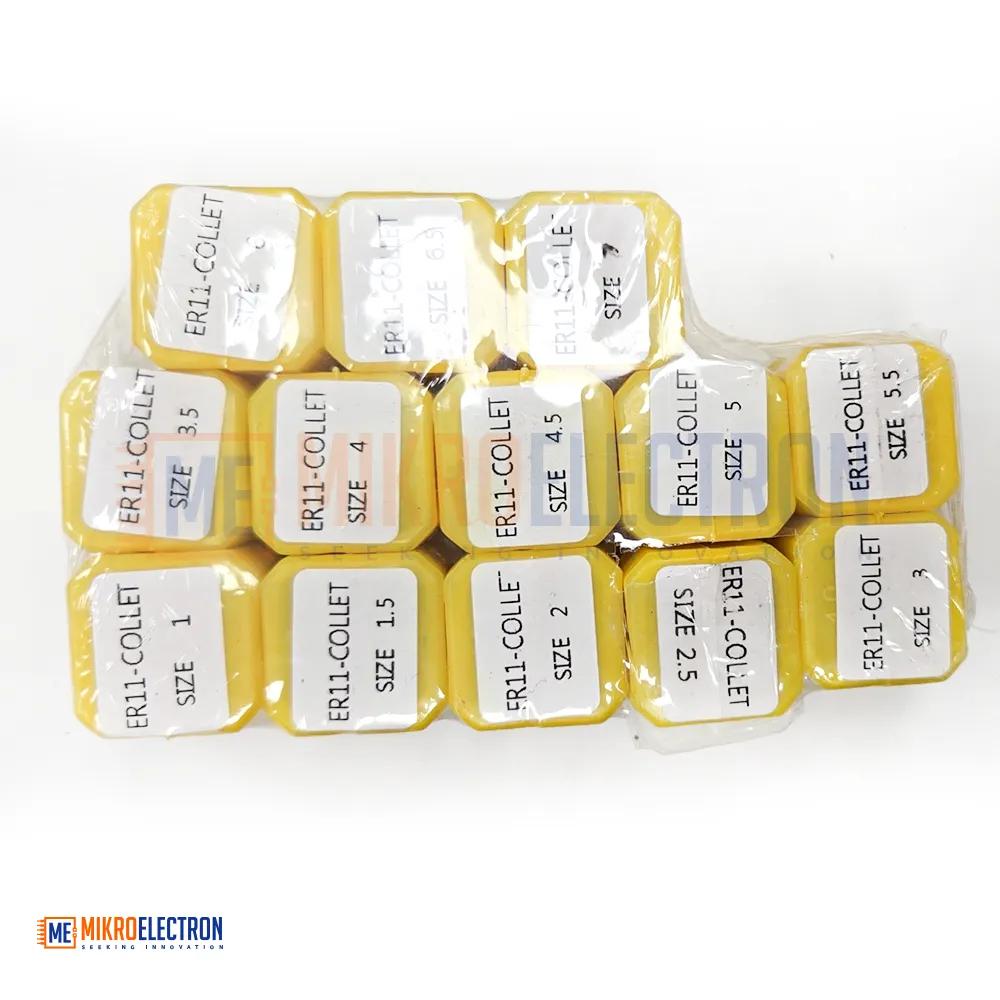

Included Collets: 13 pieces (1mm to 7mm or 1mm to 6.5mm, depending on kit version)
Clamp Diameter: 52mm
Motor Shaft Diameter: 6mm

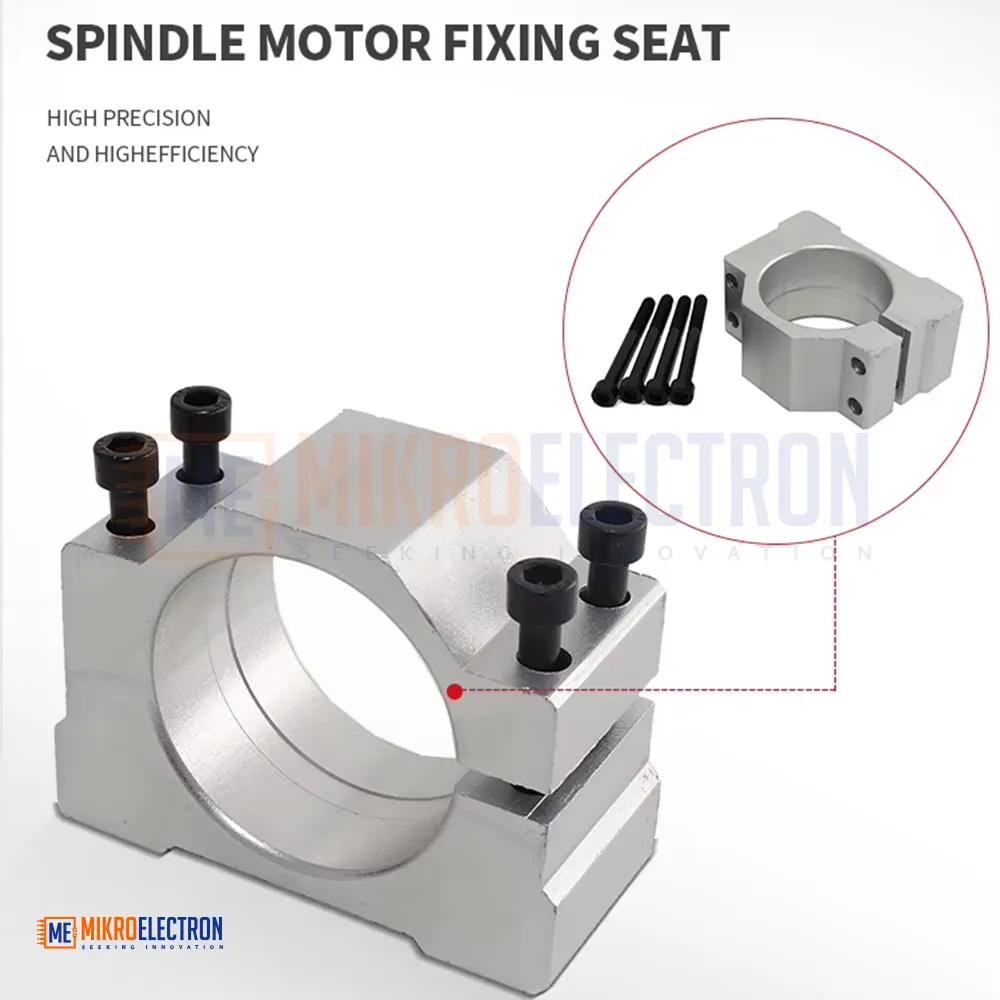

Mounting Clamp: CNC-grade aluminum, 52mm
Speed Controller: Included (PWM/Mach3 compatible)
Power Supply Unit: Included
