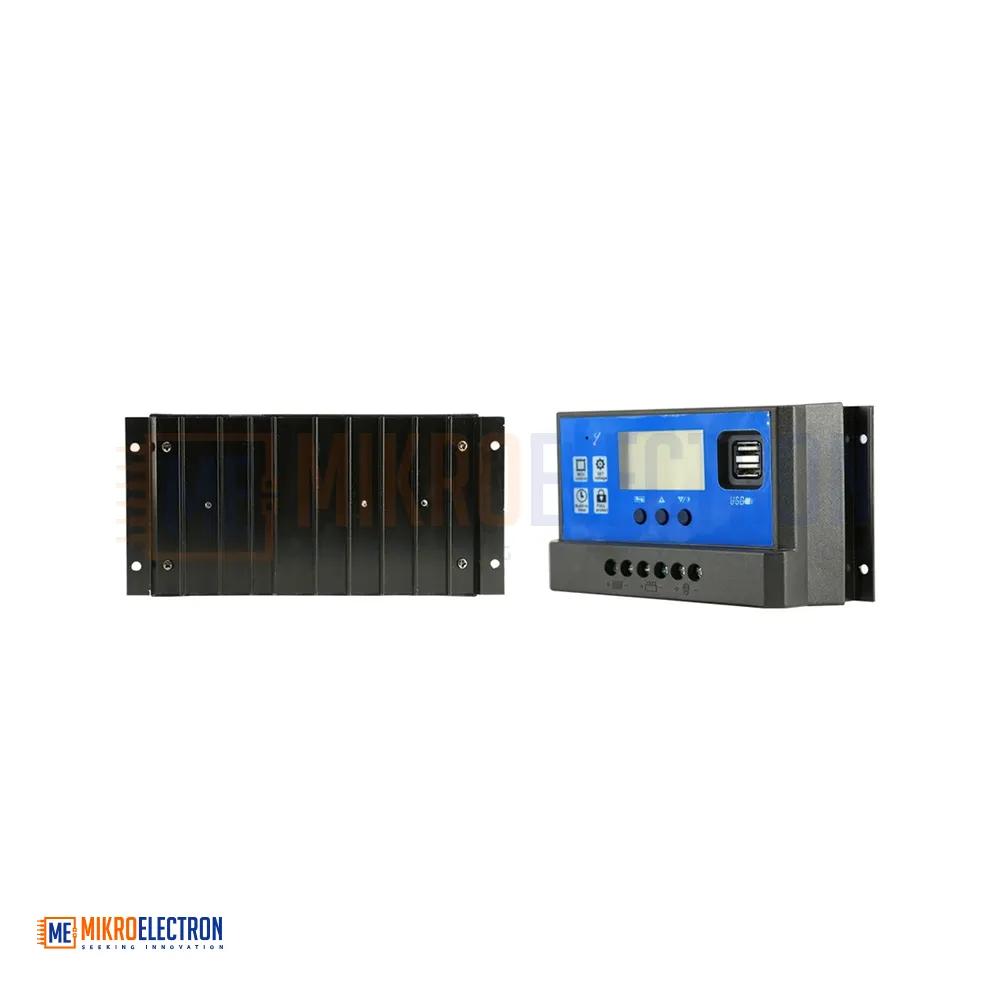

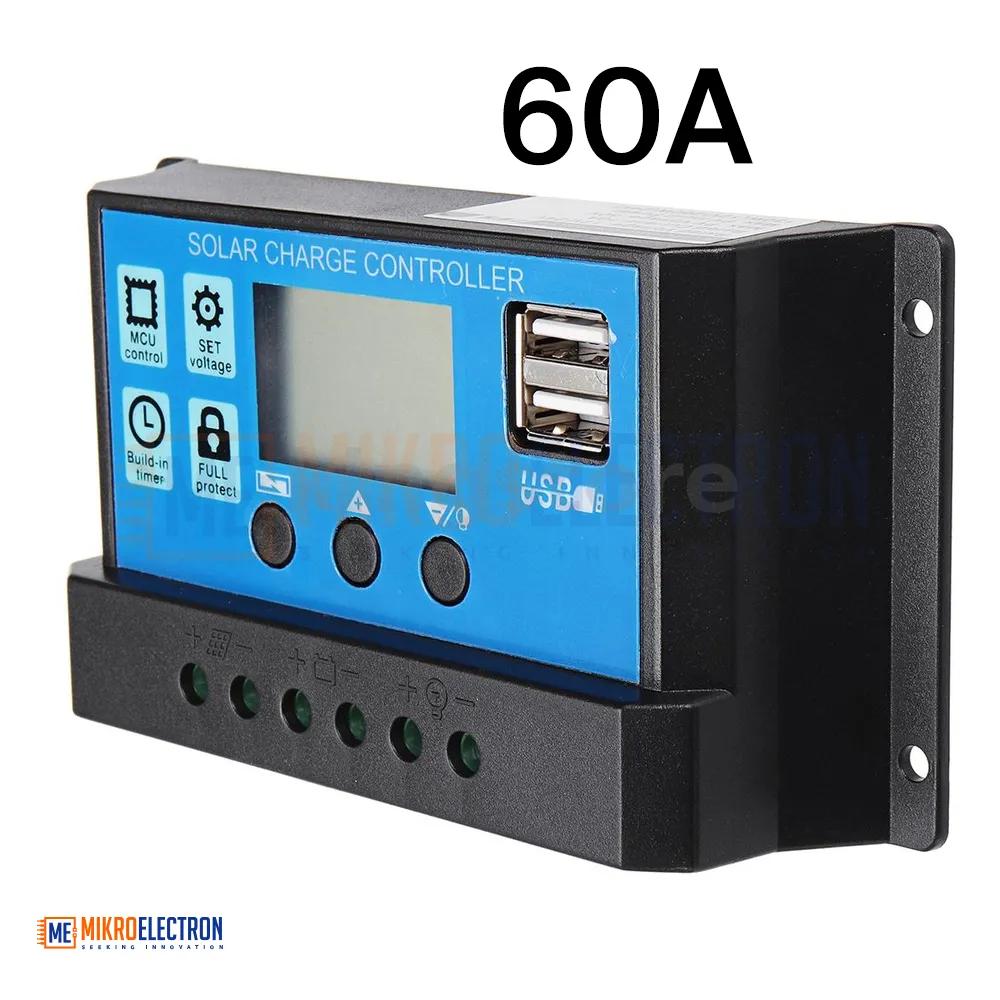

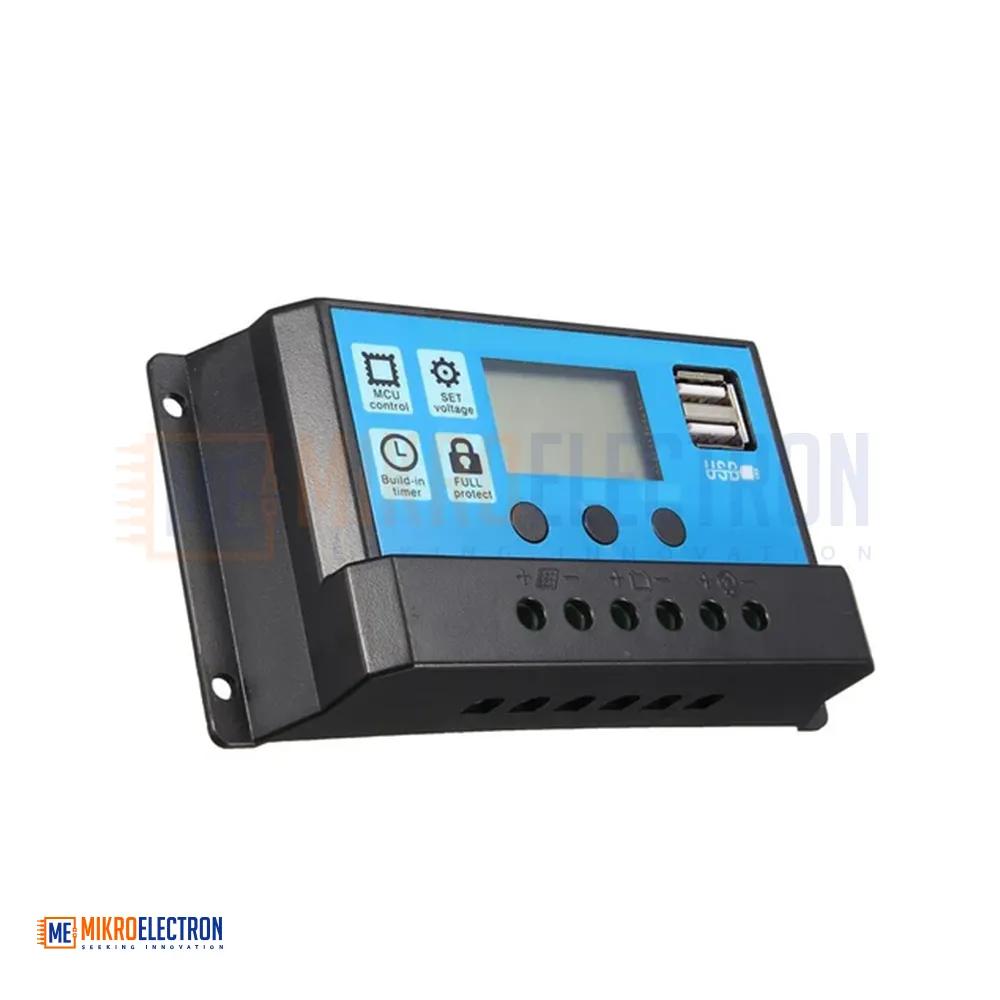

60A Intelligent LCD Solar Controller
The Solar Charge Controller 60A is a high-capacity PWM controller designed for large and demanding solar systems. It supports automatic 12V and 24V battery detection and ensures efficient power management. Equipped with a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and adjustment of parameters. The advanced multi-stage PWM charging enhances battery performance and extends lifespan. It features full protection including short circuit, overload, reverse polarity, and overcharge protection. Dual MOSFET technology ensures low heat. With high current capacity and USB output, it is ideal for residential, commercial, and industrial applications.
منظم الشحن الشمسي 60 أمبير هو جهاز عالي القدرة مصمم للأنظمة الشمسية الكبيرة والمتقدمة. يدعم التعرف التلقائي على بطاريات 12 و24 فولت ويوفر إدارة طاقة فعالة. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وضبط الإعدادات. تعتمد تقنية الشحن PWM متعددة المراحل على تحسين أداء البطارية وإطالة عمرها. يتضمن أنظمة حماية كاملة مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. كما تقلل تقنية MOSFET المزدوجة من الحرارة. بفضل قدرته العالية ومخارج USB، فهو مناسب للاستخدامات المنزلية والتجارية والصناعية.
The Solar Charge Controller 60A (Model: PWM 60A) is a high-performance PWM controller designed for large-scale and high-demand solar systems. It automatically detects 12V/24V batteries and provides efficient charging and discharging control. Featuring a built-in industrial microcontroller and a large LCD display, it ensures easy system monitoring and parameter configuration.
Specifications
Model: PWM 60A
Battery Voltage: 12V / 24V Auto Detection
Charging Current: 60A
Discharging Current: 30A
Max Solar Input:
25V (for 12V battery)
50V (for 24V battery)
Equalization Voltage:
14.4V (Sealed)
14.2V (Gel)
14.6V (Flooded)
Float Charge Voltage: 13.7V (adjustable)
Discharge Stop Voltage: 10.7V (adjustable)
Discharge Reconnect Voltage: 12.6V (adjustable)
Charge Reconnect Voltage: 13V
USB Output: 5V / 3A (Dual USB)
Applications
Large residential solar systems
Commercial solar installations
Industrial solar energy systems
Off-grid and backup power systems
Remote and rural electrification
Solar lighting and outdoor systems
Functions & Safety Instructions
Compatible only with lead-acid batteries: OPEN, AGM, GEL (Not suitable for lithium or Ni-MH batteries)
Automatic shutdown when battery voltage drops below 8V
LCD display provides system status and allows easy configuration

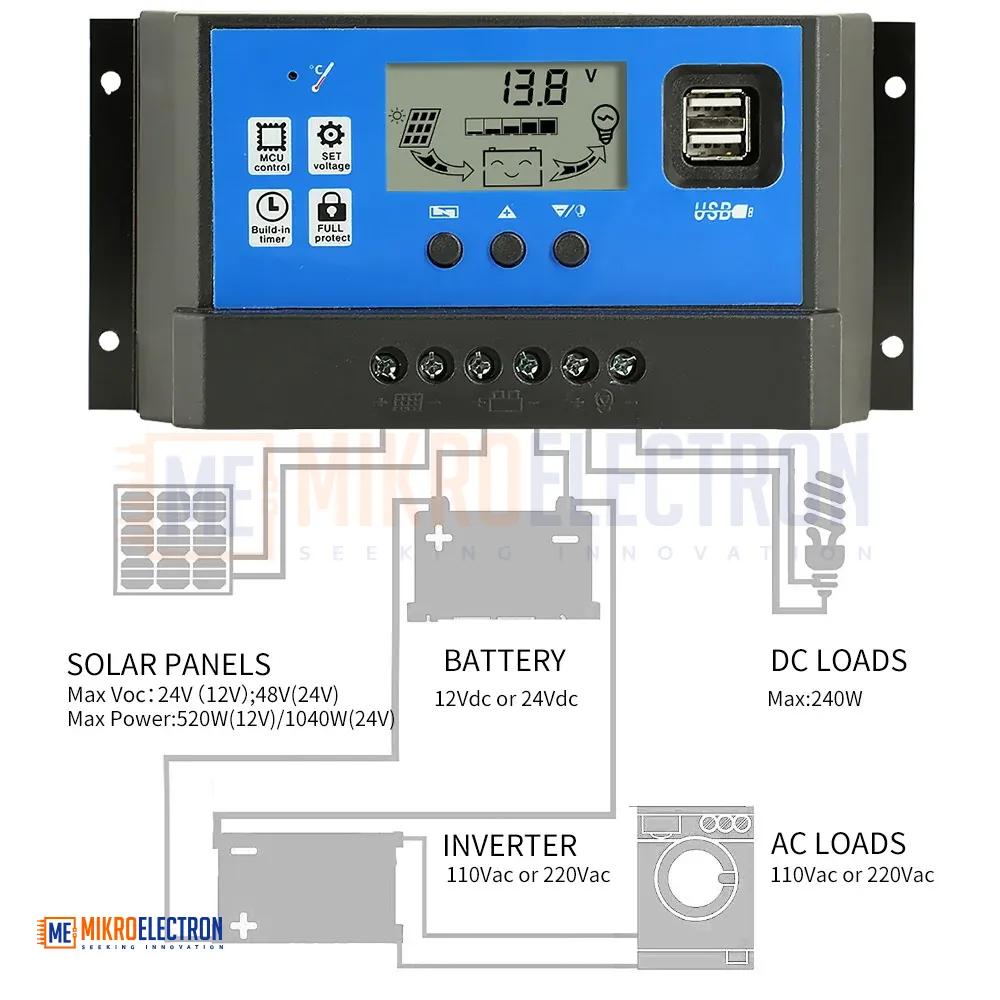

Correct installation sequence is essential:
Connect the battery first
Connect the solar panel
Connect the load
(Reverse order when disconnecting)
Install in a well-ventilated area to prevent overheating
Use short battery cables to reduce energy loss
Designed only for photovoltaic solar panels (not for other power sources)
