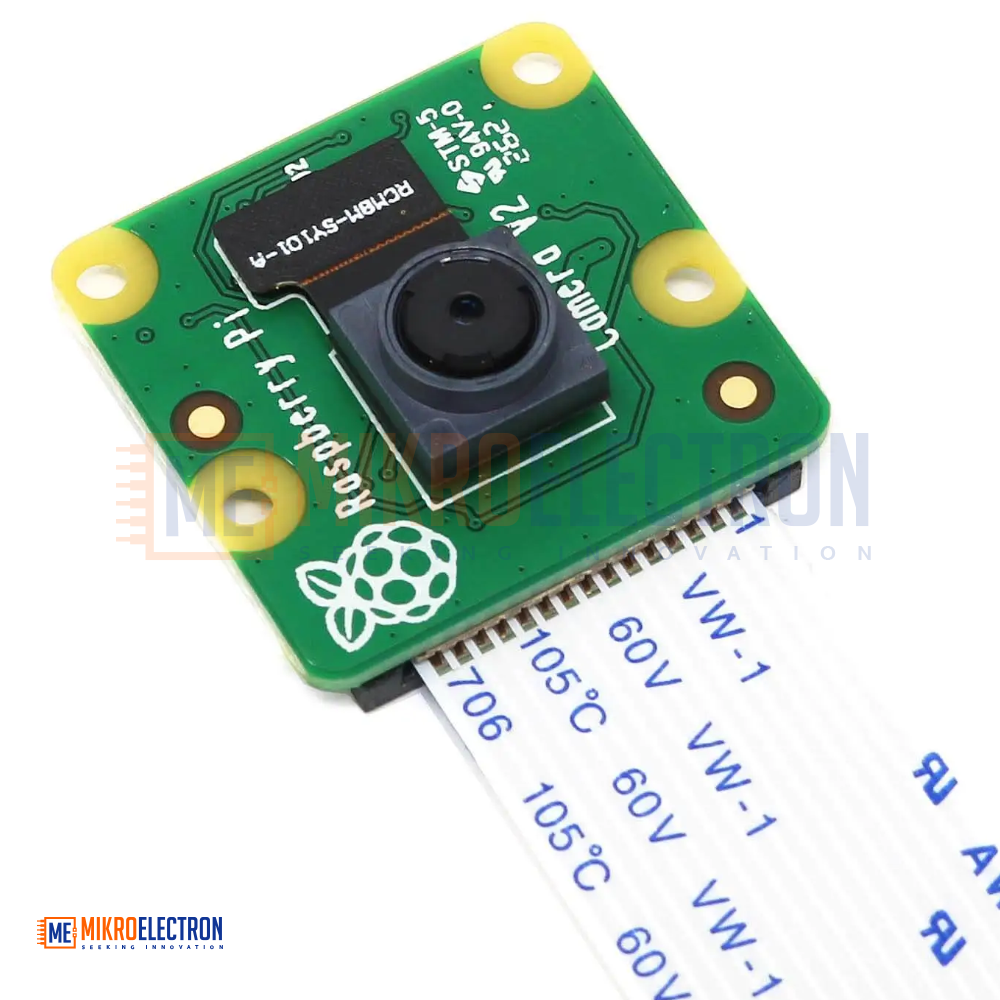

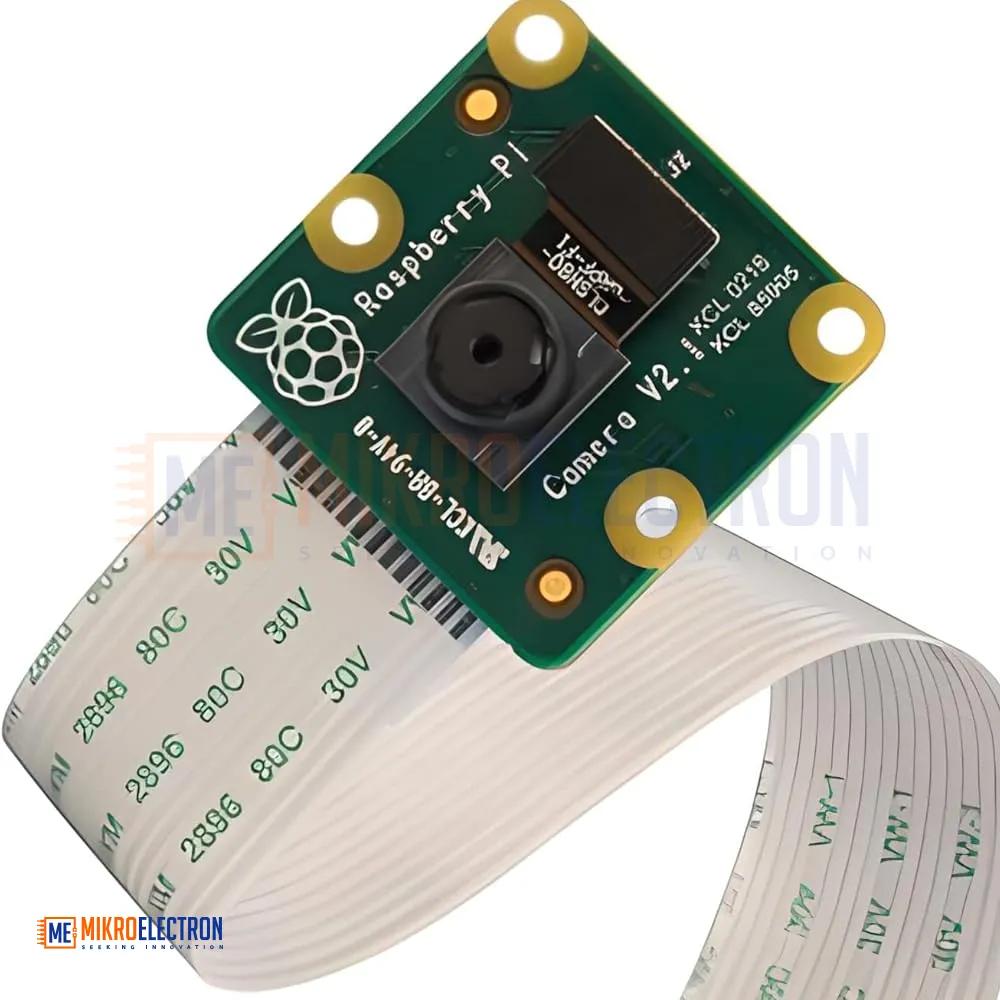

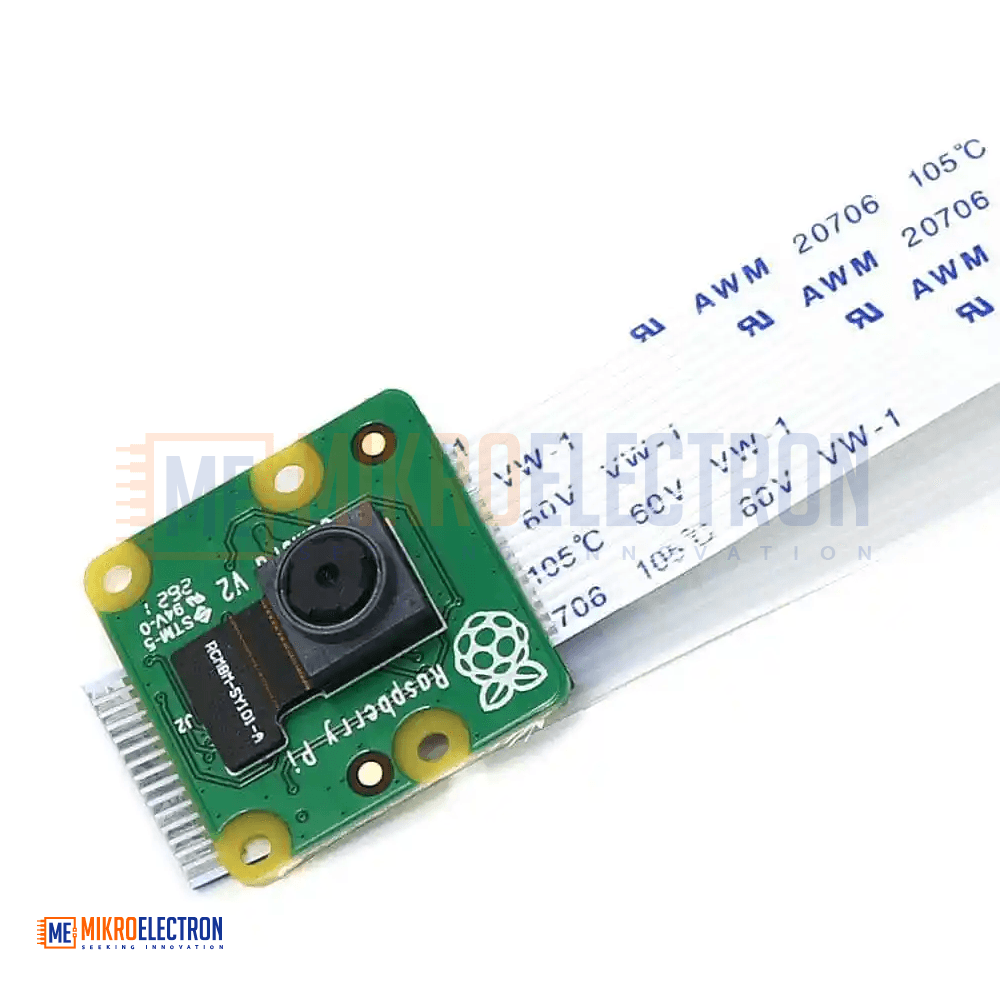

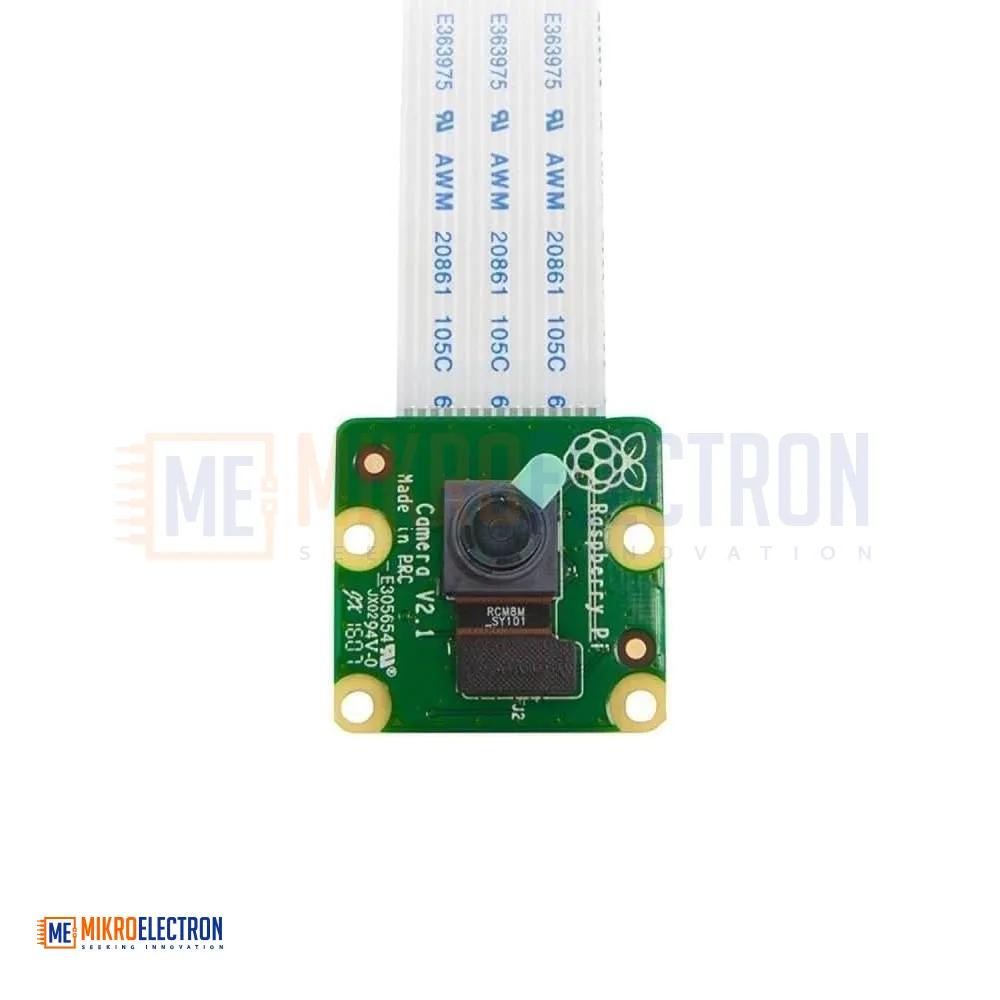

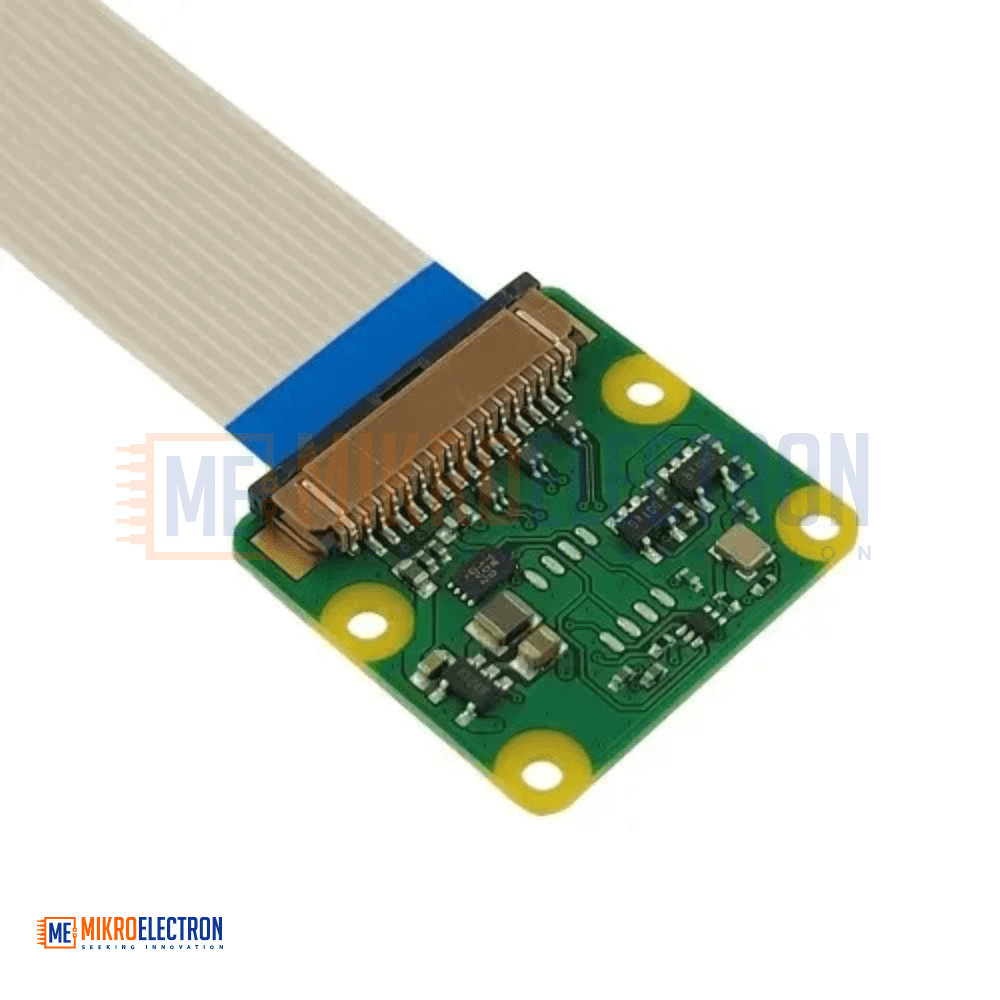

8 Megapixels Raspberry Pi Camera Board V2
The Raspberry Pi Camera Board V2 is the official 8-megapixel camera module from the Raspberry Pi Foundation, featuring the Sony IMX219 image sensor. It captures high-resolution still images up to 3280 × 2464 pixels and supports full-HD video recording. Compact and lightweight, it connects directly to the Raspberry Pi via the CSI interface, making it ideal for projects such as robotics, surveillance, computer vision, and educational applications.
لوحة كاميرا Raspberry Pi الإصدار V2 هي وحدة الكاميرا الرسمية بدقة 8 ميغابكسل من مؤسسة Raspberry Pi، وتعمل بمستشعر الصور Sony IMX219.
تدعم التقاط صور ثابتة عالية الدقة تصل إلى 3280 × 2464 بكسل، كما تدعم تسجيل فيديو Full HD. وبفضل تصميمها المدمج وخفيف الوزن، يتم توصيلها مباشرة بلوحة Raspberry Pi عبر واجهة CSI.
تُعد هذه الكاميرا خيارًا مثاليًا لمشاريع الروبوتات، وأنظمة المراقبة، والرؤية الحاسوبية، والتطبيقات التعليمية.
The Raspberry Pi Camera Board V2 is an upgraded official camera module designed and manufactured for Raspberry Pi systems. It uses the high-quality Sony IMX219 8-megapixel sensor, offering significantly improved image quality compared to the original 5MP camera module.
This camera supports high-resolution still photography as well as smooth HD video recording, making it suitable for a wide range of applications including robotics, machine vision, monitoring systems, and DIY electronics projects. The module connects to the Raspberry Pi using a 15-pin ribbon cable through the dedicated MIPI CSI interface, ensuring fast and reliable data transfer directly to the processor.
With its extremely small size and lightweight design, the Camera Board V2 is perfect for portable, embedded, and space-constrained projects. It is fully supported by the latest versions of Raspberry Pi OS (Raspbian), enabling easy setup and use.
Product Type: Raspberry Pi Camera Module V2
Image Sensor: Sony IMX219
Resolution: 8 Megapixels
Still Image Resolution: 3280 × 2464 pixels
Video Modes:
1080p at 30 fps
720p at 60 fps
640 × 480 at 90 fps
Lens Type: Fixed focus
Interface: MIPI CSI (15-pin ribbon cable)
Cable Length: 150 mm (included)

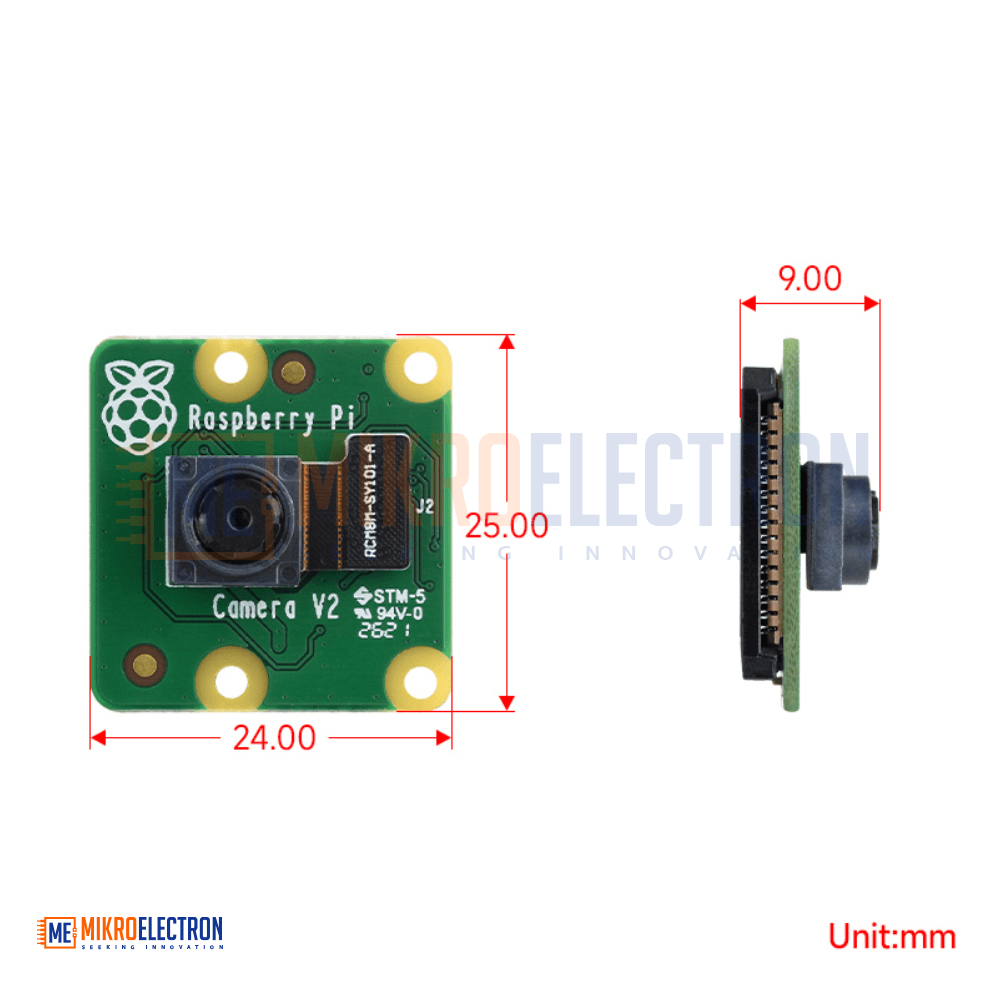

Board Dimensions: 25 × 24 × 9 mm
Weight: Just over 3 g
Operating System Support: Raspberry Pi OS (Raspbian)
| MODEL | RPi Camera V2 |
| SENSOR | IMX219 |
| PIXELS | 8MP (3280 × 2464) |
| CMOS SIZE | 1/4inch |
| VIDEO RECORD | Support 1080p30, 720p60 and 640 × 480p90 |
| DIMENSION | 25 × 24 × 9mm |
| DEVICES SUPPORT | Compatible with all Raspberry Pi boards, Jetson Nano and VisionFive2 (Specific cable is required to connect to Raspberry Pi 5 / Raspberry Pi Zero series) |
Applications
Raspberry Pi projects
Computer vision and image processing
Robotics and automation
Home surveillance systems
Educational and research projects
Time-lapse photography
IoT and embedded systems
