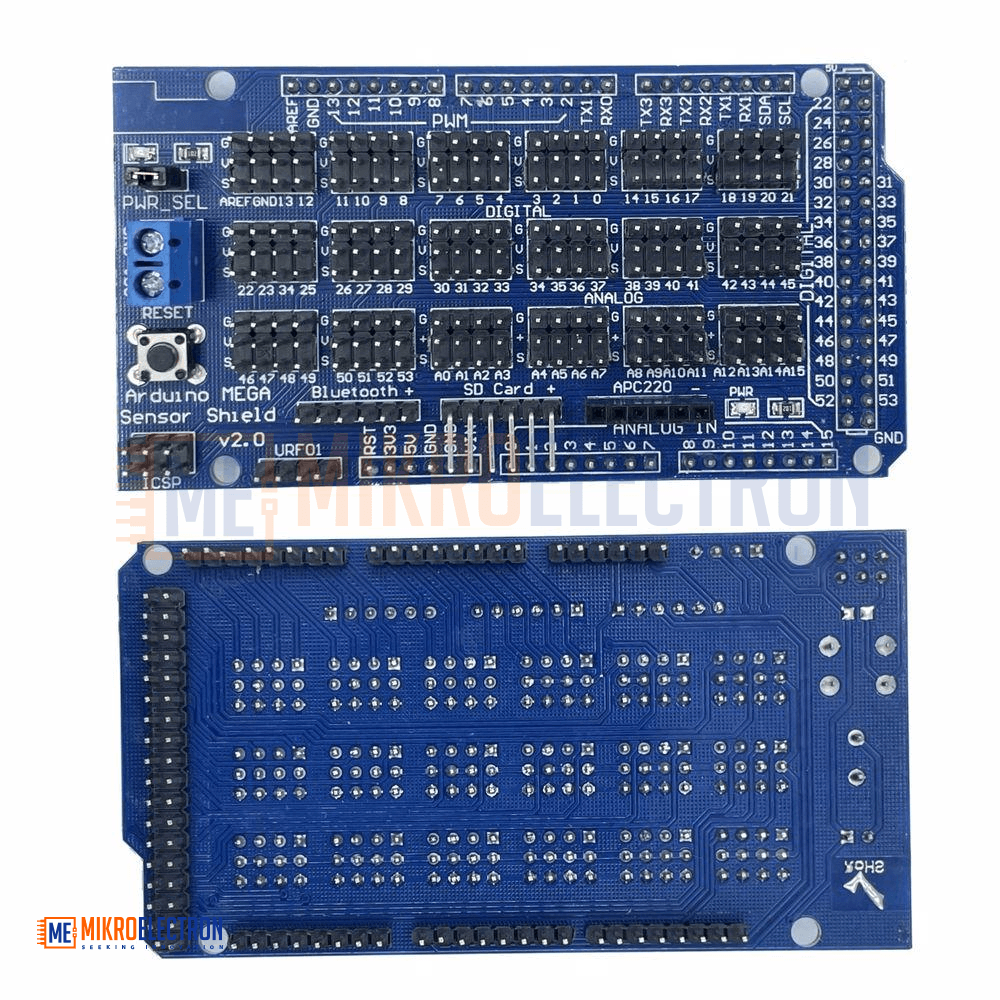

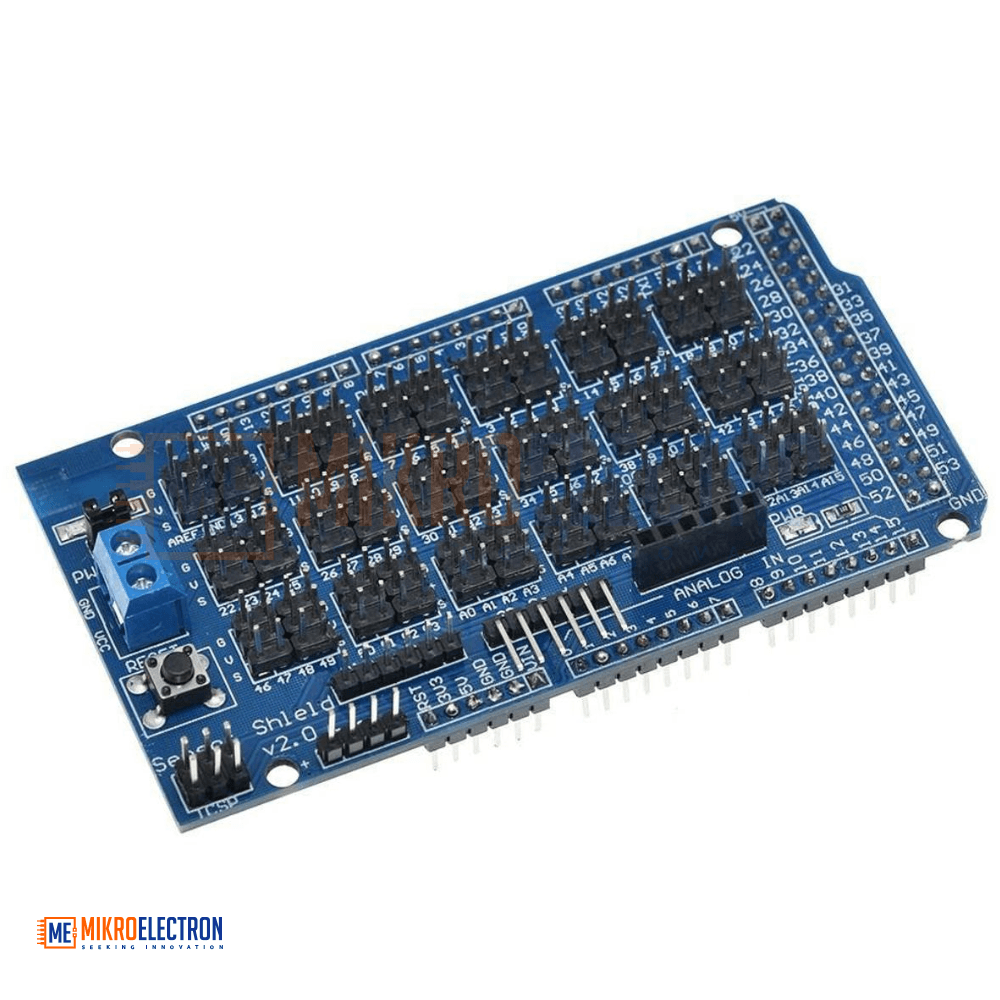

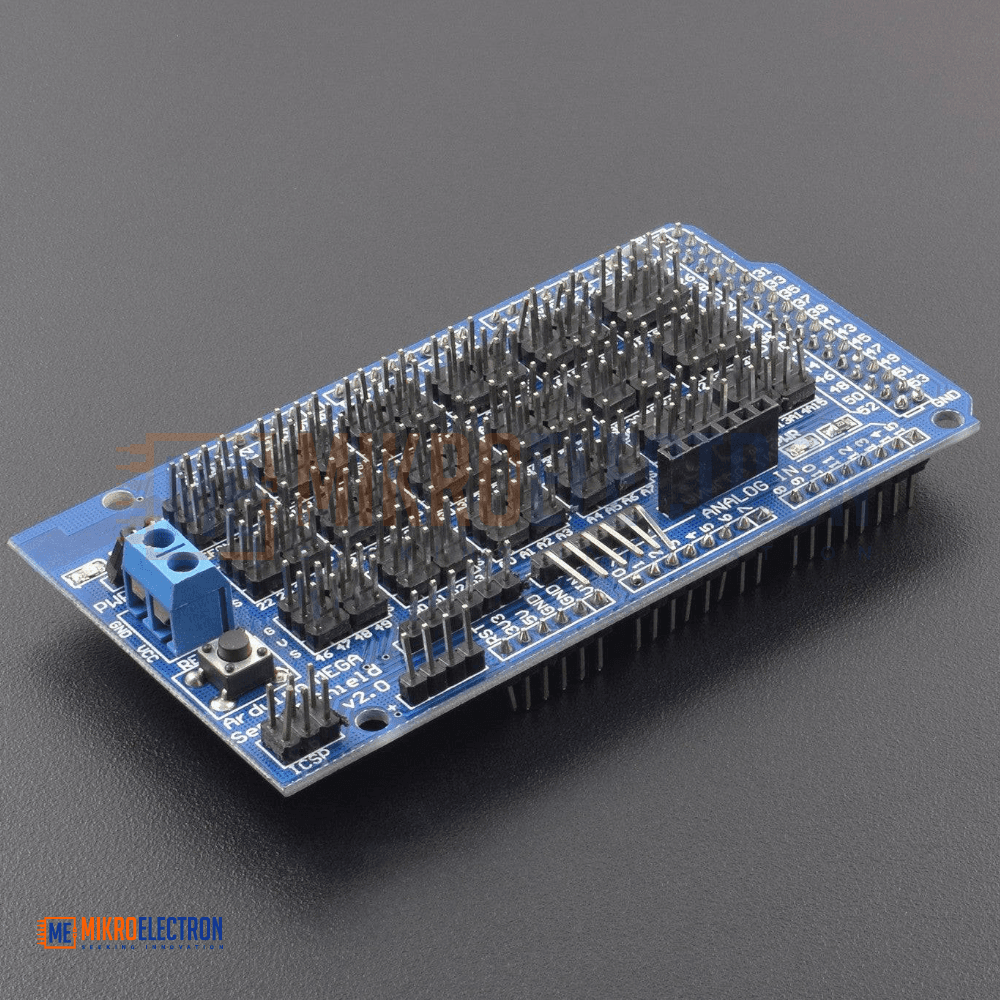

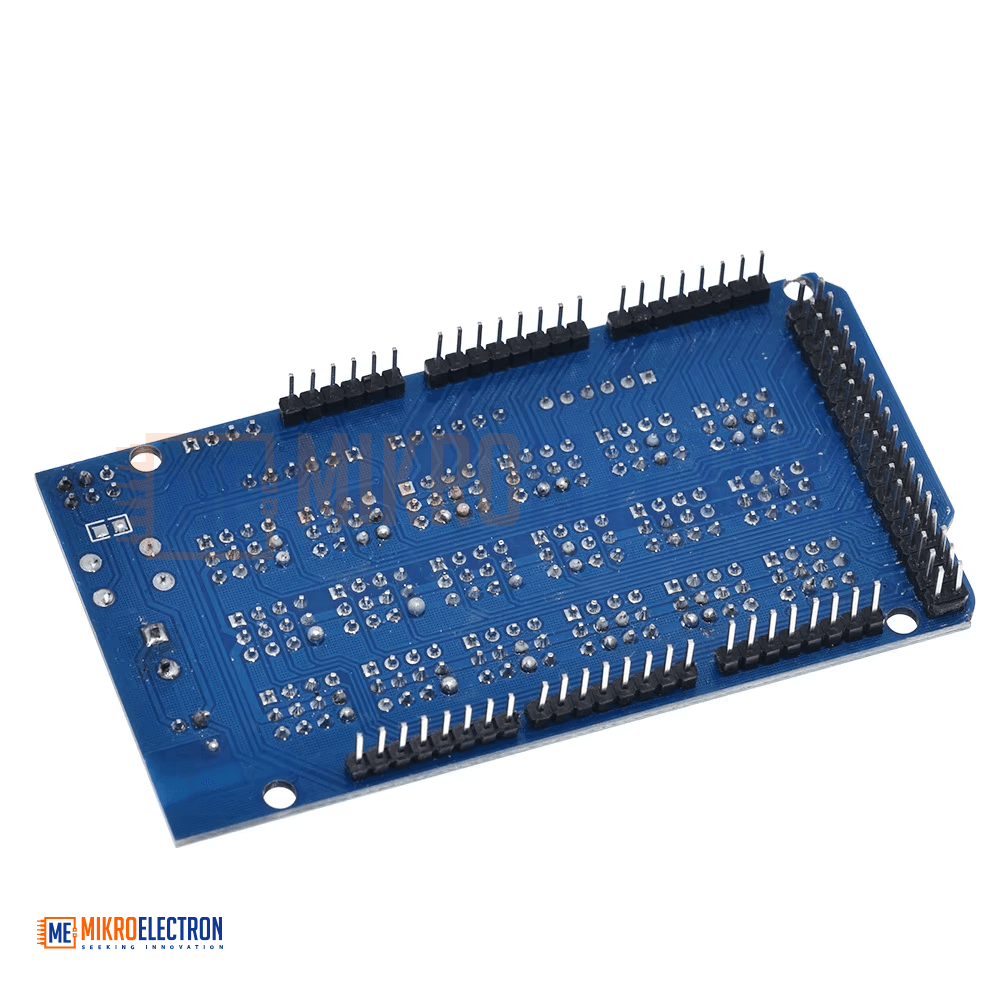

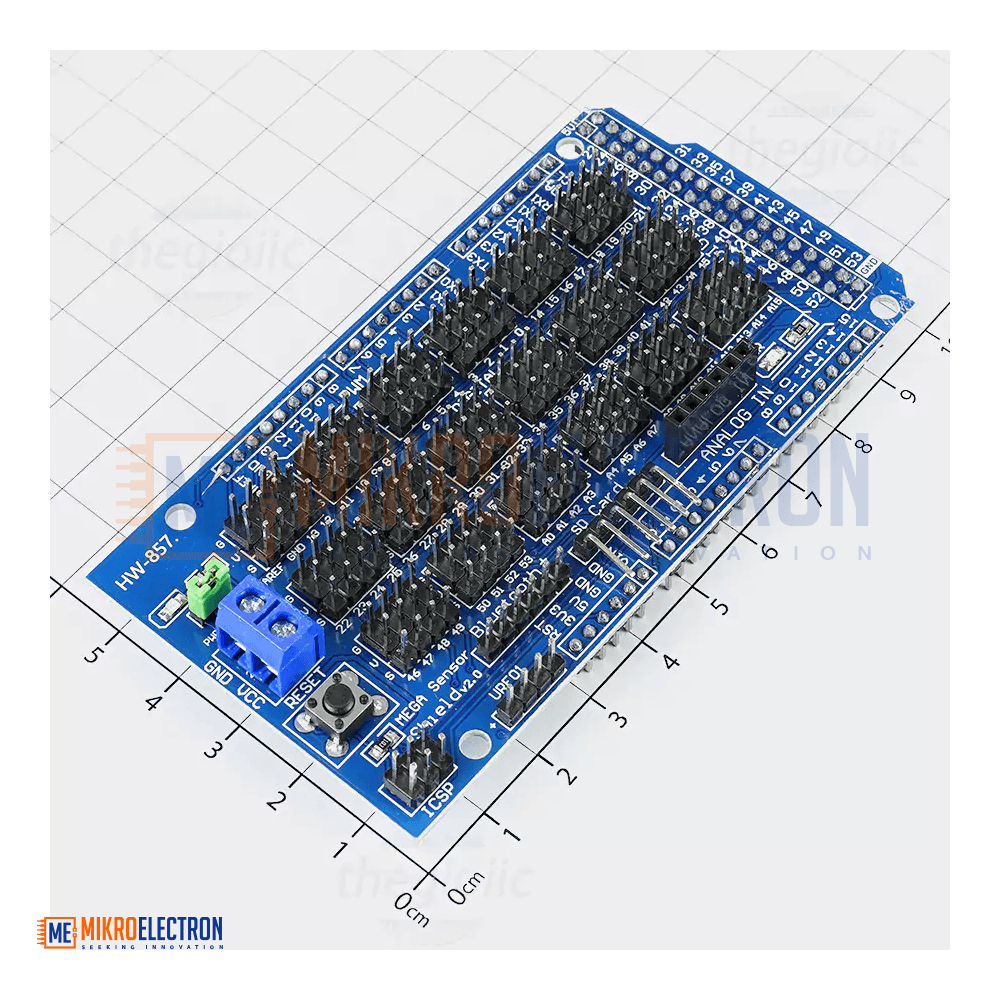

ARDUINO MEGA SENSOR SHIELD
The Arduino Mega Sensor Shield is an expansion board designed to simplify the connection of sensors, modules, and external devices to the Arduino Mega. It provides easy access to all digital, analog, I2C, and UART pins through clearly labeled headers and connectors. With dedicated interfaces for SD cards, Bluetooth modules, wireless communication, and ultrasonic sensors, this shield is ideal for robotics, automation, and advanced Arduino development projects.
لوحة Arduino Mega Sensor Shield هي لوحة توسعة مخصصة لتسهيل توصيل الحساسات والوحدات الإلكترونية مع لوحة Arduino Mega. توفر وصولاً سهلاً لجميع المنافذ الرقمية والتناظرية وواجهات I2C وUART عبر موصلات واضحة ومنظمة. تحتوي على منافذ مخصصة لبطاقات SD ووحدات البلوتوث والاتصال اللاسلكي والحساسات فوق الصوتية، مما يجعلها مناسبة لمشاريع الروبوتات والأتمتة والتطبيقات الإلكترونية المتقدمة.
The Arduino Mega Sensor Shield is a convenient expansion board developed to simplify wiring and interfacing between the Arduino Mega and a wide variety of sensors and modules. It exposes all available digital and analog I/O pins through organized and clearly labeled headers, making project assembly faster and more reliable.
This shield supports easy connection of analog sensors, digital sensors, relays, buttons, potentiometers, and communication modules without complicated wiring. Standardized interfaces reduce development time and help users quickly integrate components into their Arduino projects.
The board includes dedicated breakout interfaces for commonly used peripherals such as SD card modules, Bluetooth modules, ultrasonic sensors, and wireless communication modules like APC220. It also features an ICSP connector, onboard reset button, and power status LED for enhanced usability.
Designed specifically for the Arduino Mega platform, this shield is ideal for robotics systems, automation projects, sensor monitoring, educational applications, and rapid prototyping.
Specifications
- Compatible Board: Arduino Mega
- Digital I/O Ports: 54
- Analog I/O Ports: 16
- Communication Interfaces:
- I2C
- UART
- ICSP
- Dedicated Interfaces:
- SD Card Interface
- Bluetooth Module Interface
- Ultrasonic Sensor Interface
- APC220 Wireless Interface

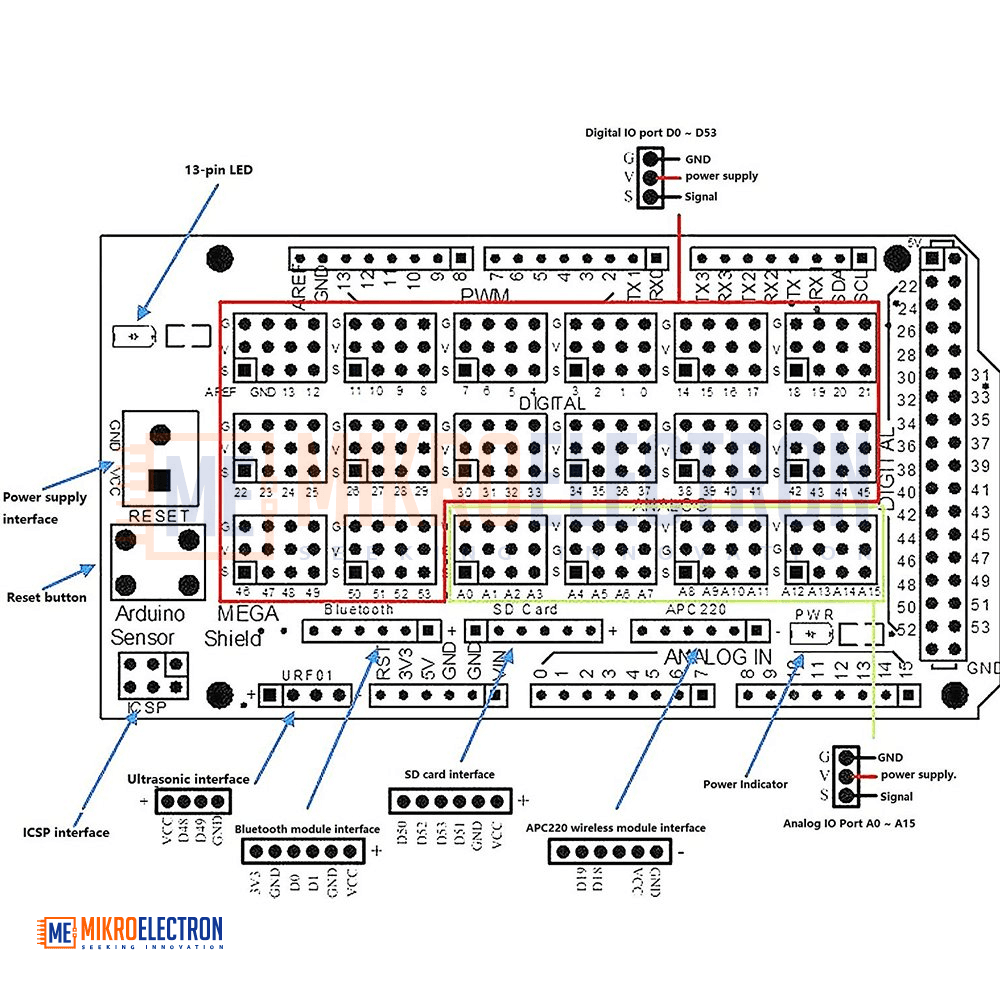

- ICSP Pins:
- RST
- D52 / SCK
- D50 / MISO
- D51 / MOSI
- GND
- 5V
- Bluetooth Interface Pins:
- 3.3V
- GND
- D0 / RX0
- D1 / TX0
- 5V
- SD Card Interface Pins:
- D50 / MISO
- D52 / SCK
- D53 / SS
- D51 / MOSI
- 5V
- GND
- APC220 Wireless Interface:
- D19 / RX1
- D18 / TX1
- 5V
- GND
- Ultrasonic Sensor Interface:
- 5V
- D48
- D49
- GND
Applications
- Robotics projects
- Sensor interfacing systems
- Smart automation systems
- Arduino Mega development projects
- Wireless communication systems
- Data logging applications
- Ultrasonic distance measurement projects
- IoT and monitoring systems
- Educational electronics projects
- Rapid prototyping and testing
