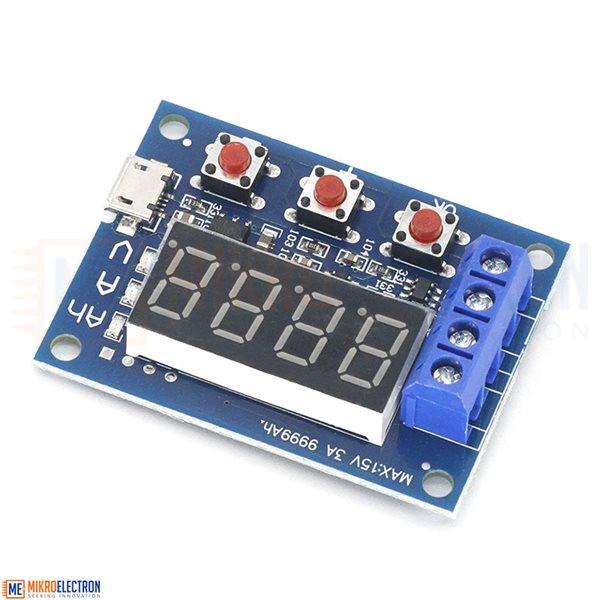

Battery Capacity Tester External Load Discharge 1.2-12V Battery - ZB2L3

ZB2L3 Battery Capacity Tester Discharge Type 1.2-12V External Load Capacity of the Battery and Other Tests 18650 Tools

💎【ZB2L3 Battery Capacity Tester】:Discharge Type 1.2-12V External Load Capacity of the Battery and Other Tests 18650 Tools
⚡【Supply Voltage】:DC4.5-6V MAX 3A
⚡【Discharge Voltage】: 1.00V-15.00V Resolution 0.01V ;

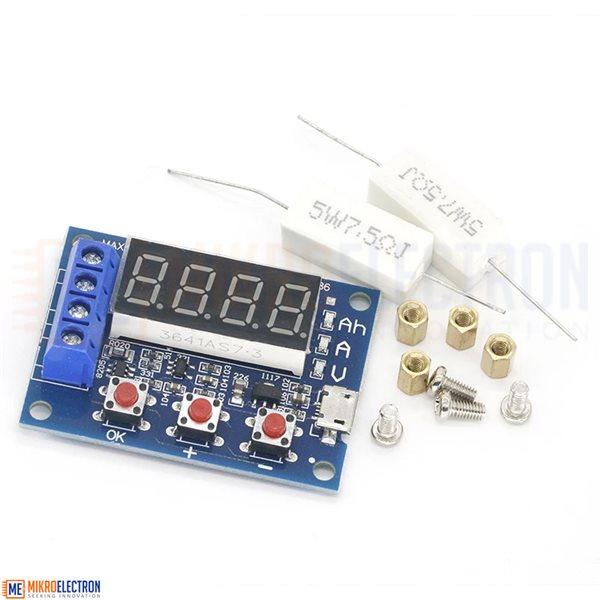

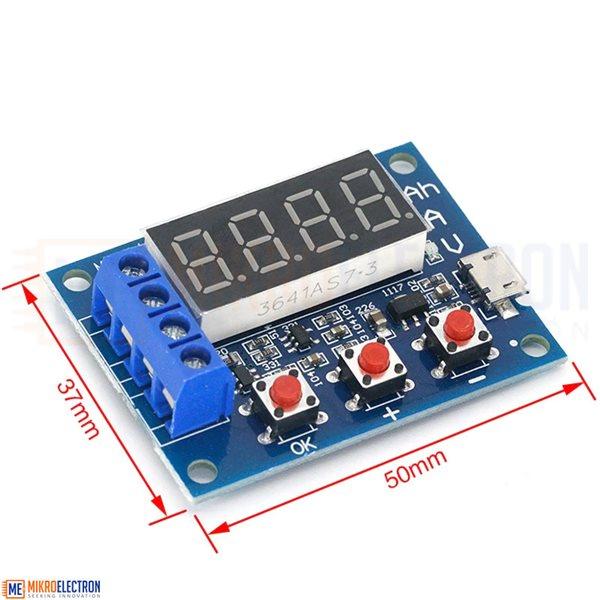

📐【Product Size】: 50 x 36 x 17mm (Containing copper foot height)
🥇Support Detection 18650 Li-ion Lithium Lead-Acid Battery

-Power supply voltage: DC4.5-6V (micro USB interface) ;
-Working current: less than 70mA.
-Supported by current: the maximum 3.000A resolution 0.001A.
-Maximum measurement error voltage: 1%+0.03V ;
-Maximum measurement error of current: 2%+-0.010A.
-Discharge voltage: 1.00V-15.00V resolution 0.01V ;
-Termination voltage range: 0.5-11.0V.
-Product size: 50 x 36 x 17mm (Containing copper foot height)

Product description
Instructions:
1. The first test should be fully charged battery.

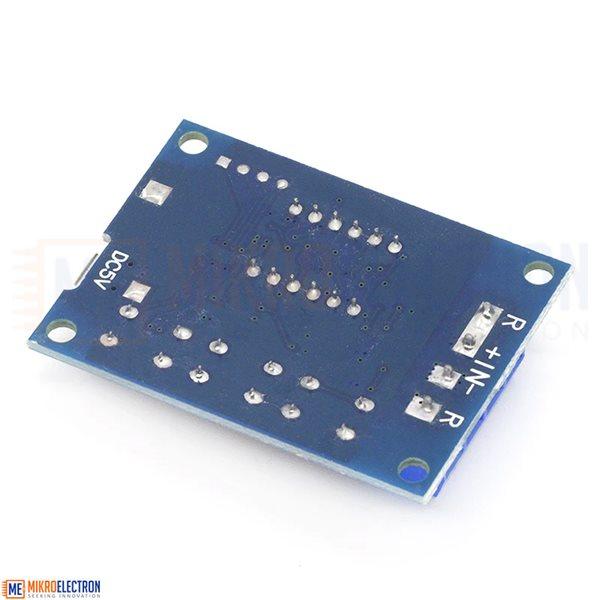

2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage.
3. Direct start test need only one press of the "OK" button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing "+" or "-" buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the "OK "start testing.
4. After the start of the test the tester will control the load of the electronic switch is turned on, the test data shows that the process will release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the press "OK" to terminate flashing allows stable data display, press again "OK" button to return to the power-on state can just replace the battery test the next section ......

Error codes and their meanings:
Err1: battery voltage is above 15V
Err2: battery voltage is lower than the termination voltage
Err3: Battery can not afford to load or discharge current line too much resistance
Err4: overcurrent (current exceeds 3.1A)

Note: this circuit in order to improve the voltage measurement accuracy, specially designed DC bias.when the terminal is what all don't pick will display a small voltage, does not affect the actual measurement.if you are short connected with the input terminal (absolute 0V) will display 0. To understand the principle can consult the superposition theorem in electrical engineering.
