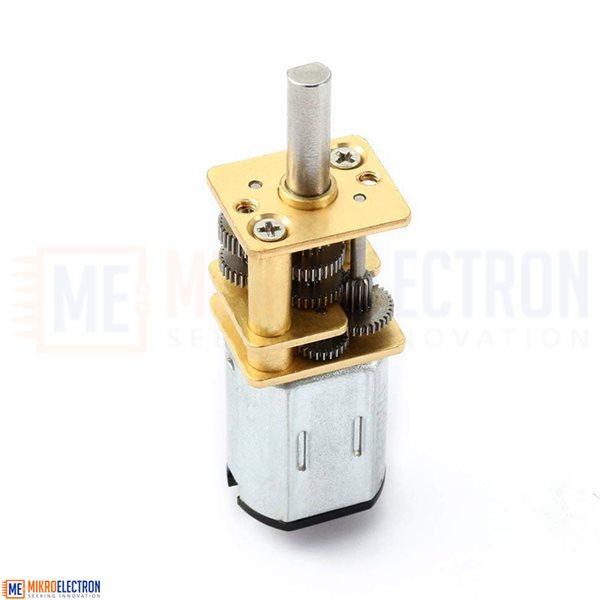

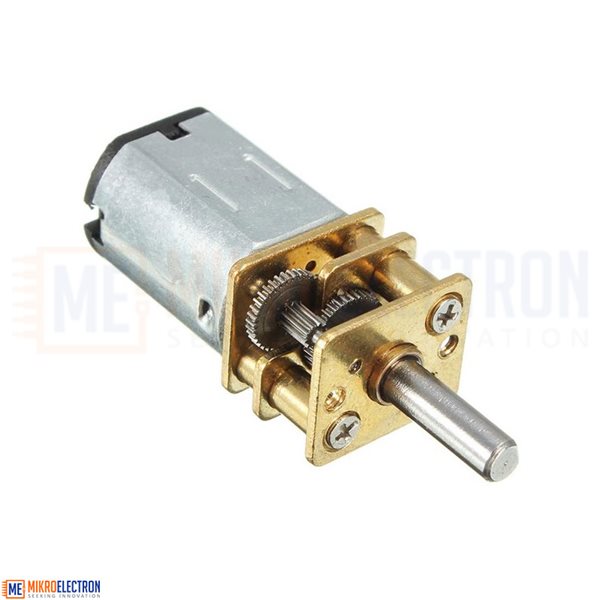

DC 12V N20 Micro Metal Gear Motor Pololu 100 rpm
Compact N20 micro metal gear motor (12V, 100 RPM) ideal for precision robotics and small mechanical projects. Reliable and efficient, it's perfect for applications requiring low speed and high torque in tight spaces.
The DC 12V N20 Micro Metal Gear Motor (100 RPM) is a high-quality, compact motor commonly used in robotics, automation systems, and other small-scale electromechanical applications. Manufactured with precision metal gears, this motor offers high torque and steady performance in a tiny footprint. Operating at 12V, it delivers approximately 100 rotations per minute (RPM), making it perfect for projects that require controlled, slow-speed movement.
Designed to be lightweight and efficient, it’s widely compatible with Arduino, Raspberry Pi, and other microcontroller platforms. Its durable construction and long lifespan make it ideal for use in mobile robots, miniature actuators, and motion systems.
Specifications:
Model: N20 Micro Metal Gear Motor
Operating Voltage: 12V DC
No-Load Speed: ~100 RPM
Gearbox: Metal gears
Shaft Diameter: 3 mm (D-shaft)
Shaft Length: ~10 mm

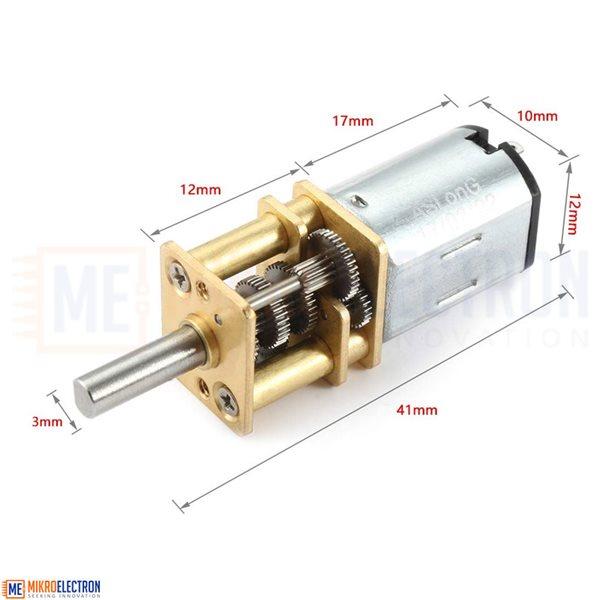

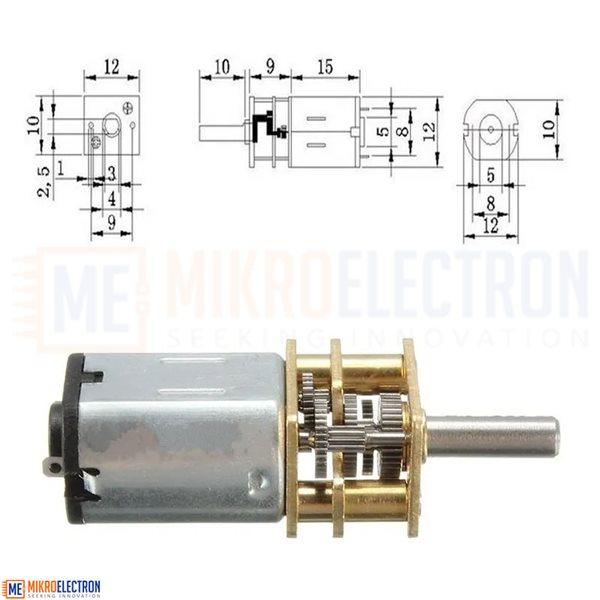

Motor Dimensions: 12 x 10 x 26 mm (excluding shaft)
Mounting Holes: M2 threaded
Stall Torque: Approx. 0.5–1.0 kg·cm (varies with load)
Current (No Load): ~60–100 mA
Current (Stall): Up to 1.2 A
