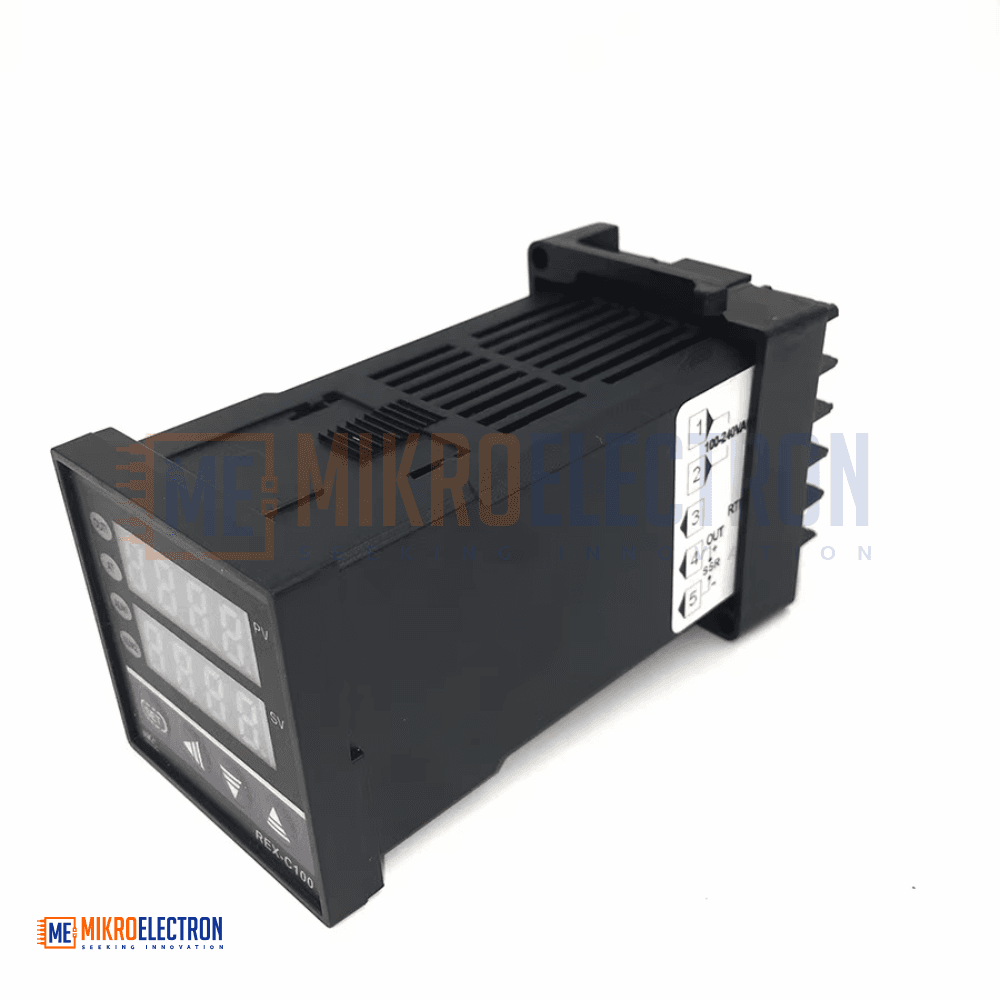

Digital PID Temperature Controller Thermostat REX-C100
REX-C100 Digital PID Temperature Controller Kit is a high-precision temperature control solution designed for industrial heating and automation applications. The kit includes a REX-C100 PID controller, 40A SSR solid-state relay, and K-type thermocouple probe for accurate temperature monitoring and stable control. Supporting temperatures from 0°C to 400°C, it delivers reliable PID regulation for ovens, incubators, heaters, 3D printers, and industrial equipment requiring efficient and automatic temperature management.
طقم متحكم الحرارة الرقمي REX-C100 PID هو نظام عالي الدقة للتحكم بدرجات الحرارة في التطبيقات الصناعية وأنظمة التسخين المختلفة. تتضمن المجموعة وحدة تحكم PID REX-C100 مع ريليه SSR بقدرة 40A وحساس حرارة من نوع K Thermocouple لقياس دقيق وتحكم مستقر بالحرارة. يدعم درجات حرارة من 0°C إلى 400°C، مما يجعله مناسباً للأفران والحاضنات والسخانات والطابعات ثلاثية الأبعاد وأنظمة التحكم الحراري الصناعية.

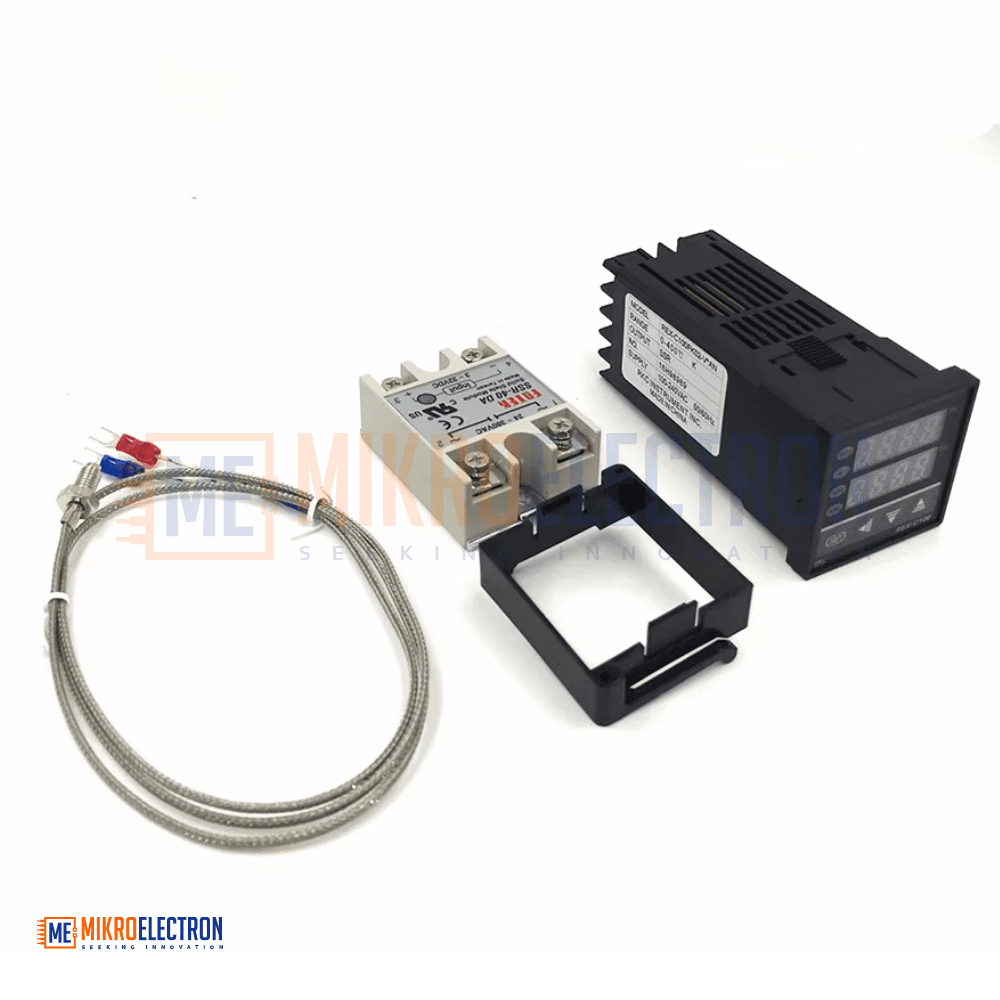

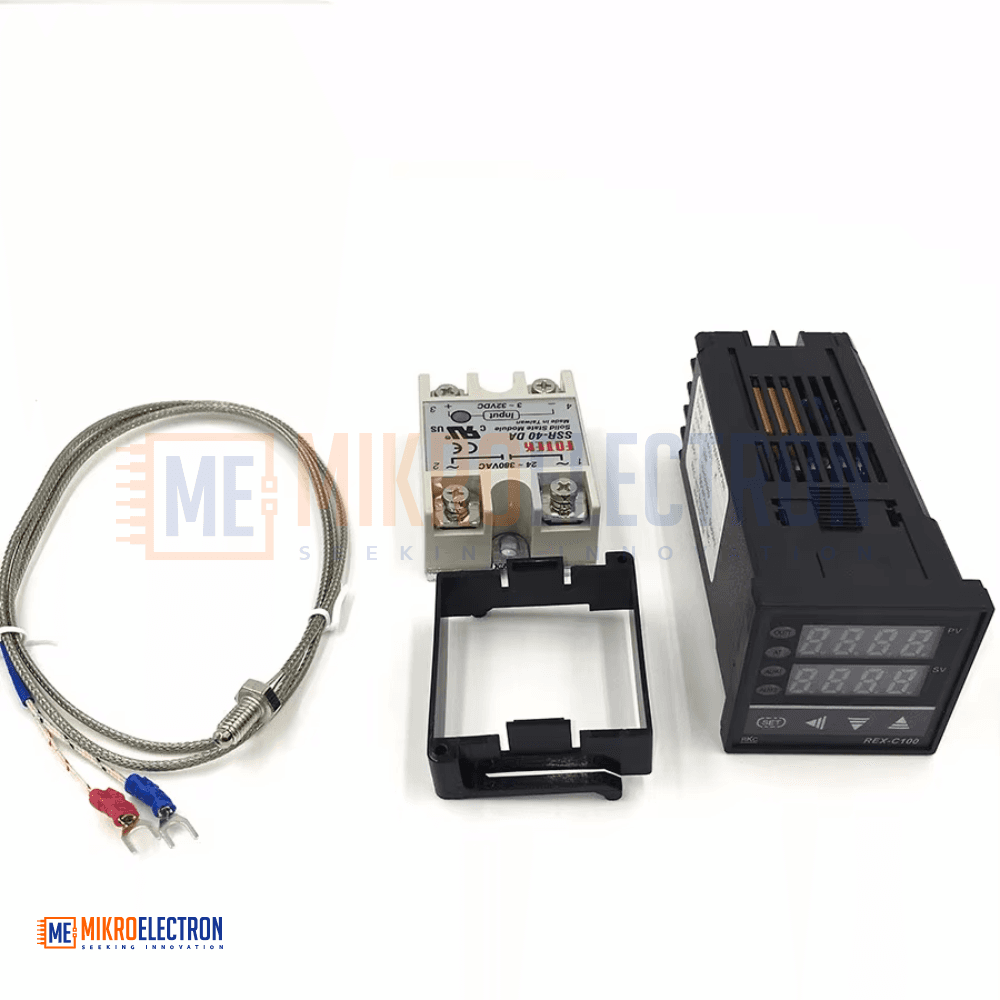

The Digital PID Temperature Controller Thermostat REX-C100 Kit is a professional temperature control system designed for precise and stable thermal regulation in industrial, laboratory, and DIY heating applications. The package includes the REX-C100 PID controller, a 40A Solid State Relay (SSR), and a K-type thermocouple temperature probe, providing a complete temperature management solution.
The controller uses advanced PID (Proportional–Integral–Derivative) control algorithms to maintain accurate temperature stability and reduce fluctuations during operation. It supports temperature measurement and control within a range of 0°C to 400°C, making it ideal for heating systems, furnaces, incubators, soldering equipment, food processing machines, and industrial automation systems.
The included K-type thermocouple probe features fiberglass internal insulation and external insulated shielding for reliable temperature sensing and durability in demanding environments. The 40A SSR relay enables safe and efficient switching of high-power AC loads with silent and reliable solid-state operation.
Its compact design, digital display, and wide operating voltage compatibility make the REX-C100 a dependable solution for professional and hobby temperature control projects.
Specifications

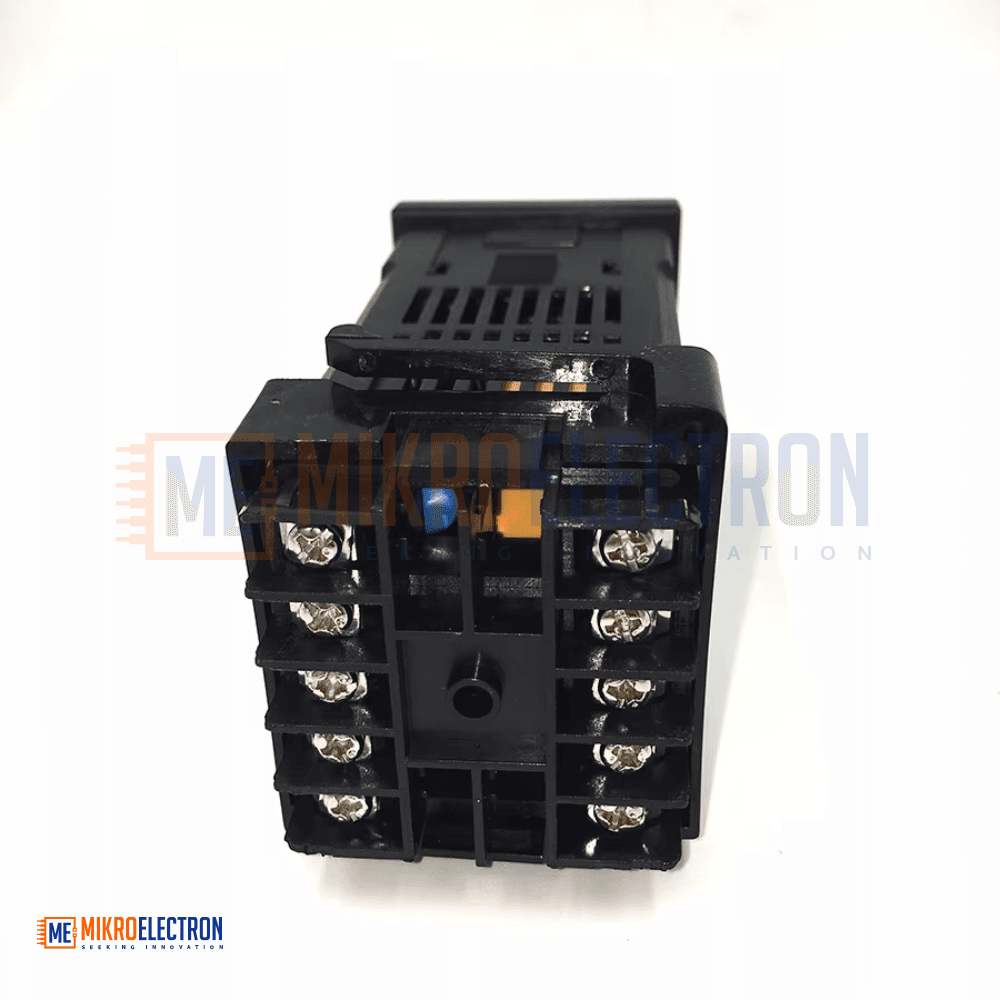

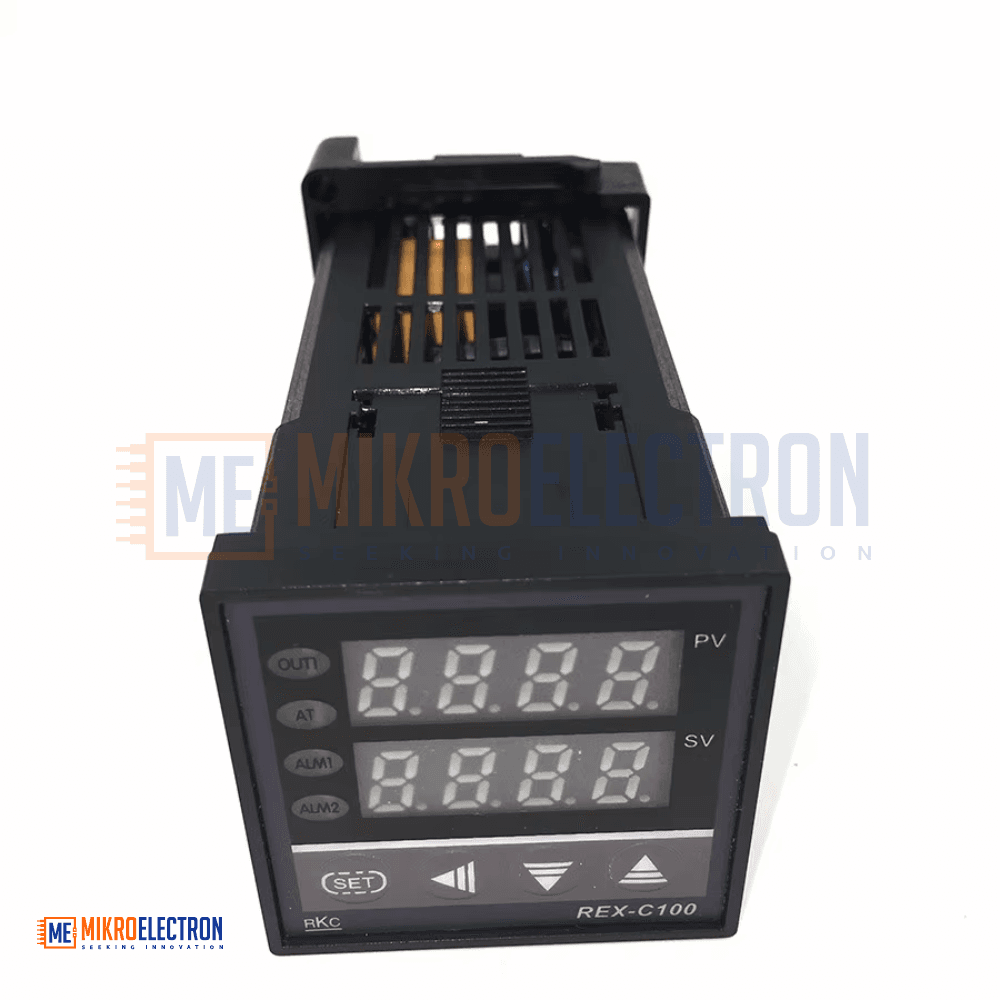

PID Temperature Controller

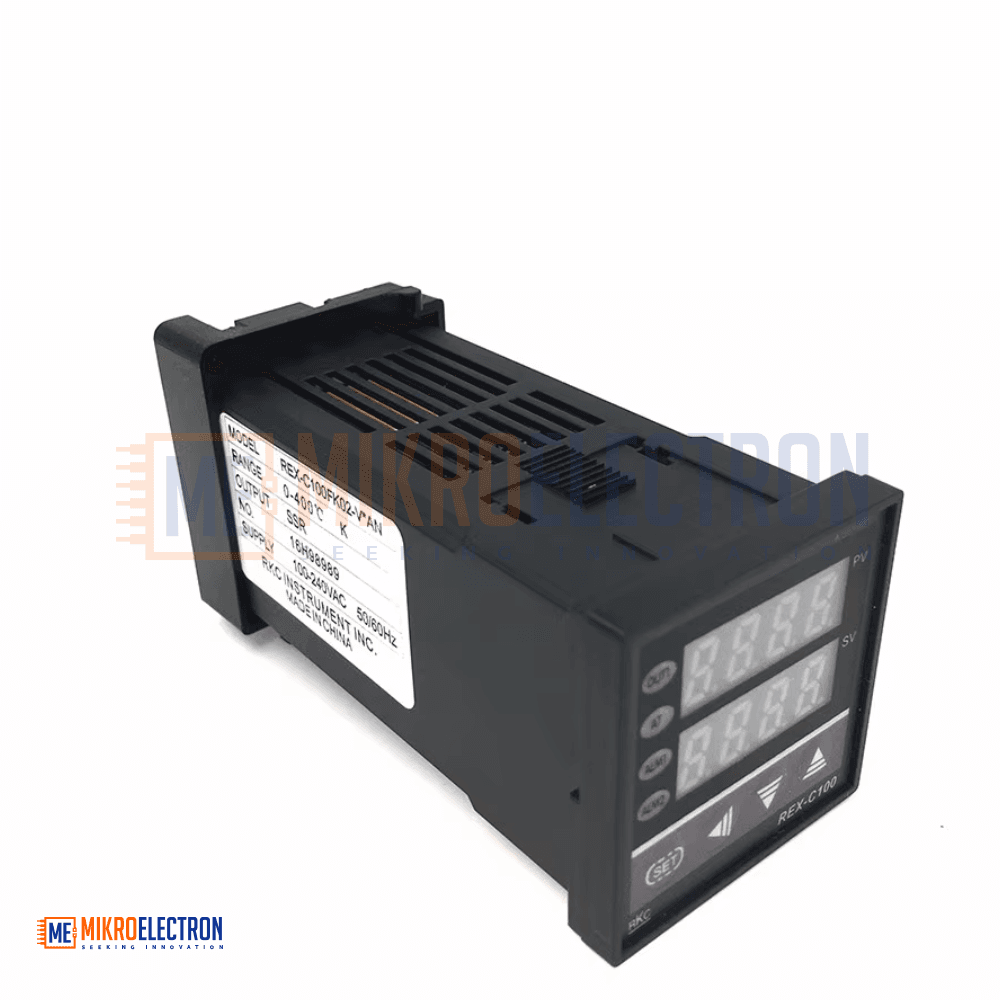

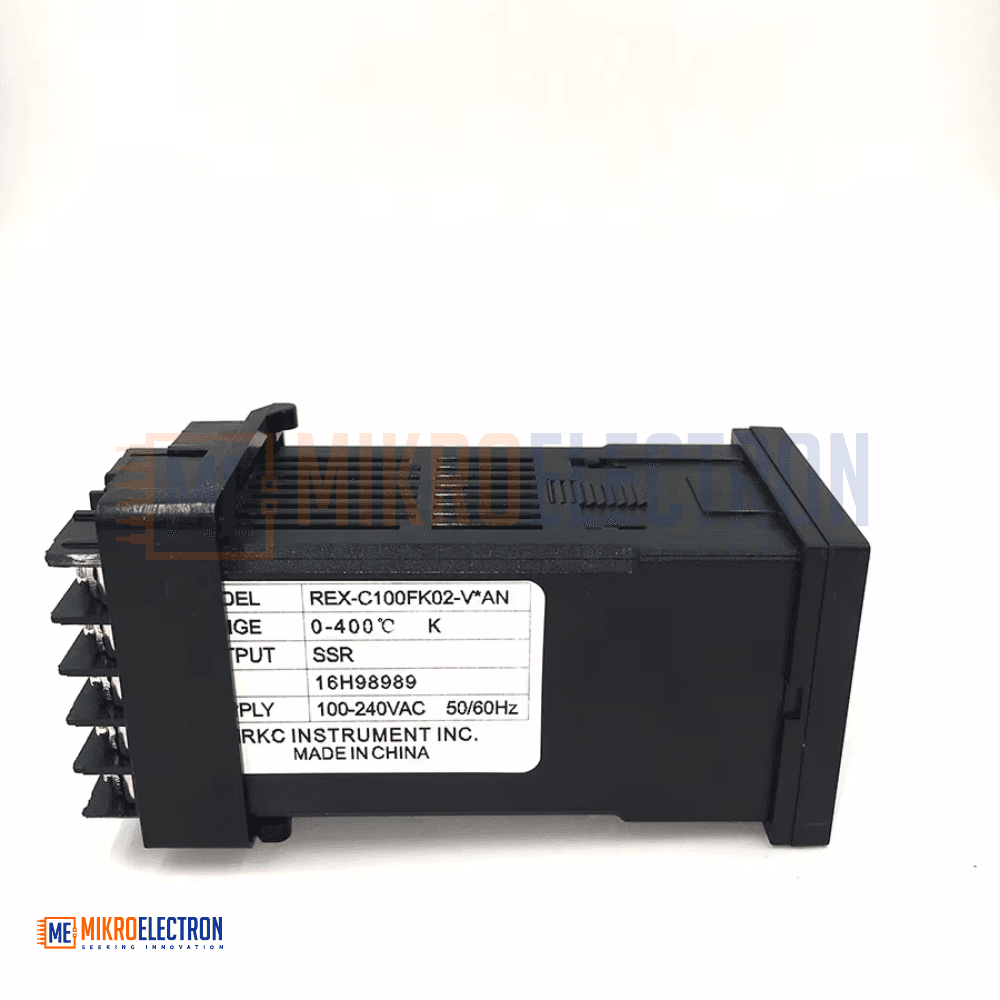

- Model: REX-C100FK02-V*AN
- Controller Type: Digital PID Temperature Controller
- Temperature Range: 0°C to 400°C
- Sensor Type: K Thermocouple
- Output Type: SSR Output
- Power Supply: 100–240V AC, 50/60Hz
- Display Type: Digital LED Display
- Control Method: PID Automatic Temperature Control
- Weight: 110g

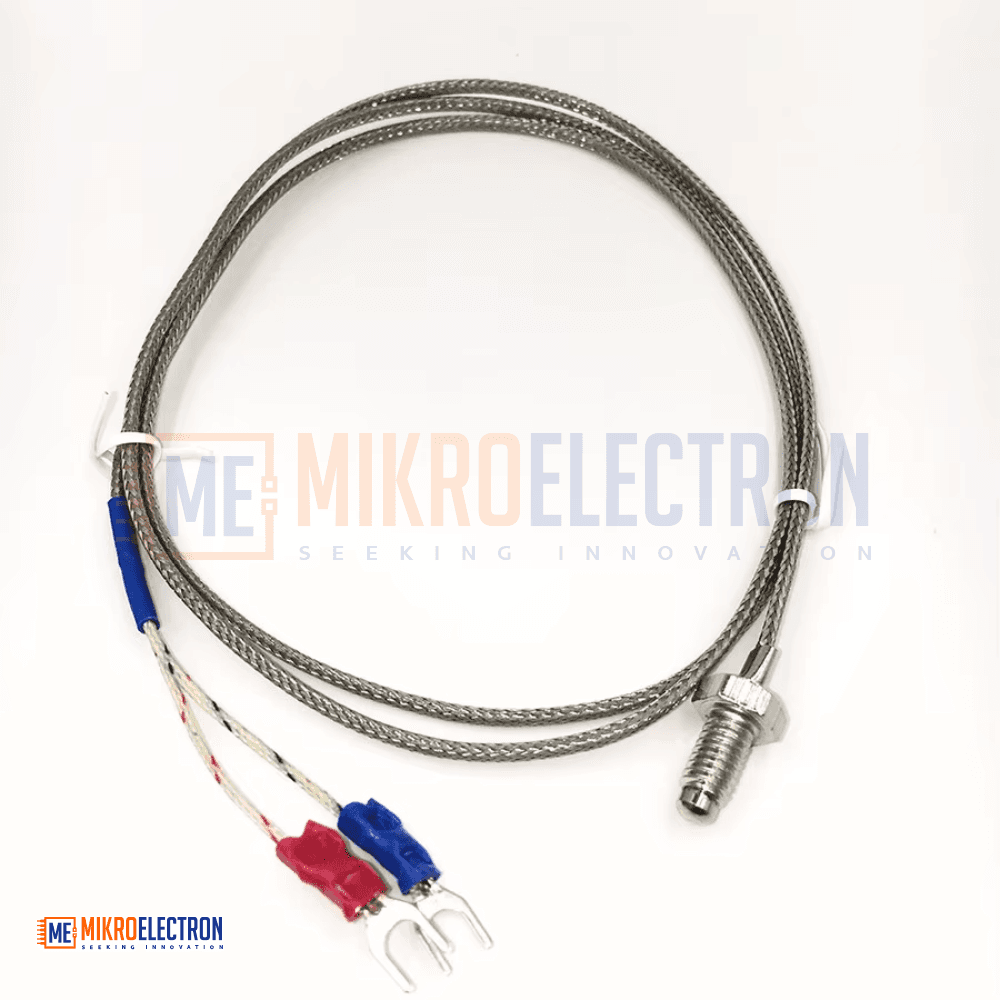

K-Type Thermocouple Probe
- Probe Type: K Thermocouple
- Cable Length: 1 Meter
- Sensor Diameter: 5mm
- Temperature Range: 0°C to 400°C
- Internal Insulation: Fiberglass
- External Shielding: Insulated Shielding

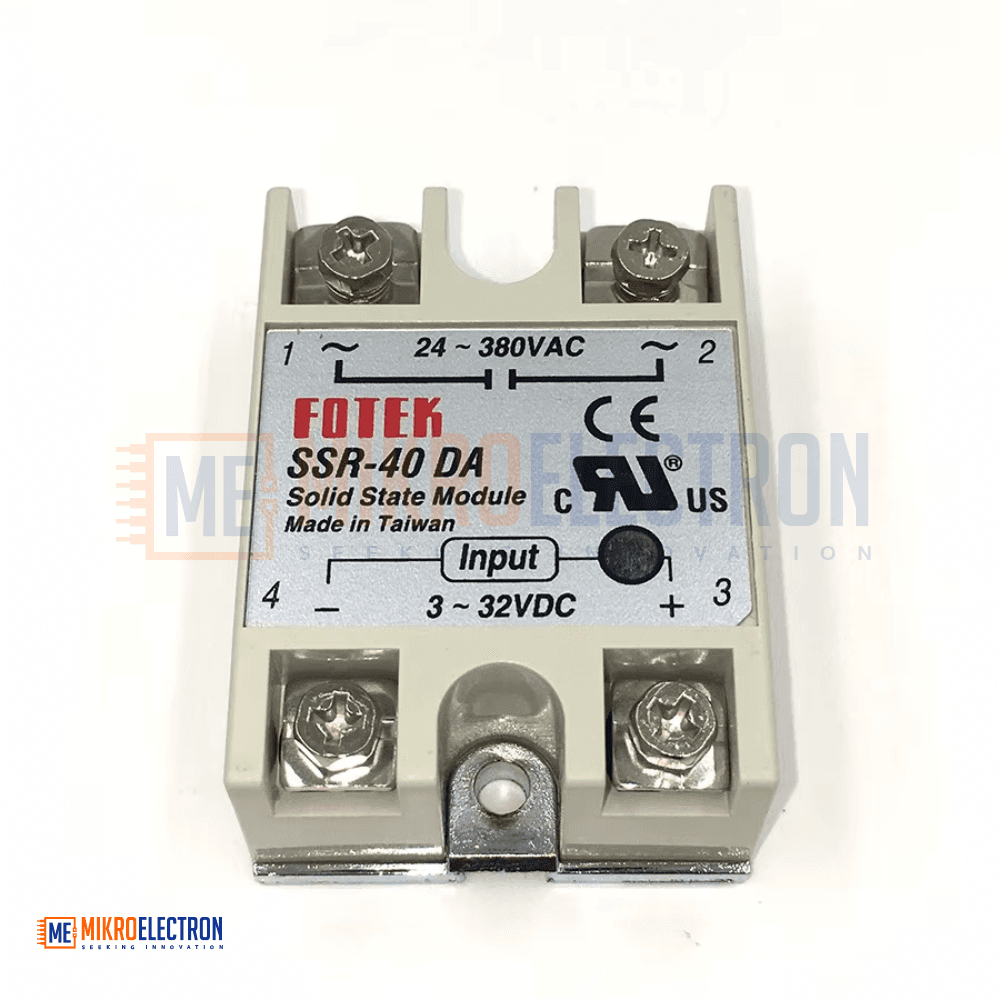

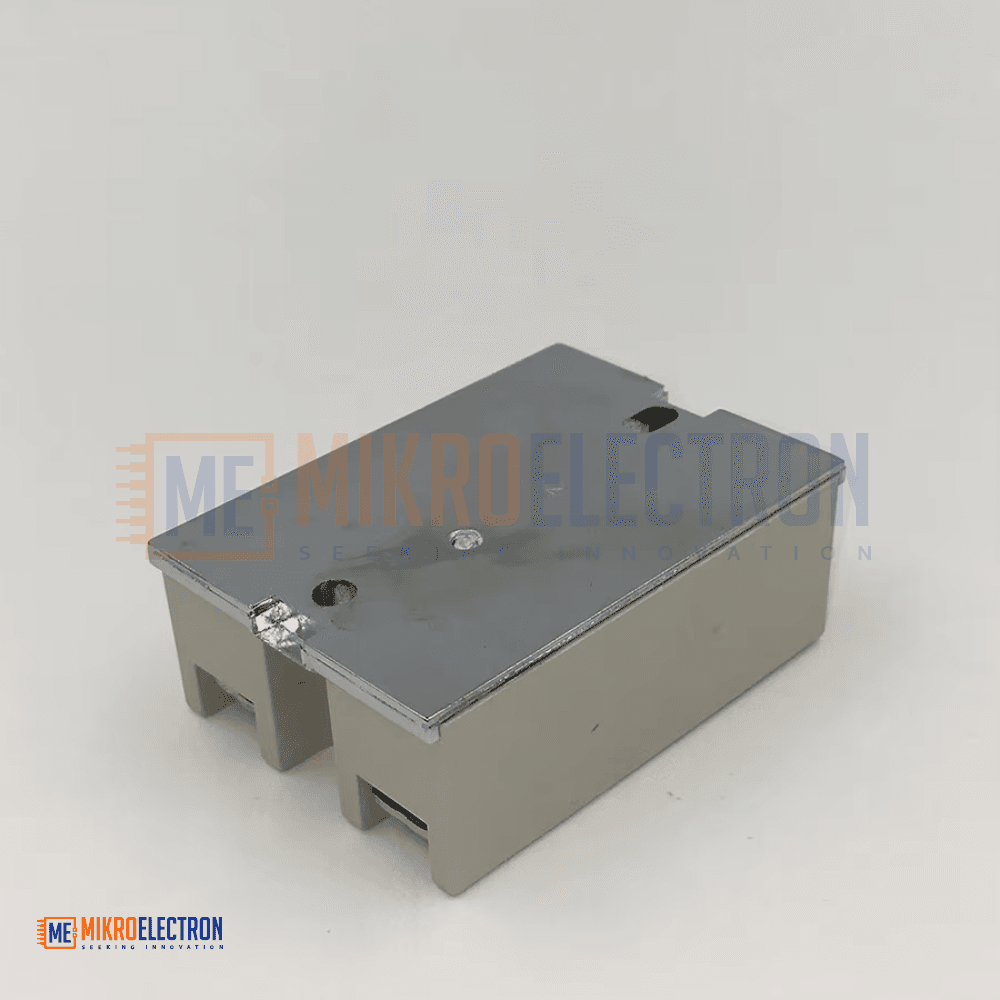

Solid State Relay (SSR)
- Relay Type: SSR Solid State Relay
- Maximum Output Current: 40A
- Input Voltage: DC 3–32V
- Output Voltage: 24–380V AC
- Switching Type: AC Load Control
Applications
- Industrial temperature control systems
- Electric ovens and furnaces
- Incubators and heating chambers
- 3D printer heating control
- Food processing equipment
- Soldering and reflow stations
- Plastic molding and heating systems
- Laboratory temperature regulation
- DIY automation projects
- Smart thermal management systems
