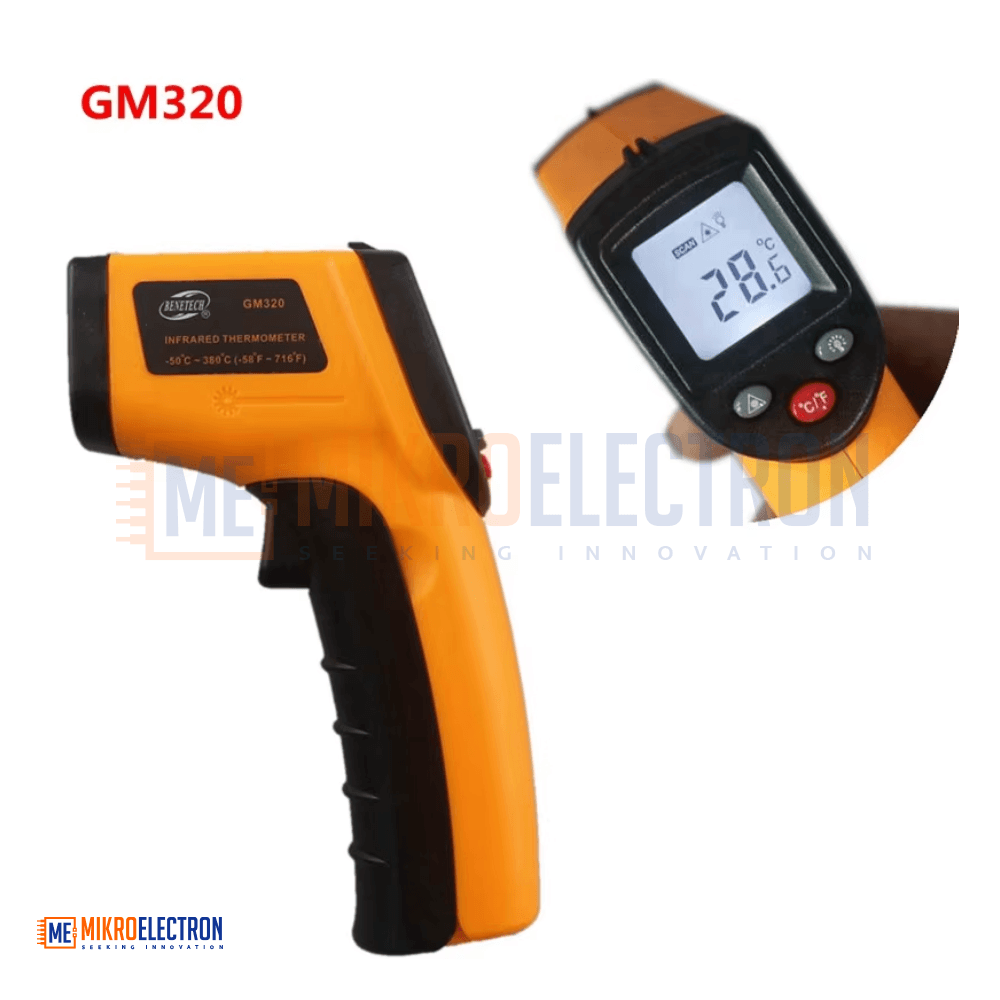

GM320 Non-Contact Digital Infrared Thermometer IR Laser Temperature Meter
The GM320 Non-Contact Digital Infrared Thermometer is a compact and easy-to-use laser temperature meter designed for fast and accurate surface temperature measurements. It measures temperatures from -50°C to 330°C without physical contact, making it ideal for industrial, automotive, electrical, and household applications. Featuring a laser targeting system, LCD display with backlight, data hold function, and automatic power-off, the GM320 provides reliable and convenient temperature monitoring in various environments.
جهاز GM320 Infrared Thermometer هو مقياس حرارة رقمي يعمل بالأشعة تحت الحمراء لقياس درجات الحرارة بدون تلامس مباشر. يتميز بمدى قياس واسع من -50°C إلى 330°C مع تصميم مدمج وسهل الاستخدام، مما يجعله مناسباً للتطبيقات الصناعية والكهربائية والمنزلية والسيارات. يحتوي على مؤشر ليزر للتوجيه، وشاشة LCD بإضاءة خلفية، ووظيفة تثبيت القراءة، وإيقاف تلقائي للطاقة لتوفير قياسات دقيقة وسريعة وآمنة.
The GM320 Infrared Thermometer is a portable non-contact temperature measurement device designed for fast, safe, and accurate surface temperature readings. Using infrared sensing technology combined with a laser targeting system, the thermometer can instantly measure the temperature of hot, hazardous, moving, or hard-to-reach objects without direct contact.

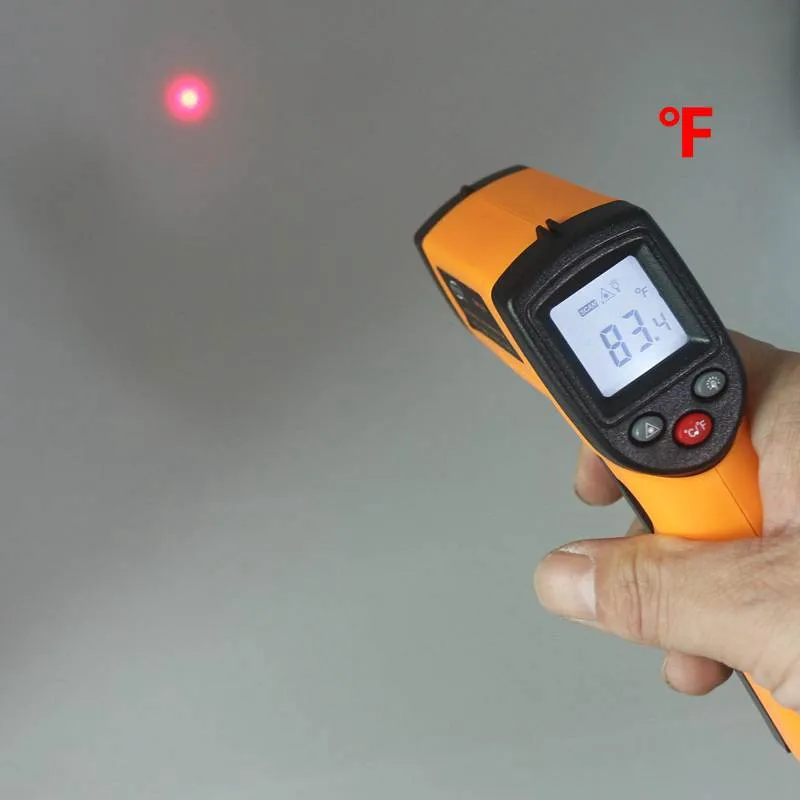

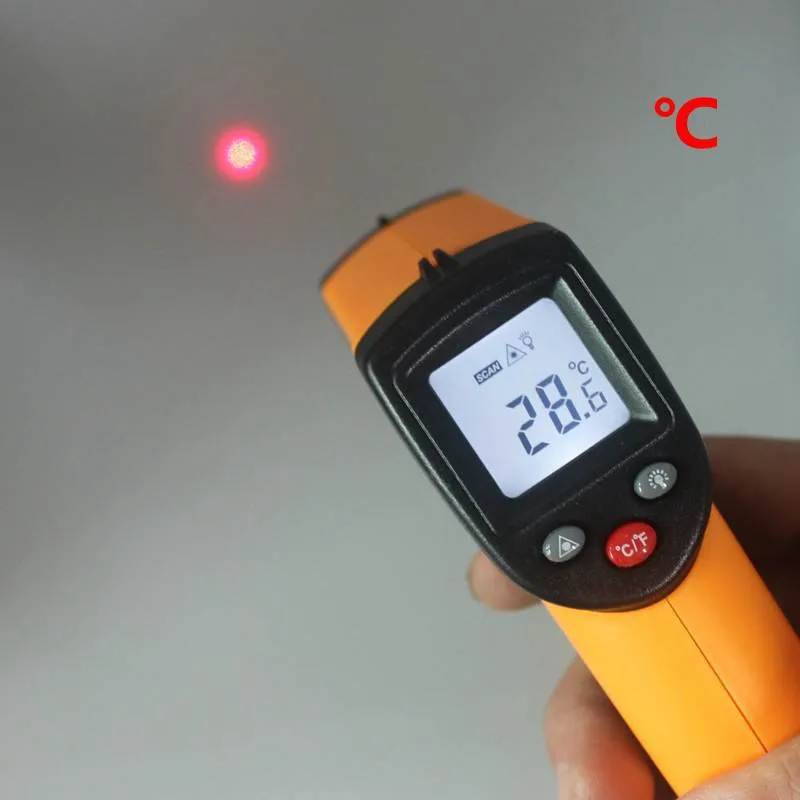

The device supports a wide measurement range from -50°C to 330°C (-58°F to 626°F) and provides fast response times for efficient operation. Its built-in LCD screen with blue backlight ensures clear visibility in low-light environments, while selectable Celsius and Fahrenheit units provide convenient temperature display options.

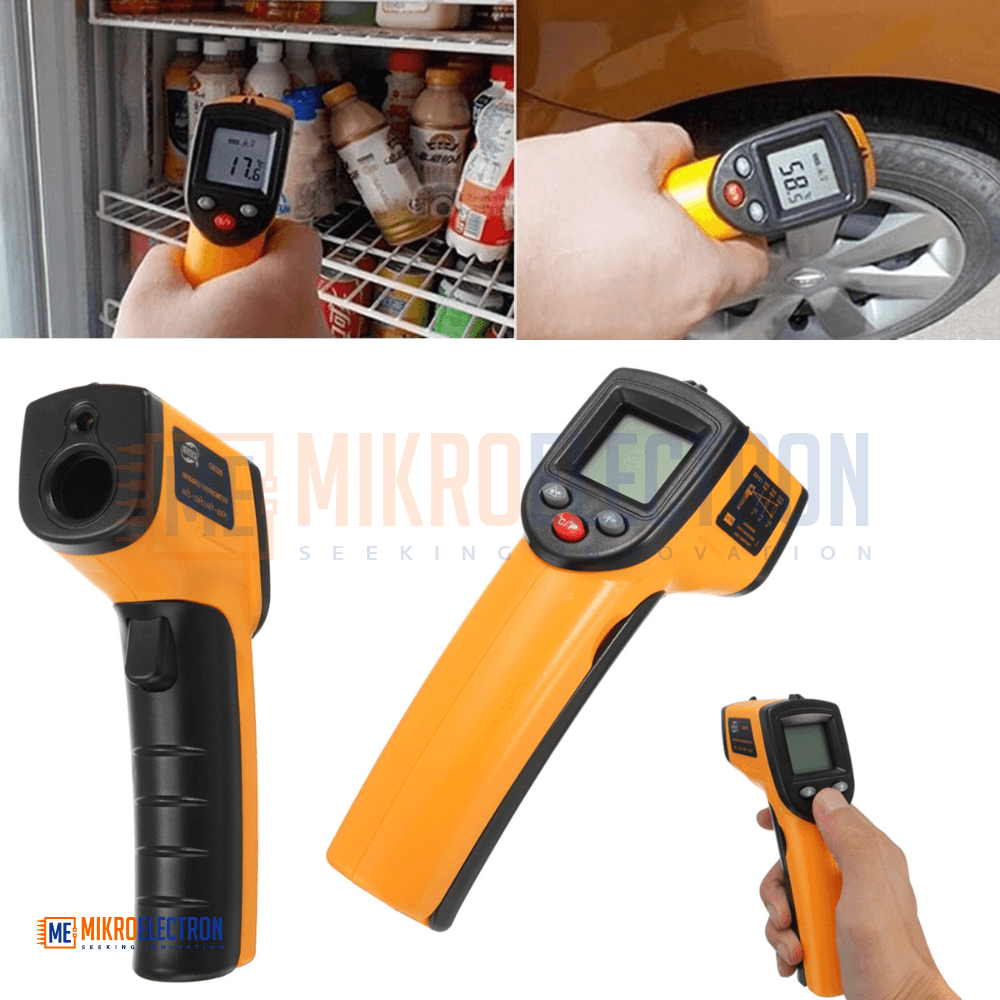

Equipped with features such as data hold, laser pointer selection, auto power-off, and low battery indication, the GM320 offers reliable performance for industrial maintenance, automotive diagnostics, HVAC systems, electrical inspections, cooking, and household temperature measurements.

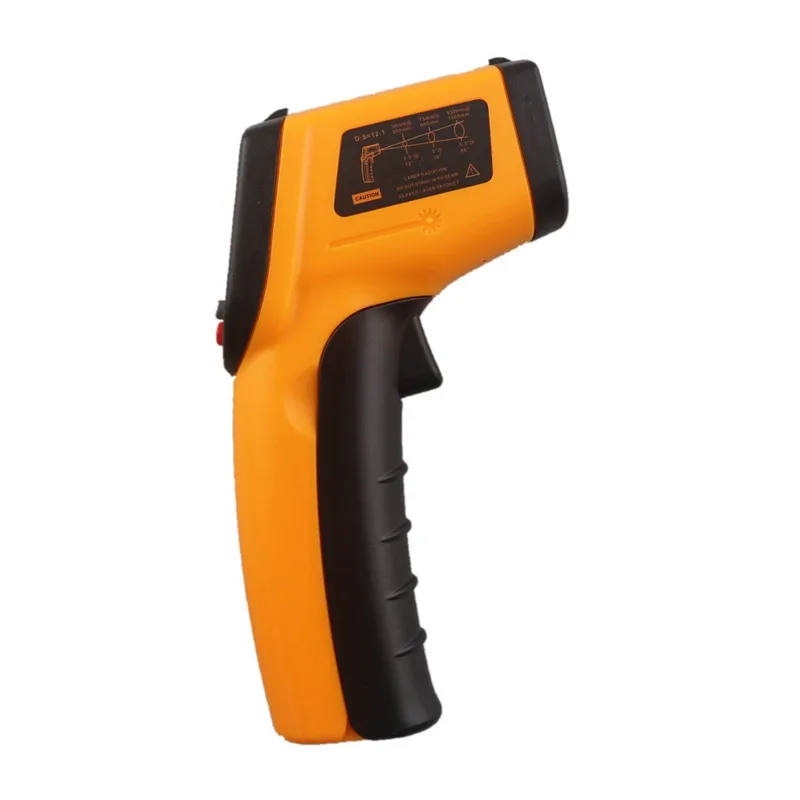

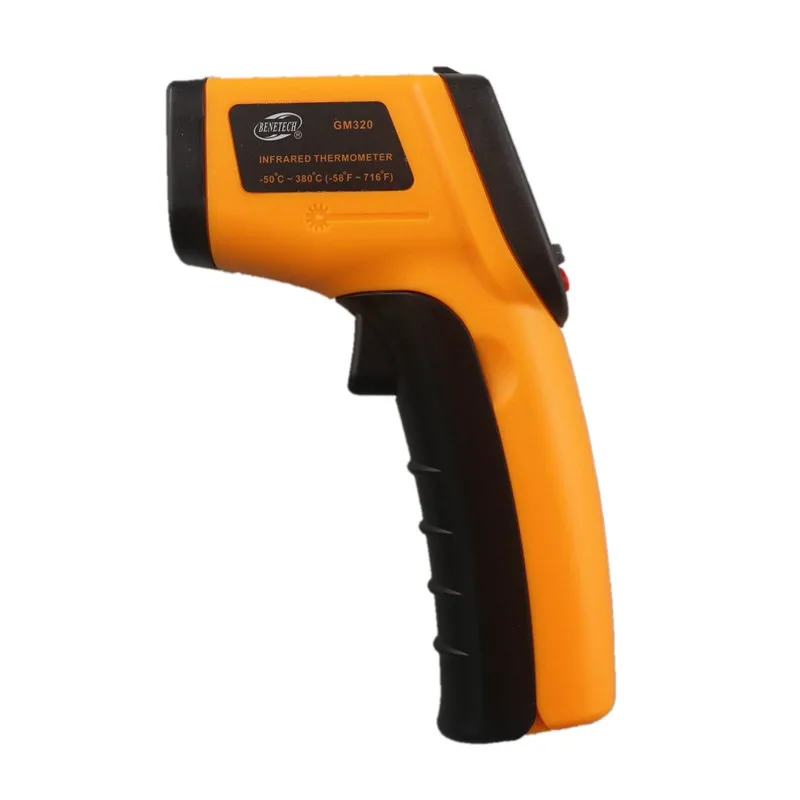

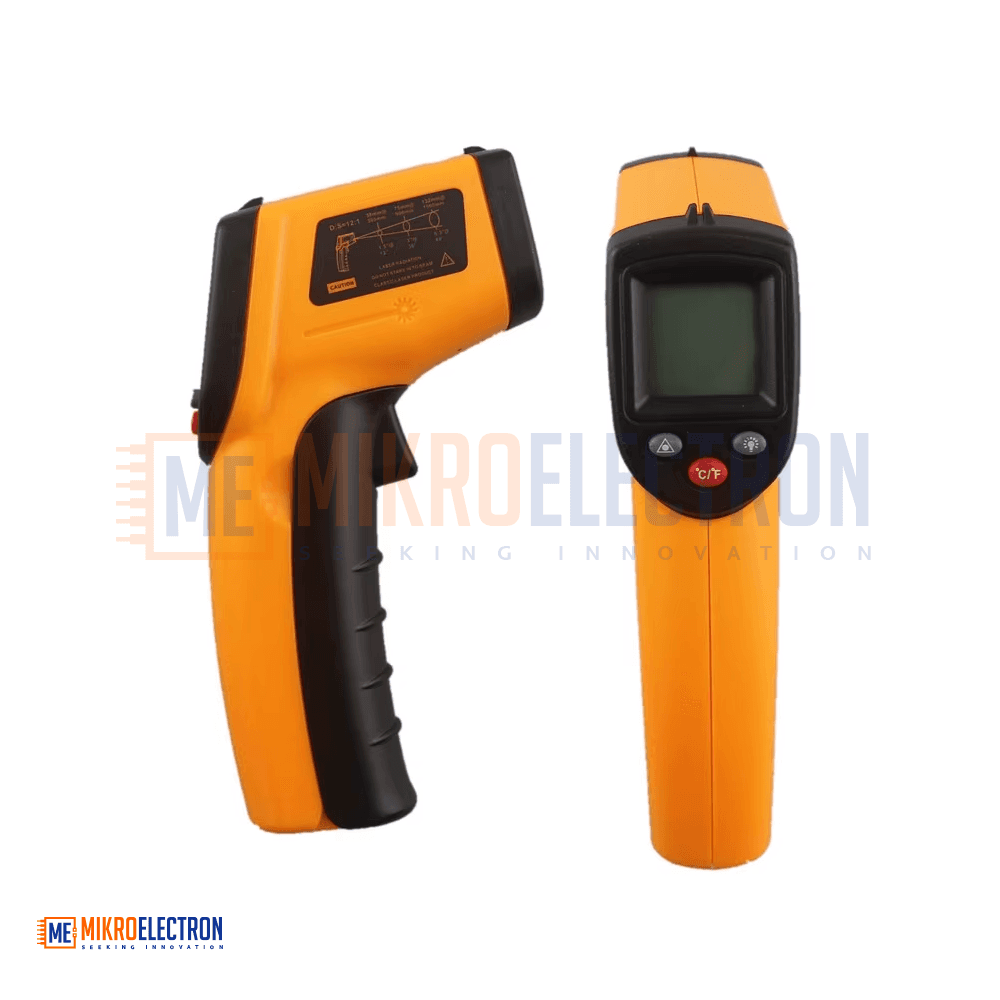

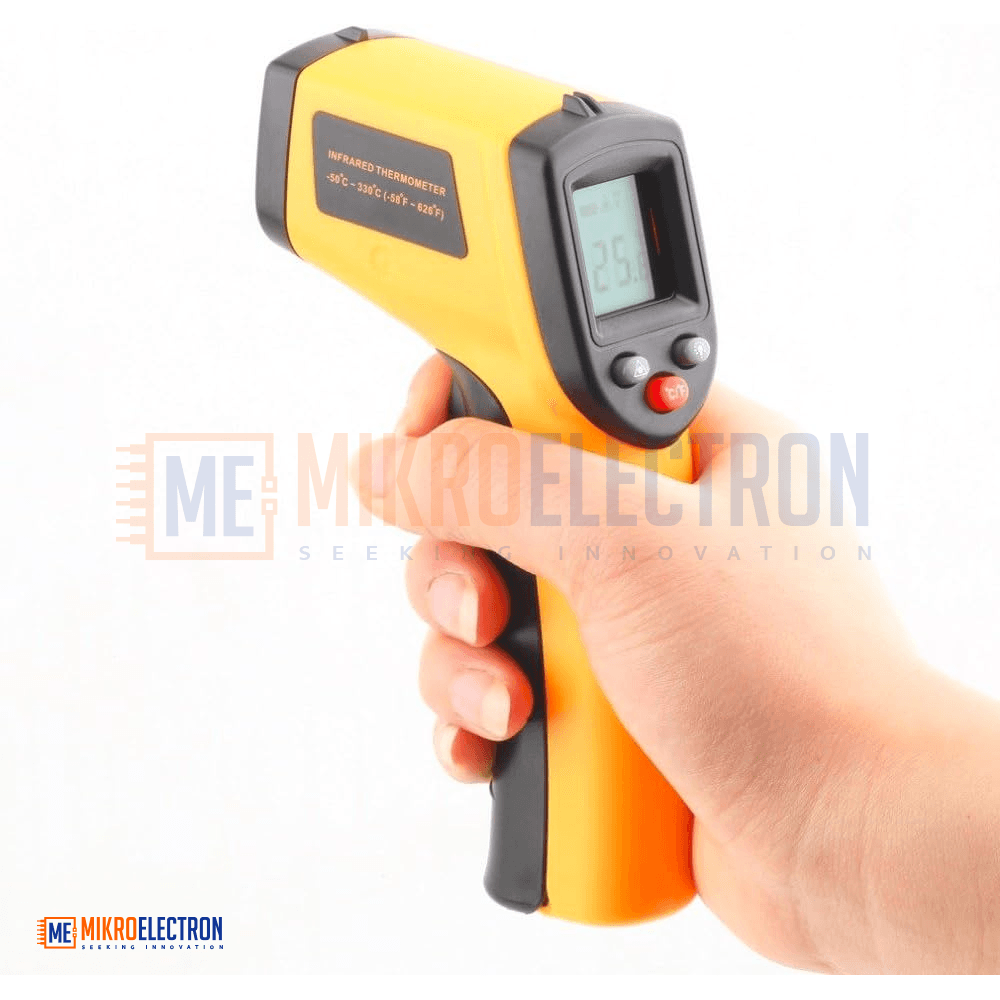

The ergonomic handheld design makes it comfortable and practical for both professional and personal use.
Specifications
- Model: GM320
- Product Type: Non-Contact Infrared Thermometer
- Temperature Range: -50°C to 330°C (-58°F to 626°F)
- Accuracy: ±1.5% or ±1.5°C
- Repeatability: ±1% or ±1°C
- Resolution: 0.1°C / 0.1°F
- Distance Spot Ratio: 12:1
- Emissivity: 0.95 Fixed
- Response Time: 500ms – 0.8s
- Wavelength Range: 8–14μm
- Laser Output: <1mW
- Laser Wavelength: 630nm – 670nm

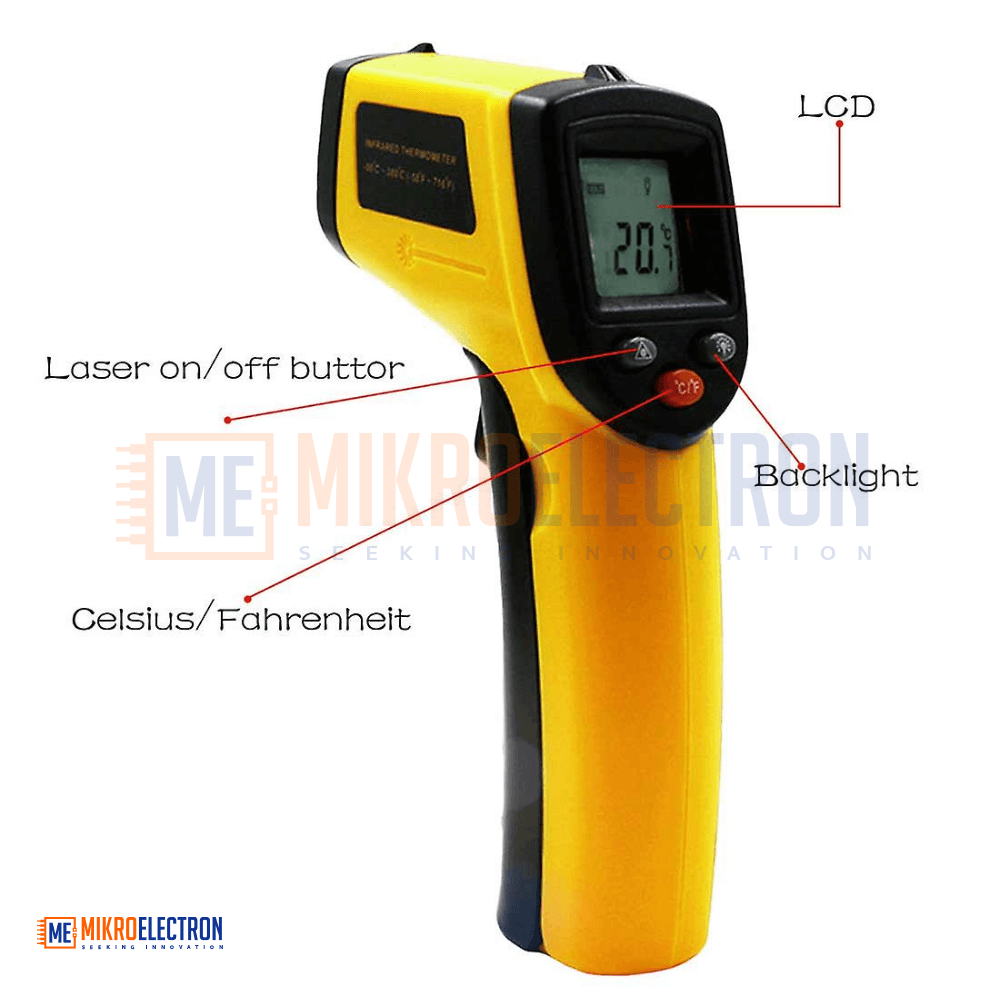

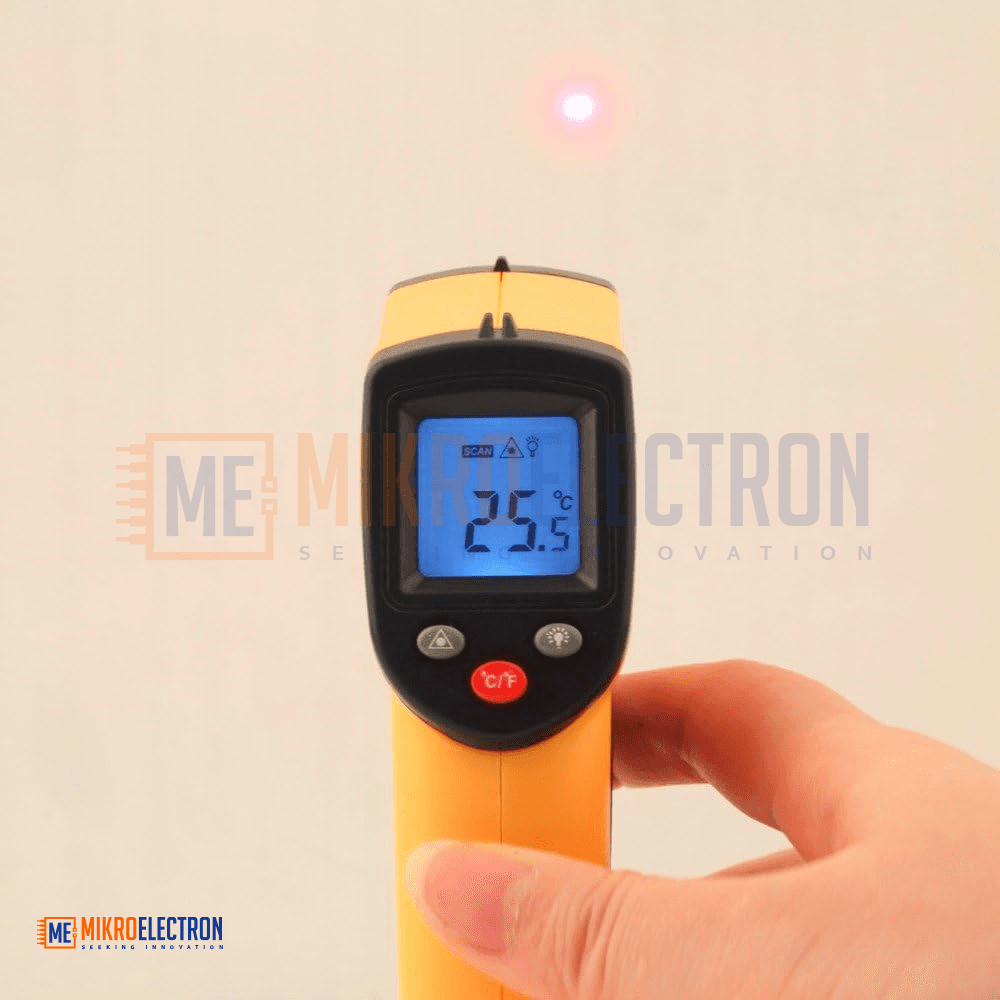

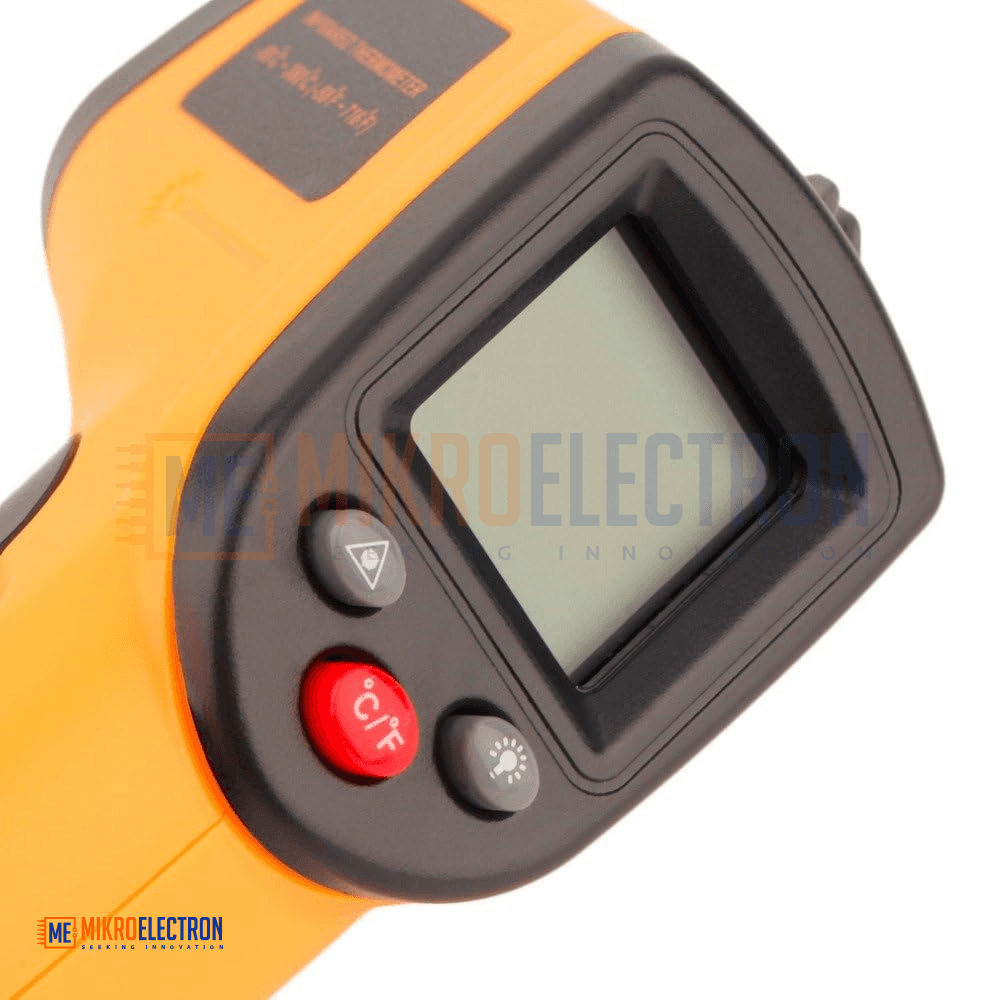

- Display Type: 3½ Digit LCD with Blue Backlight
- Temperature Units: °C / °F Selectable
- Recommended Measuring Distance: 15cm – 1m
- Working Temperature: 0°C to 50°C
- Storage Temperature: -20°C to +50°C
- Power Supply: 2 × AAA 1.5V Batteries (Not Included)
- Dimensions: 144.5 × 93 × 38 mm
- Certifications: CE, RoHS
- Color: Black & Yellow
Applications
- Industrial temperature measurement
- Electrical equipment inspection
- Automotive diagnostics
- HVAC system maintenance
- Food preparation and cooking
- Home appliance testing
- Mechanical equipment monitoring
- Laboratory temperature checking
- Surface temperature measurement
- Safety and preventive maintenance
