Green ESP32 V4 Goouuu 38PIN Terminal Adapter

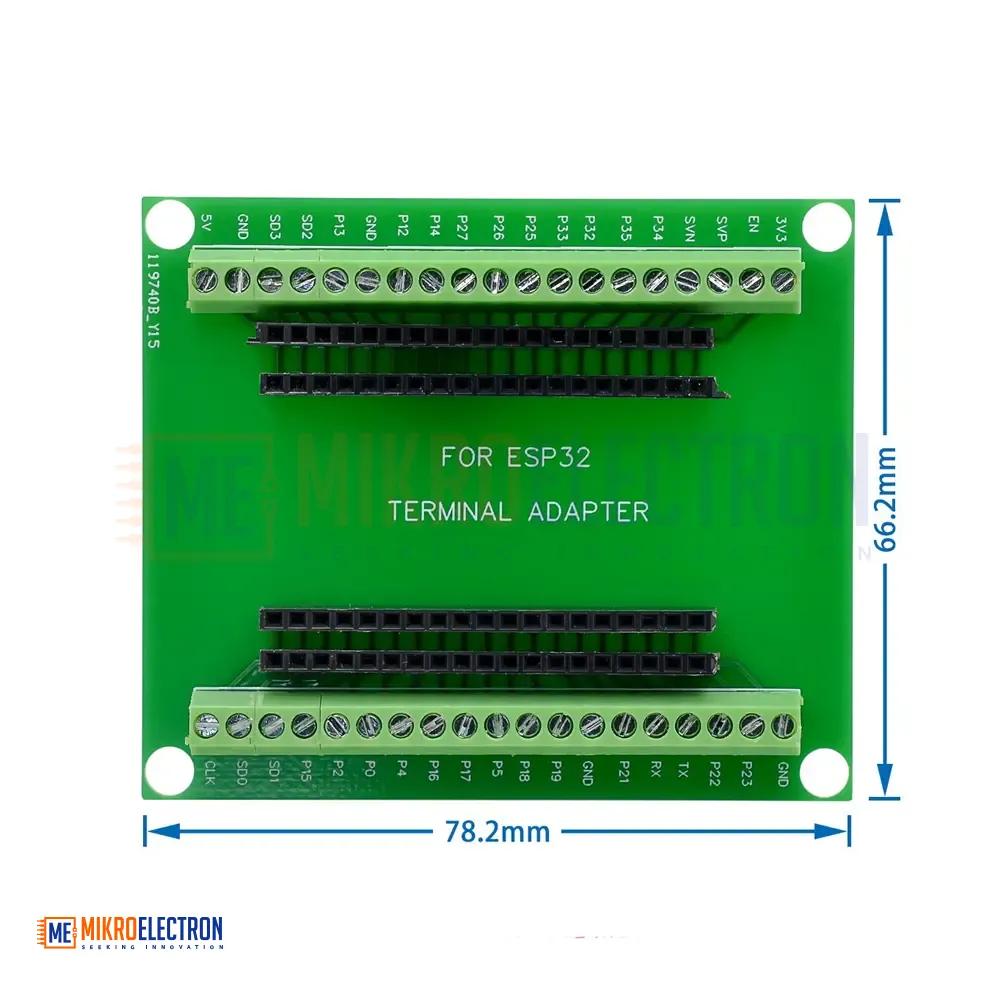

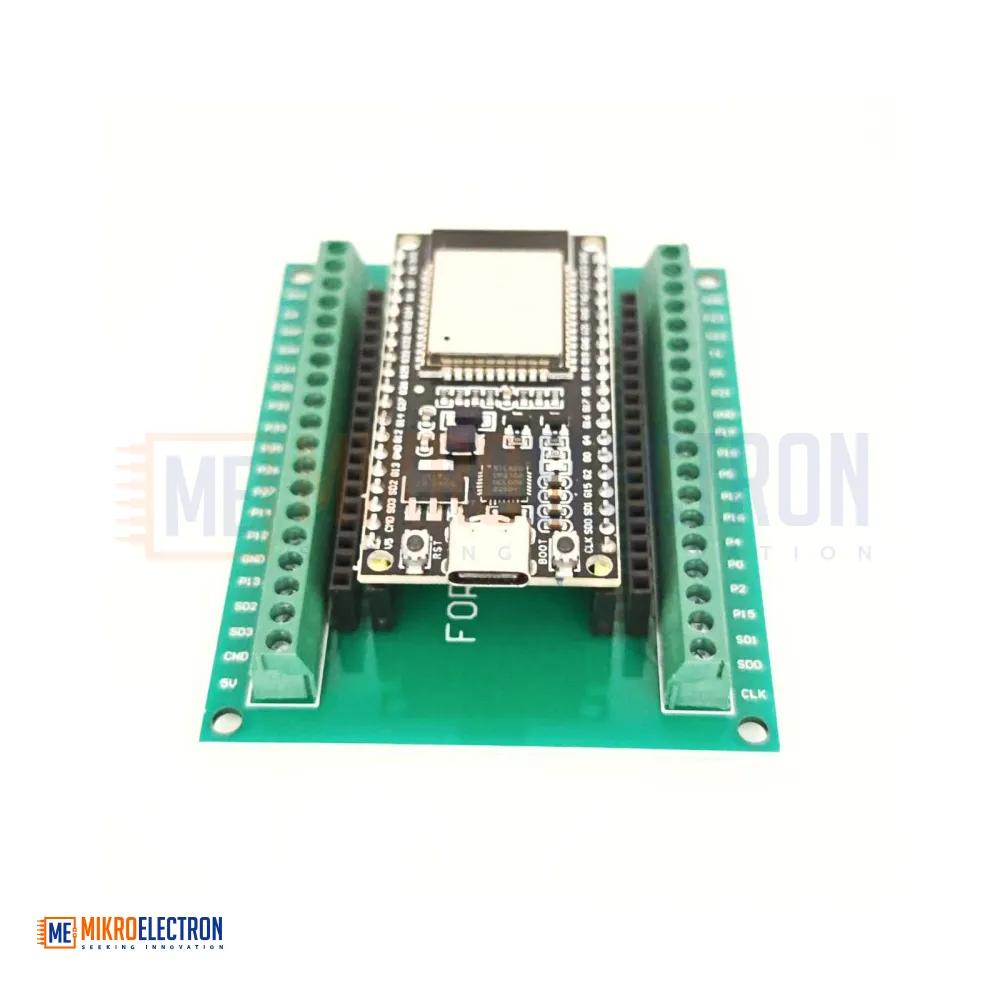

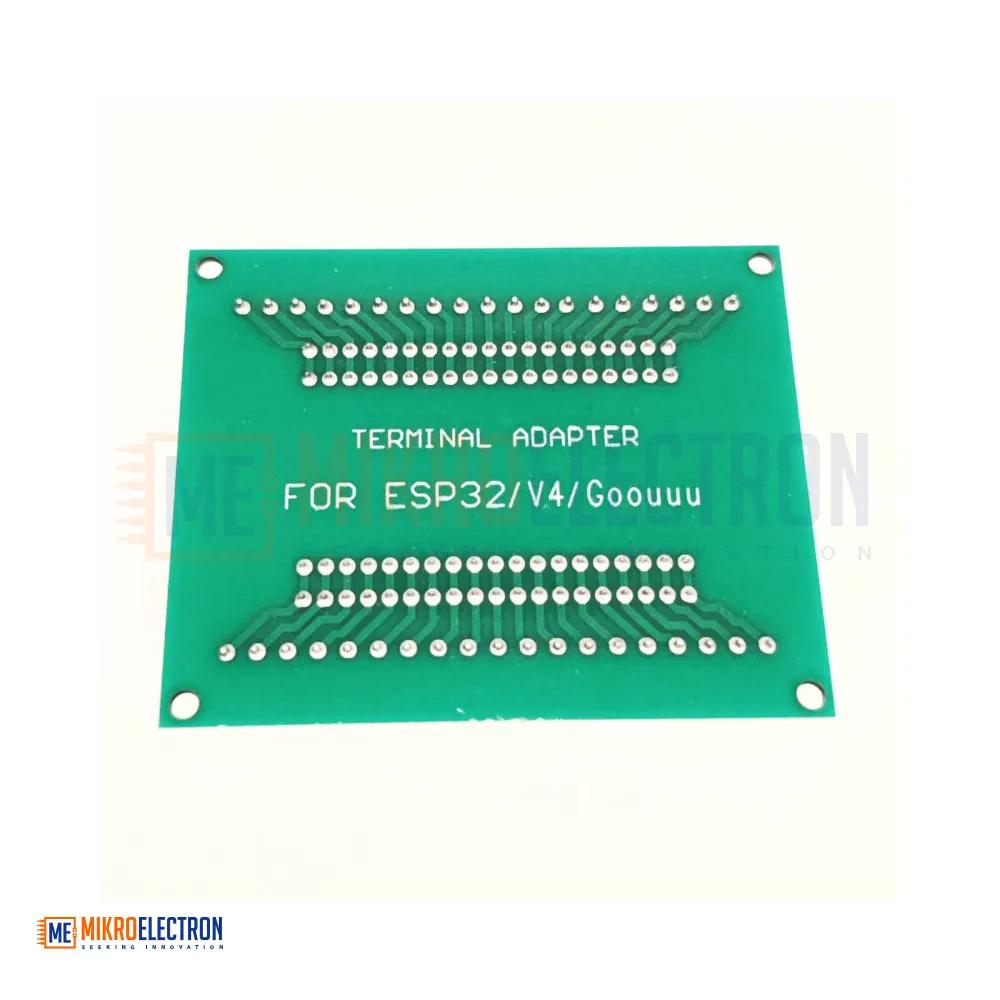

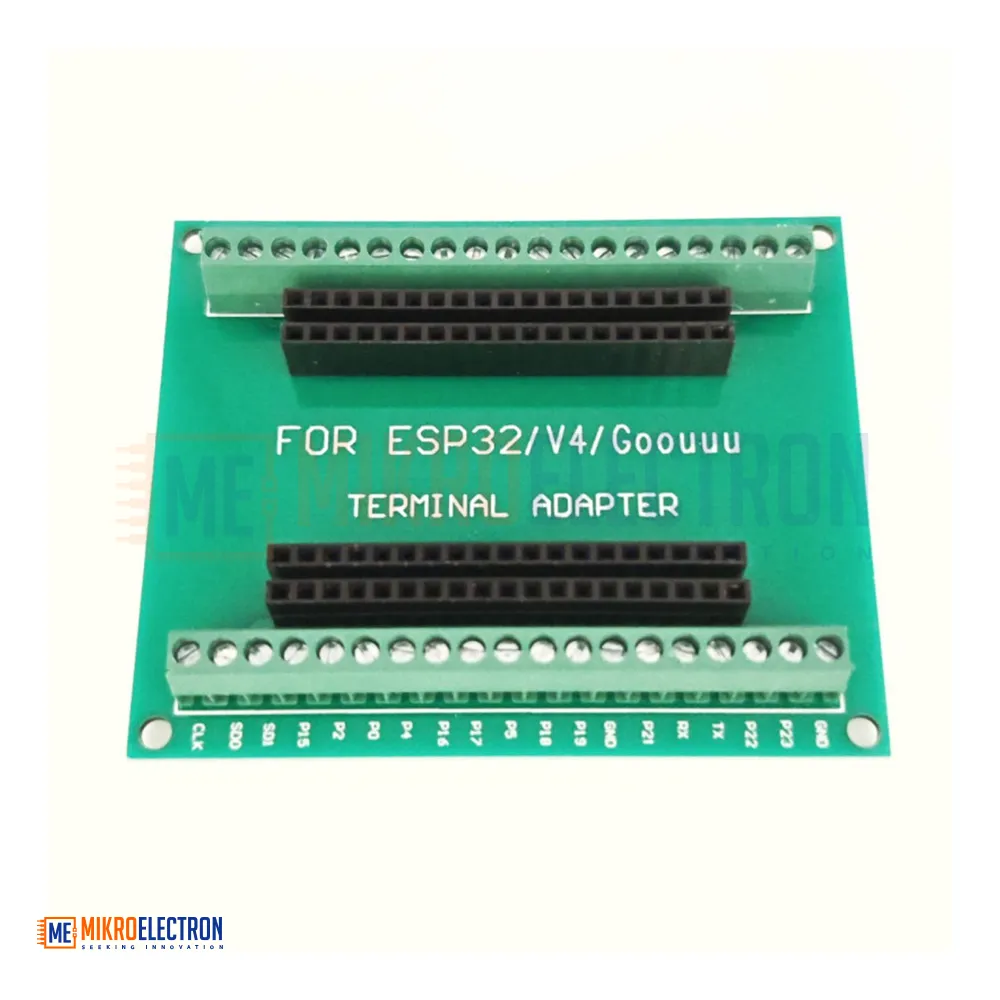

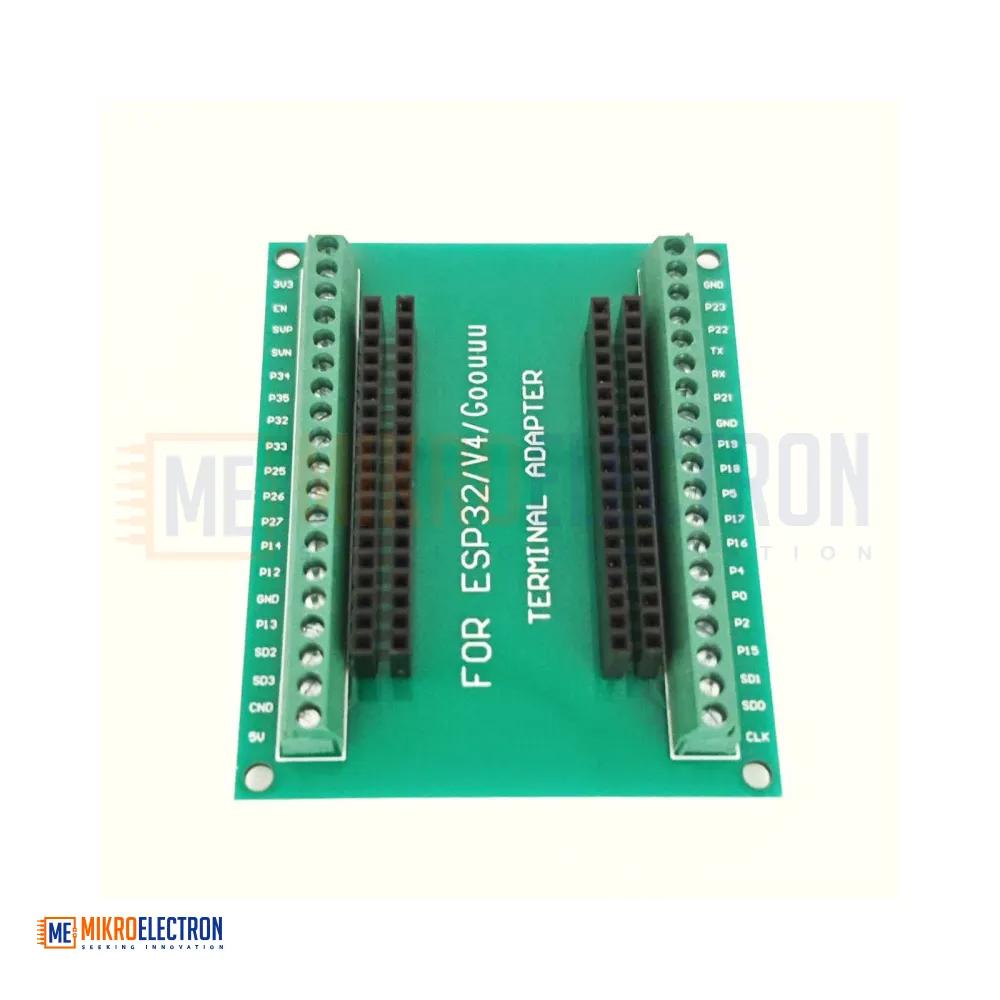

The Green ESP32 V4 Goouuu 38PIN Terminal Adapter is a high-quality breakout board that simplifies interfacing with ESP32 development boards using the 38-pin layout, such as the popular ESP32 DevKit V4 by Goouuu. This adapter routes each GPIO pin to a clearly labeled screw terminal, allowing for easy, reliable connections to sensors, relays, power supplies, and other modules without the need for soldering.

Designed for both development and field installations, this adapter provides solid electrical connections via durable screw terminals, and features clear silkscreen labels for hassle-free wiring. It's perfect for users who frequently change components or need a stable setup for extended use.

The board also includes mounting holes for enclosure or surface installation, making it ideal for fixed applications as well as quick lab work.

Specifications:

Model: ESP32 V4 Terminal Adapter

Color: Green

Compatible Boards: ESP32 DevKit V4 (Goouuu or similar 38-pin layout)

Pin Count: 38 (19 pins per side)

Terminal Type: Screw terminals (2-pin per I/O)

Pin Spacing: Standard 2.54mm

Material: FR4 PCB, high-quality terminal blocks

Mounting Options: Includes mounting holes for panel or enclosure installation
