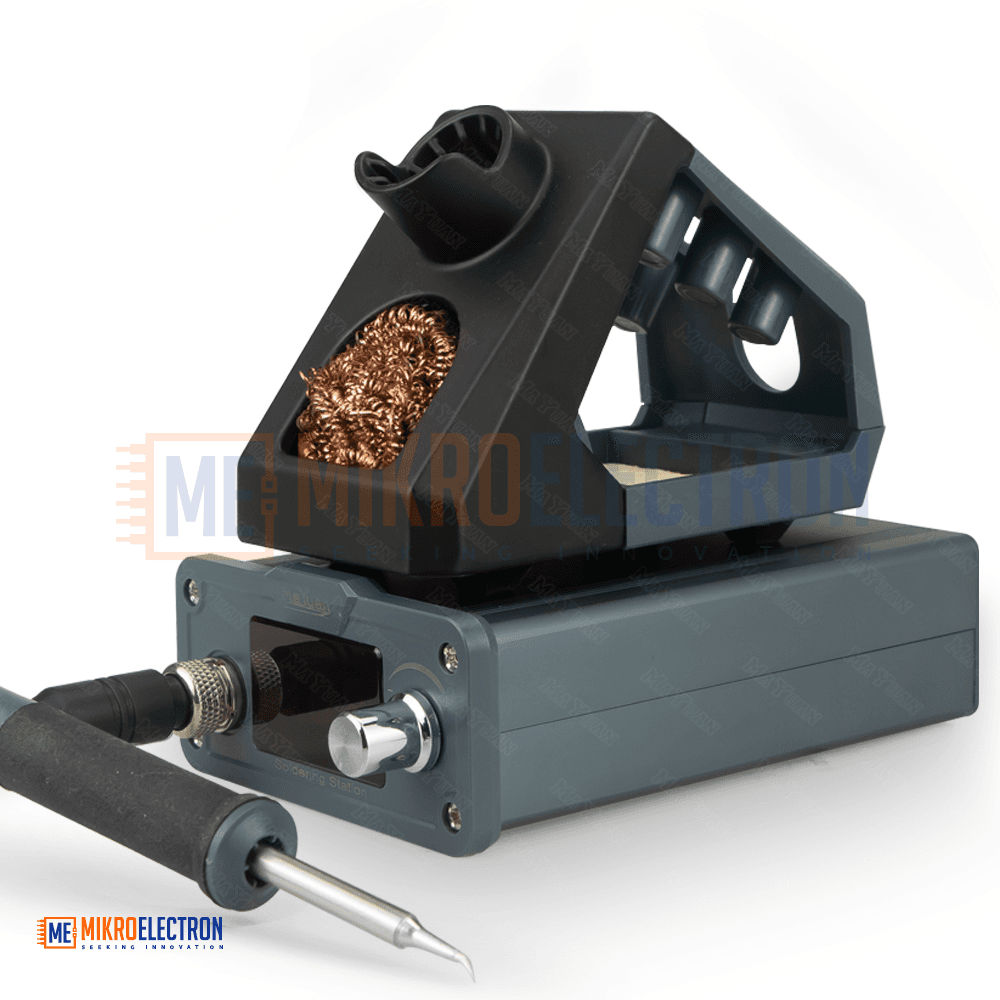

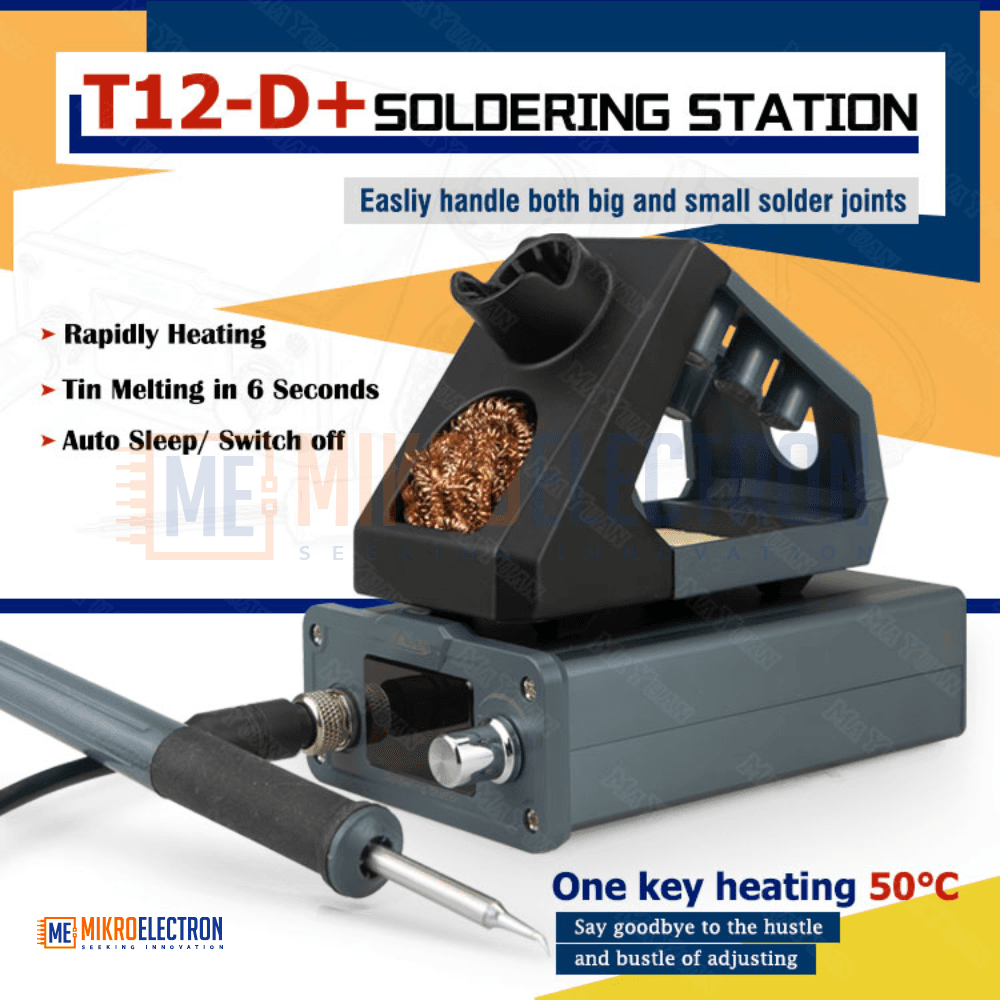

Integrated High Power Fast Heating Soldering Iron Station for Electronic Mobile Phone Repair EU Plug T12-D+
Integrated High Power Fast Heating Soldering Iron Station designed for professional electronic and mobile phone repair. Featuring 72W peak power, fast heating performance, and precise temperature control, it ensures stable and efficient soldering. The station supports AC100–240V input and includes a durable, lead-free long-life soldering tip. With automatic constant temperature control and integrated heating core, it provides reliable operation, low leakage, and improved circuit protection. Ideal for precision soldering applications requiring accuracy, safety, and consistent thermal performance.
محطة لحام احترافية بقدرة عالية وتسخين سريع مخصصة لصيانة الأجهزة الإلكترونية والهواتف المحمولة. تتميز بقدرة 72 واط وتسخين سريع مع تحكم دقيق بدرجة الحرارة لضمان لحام ثابت وفعال. تعمل على جهد AC100-240V وتحتوي على رأس لحام طويل العمر وخالٍ من الرصاص. مزودة بنظام تحكم أوتوماتيكي للحفاظ على درجة الحرارة ونواة تسخين مدمجة لضمان أداء موثوق وتقليل تسرب الكهرباء وحماية أفضل للدوائر الإلكترونية.
The Integrated High Power Fast Heating Soldering Iron Station is a professional-grade soldering solution engineered for precision electronic repair and mobile phone maintenance. With 72W peak power, the station delivers rapid heat-up performance and stable temperature control for efficient soldering operations.
It features an integrated heating core design that ensures fast thermal recovery and accurate temperature regulation. The adjustable thermostat allows direct temperature setting from the handle with automatic constant temperature control, improving soldering stability and protecting sensitive circuit boards.
The durable stainless-steel shell, transparent ergonomic handle, and high-quality lead-free long-life soldering tip make it ideal for continuous professional use. Designed to reduce leakage and enhance safety, this soldering station ensures reliable performance even in demanding repair environments.

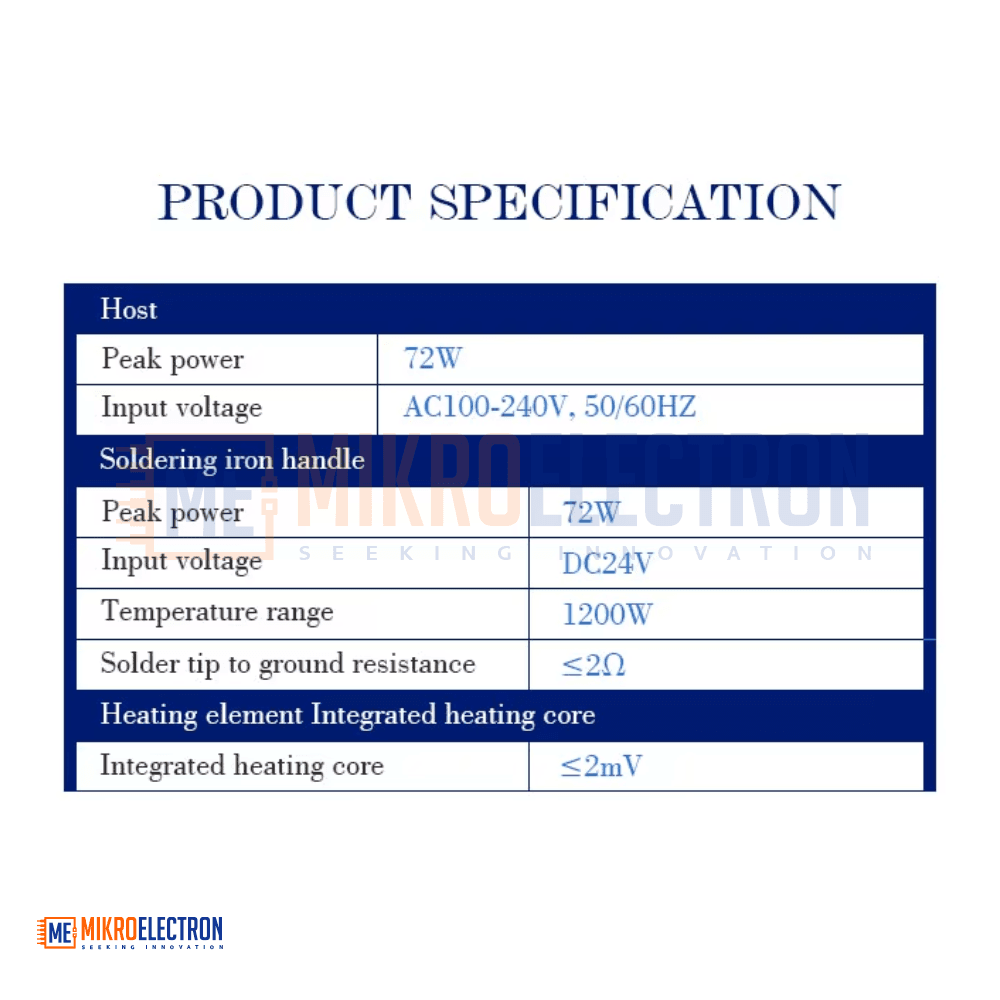

Specifications
Peak Power: 72W
Input Voltage (Station): AC 100–240V, 50/60Hz
Soldering Iron Handle Voltage: DC 24V
Heating Element: Integrated heating core
Solder Tip to Ground Resistance: ≤ 2Ω
Tip to Ground Potential: ≤ 2mV

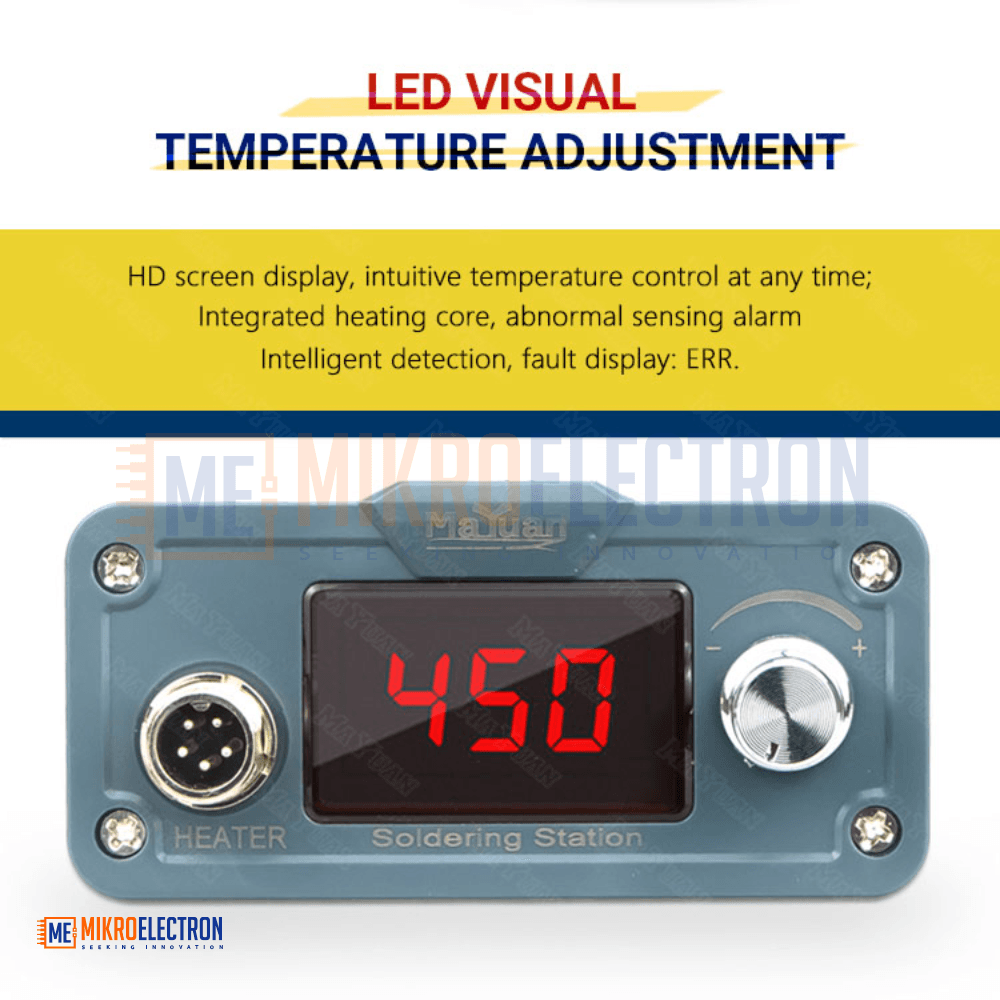

Temperature Control: Adjustable with automatic constant temperature

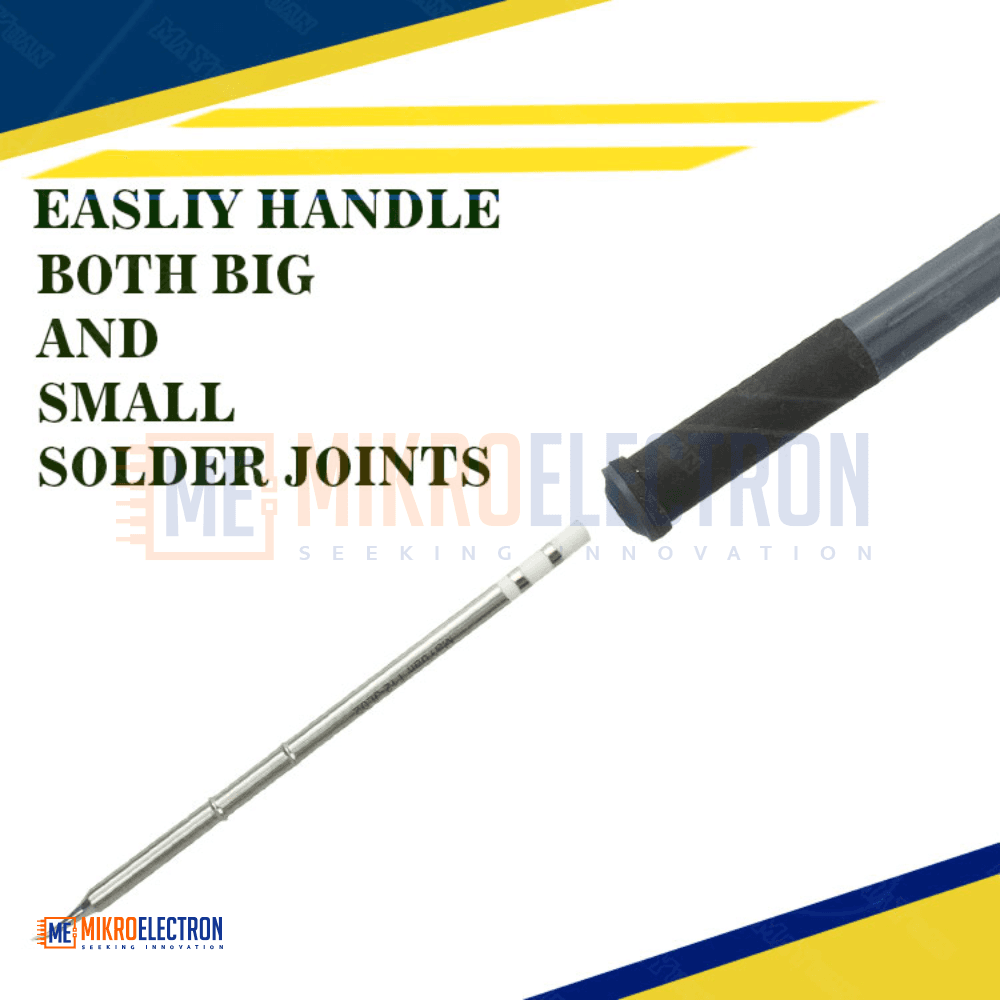

Tip Type: Lead-free long-life welding tip
Applications
Mobile phone repair
PCB board soldering and rework
Electronic component installation
Circuit board maintenance
DIY electronics projects
Professional repair workshops
Laboratory use
