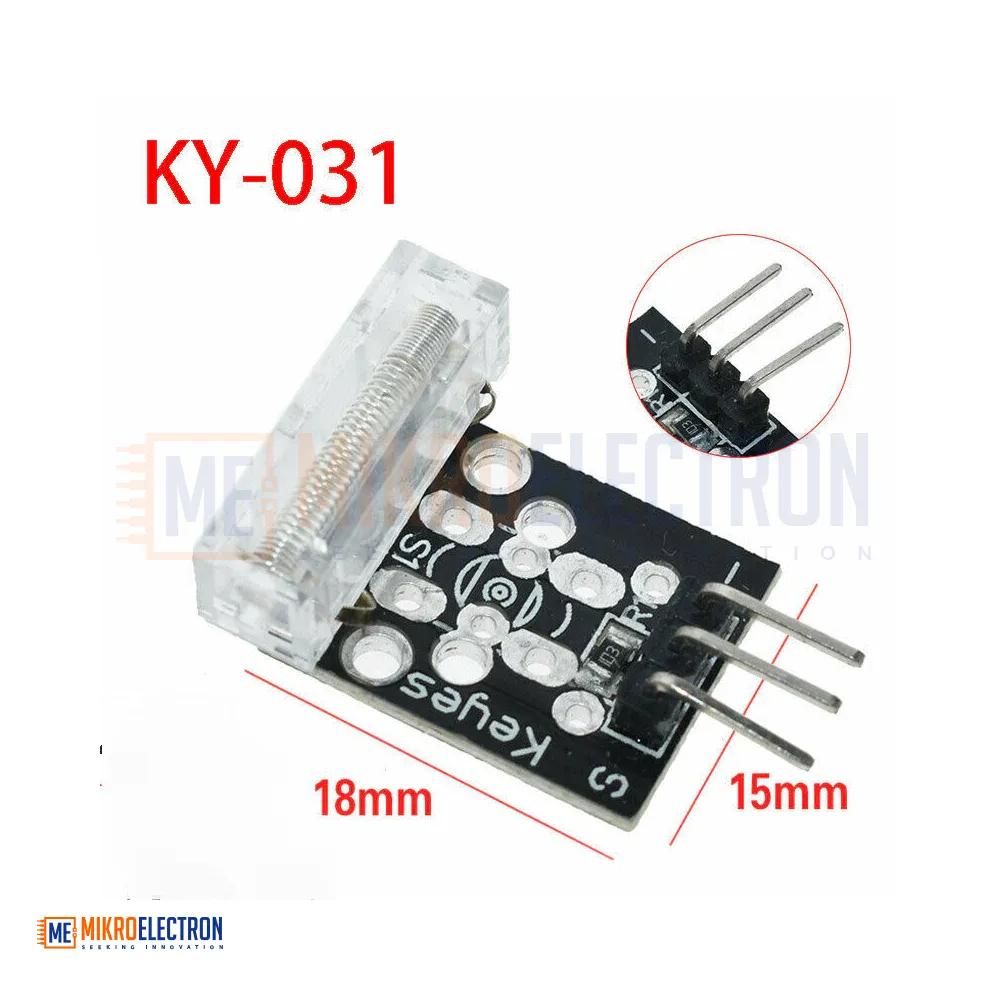

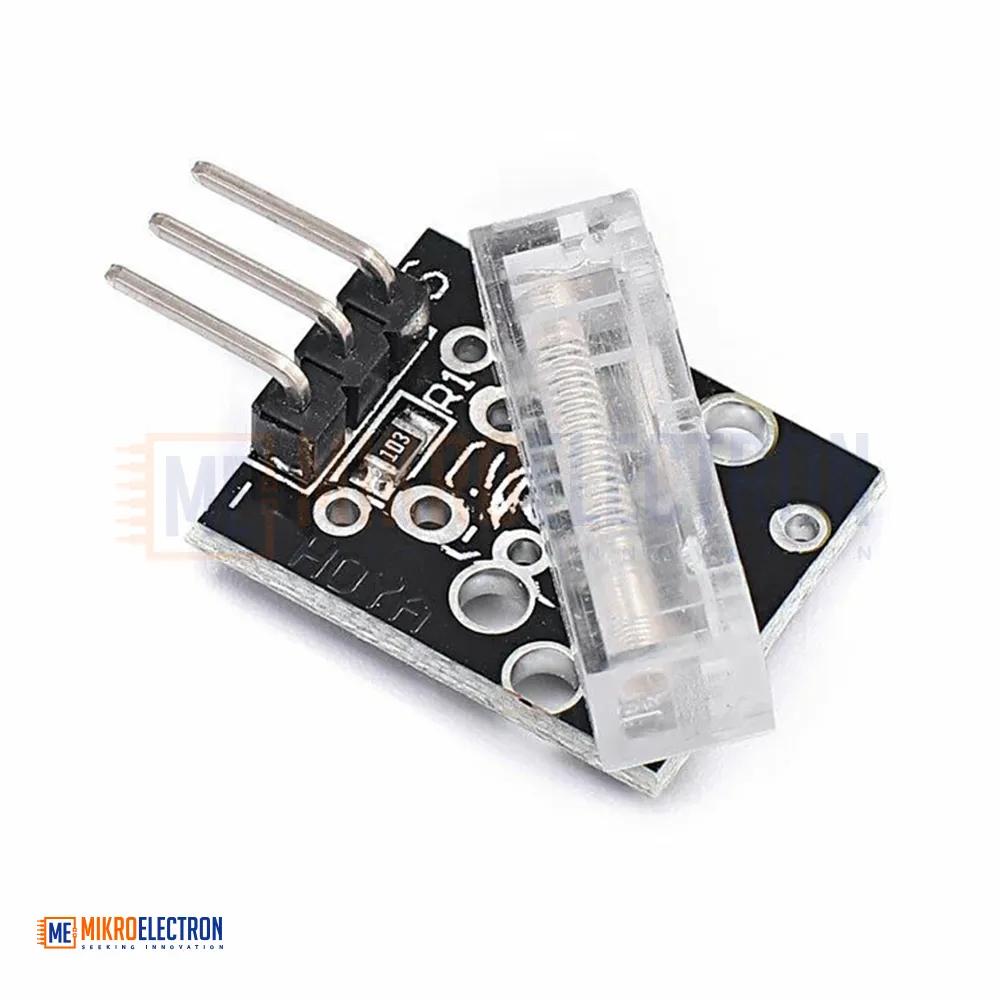

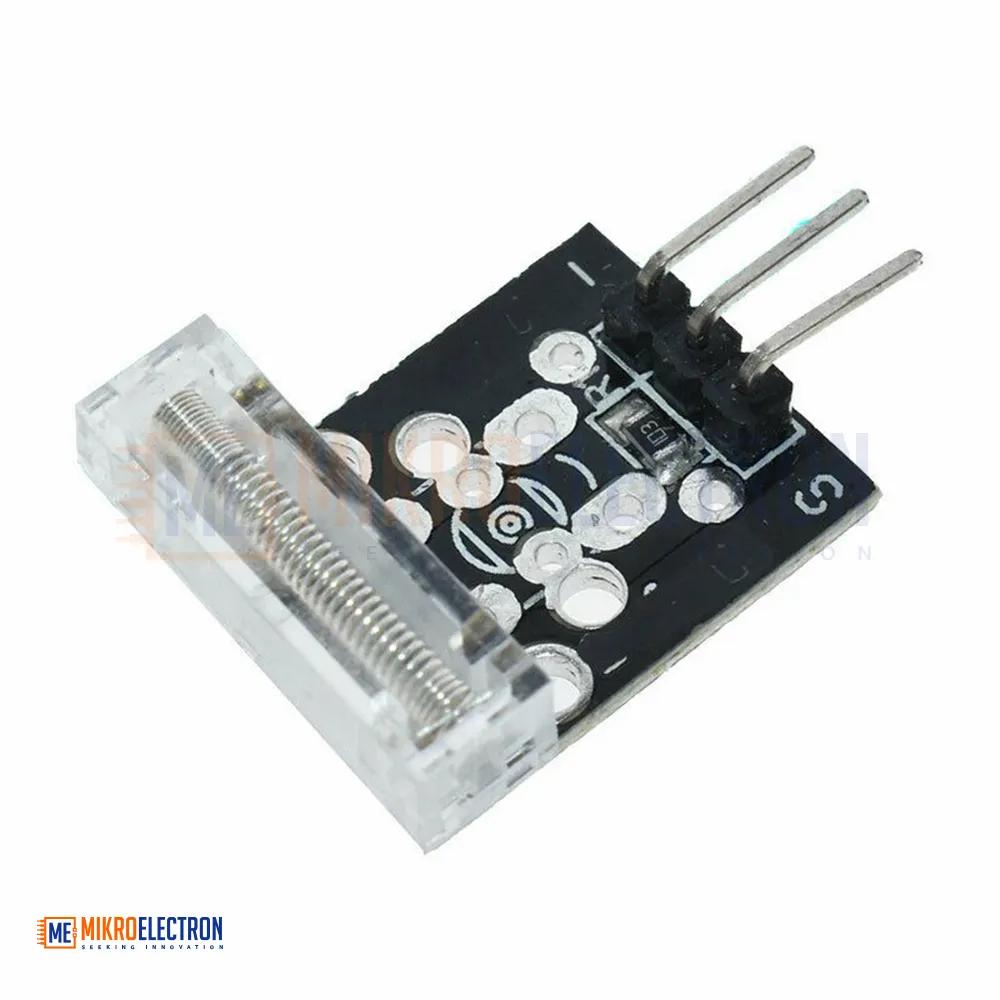

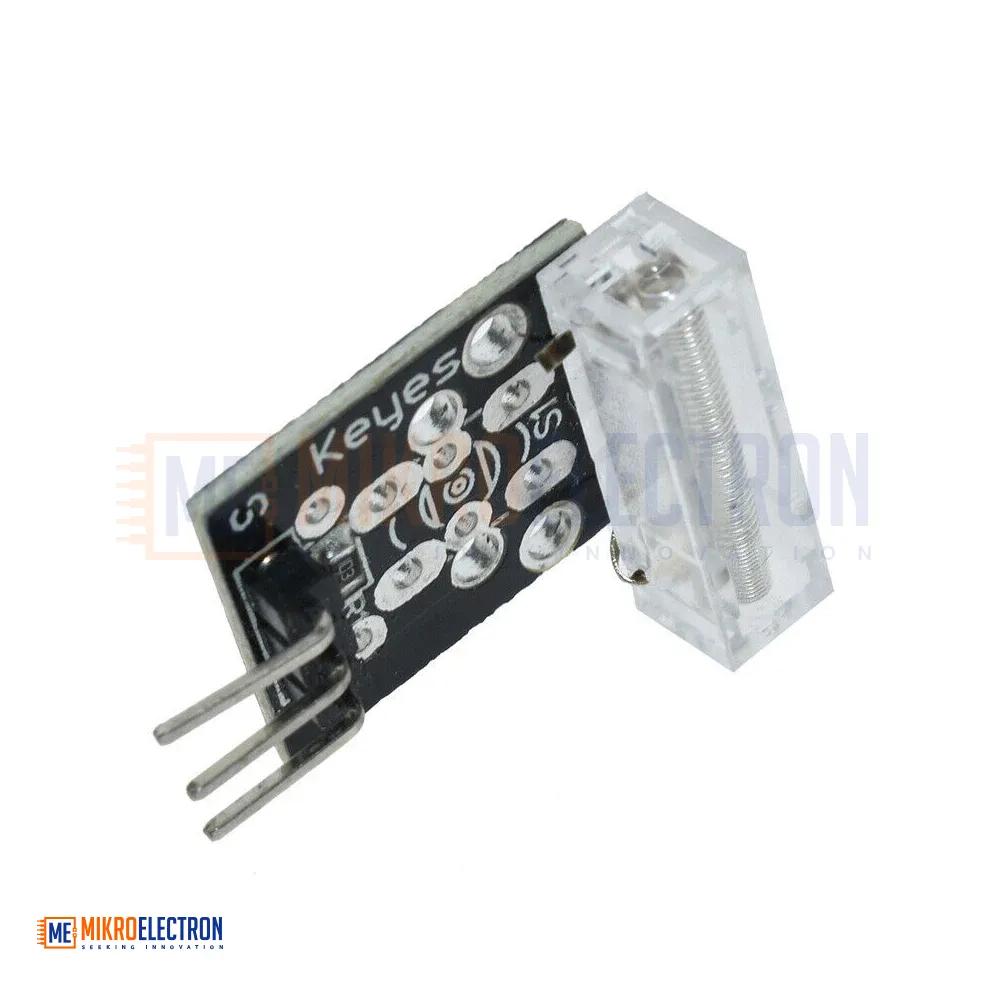

KY-031 The Knock Sensor Module
The KY-031 Knock Sensor Module is a simple and reliable vibration detection module designed to detect knocks, shocks, and impacts. It uses an internal spring-based switch mechanism that closes the circuit when exposed to sufficient vibration or physical contact, generating a digital output signal. Compatible with both 3.3V and 5V systems, the module can be easily connected to Arduino, ESP32, Raspberry Pi, and other microcontrollers. Its compact design, digital output, and easy installation make it ideal for security systems, vibration monitoring, interactive projects, and motion-triggered electronic applications.
تُعد وحدة استشعار الطرقات والاهتزاز KY-031 وحدة بسيطة وموثوقة للكشف عن الصدمات والاهتزازات والطرقات. تعتمد على آلية نابض داخلي يقوم بإغلاق الدائرة الكهربائية عند تعرضه للاهتزاز أو الصدمة، مما يولد إشارة رقمية يمكن قراءتها بواسطة المتحكمات الدقيقة. تدعم الوحدة العمل بجهد 3.3 فولت و5 فولت، مما يجعلها متوافقة مع Arduino وESP32 وRaspberry Pi وغيرها من المنصات الإلكترونية. بفضل تصميمها المدمج وسهولة استخدامها، فهي مناسبة لتطبيقات الأمان ومراقبة الاهتزاز والمشاريع التفاعلية.
The KY-031 Knock Sensor Module is a digital vibration and impact detection sensor designed to identify physical knocks, shocks, and vibrations. The module contains a spring-type sensor enclosed within a protective housing. When the sensor experiences a vibration or impact exceeding a certain threshold, the internal contacts briefly connect, producing a digital output signal.
This simple but effective detection mechanism enables microcontrollers and embedded systems to recognize physical events and respond accordingly. The module is suitable for detecting tapping, knocking, collision events, machine vibrations, and unauthorized movement.
The KY-031 operates with supply voltages ranging from 3.3V to 5V, making it compatible with a wide variety of development boards including Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller platforms. The module provides a direct digital output, simplifying programming and integration into electronic projects.
Its compact design and mounting holes allow secure installation in enclosures, robotic systems, monitoring equipment, and security devices. Developers can implement software filtering, delay timing, or multiple-trigger verification to improve detection accuracy based on application requirements.
Specifications
| Parameter | Value |
|---|---|
| Model | KY-031 |
| Sensor Type | Knock / Vibration Sensor |
| Detection Method | Spring Contact Switch |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Digital Output |
| Signal Output | HIGH/LOW Digital Signal |
| Compatibility | Arduino, ESP32, Raspberry Pi, STM32 |
| Mounting Method | PCB Mount with Fixing Holes |
| Response | Detects Knocks, Vibrations, and Impacts |
| Installation | Easy Integration |
Applications
- Security and anti-tamper systems
- Vibration detection projects
- Knock detection systems
- Interactive electronic devices
- Motion-triggered alarms
- Smart home automation
- Industrial vibration monitoring
- Robot collision detection
- Equipment status monitoring
- Impact detection systems
- Educational electronics projects
- Arduino and Raspberry Pi experiments
