FingerTech 'Viper' Combat Robot Kit - WDJ Edition
Out Of Stock

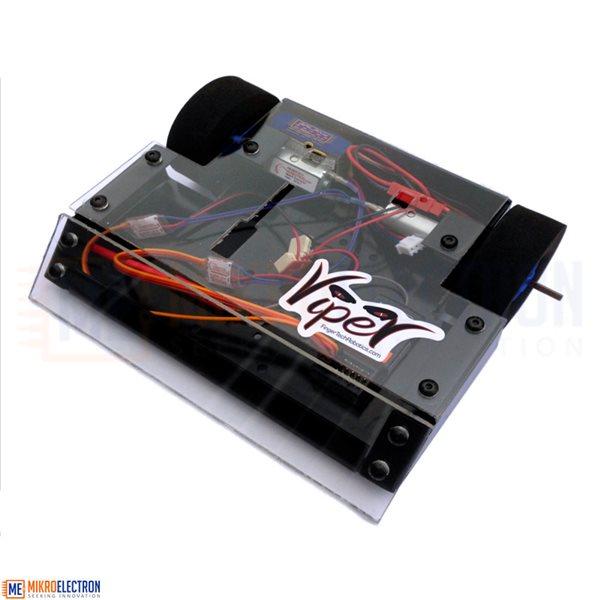

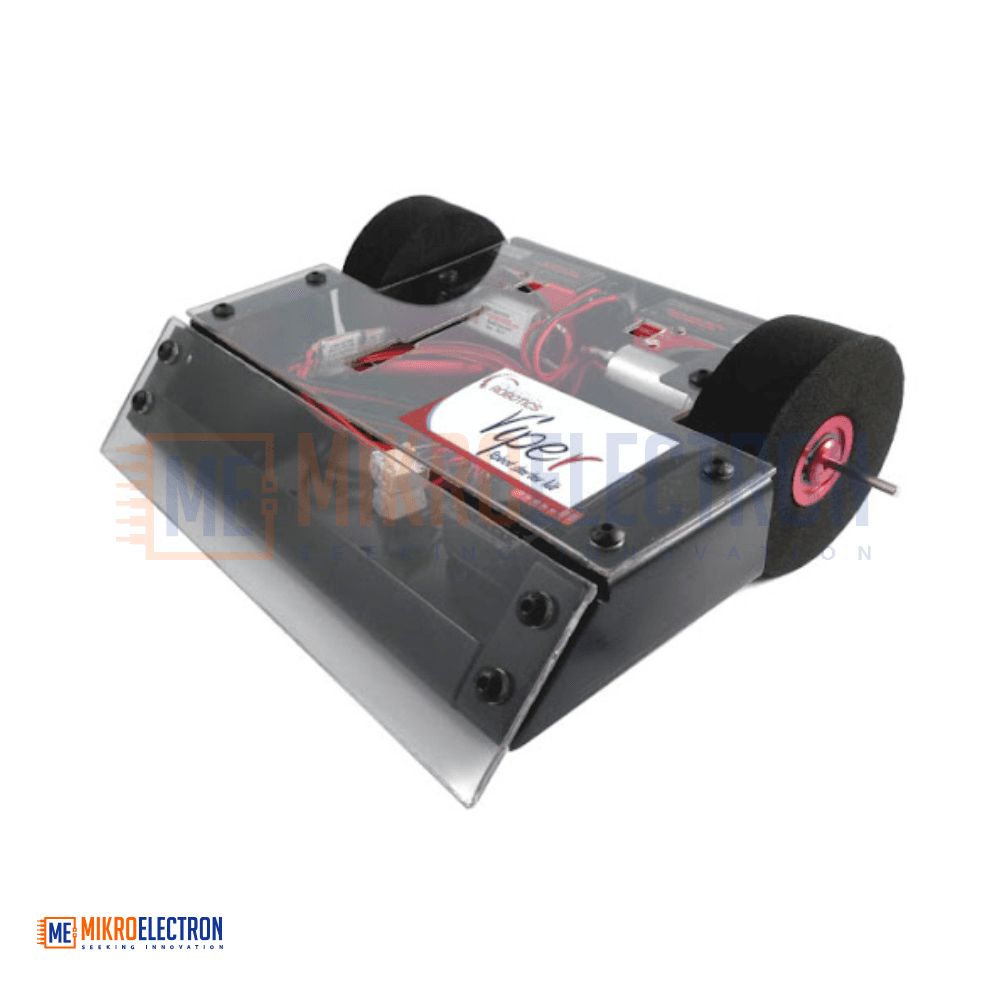

The FingerTech Viper Combat Robot Kit - WDJ Edition is a complete entry-level combat robotics platform designed for beginners, students, and robot enthusiasts. Built around a durable 6061-T6 aluminum chassis, it includes powerful Silver Spark gearmotors, tinyESC motor controllers, foam wheels, polycarbonate armor, and all essential hardware for assembly. The robot is lightweight at only 313 grams, leaving room for upgrades and custom weapons within the Antweight class limit. Designed to be modified, upgraded, and customized, the Viper Kit provides an excellent foundation for learning combat robotics, mechanical design, electronics integration, and competitive robot development.
تُعد عدة FingerTech Viper Combat Robot Kit - WDJ Edition منصة متكاملة لدخول عالم الروبوتات القتالية، ومناسبة للمبتدئين والطلاب وهواة الروبوتات. تعتمد على هيكل قوي مصنوع من ألمنيوم 6061-T6 وتحتوي على محركات Silver Spark عالية الأداء، ووحدات تحكم tinyESC، وعجلات إسفنجية، ودروع من البولي كربونات، بالإضافة إلى جميع القطع اللازمة للتجميع. يبلغ وزن الروبوت الأساسي 313 جرامًا فقط، مما يتيح مساحة لإضافة ترقيات أو أسلحة ضمن فئة Antweight. تم تصميمه ليكون قابلاً للتعديل والتطوير، مما يجعله منصة مثالية لتعلم الروبوتات القتالية والهندسة الميكانيكية والإلكترونيات.

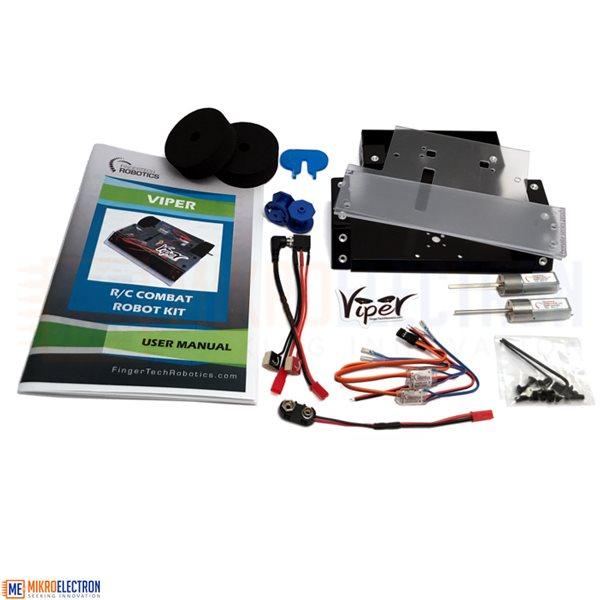

The FingerTech Viper Combat Robot Kit - WDJ Edition is a comprehensive combat robot kit that provides everything needed to build a fully functional robot for educational, hobby, and competition purposes. Developed with durability and expandability in mind, the kit features a custom-formed 6061-T6 aluminum chassis that offers excellent strength while remaining lightweight.
The drive system consists of two Silver Spark 33.3:1 gearmotors paired with two tinyESC motor controllers, delivering reliable speed, maneuverability, and pushing power. Soft foam wheels provide excellent traction while helping absorb impacts during combat.
The robot is protected by a combination of polycarbonate front and top armor, safeguarding internal electronics and mechanical components. A radio control system can be included, offering six channels with four spare channels available for future upgrades such as lifters, spinners, servos, or custom weapons.
Designed specifically for modification and experimentation, the Viper platform allows users to drill, cut, upgrade, and customize the robot according to their needs. With a base weight of only 313 g, builders have significant weight allowance remaining for additional components when competing in the Antweight (1 lb) class.
Specifications
General
- Product Name: FingerTech Viper Combat Robot Kit - WDJ Edition
- Robot Type: Combat Robot Kit
- Recommended Age: 10+ years (6+ with adult supervision)
- Base Weight: 313 g (11.04 oz)
- Competition Class: Antweight (1 lb)
Dimensions
- Width: 16.5 cm (6.5 in)
- Length: 14 cm (5.5 in)
- Height: 3 cm (1.18 in)
Chassis
- Material: 6061-T6 Aluminum
- Thickness: 1.45 mm (0.057 in)
- Construction: Stamped and formed baseplate
- Mounting Points: Motors, armor, and add-on kits
Motors
- Quantity: 2
- Model: Silver Spark Gearmotors
- Gear Ratio: 33.3:1
Motor Controllers
- Quantity: 2
- Model: tinyESC
- Function: Motor control and receiver power supply
Wheels
- Quantity: 2
- Size: 2.25 × 0.75 in
- Type: Foam Wheels
- Included Accessories: Lightweight Twist Hubs and Twist Hub Key
Power System
- Battery Adapter: JST-to-9V Adapter Included
- Battery Support: One or two 9V batteries
- Recommended Battery: 300mAh 7.4V Galaxy LiPo Battery
- Power Switch: JST-based switch/charge jack assembly
Armor
- Front Armor: 3 mm Polycarbonate
- Top Armor: 1.6 mm Polycarbonate
Hardware
- Motor mounting screws included
- Armor mounting screws included
- Hex wrenches included for assembly and maintenance
Applications
- Combat robotics competitions
- Antweight robot tournaments
- STEM education programs
- Robotics clubs and workshops
- Engineering training projects
- Electronics and programming education
- Mechanical design experimentation
- Robot customization and prototyping
- School and university robotics activities
- Hobby robotics development
