Nema34 12.2Nm 6A Closed Loop Stepper Motor 86HBS120N with Motor Driver HBS86HD and HSS-CABLE-5M

Name: Nema34 12.2Nm 6A Closed Loop Stepper Motor 86HBS120N with Motor Driver HBS86HD and HSS-CABLE-5M | Nema34, 12, 2Nm, 6A, Closed, Loop, Stepper, Motor, 86HBS120N, with, Motor, Driver, HBS86H, and, HSS, CABLE, 5M
Brand: Mikroelectron
SKU: me-12152
Price: 149.00 JOD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-12152

JD149.00

Out Of Stock

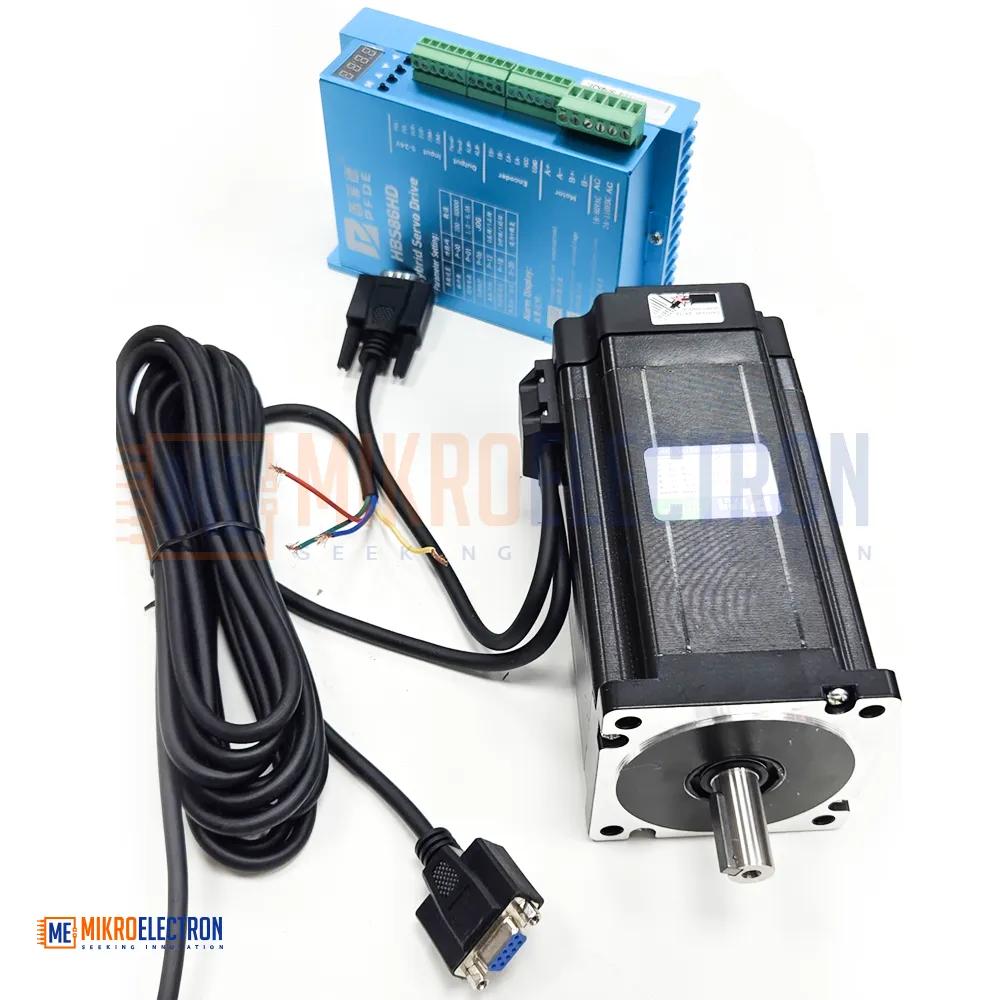

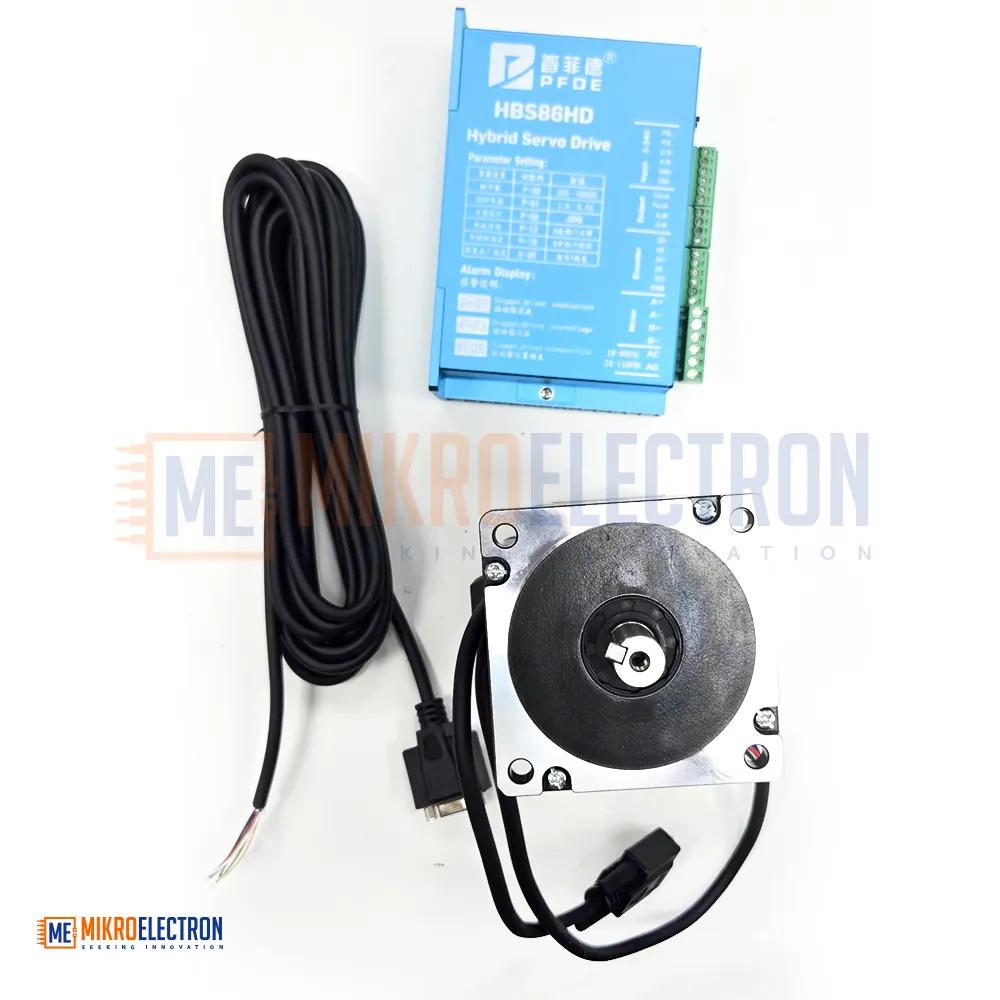

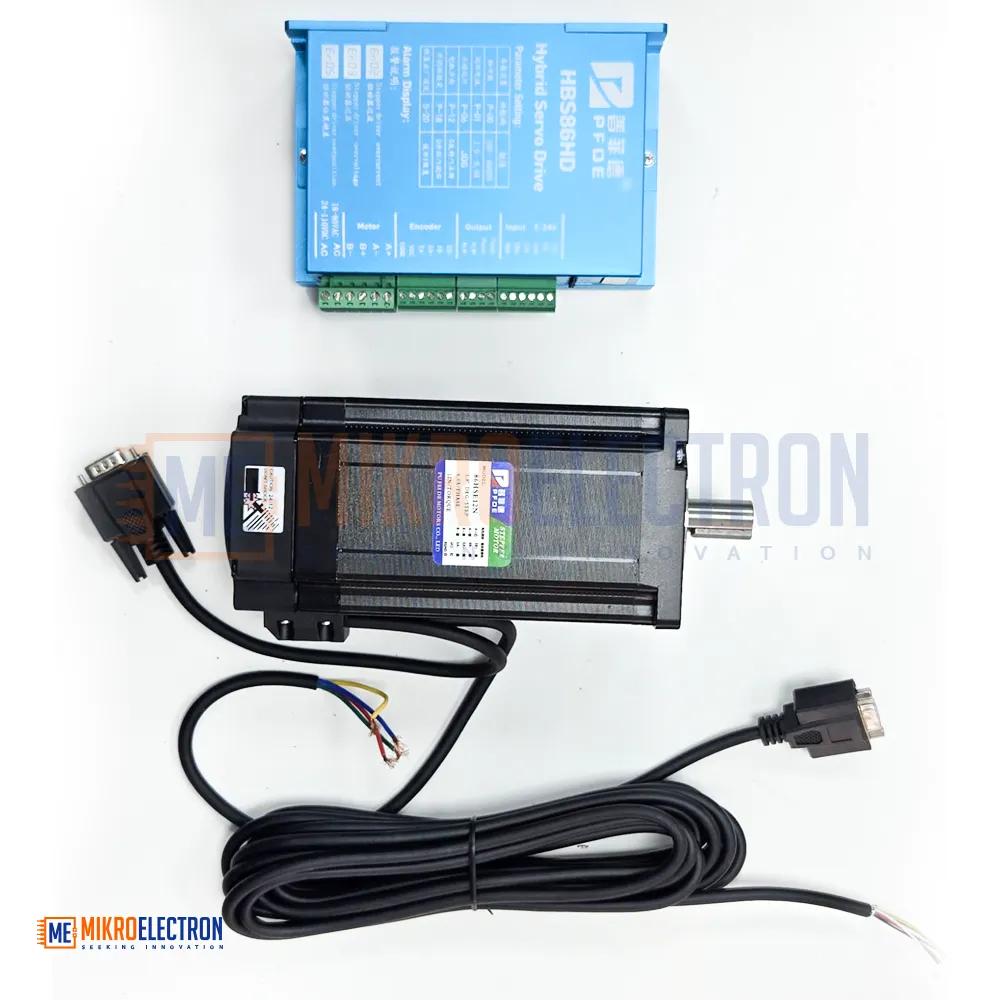

This NEMA 34 closed-loop stepper system includes the 86HBS120N motor (12.2 Nm, 6 A), HBS86H driver, and 5 m encoder cable. It delivers precise, high-torque, feedback-controlled motion for CNC, robotics, and industrial automation applications.

Stepper Motors

Motors

General specification:

Current / Phase: 6A

Holding Torque: 12.2N.m

DC Resistance: 0.76Ω±10%

Inertia: 4.0KG.CM2

Inductance / Phase: 8.4MH±20%

Weight: 5.4KGS

Step Angle: 1.8°

Position Accuracy: 1.8°±0.09°

Temp Rise (Max): 80℃

Dielectric Strength: 500VDC

Number of Phase: 2

Radial Play: 0.025mm (LOAD450G)

Axial Play: 0.075mm (LOAD920G)

Insulation Resistance: 100MOHM (500VDC)

Insulation Classes: B

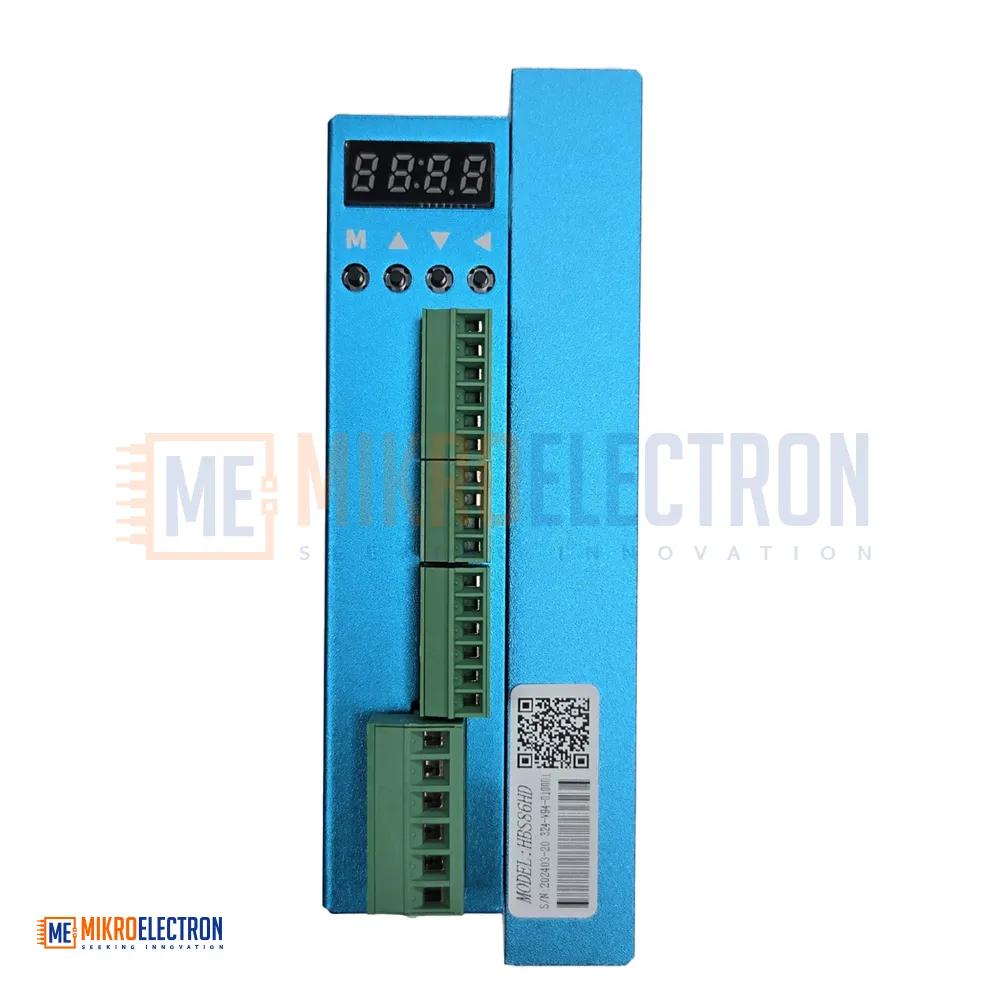

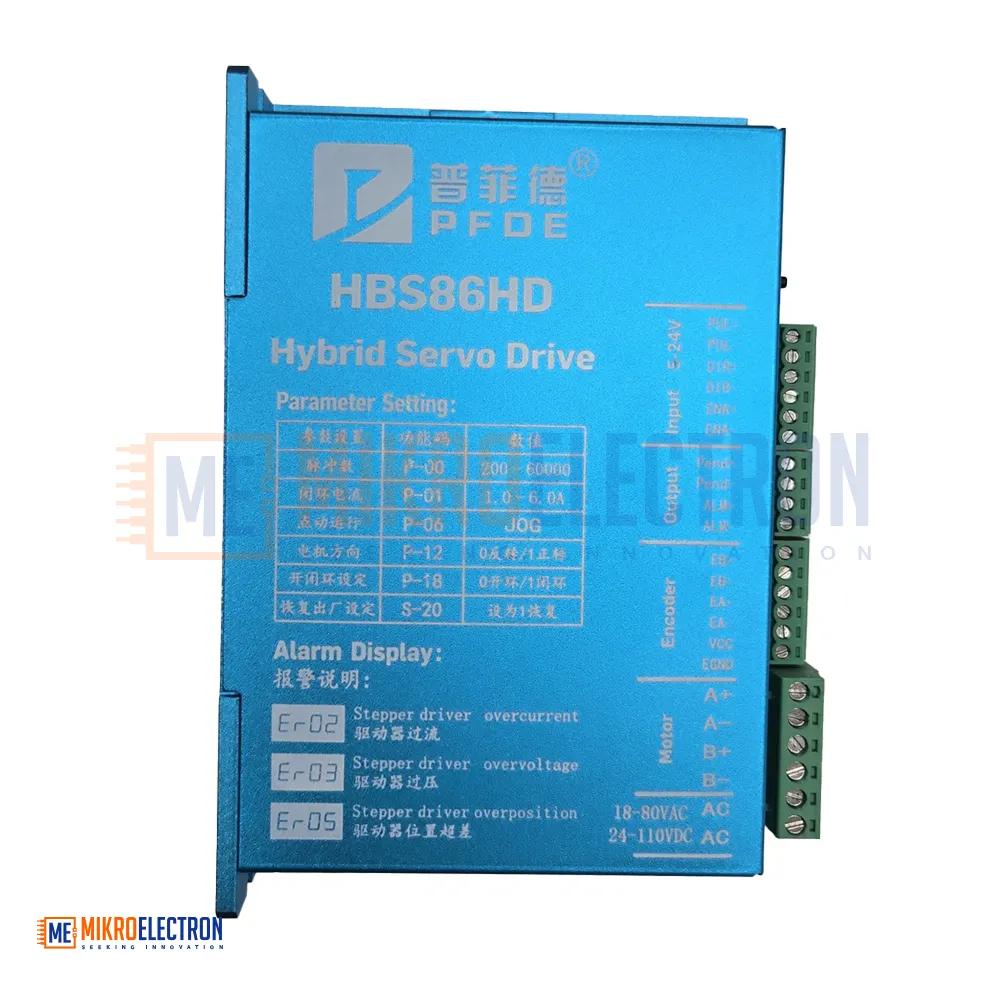

Electrical Indicators:

Input voltage: 18-80VAC (50V typical) or 30-110VDC

Continuous current: 7.5A 20KHz PQM

Maximum pulse frequency: 200K

The default communication rate: 57.6Kbps

Technical Index:

Input Voltage		18~80vac (50v Typical) Or 30~110vdc
Continuous Current		7.5a 20khz PWM
Maximum Pulse Frequency		200k
The Default Communication Rate		57.6kbps
Protection		Overcurrent Action Value Peak Value 12a±10%
		Overvoltage Voltage Action Value 160vdc
		Tolerance Alarm Threshold Can Be Through The Handheld Smart Regulator Set Up
Use Environment	Occasion	Try To Avoid Dust, Oil Mist And Corrosive Gas.
	Operating Temperature	0°C ~ +70°C
	Storage Temperature	-20°C ~ 80°C
	Humidity	40-90%RH

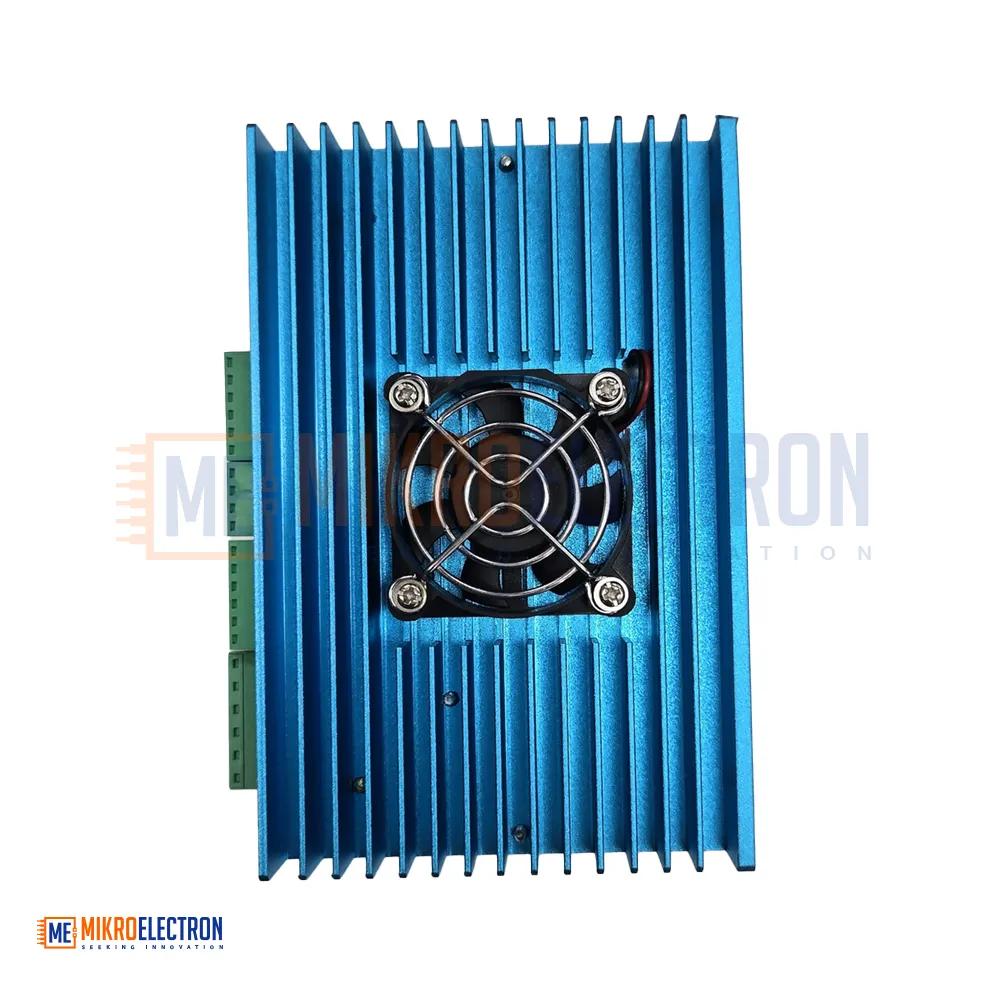

Cooling Method		Natural Cooling Or Forced Cooling Air
Weight		About 0.58kg

Advantage:

Without losing step, high accuracy in positioning
100% rated output torque
Small vibration, Smooth and reliable moving at low speed
Compatible with1000 lines encoder
Over current, over voltage and over position error protection

Main Application:

Advertising industry, Engraving, packaging, lasers, electron industry, medical industry, Printing industry, woodworking, machinery industry, Ceramic Industry, stone industry and so on.

Control Signal Timing Diagram:

t1: ENA (enable signal) should be DIR at least 5μs ahead of time, confirm Is high. Generally, it is recommended that ENA+ and ENA- be left floating.
t2: DIR is at least 6μs ahead of the PUL counting edge to determine its status High or low.
t3: The pulse width is not less than 2.5μs.
t4: The low-level width is not less than 2.5μs.
