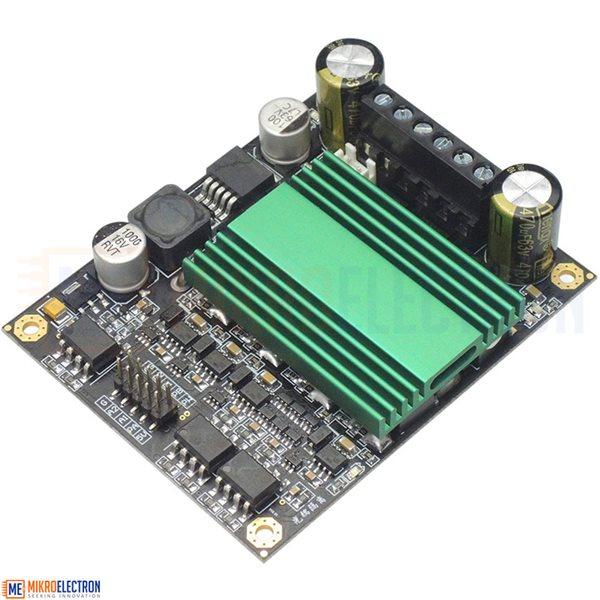

DC 12V-48V 100A High Power Dual Channel DC Motor Driver Module

100A DC motor drive Module High Power motor governor speed Control Dual H-bridge power supply 12V~48V 36V 24V optocoupler isolation

This module uses a 10M high-speed optocoupler to isolate the input signal, effectively preventing the interference signal of the drive board from interfering with the control board, making the system more stable and reliable.

This module can be used to drive general DC motors with a maximum current of up to 100A .

 It is unmatched by general integrated motor drives. Therefore, it is very suitable for robot competitions, chariot competitions, and Freescale competitions.

Of course, this motor drive module is also very suitable for novices who are learning motor control, because its control method is very simple, see the following description for details

Driver board wiring diagram:

Specifications: High Power Dual Channel Motor Drive:

 Capable of handling a maximum current of 100A, this dual H-bridge power supply is designed for high-performance applications. Optocoupler Isolation: Utilizes a 10M high-speed optocoupler to ensure stable and reliable system operation, effectively preventing interference. Versatile Voltage Range: Compatible with a wide voltage range from 12V to 48V, making it suitable for various power tool accessories and robot competitions.

Easy Control Interface: Simple PWM input (PA) and ground pin (G) for motor speed adjustment, catering to both novices and advanced users. Compact and Efficient Design: The module's small size of 80mm*70mm, coupled with a large heat sink, ensures effective heat dissipation for stable performance. Features: **Robust Performance for Demanding Applications** The DC 12V~48V 100A High Power Dual Channel Motor Drive Module is an essential component for power tool accessories and robotics projects.

It stands out with its high power handling capability, which makes it ideal for driving motors in applications such as electric power steering control modules, top speed governors, and reverse acting controllers.

The module's robust design, featuring a 10M high-speed optocoupler, ensures stable and reliable operation, even in the face of interference signals. This feature is particularly crucial in competitive environments where precision and reliability are paramount.

**User-Friendly Interface for Easy Control**

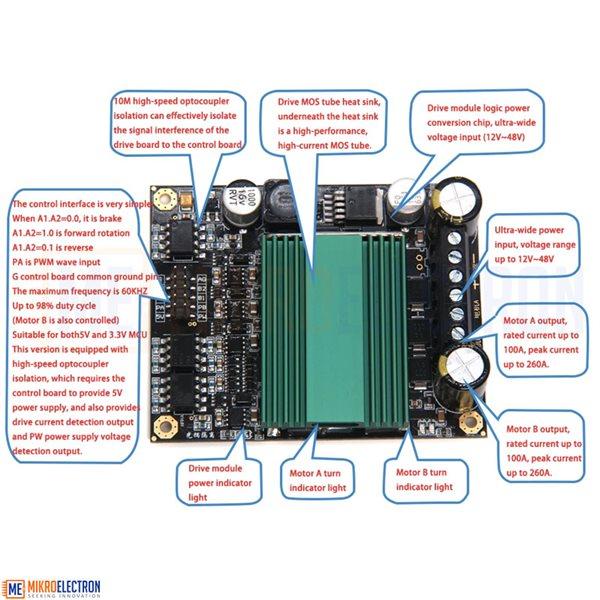

The module's control interface is designed to be user-friendly, catering to both novices and advanced users. With simple PWM input (PA) and ground pin (G) for motor speed adjustment, controlling the motor's direction and speed is straightforward.

 The A1.A2 inputs provide additional control options, allowing for braking, forward rotation, and reverse modes.

 This flexibility makes the module an excellent choice for educational purposes, where students can learn about motor control without the complexity of more advanced systems.

**Compact and Efficient Design for Versatile Use**

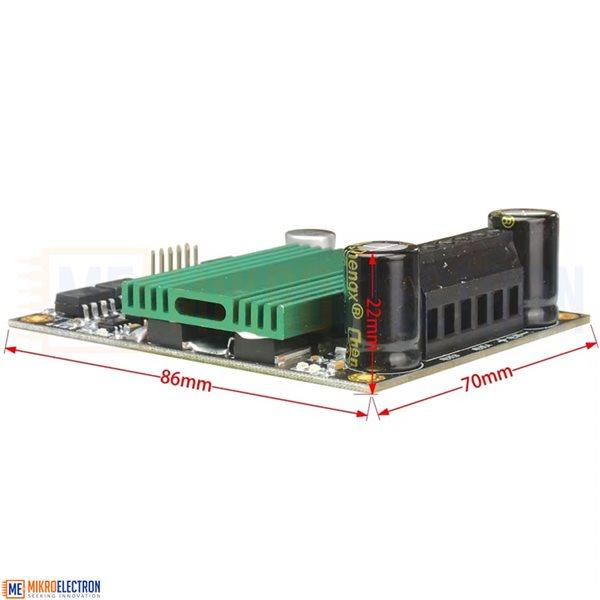

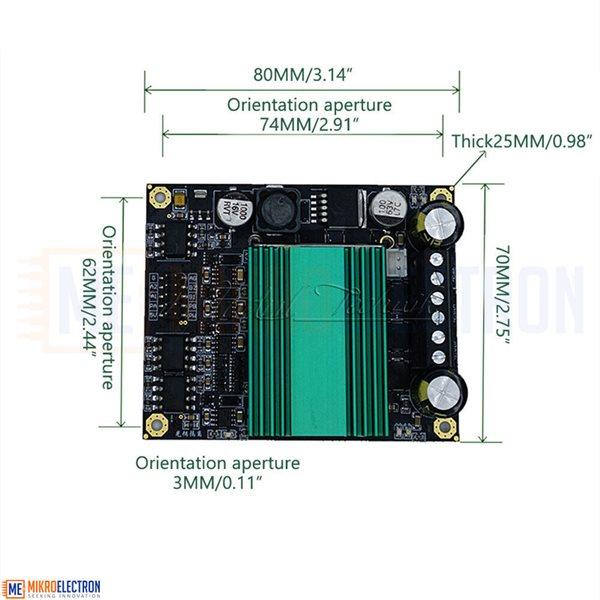

The compact size of the motor drive module, measuring just 80mm*70mm, makes it an ideal choice for space-constrained applications. Its high efficiency is evident in its on-resistance of only 0.0015 ohm, which minimizes power loss. The module's switching frequency of up to 60KHZ ensures smooth motor operation, avoiding the unpleasantness associated with low-frequency commissioning motors.

 Whether you're building a robot for a competition or developing a motor-driven project, this module's performance and design make it a valuable addition to your toolkit.
