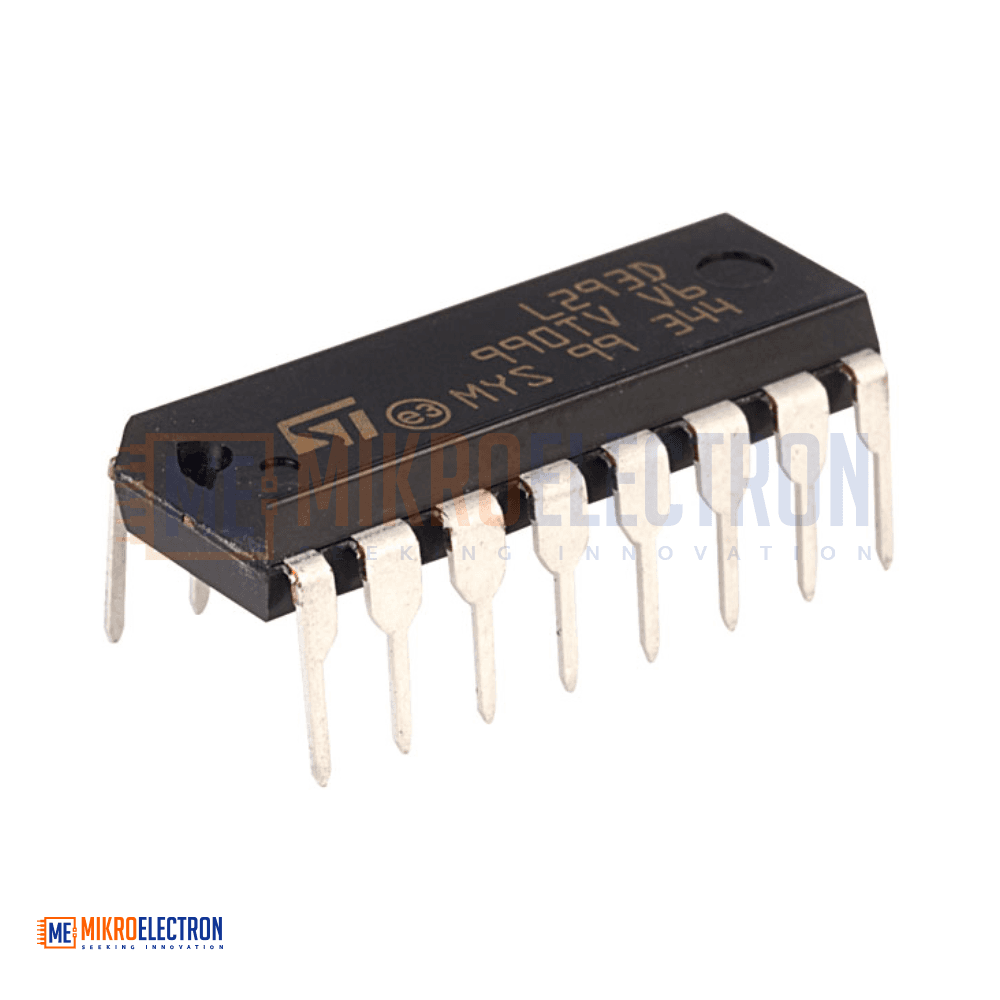

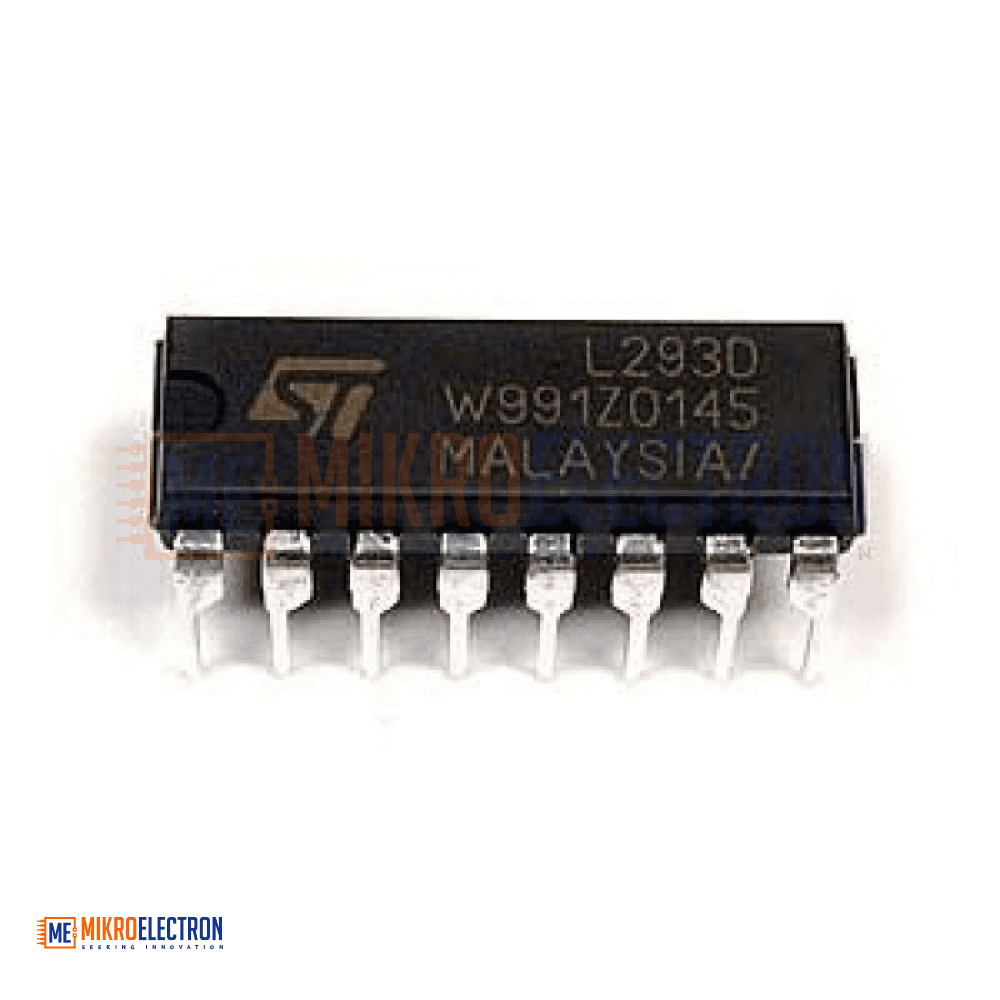

L293D H Bridge DC motor controller
The L293D H-Bridge Motor Driver IC is a widely used solution for controlling DC motors and small actuators in electronic projects. It allows bidirectional motor control using a simple logic interface and supports dual H-bridge configuration, enabling control of two motors simultaneously. With a wide voltage range (4.5V–36V) and built-in thermal protection, it ensures reliable performance. The L293D version includes internal clamp diodes, making it ideal for inductive loads. Perfect for Arduino, robotics, and automation applications.
دائرة L293D H-Bridge هي متحكم شهير لتشغيل محركات DC والمشغلات الصغيرة في المشاريع الإلكترونية. تتيح التحكم باتجاه دوران المحرك بسهولة عبر واجهة منطقية بسيطة، وتدعم تشغيل محركين في نفس الوقت. تعمل ضمن مجال جهد واسع (4.5V إلى 36V) وتحتوي على حماية حرارية لضمان الاستقرار. إصدار L293D يتضمن دايودات حماية داخلية، مما يجعله مناسباً للأحمال الحثية. مثالي للأردوينو والروبوتات.
The L293D motor driver IC is a dual H-bridge driver designed to control DC motors, relays, and inductive loads. It allows motors to run in both forward and reverse directions by controlling the polarity of the voltage applied to the motor terminals.
This IC features separate logic and motor power supplies, enabling compatibility with low-voltage microcontrollers while driving higher voltage motors. The internal protection features, such as thermal shutdown and ESD protection, enhance durability and reliability.
The L293D variant includes internal clamp diodes to safely handle back EMF generated by motors, eliminating the need for external diodes. Its compact design and ease of use make it a standard choice for robotics, automation, and embedded systems.
Specifications
- Model: L293D
- Driver Type: Dual H-Bridge
- Supply Voltage (Motor): 4.5V – 36V
- Logic Voltage: Separate input supply (typically 5V)
- Output Current: 600mA per channel (L293D)
- Peak Current: 1.2A per channel
- Channels: 2 (controls 2 DC motors or 1 stepper motor)
- Protection Features: Thermal shutdown, ESD protection
- Clamp Diodes: Internal (L293D only)
- Noise Immunity: High

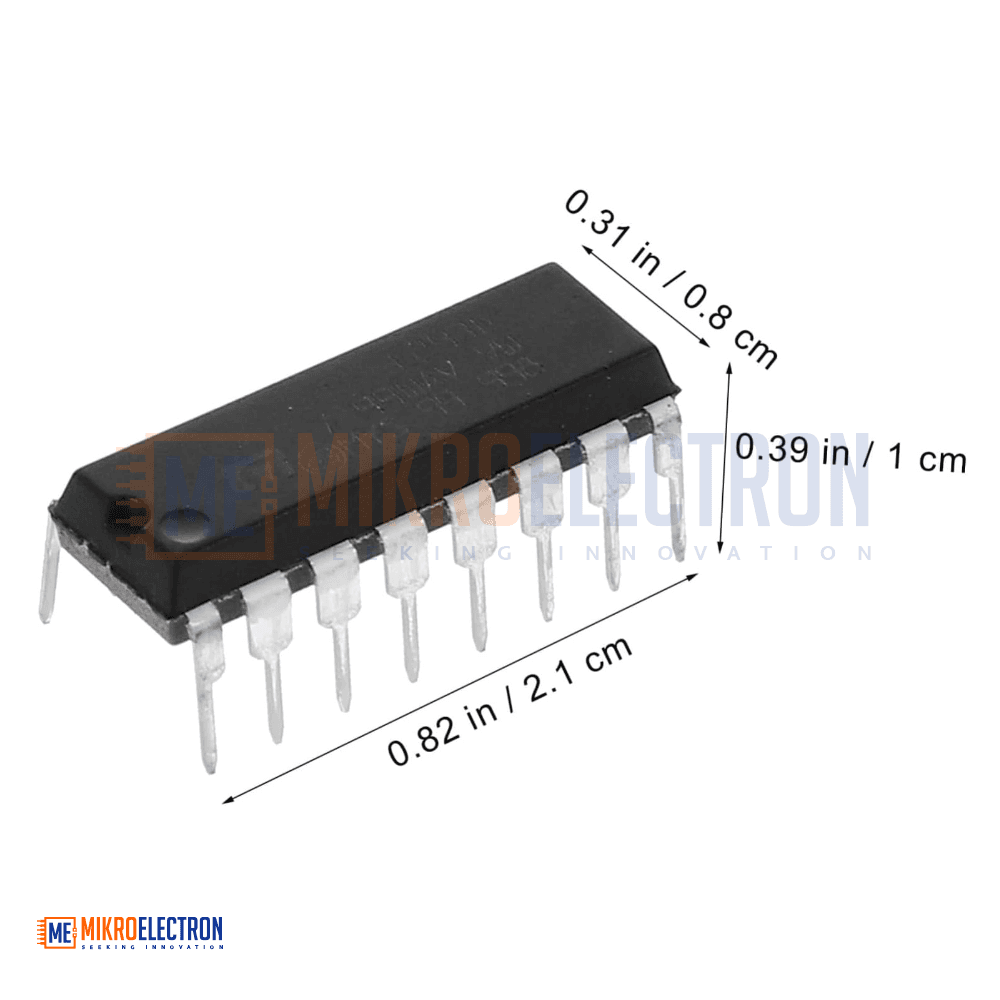

- Package Type: DIP / IC
Applications
- DC motor control systems
- Robotics and automation projects
- Arduino and microcontroller-based designs
- Stepper motor driving
- Relay and inductive load control
- Smart vehicles and robotic cars
