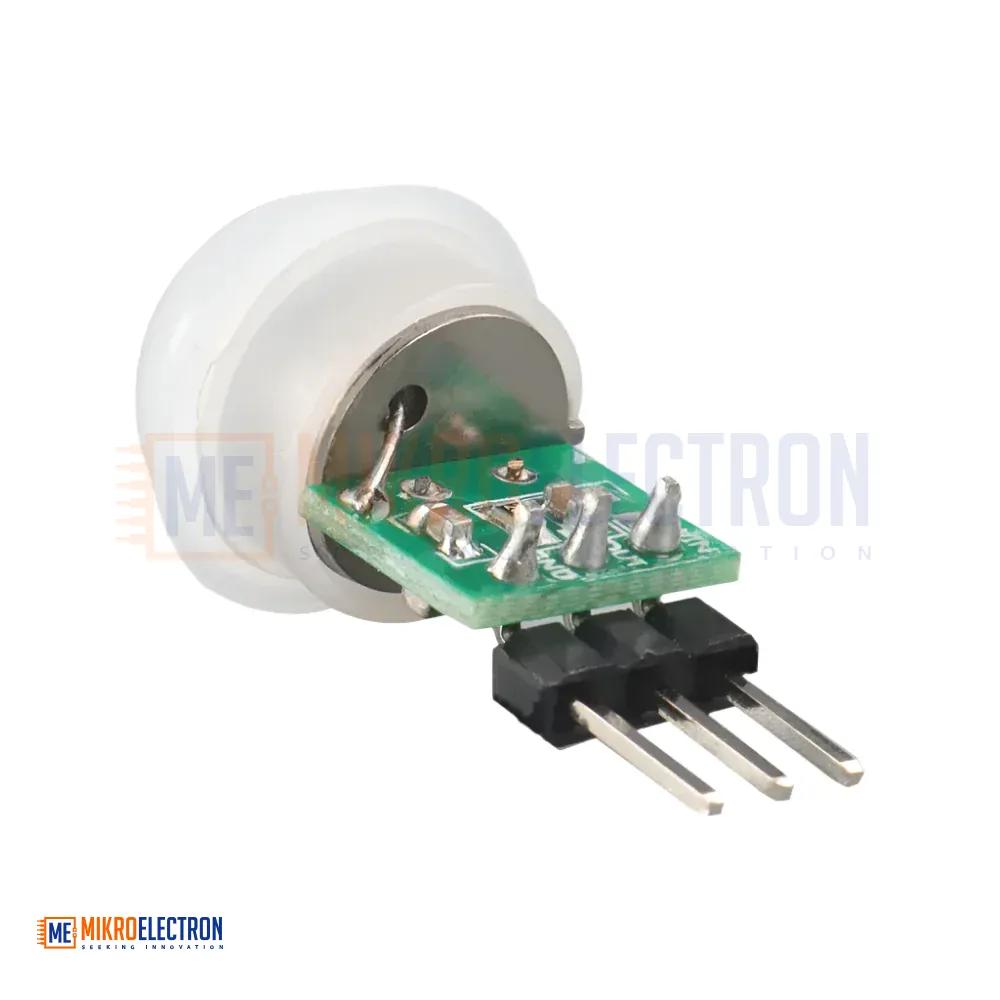

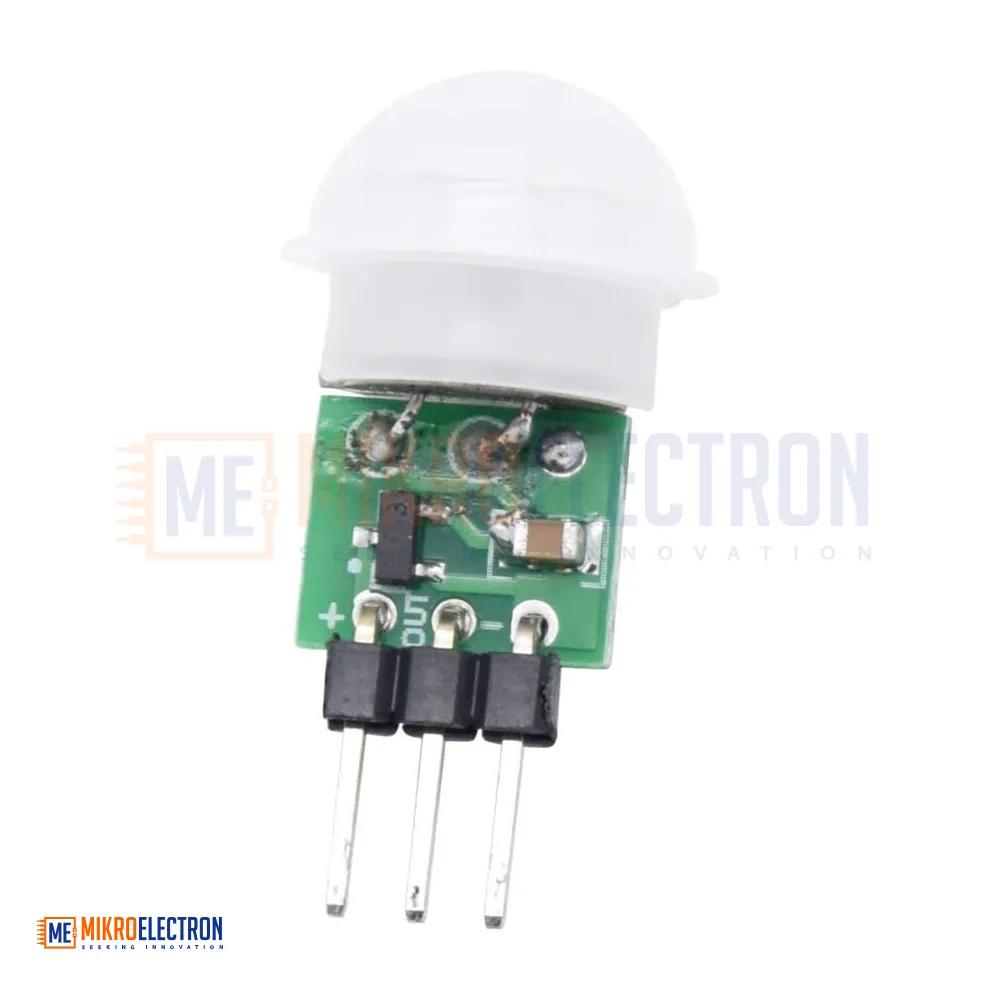

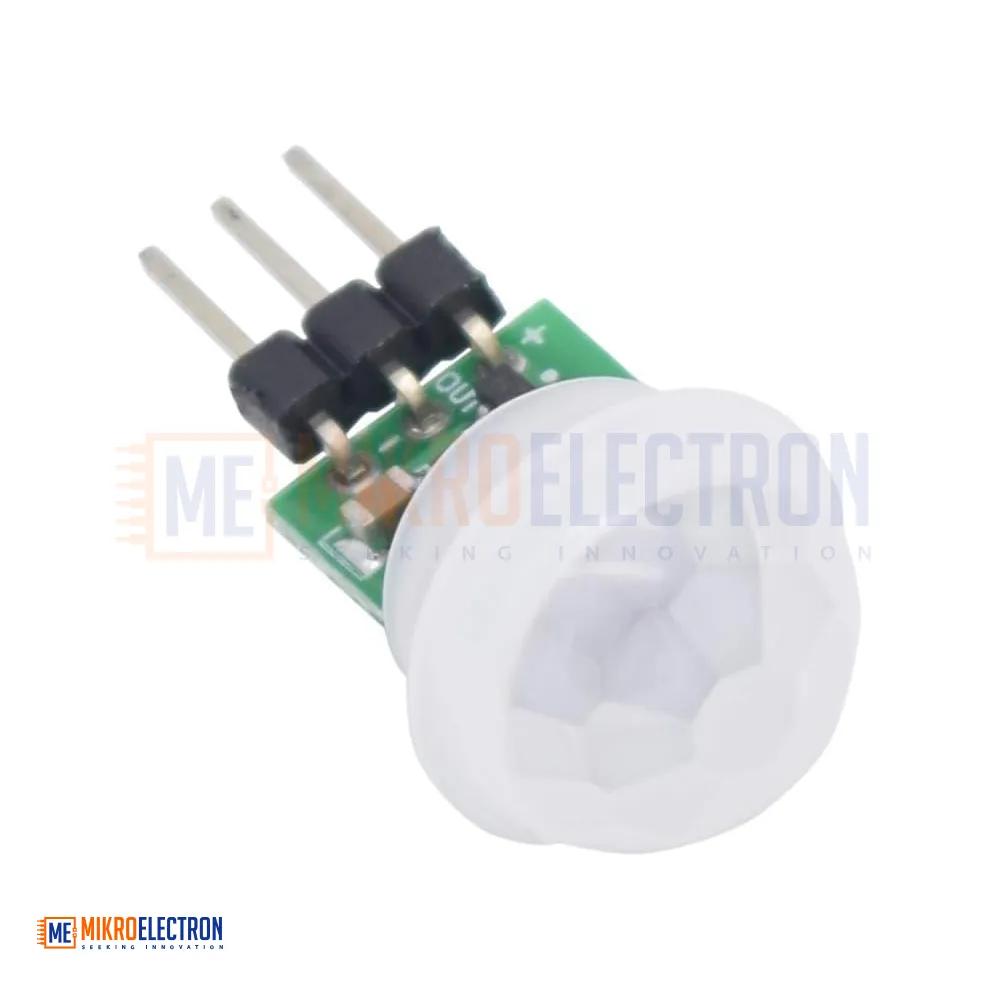

Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module AM312 Sensor
The AM312 is a compact pyroelectric passive infrared (PIR) sensor module designed for detecting human body motion. It senses changes in infrared radiation caused by moving people or animals, outputting a digital signal when motion is detected. Its low power consumption, small size, and high sensitivity make it ideal for compact, energy-efficient motion-sensing applications.
The AM312 PIR Motion detection sensor is a passive body based on digital intelligent infrared technology. These sensors have high sensitivity and high reliability. They are widely used in various auto-sensing electrical equipment.
AM312 PIR Motion detection sensors are mostly used to detect whether a human has moved in or out of the sensor’s range. They are small, inexpensive, low-power, easy to use, and don’t wear out. They are often referred to as PIR, “Passive Infrared”, “Pyroelectric” or “IR motion” sensors.
Technical Details
- Operating Voltage: DC 2.7-12V
- Power Consumption: <0.1mA
- Delay Time: 2 seconds
- Block Time: 2 seconds
- Trigger Mode: Repeatable
- Sensing Range: ≤100° cone angle, 3-5 meters
- Operating Temperature: -20 to +60℃
- Module Lens: Small lens

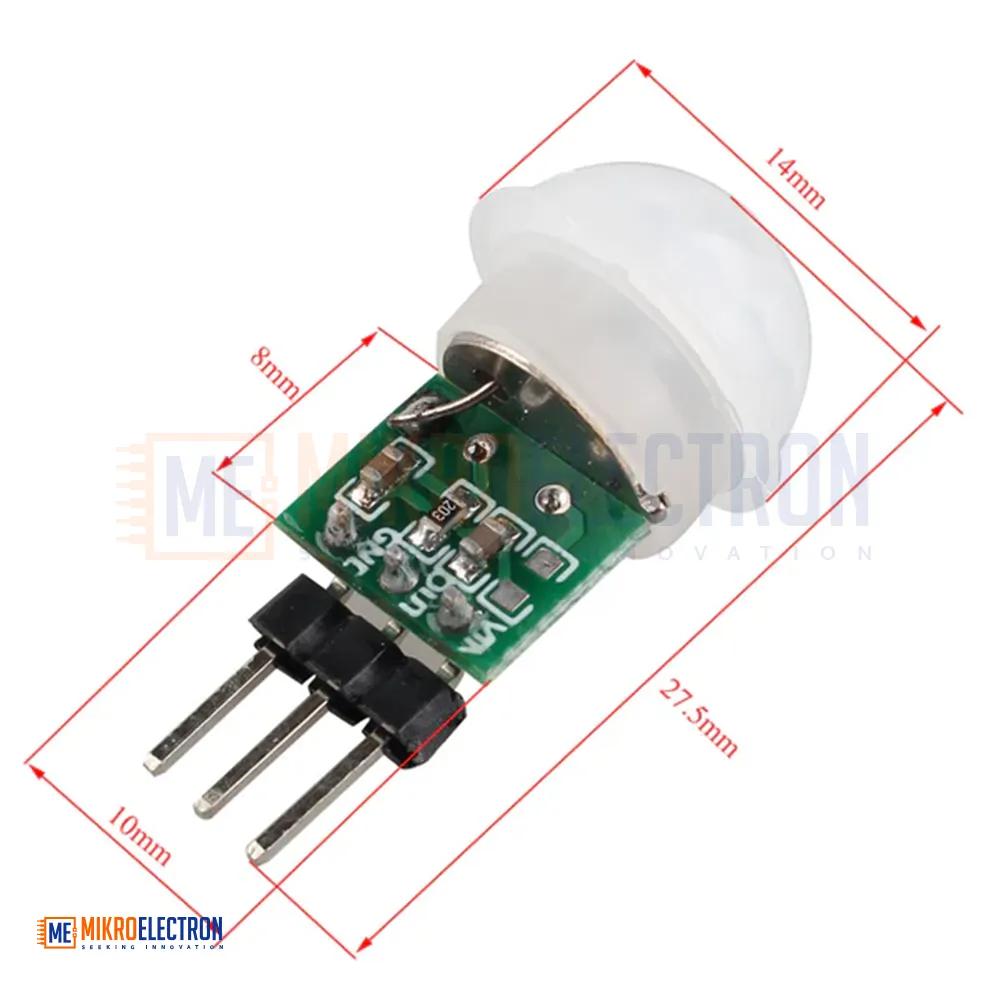

L X W x H (cm): 27 x 13.5 x 13.5 cm
- Weight: 1 grams
