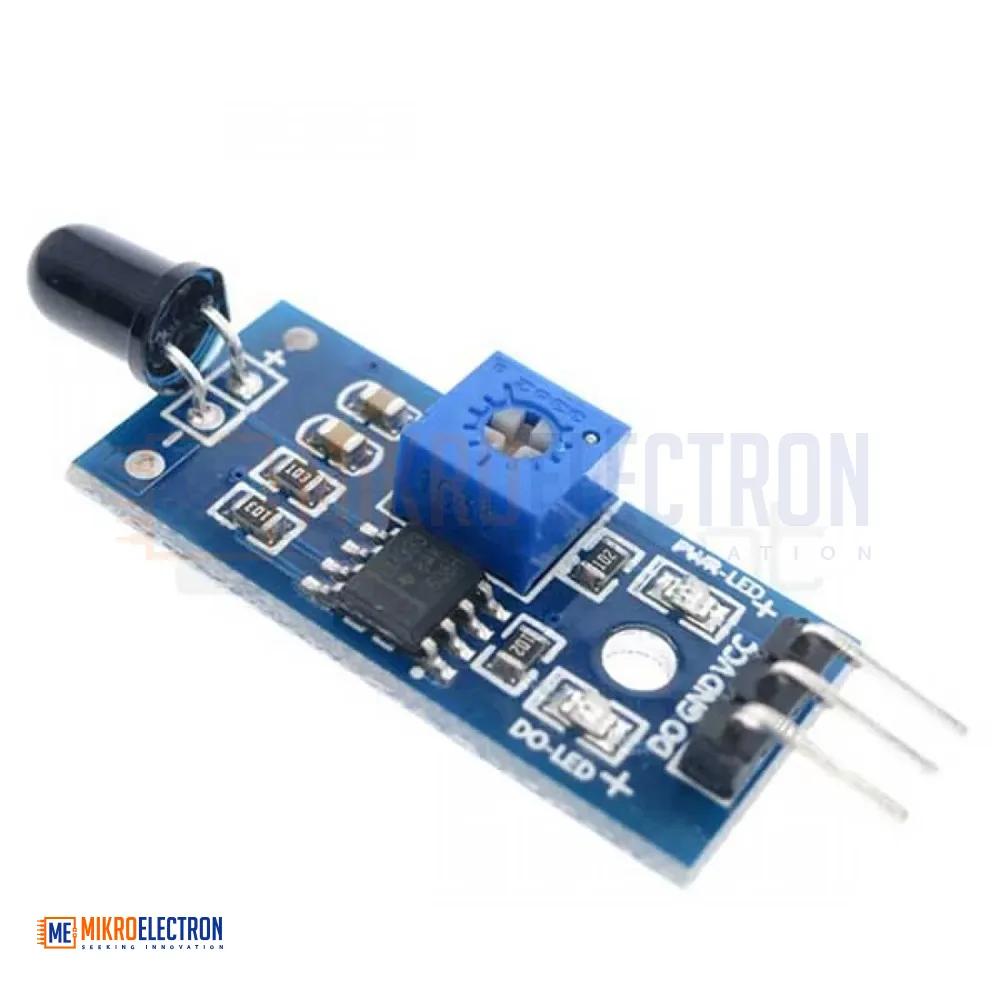

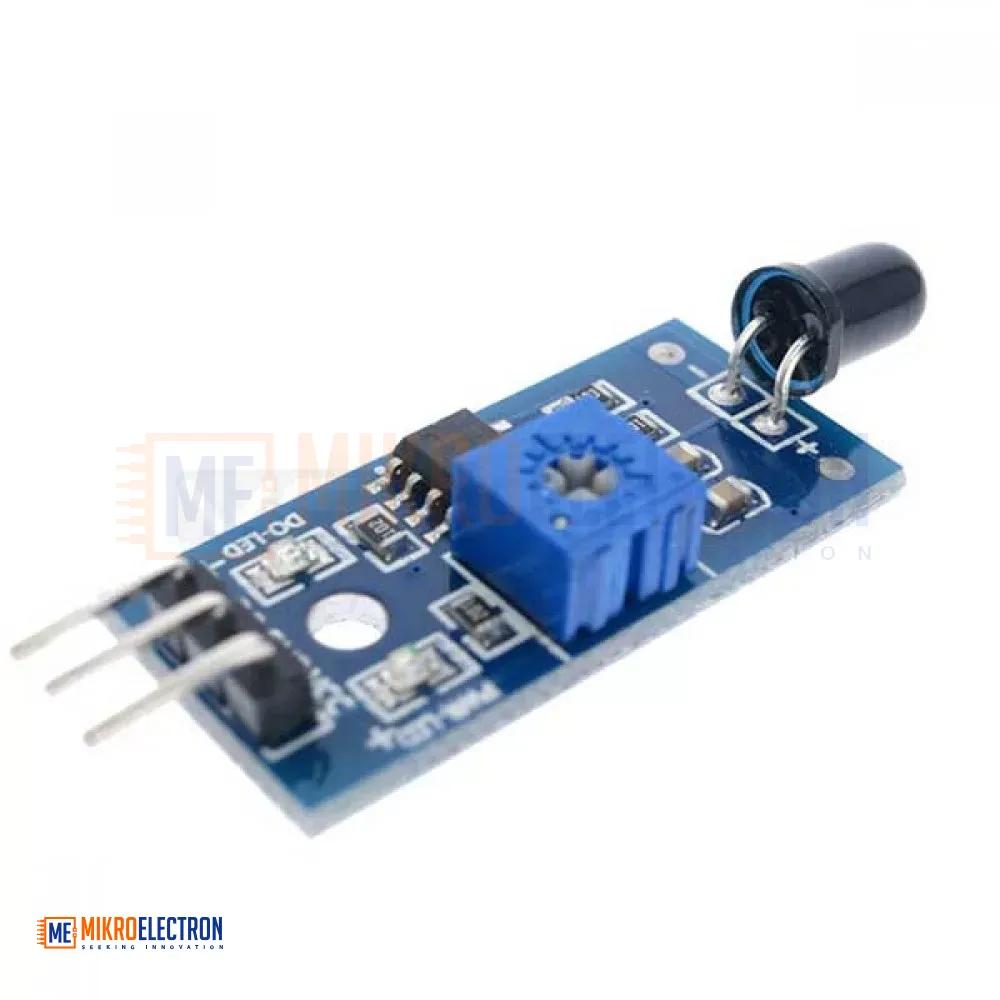

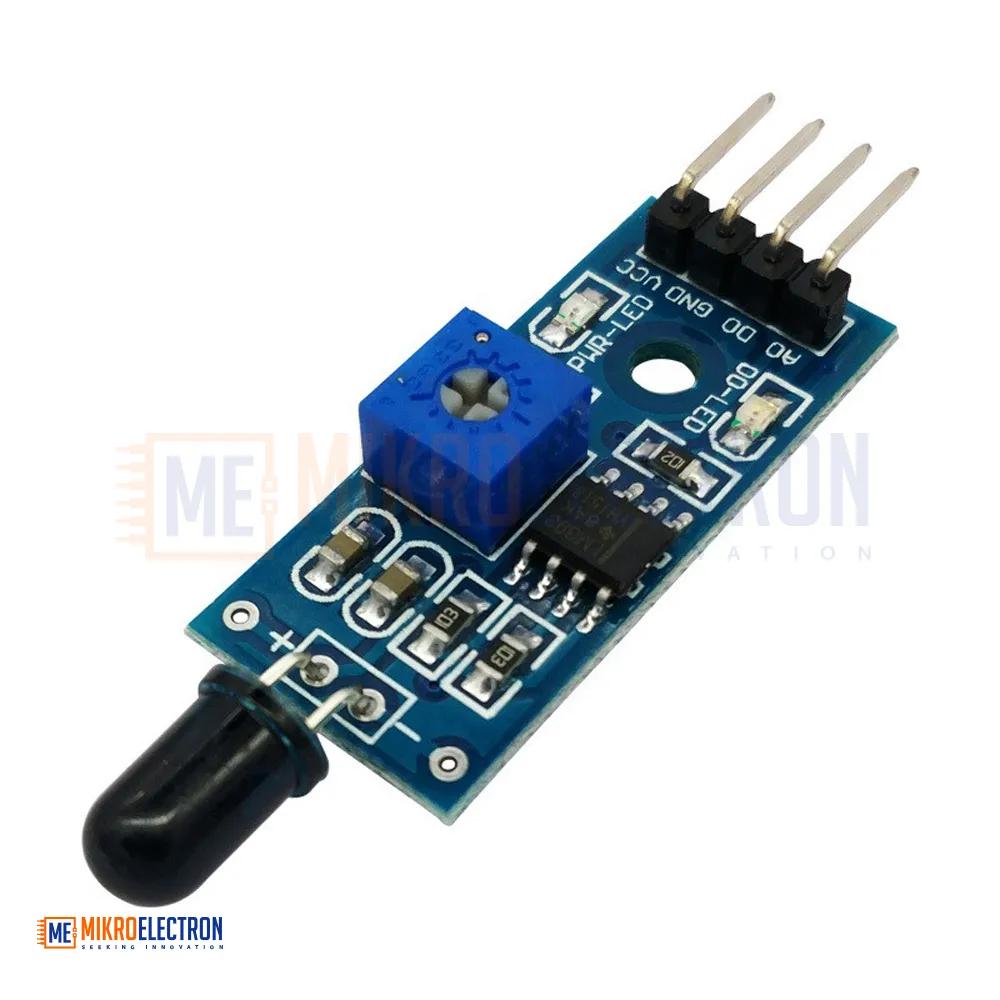

3PIN IR Infrared Flame Detection Sensor Module
5.0(1 review)
JD1.50
The 3-Pin IR Flame Sensor Module is designed to detect infrared light emitted by flames, making it ideal for fire detection, safety systems, and robotic flame-following applications. It responds to wavelengths typically in the 760–1100nm range, which are characteristic of open flames.

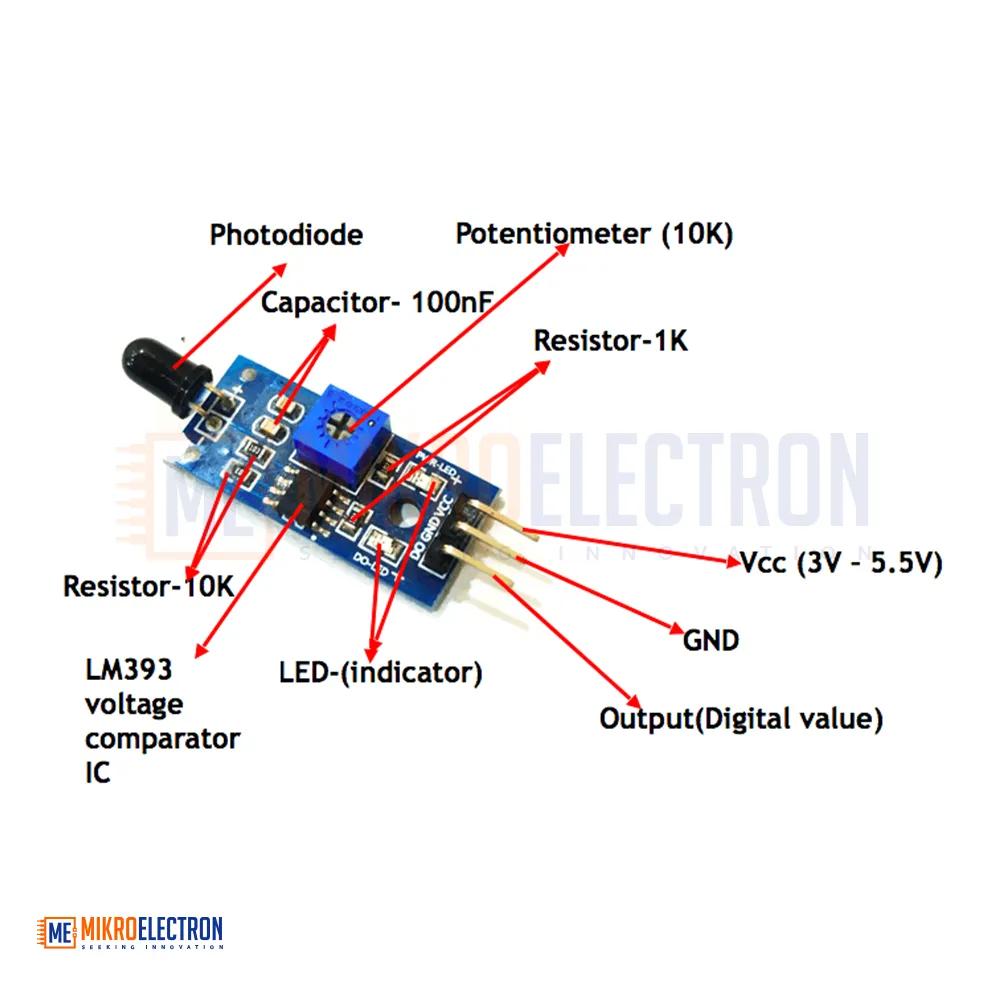

Infrared Flame sensor module module detects infrared light source within 760nm~1100nm and useful for detecting infrared light and flame (which also generates light in that wavelength). The module has a large detection range and can detect flame at a distance of 80cm. Greater the flame, farther the test distance and has a wide detection angle of 60°. The output is a digital signal and sensitivity can be adjusted with a built-in potentiometer.
These modules are typically used in fire alarm systems and flame detection systems.
Specifications
- 0.1" breadboard friendly pins
- Operating Voltage : 3.3-5V
- Detection wavelength : 760nm~1100nm
- Flame detection distance: 80cm
- Output: Active Low (Flame Present: 0, Flame None: 1)
- Detection angle: 60 degrees

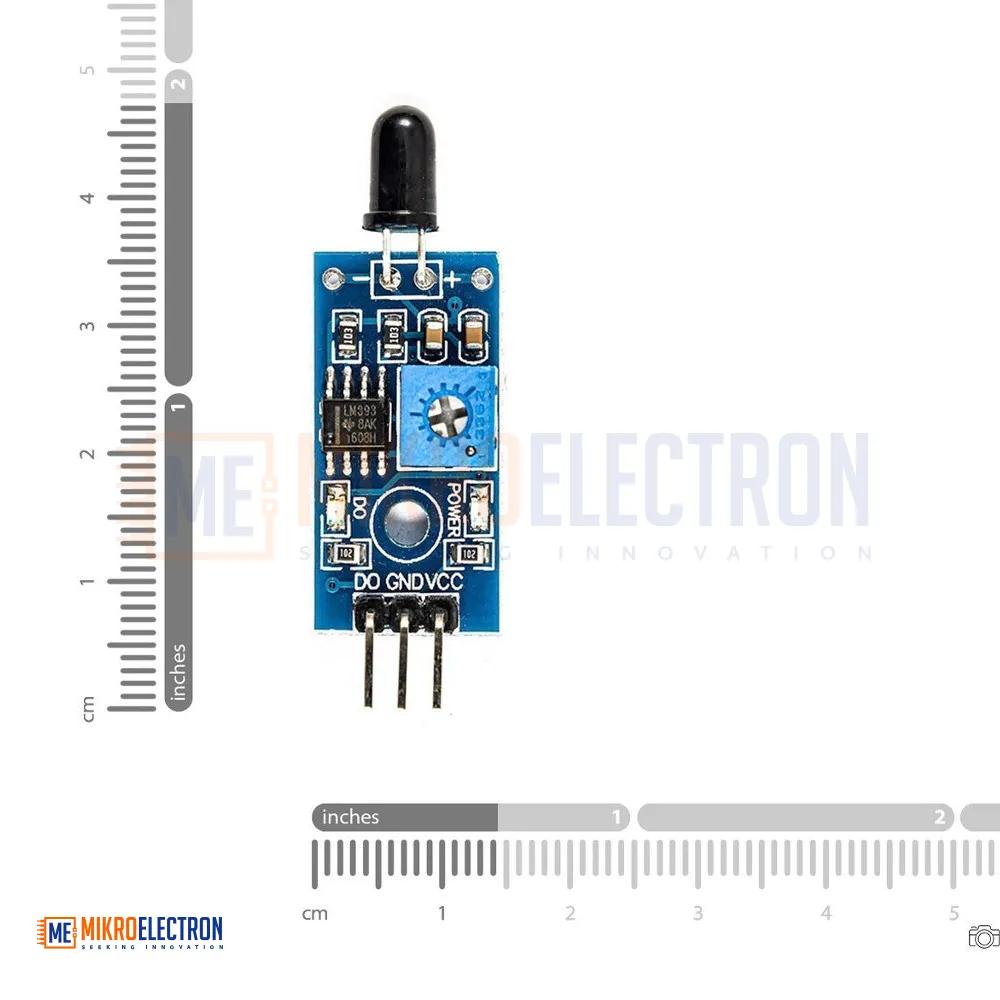

- Dimension: Approx. 31 x 14
