ADUM1201ARZ Magnetic Isolator Board Module Replace Optocouplers CJMCU-1201 ADUM1201 Isolator SOIC 8 Isolator SPI Interface

The ADUM1201ARZ module (CJMCU-1201) is based on Analog Devices' ADuM1201, a dual-channel digital isolator that uses iCoupler® magnetic isolation technology instead of traditional optocouplers. It provides bidirectional signal isolation with a data rate of up to 1 Mbps, making it ideal for applications where signal integrity, high speed, and isolation safety are required.

The isolator offers 5000V RMS isolation, making it suitable for industrial communication, microcontroller interfacing, and signal level shifting across different voltage domains. It is often used to isolate SPI, UART, I²C (with limitations), or GPIO lines from noisy or high-voltage circuits.

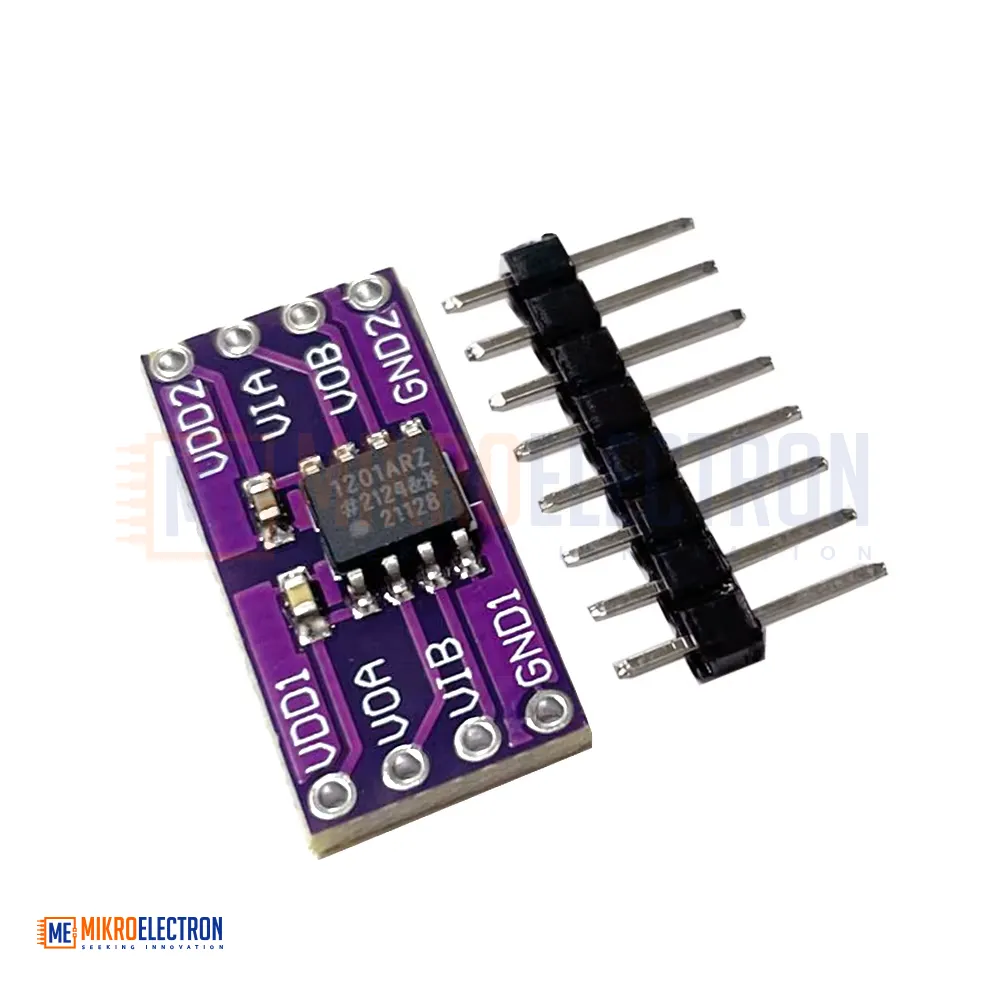

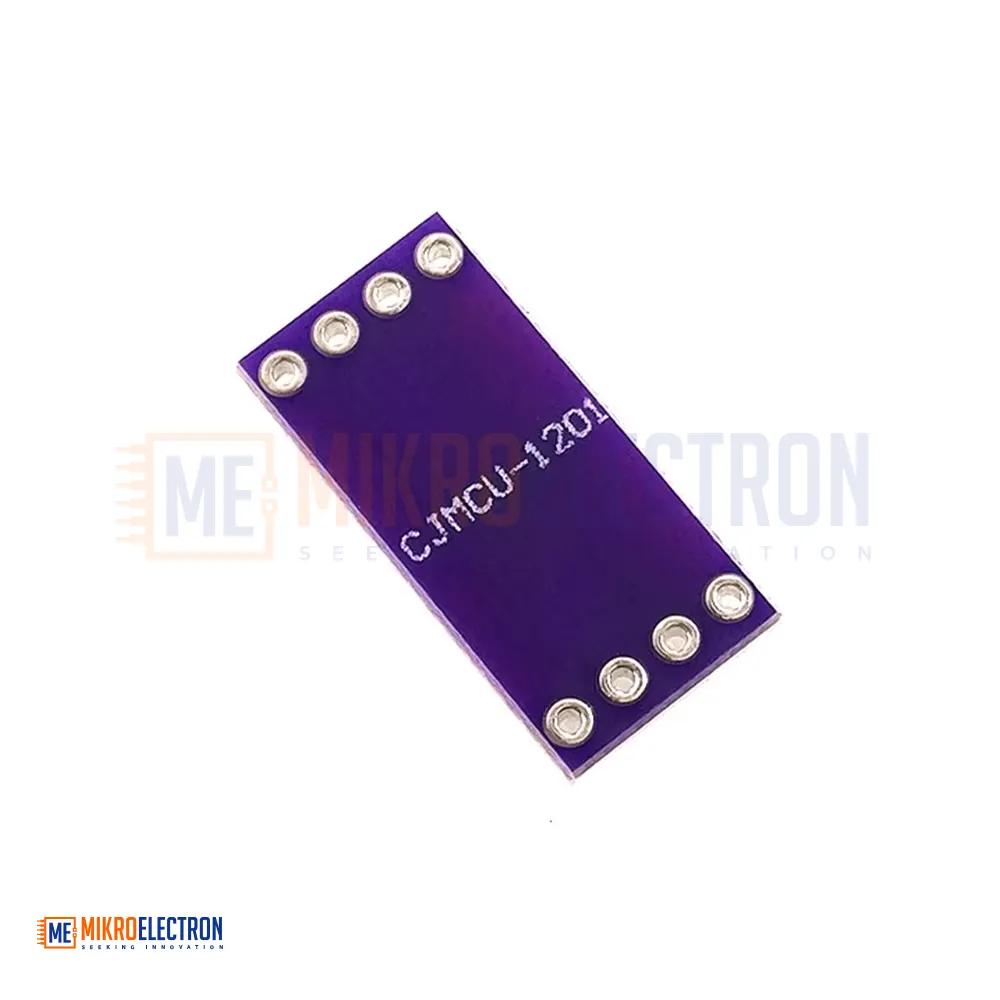

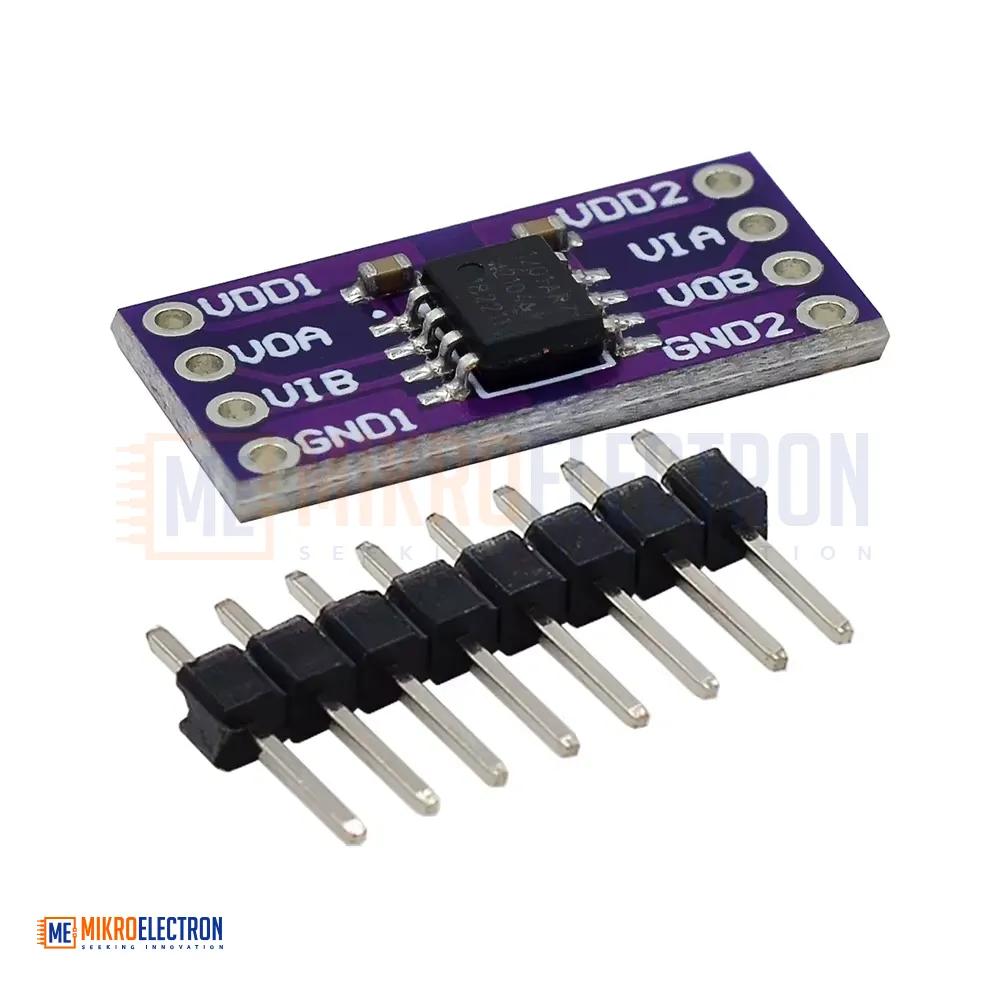

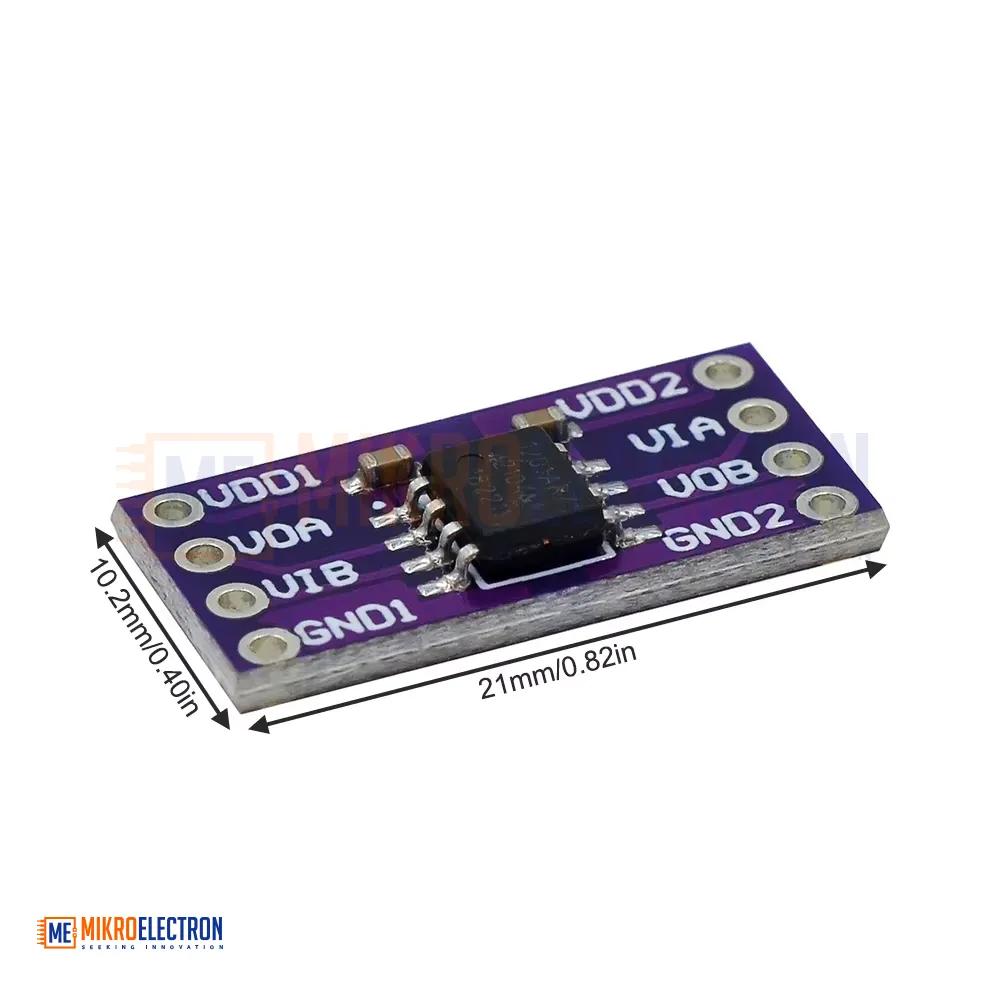

Mounted on a compact breakout board, the CJMCU-1201 is easy to integrate into embedded systems, power control devices, and signal conversion systems.

 Advantages Over Optocouplers:

Faster signal switching (up to 1 Mbps)

No LED degradation over time

Lower power consumption

More compact and reliable for long-term use
