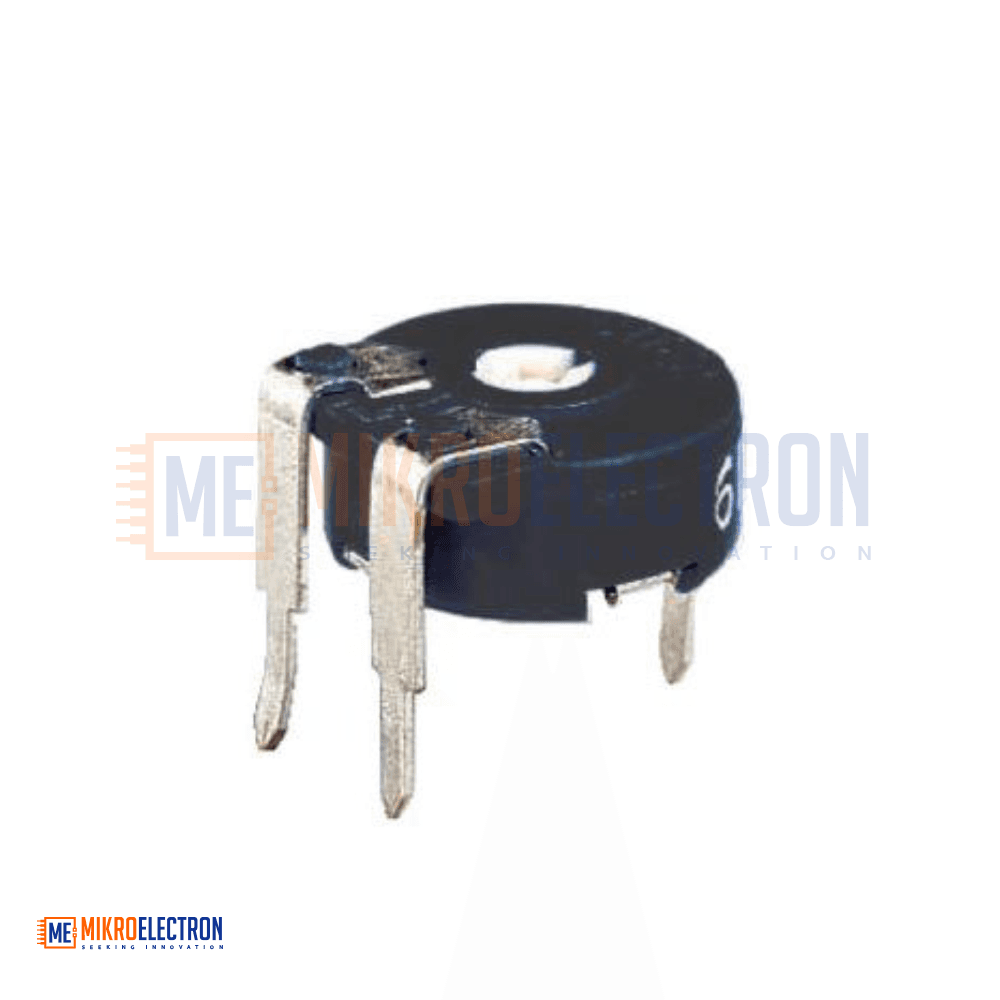

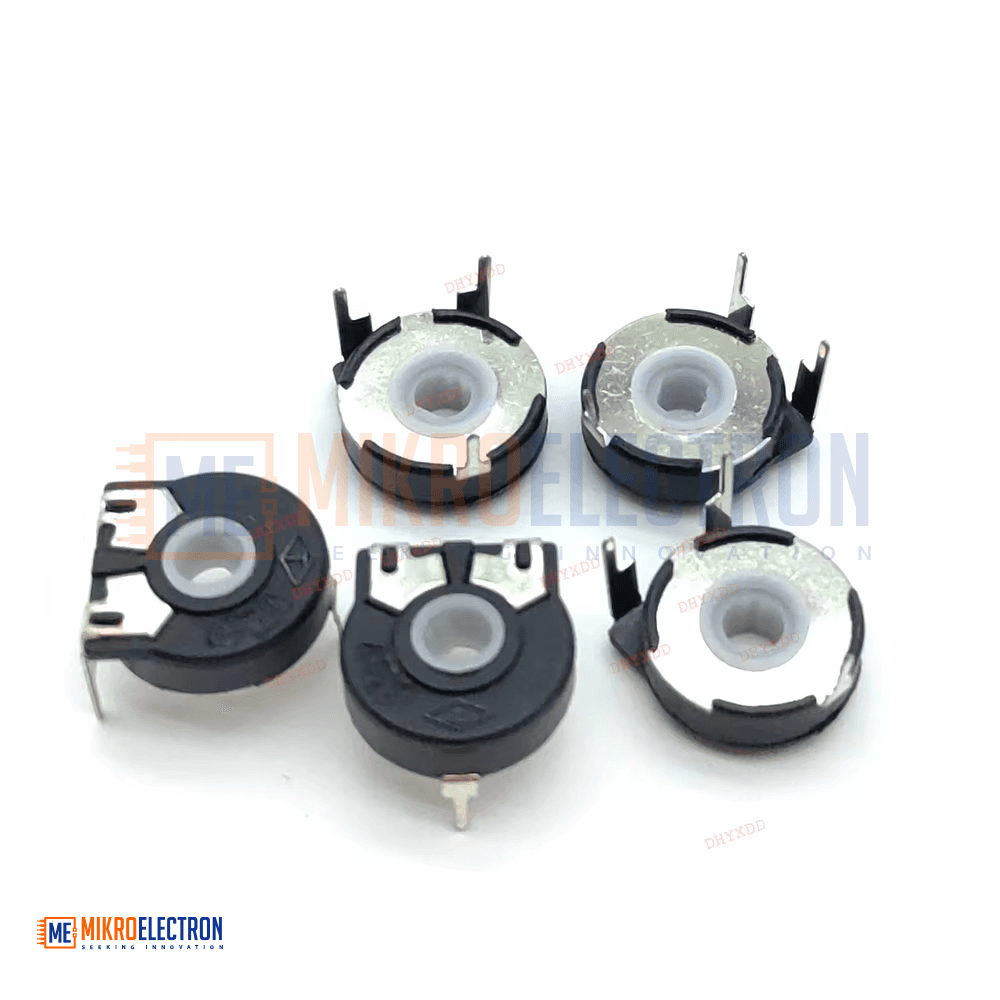

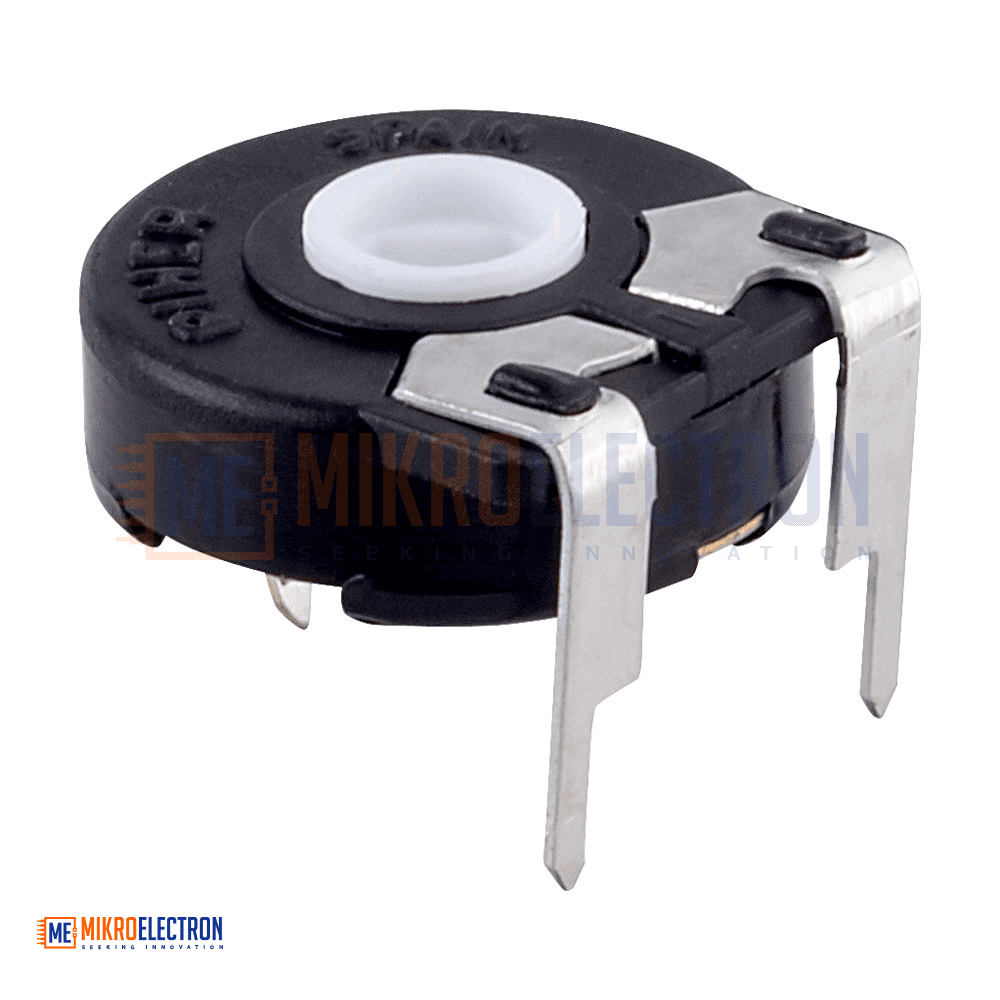

Potentiometer 50k PT-10

The PT-10 50k ohm potentiometer is a high-reliability trimmer potentiometer designed for applications demanding extended mechanical life. The Xtra Long Life construction provides 100,000 cycle mechanical life, significantly outlasting standard trimmers. With a working temperature range of -40°C to +85°C, this potentiometer performs reliably in harsh environments. It is reflow solder capable, allowing for automated PCB assembly processes. The PT-10 is engineered to meet the needs of sensors, controls, and calibration circuits. It carries ISO 14001 (environmental management) and ISO TS 16949 (automotive quality management) certifications, ensuring consistent quality for automotive and industrial use.

Specifications

Model: PT-10

Resistance value: 50k ohm (50,000 ohms)

Type: Xtra Long Life trimmer potentiometer

Mechanical life: 100,000 cycles

Operating temperature range: -40°C to +85°C

Soldering capability: Reflow solder compatible

Quality certifications: ISO 14001 and ISO TS 16949

Typical tolerance: ±20% or ±25% (standard for trimmer pots)

Mounting type: Through-hole or surface mount (depending on variant)

Adjustment type: Top or side adjust (typical for PT-10 series)

Applications

Sensors – calibration and offset adjustment

Controls – industrial control panels and equipment

Consumer appliances – washing machines, ovens, air conditioners

Automotive – electronic control units (ECUs), climate controls

Industrial – process control, automation systems

Multimedia – audio equipment, volume controls, display calibration
