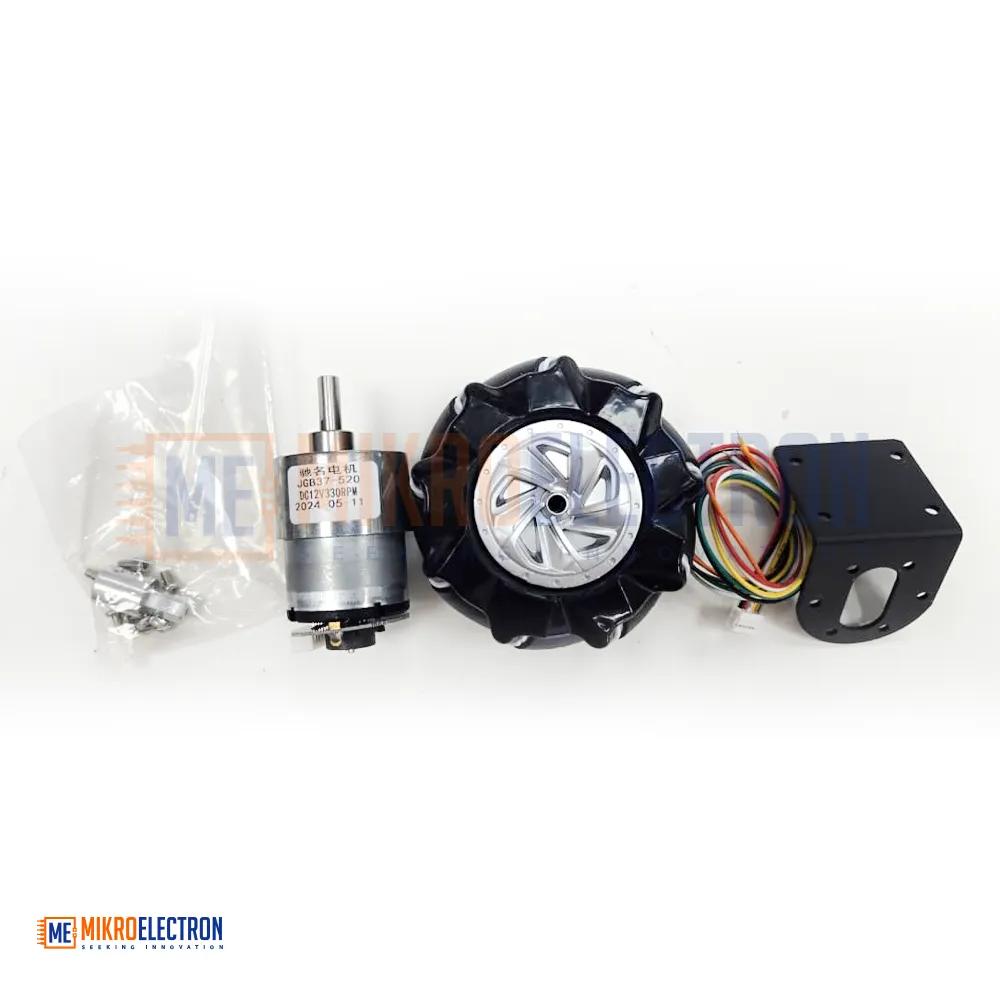

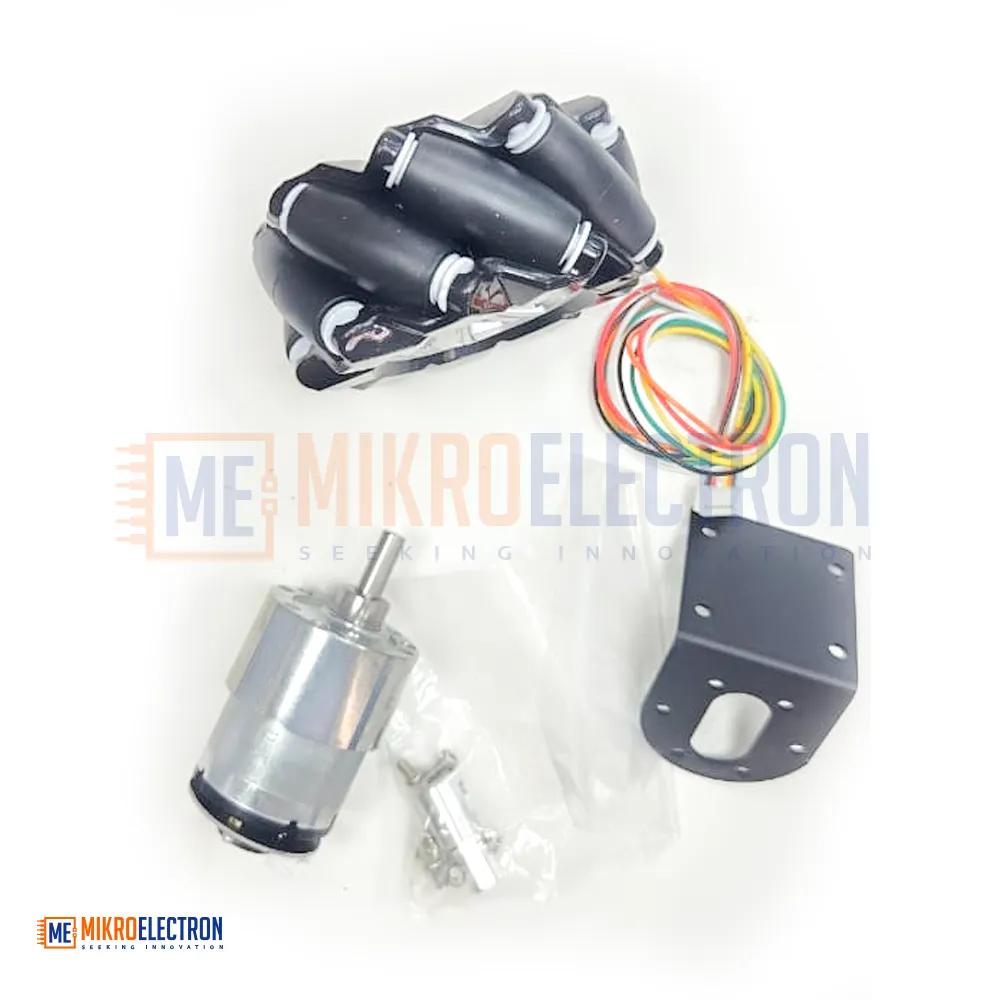

DIY JGB37-520 12V 330RPM/MIN Encoder Motor Smart Car Kit （1*Gear Motor with Encoder+1*Bracket+1*4MM Coupling+1* 65mm Wheel+screws）
DIY JGB37-520 12V 330RPM Encoder Motor Kit – a smart car drive solution with encoder feedback, ideal for robotics and automation projects. Includes motor, mounting bracket, wheel, coupling, and screws.
The DIY JGB37-520 Smart Car Kit is a complete drive module based on a 12V DC gear motor with encoder, offering 330RPM speed and reliable torque. Designed for robotic and smart car platforms, this kit provides precise motor control through built-in dual-channel encoder feedback, allowing for advanced functions like speed regulation, closed-loop control, and direction sensing.
The gear motor is coupled with a 65mm rubber tire wheel for good traction and shock absorption. A metal mounting bracket ensures secure installation on chassis frames, and the included 4mm shaft coupling allows direct connection to the wheel or drive shaft. The motor's JGB37-520 gear head offers reliable performance under medium-load applications, and its encoder enables position and rotation tracking, ideal for use with microcontrollers like Arduino or Raspberry Pi
Specifications:

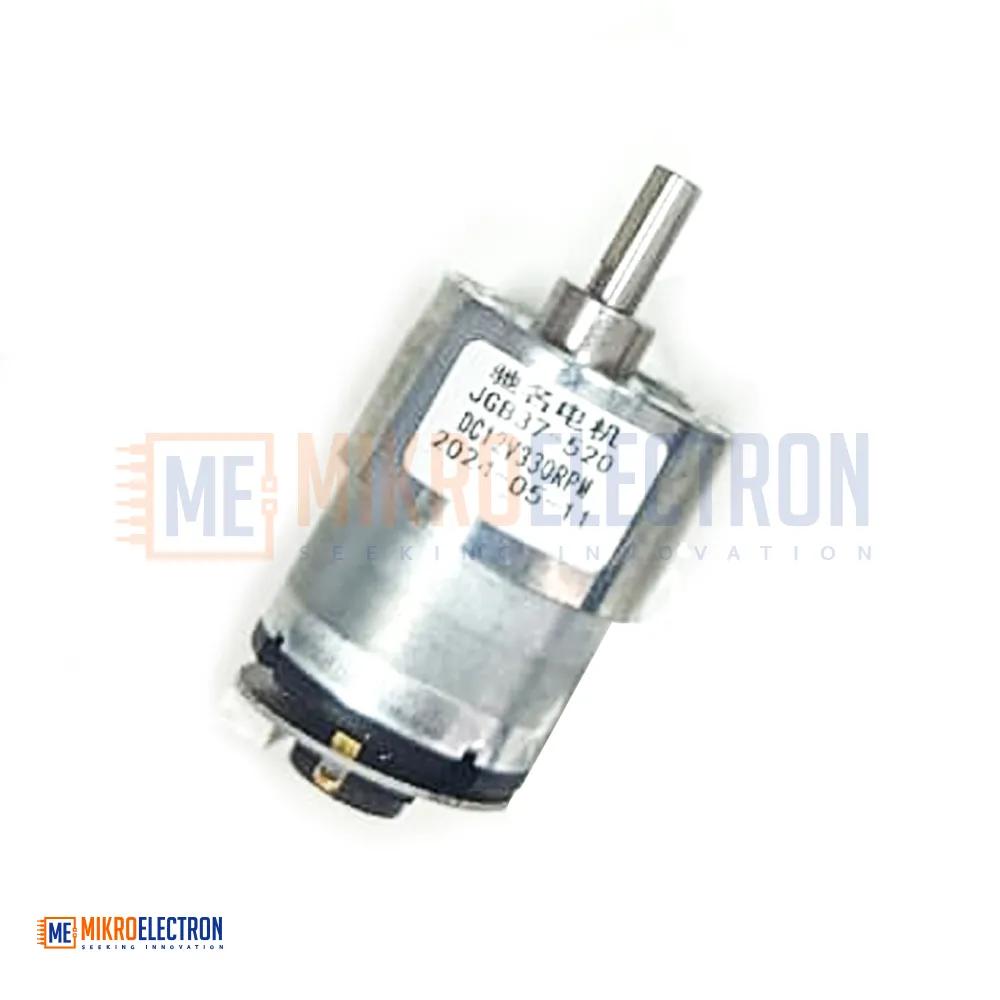

Motor Model: JGB37-520
Rated Voltage: 12V DC
No-load Speed: 330 RPM
Gearbox Diameter: 37mm
Shaft Diameter: 6mm (compatible with 4mm coupling)

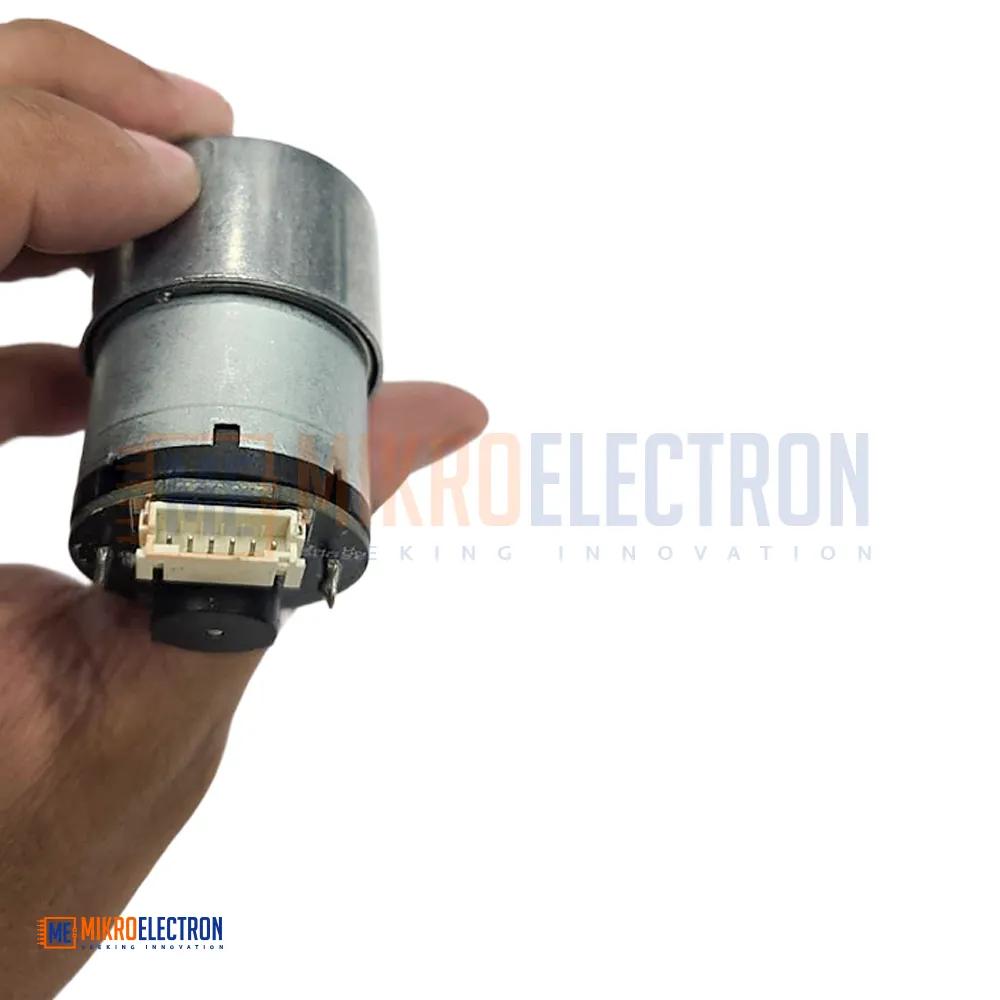

Encoder Type: Hall-effect, dual-channel
Encoder Output: A/B quadrature signals
Wheel Diameter: 65mm
Material: Metal gearbox, rubber tire
Mounting: L-shaped metal bracket
Load Torque: Suitable for small to medium robotic platforms
Note : There may be variations in wire colors, so these colors are not always reliable. Please refer to the markings on the motor.
