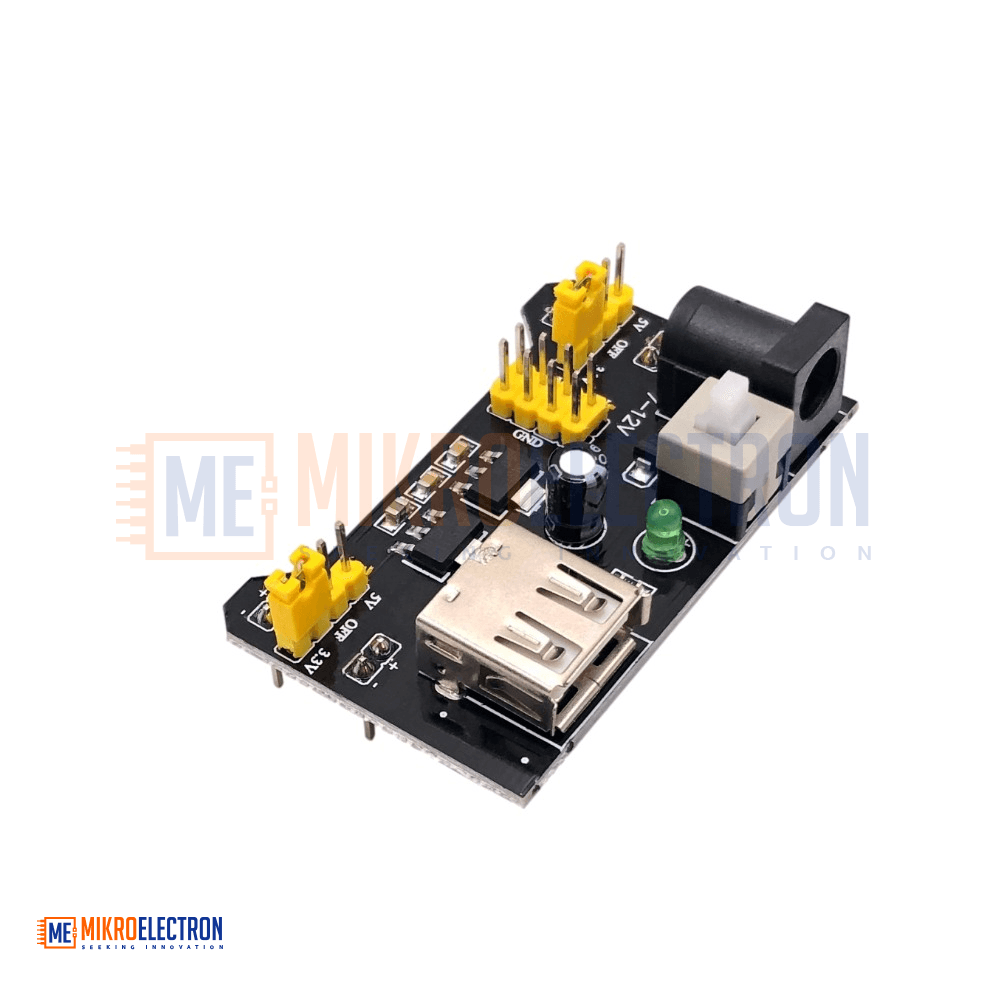

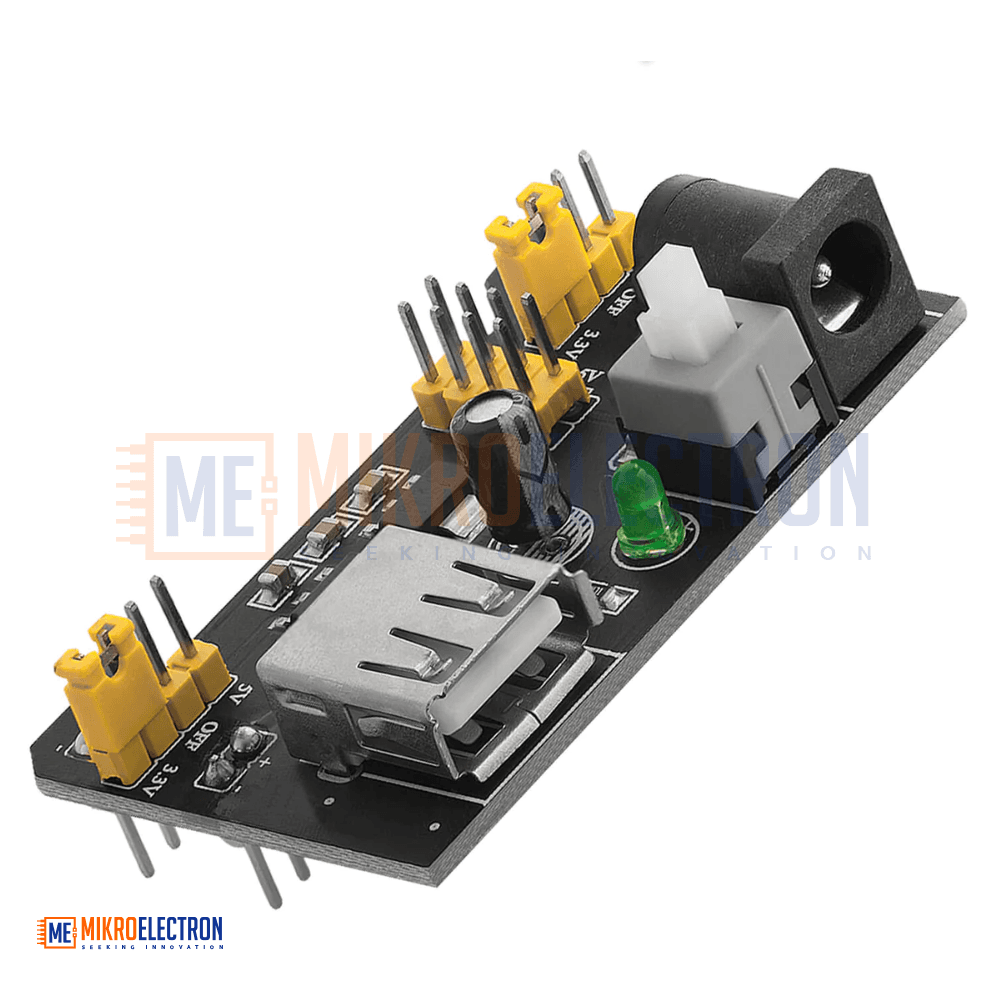

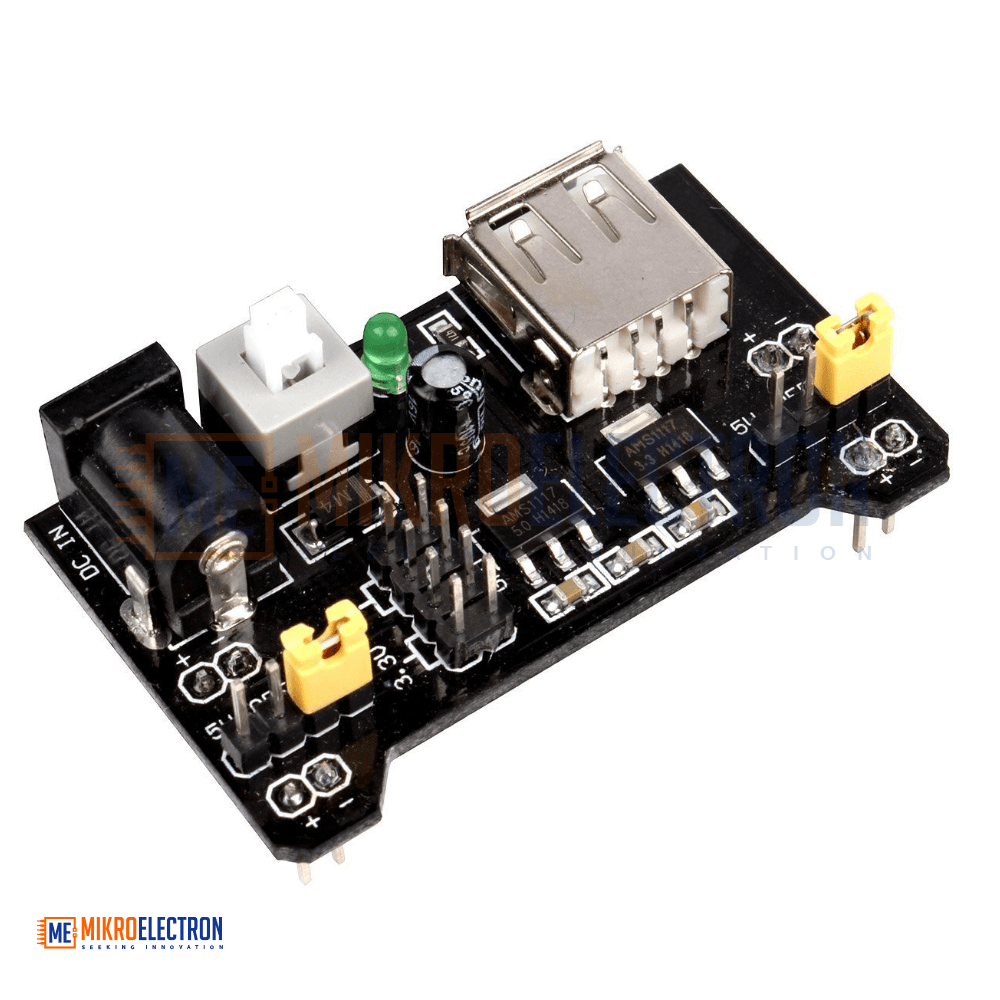

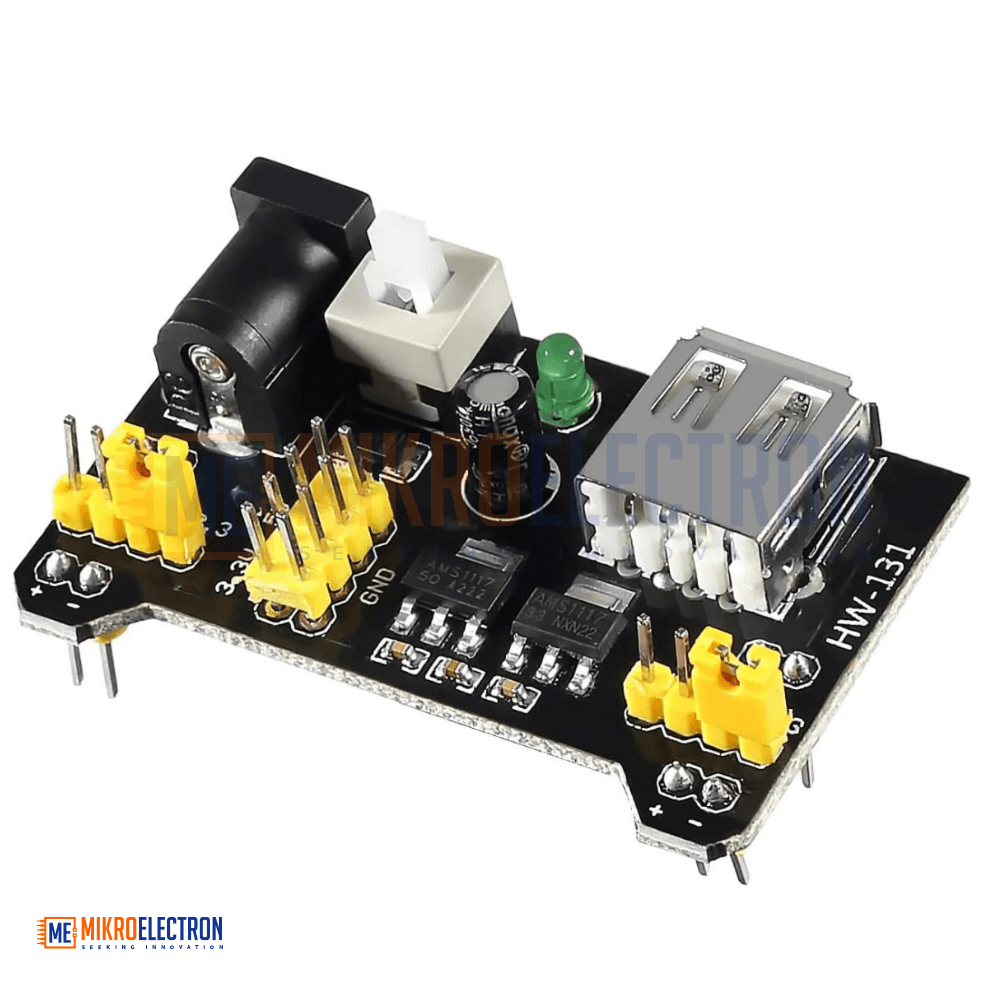

Breadboard Power Supply

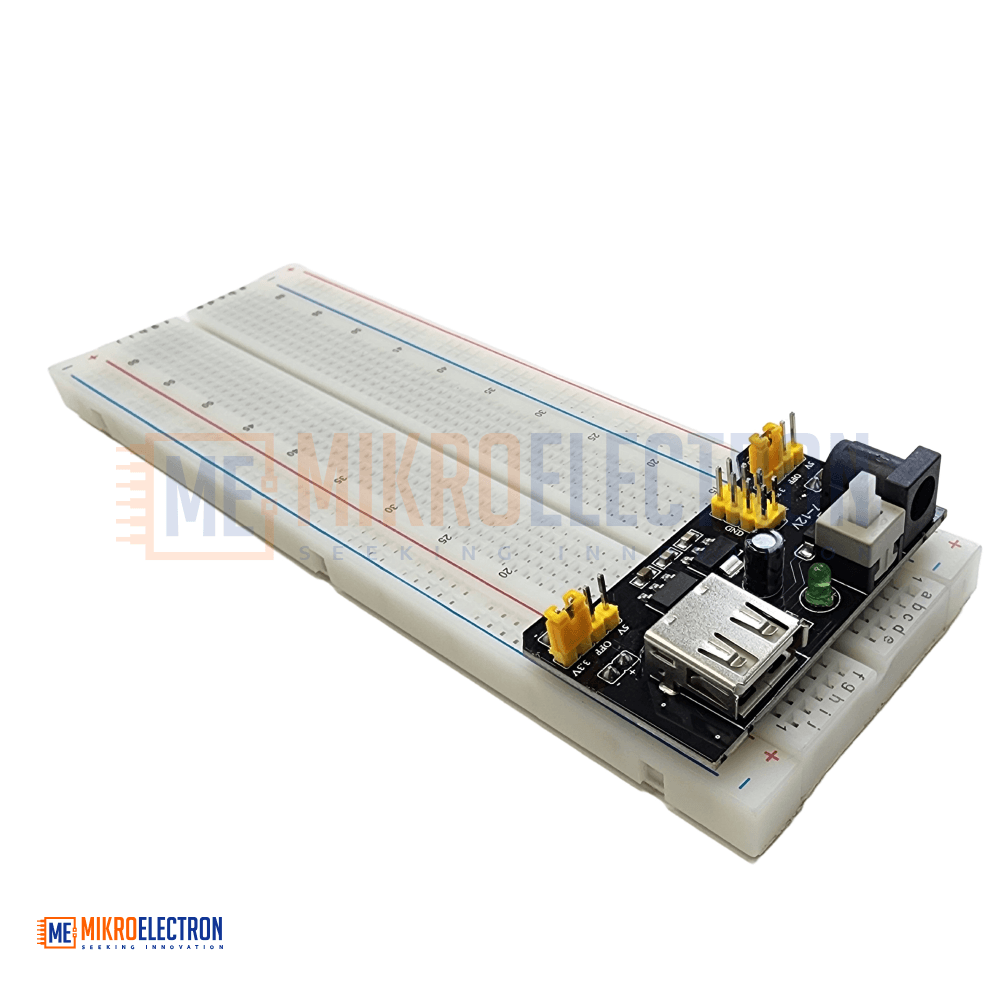

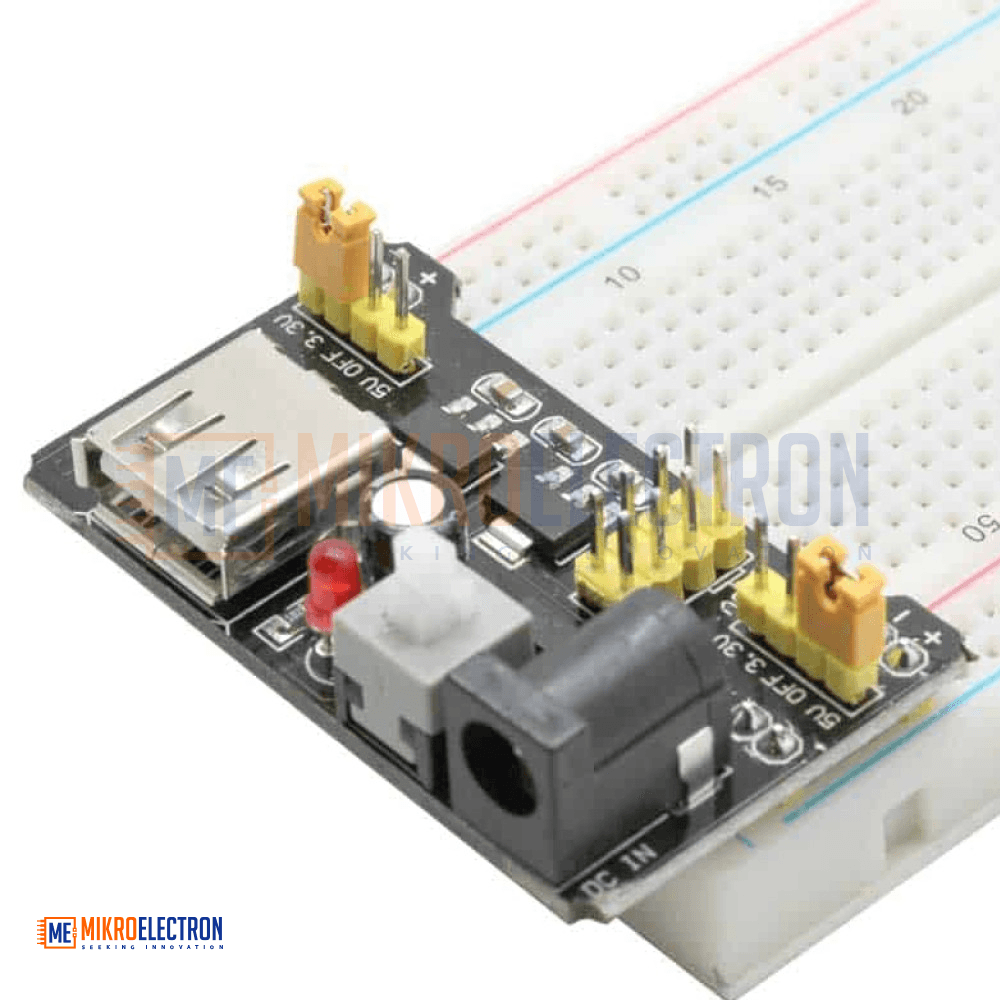

The Breadboard Power Supply Module is a compact and practical power solution designed specifically for breadboard prototyping and electronic development projects. It allows users to conveniently power circuits directly on a standard breadboard using either a USB connection or an external DC power adapter.

The module supports an input voltage range of 6.5V to 10V through the DC barrel jack and also includes a USB Type-A input for easy power access. It provides two independent output channels that can each be configured to output 0V, 3.3V, or 5V using onboard jumpers.

With a maximum output current of 700mA, the module is suitable for powering microcontrollers, sensors, modules, and small electronic circuits. It also includes an onboard power LED indicator and a convenient ON/OFF switch for safe and easy operation.

Its compact size and direct breadboard compatibility make it an essential accessory for Arduino projects, prototyping, testing, and educational electronics applications.

Specifications

• Input Voltage: 6.5V – 10V DC
• Power Input Methods:
  • USB Type-A
  • DC Barrel Jack
• Output Voltages:
  • 0V
  • 3.3V
  • 5V
• Output Configuration: Adjustable via jumpers
• Maximum Output Current: 700mA
• Power Channels: Two Independent Channels
• Power Indicator: Green LED
• Switch Type: ON/OFF Latching Switch

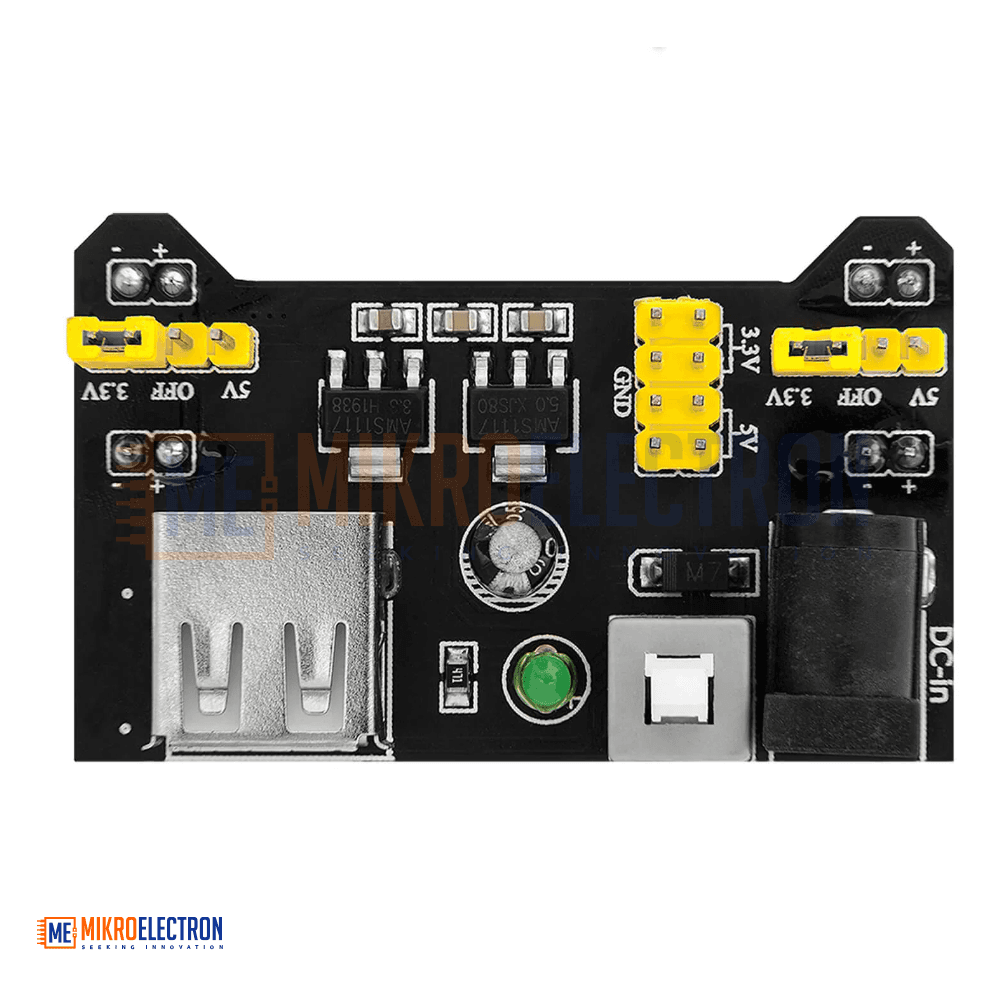

• Additional Output Pins: GND, 5V, 3.3V Berg Header
• Dimensions: 53mm × 33mm

Applications

• Breadboard prototyping
• Arduino development projects
• Electronic circuit testing
• DIY electronics projects
• Sensor and module powering
• Educational electronics experiments
• Embedded systems development
• Rapid hardware prototyping
