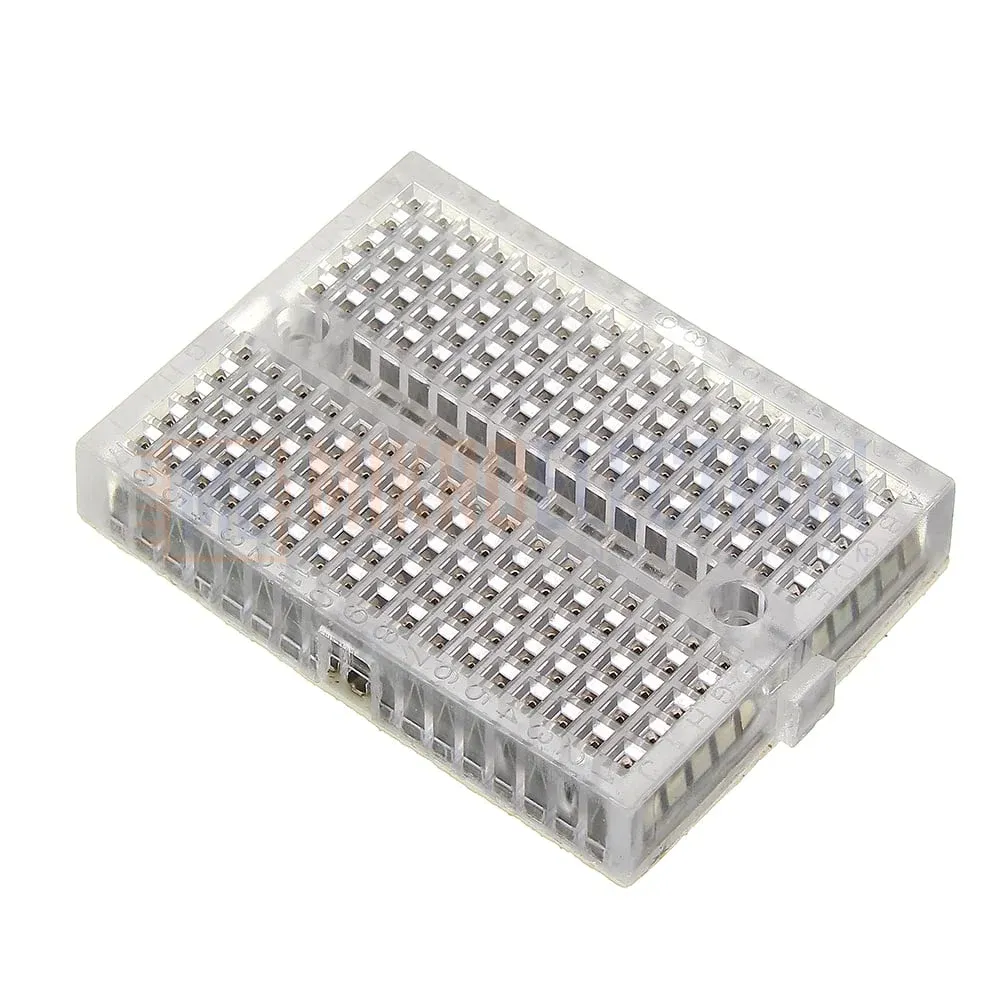

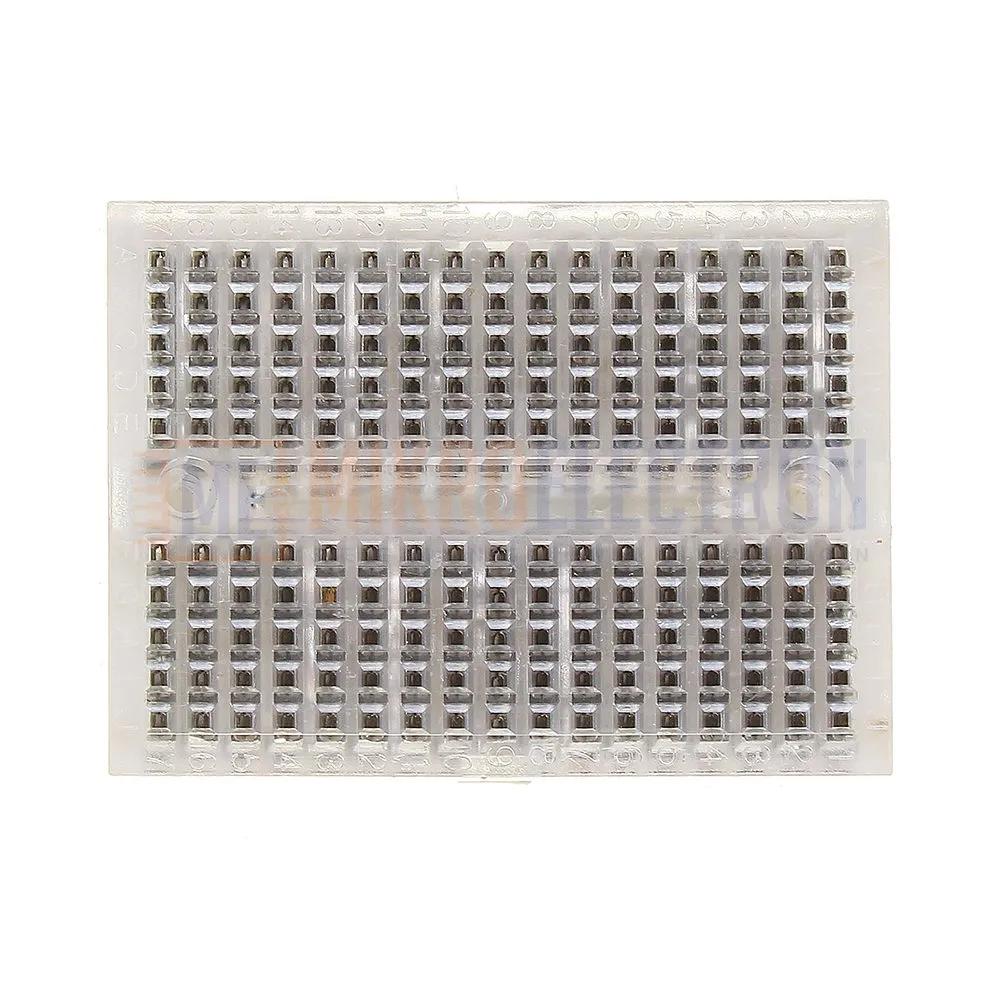

170pts Mini Breadboard SYB-170 Transparent with Connect

The SYB-170 Mini Breadboard (Transparent, 170 Points, with Connector Slot) is a compact and essential tool for electronics prototyping. It provides 170 tie-points (interconnection points) for quickly building and testing circuits without soldering, making it perfect for students, makers, and engineers.

Its transparent body allows you to see the internal connections—great for educational use—and includes dual power rails for clean power distribution. The board comes with an interlocking connector groove so it can be combined with other breadboards or mounted onto a Proto Shield or chassis. Reusable and reliable, it works well with jumper wires, DIP ICs, resistors, sensors, and modules.

Specifications:

Model: SYB-170

Tie-Points: 170 (10 rows x 17 columns)

Material: ABS plastic (transparent body)

Color: Clear/Transparent

Power Rails: 1 per side

Compatibility: Jumper wires (AWG 20–29), Arduino, Raspberry Pi

Size: 47mm x 35mm x 8.5mm (approx.)

Mounting: Adhesive backing + connector groove for stacking

Reusable: Yes

Weight: ~10g
