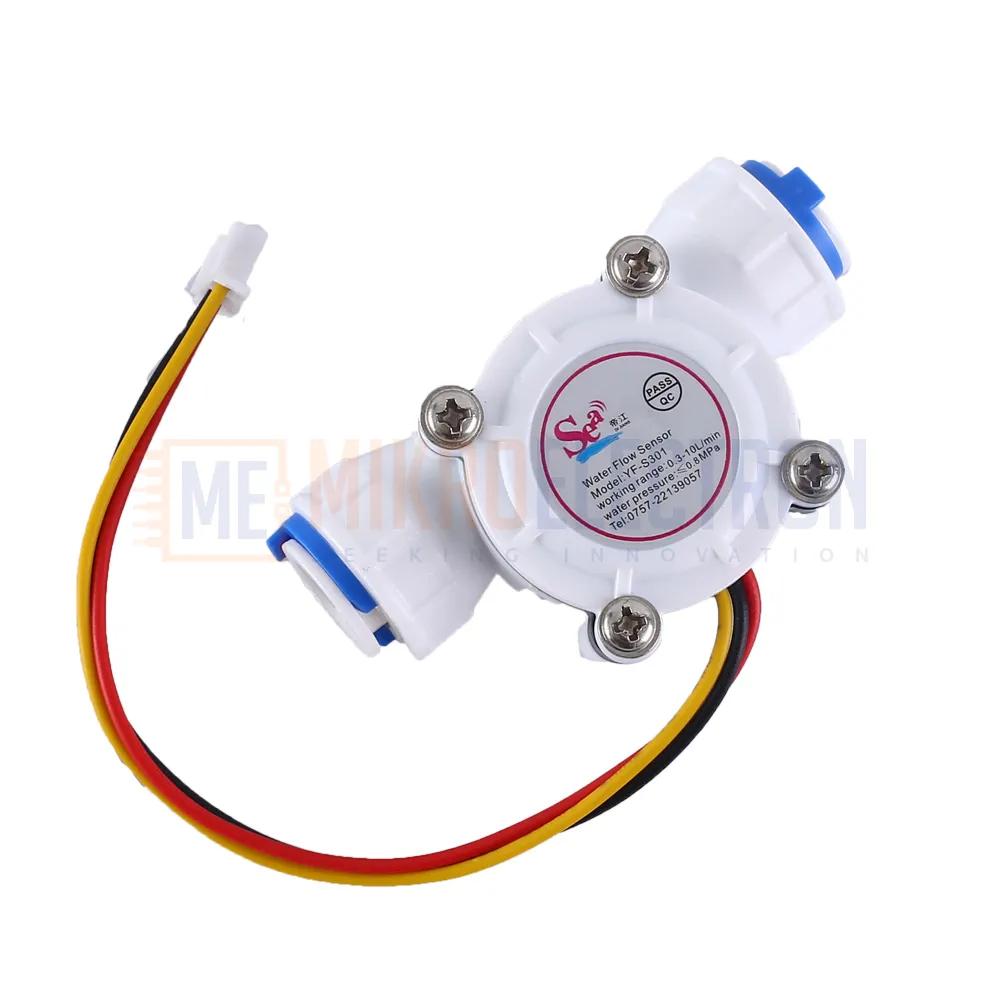

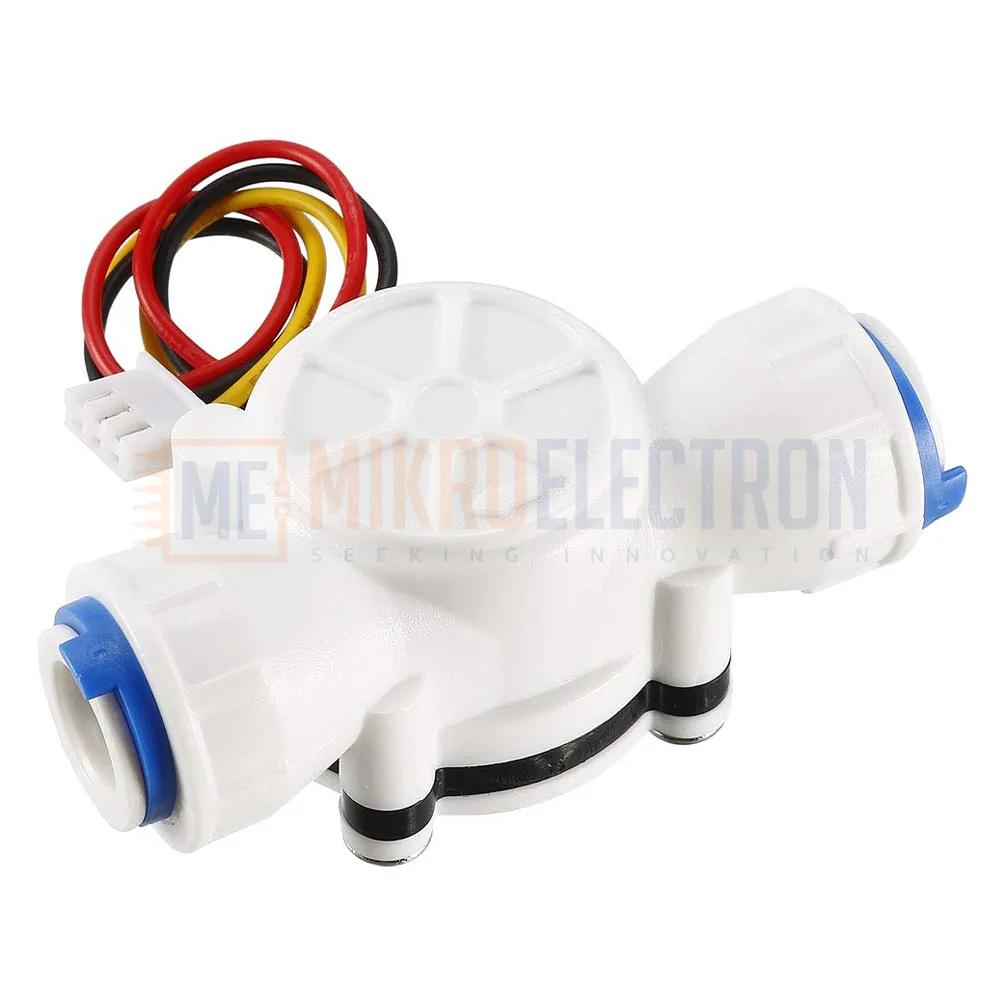

Water Flow Sensor (Sea) YF-S301 Flowmeter 0.3-10L/min 5-24V

The YF-S301 Water Flow Sensor (Sea) is a precise flowmeter designed to measure liquid flow rates from 0.3 to 10 liters per minute. Suitable for a wide voltage range of 5 to 24 volts, it outputs pulse signals that can be counted by microcontrollers like Arduino, Raspberry Pi, or other data acquisition systems.

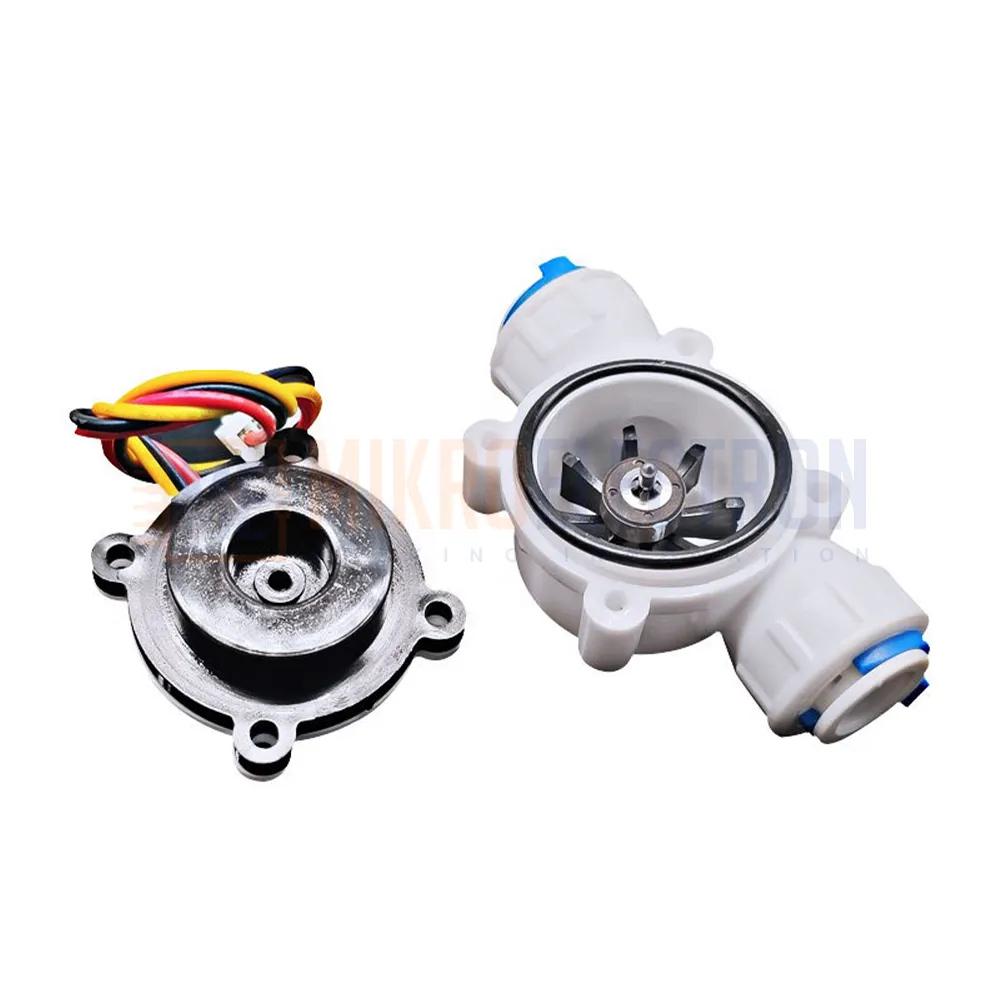

The sensor uses a turbine wheel inside the flow channel; as water flows, the turbine spins, generating pulses proportional to the flow rate. These pulses allow accurate real-time monitoring of fluid volume, making it highly suitable for irrigation systems, aquarium water management, water dispensers, and industrial fluid flow monitoring.

Specifications:

Model: YF-S301

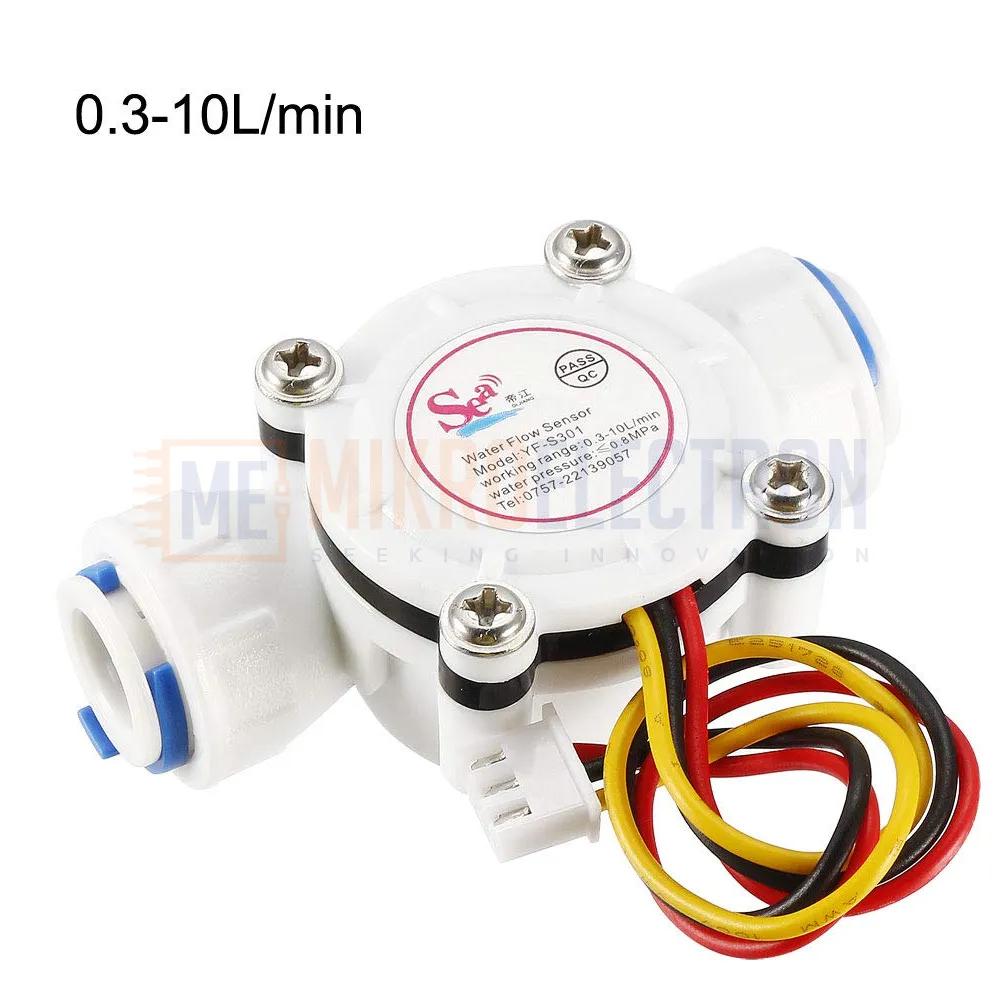

Flow Range: 0.3 – 10 L/min

Operating Voltage: 5 – 24 V DC

Output Signal: Pulse (square wave)

Pulse Frequency: Approx. 450 pulses per liter

Working Current: < 15 mA

Operating Temperature: 0 – 80°C

Working Pressure: 0 – 1.75 MPa

Housing Material: Plastic (corrosion-resistant)

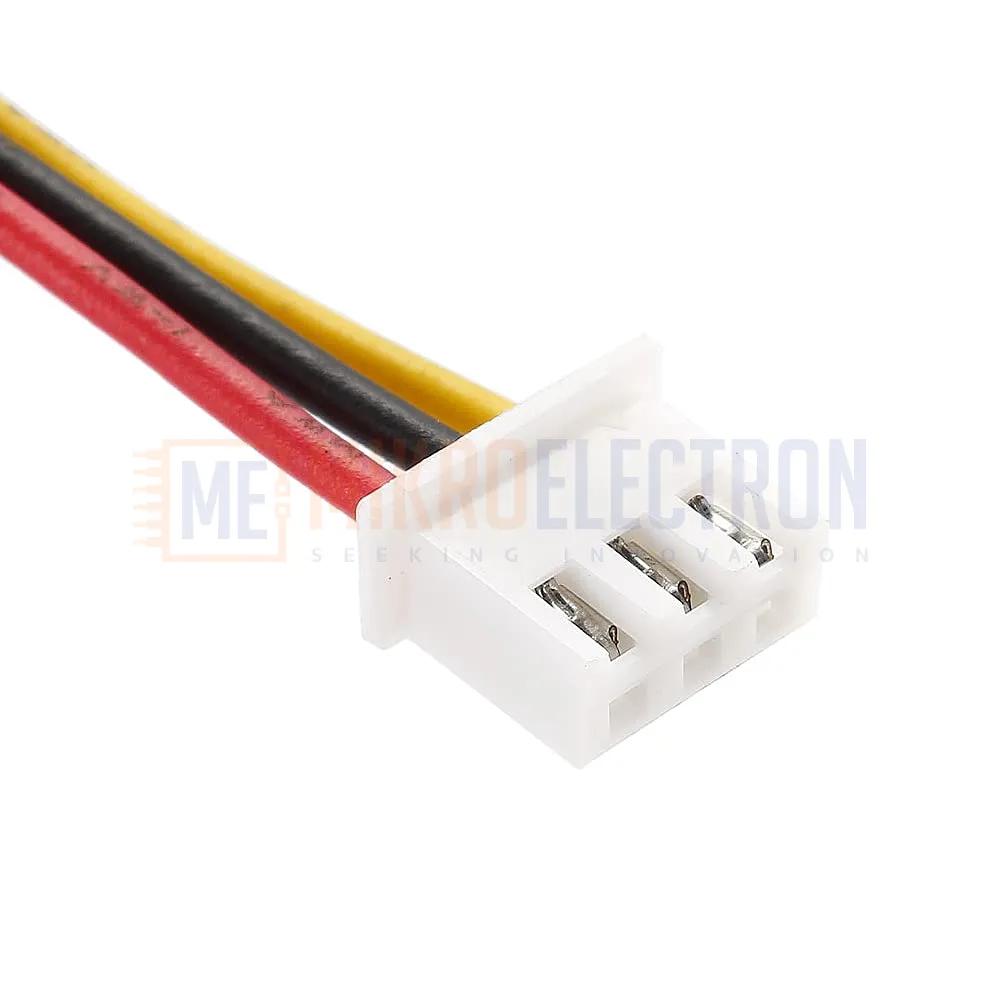

Connector: 3-wire cable (Red, Black, Yellow)

Red: VCC

Black: GND

Yellow: Signal output

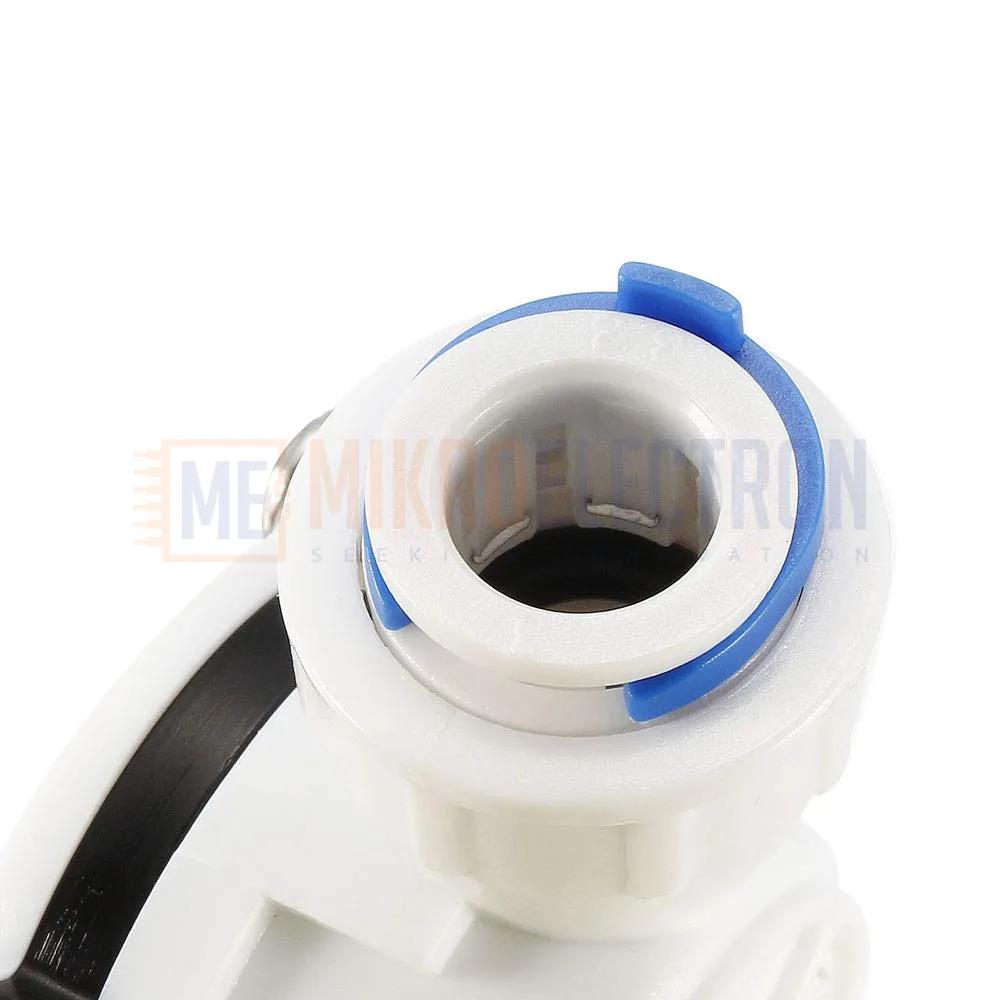

Pipe Size: Compatible with 1/2 inch tubing

Weight: ~50g
