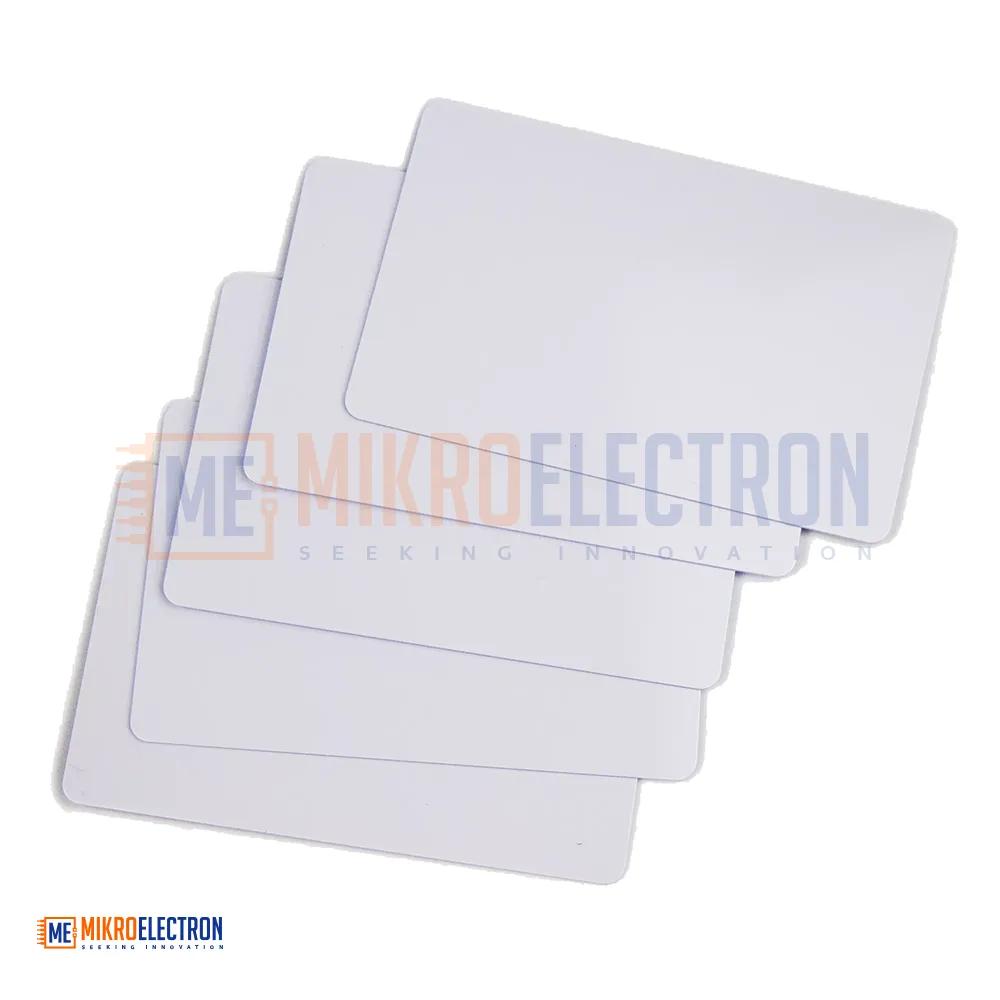

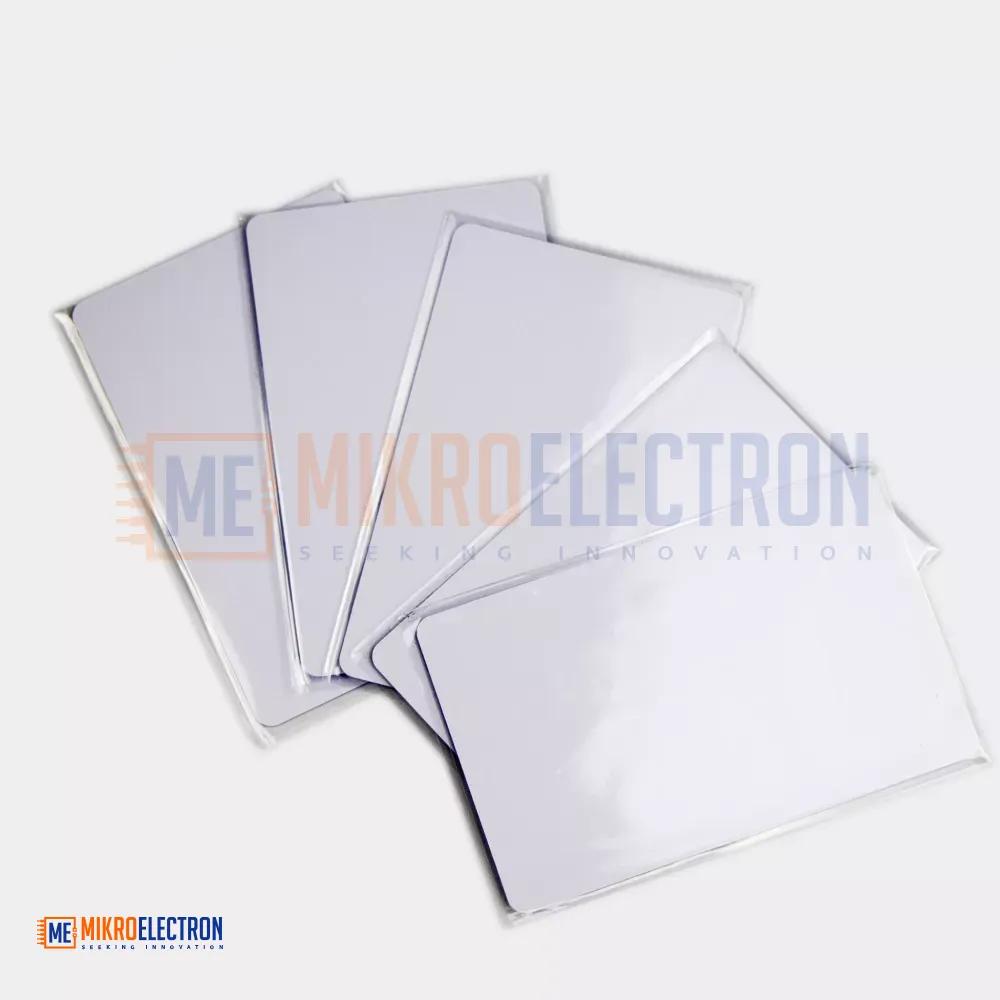

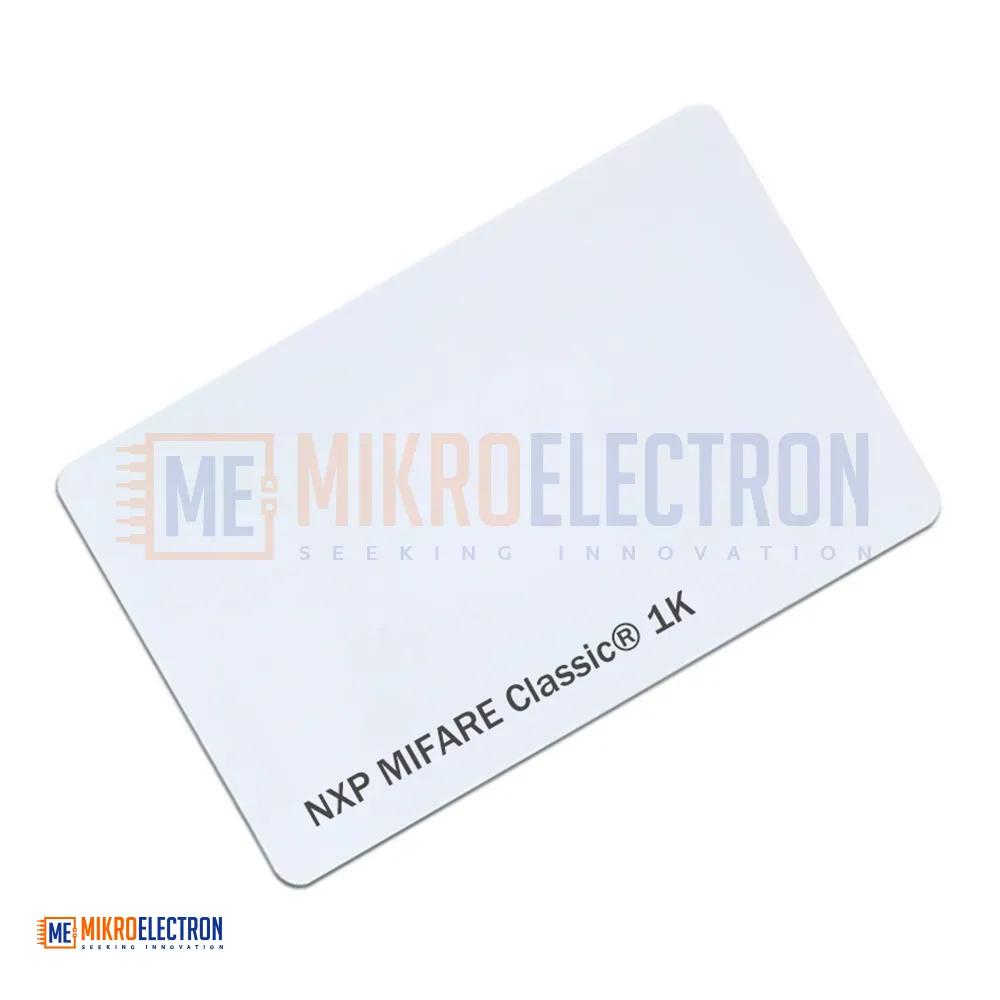

13.56MHz MIFARE Classic 1k Blank NFC Card
13.56MHz MIFARE Classic 1K Blank NFC Card is a contactless smart card used for secure data storage and access control. With 1KB EEPROM and high compatibility, it's ideal for identification, ticketing, payment, and other RFID-based applications.
The 13.56MHz MIFARE Classic 1K Blank NFC Card is a high-quality contactless smart card based on ISO/IEC 14443 Type A standard. It operates at a frequency of 13.56MHz and features 1KB of EEPROM memory, divided into 16 sectors with separate security keys. These cards are blank and rewritable, making them suitable for a wide range of customizable RFID and NFC applications.
Specifications:
Chip Type: MIFARE Classic 1K (MF1S50)
Frequency: 13.56 MHz
Memory: 1KB EEPROM (1024 bytes)
Data Structure: 16 sectors, each with 4 blocks
Read/Write Distance: Up to 10 cm (depends on reader)
Material: PVC
Card Dimensions: 85.5 × 54 × 0.8 mm (CR80 standard)
Standard Compliance: ISO/IEC 14443A
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +65°C
| Weight | 0.007 kg |
|---|---|
| Application | Bank, Enterprises, Festival, Gift Card, Hotel Card, Identification, Parking |
| Chip | NXP MIFARE Classic® 1K |
| Communication Interface | HF RFID |
| Frequency | 13.56MHz |
| Material | PVC |
| Protocol | ISO14443A |
| Size | CR80 85.6x54mm(3.37"x2.13") |
