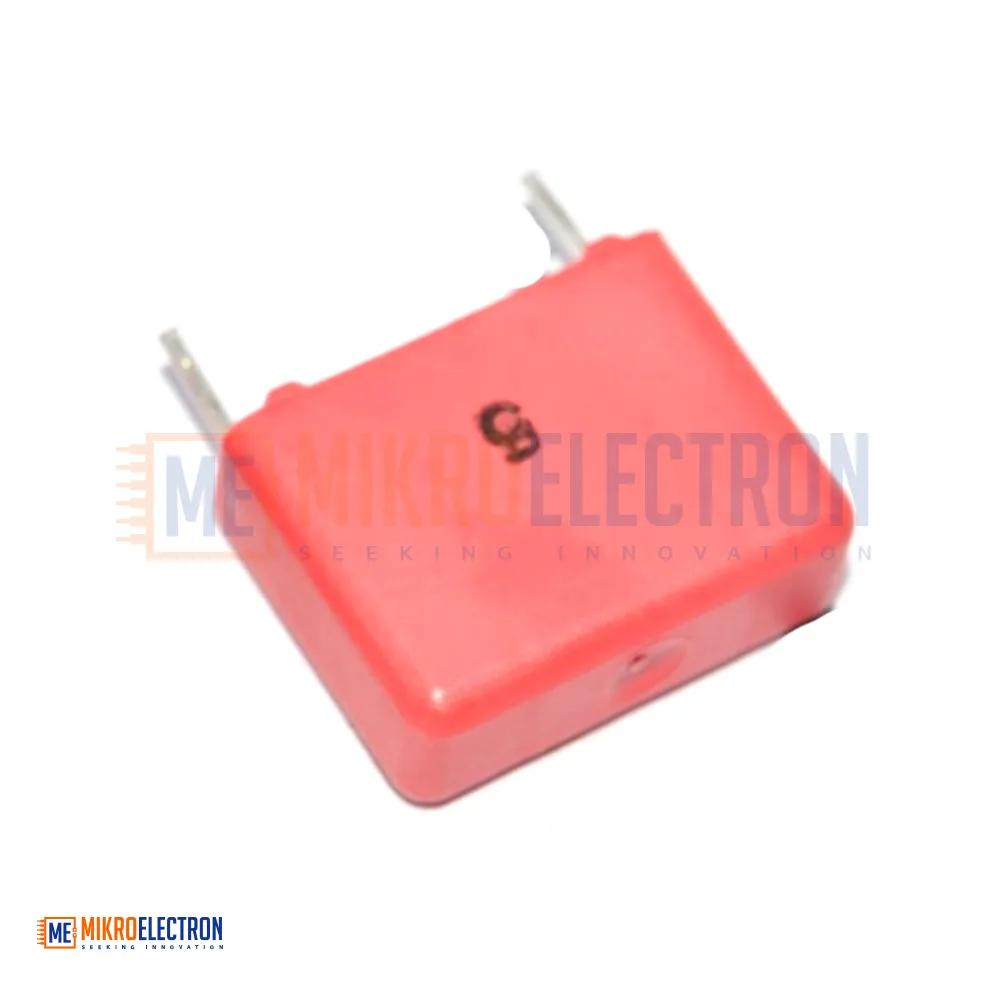

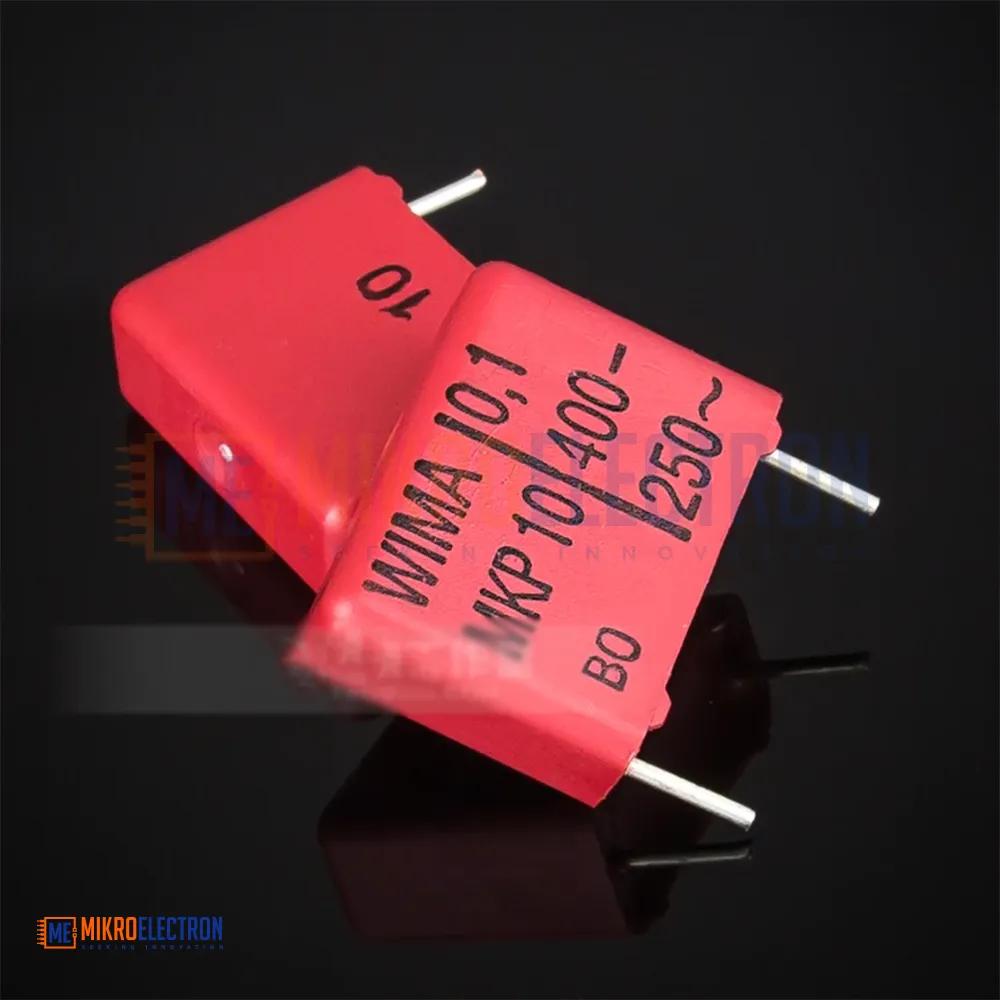

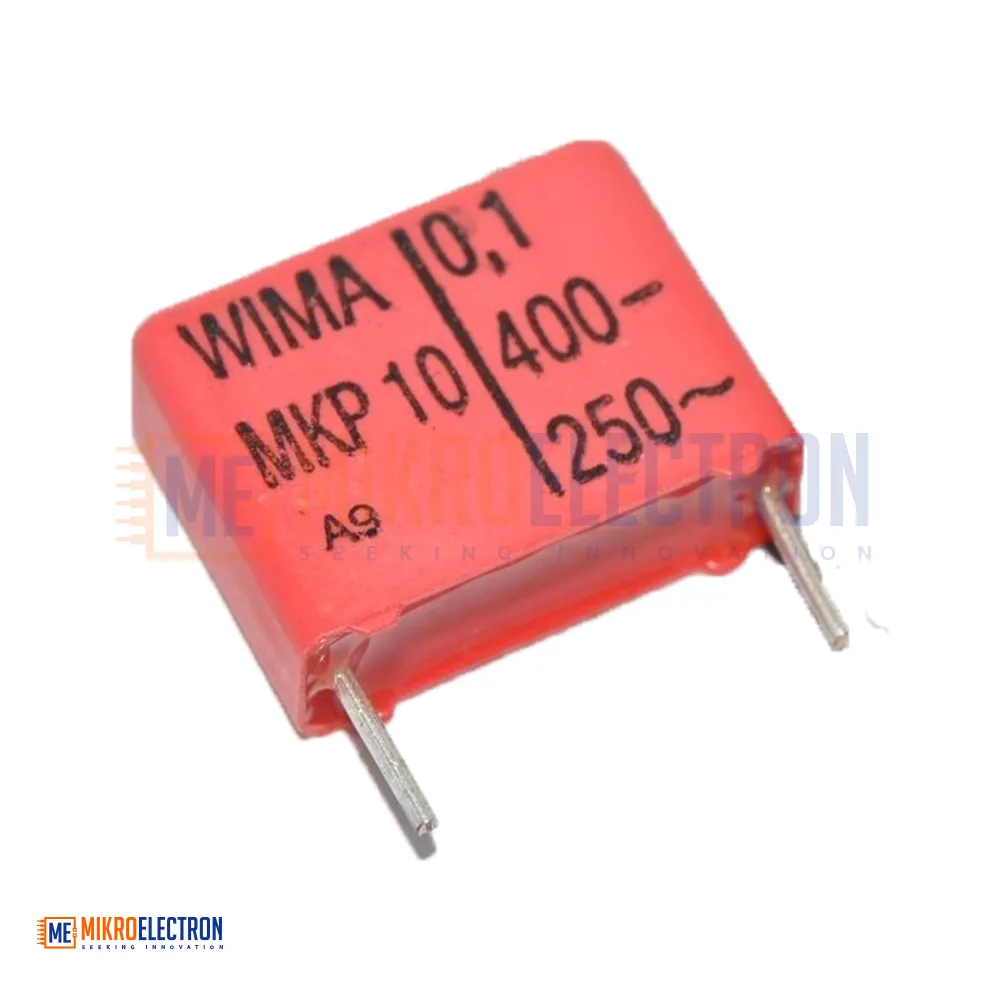

Red WIMa MKP10 100nf 400v p15mm metallized polypropylene film capacitor
The red WIMA MKP10 is a 100 nF, 400 V metallized polypropylene film capacitor with 15 mm lead pitch. It offers low loss, high stability, and excellent pulse handling for audio, filtering, coupling, and general-purpose electronic circuits.
The WIMA MKP10 is a high-quality metallized polypropylene film capacitor designed for demanding electronic applications. This 100 nF (0.1 µF) capacitor is rated for 400 V DC and features a 15 mm lead pitch, making it easy to mount on PCBs. Known for its low dielectric losses, excellent self-healing properties, and high voltage stability, the MKP10 series is widely used in audio crossovers, pulse circuits, filters, and coupling/decoupling applications. Its robust construction ensures long-term reliability even under demanding conditions.
Specifications:
Capacitance: 100 nF (0.1 µF)
Rated Voltage: 400 V DC
Dielectric: Metallized polypropylene film
Lead Pitch: 15 mm
Tolerance: ±10 % (typical)
Operating Temperature: -55 °C to +100 °C
ESR: Very low (excellent high-frequency performance)
Self-healing property for extended lifespan
Case: Flame-retardant epoxy resin, red color
