GY-271 QMC5883L 3-axis Electronic Compass Module Magnetic Field Sensor-China Chip

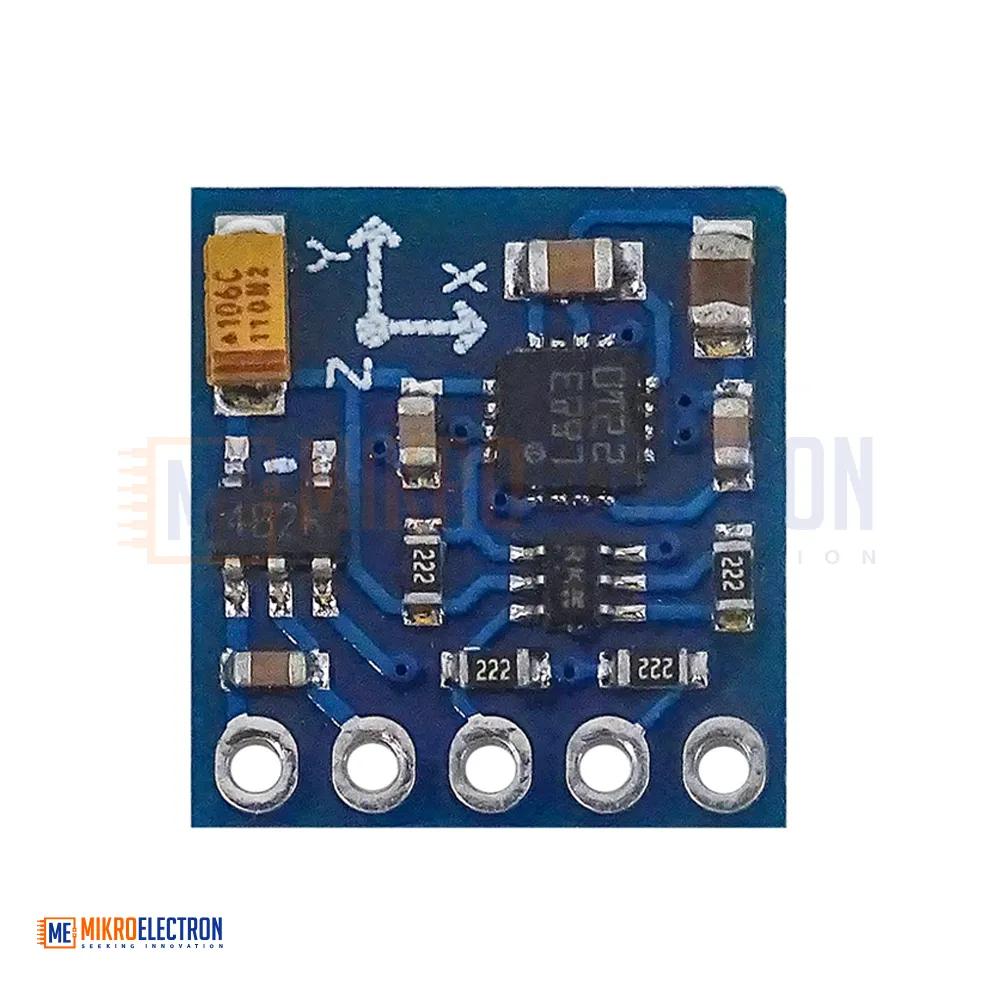

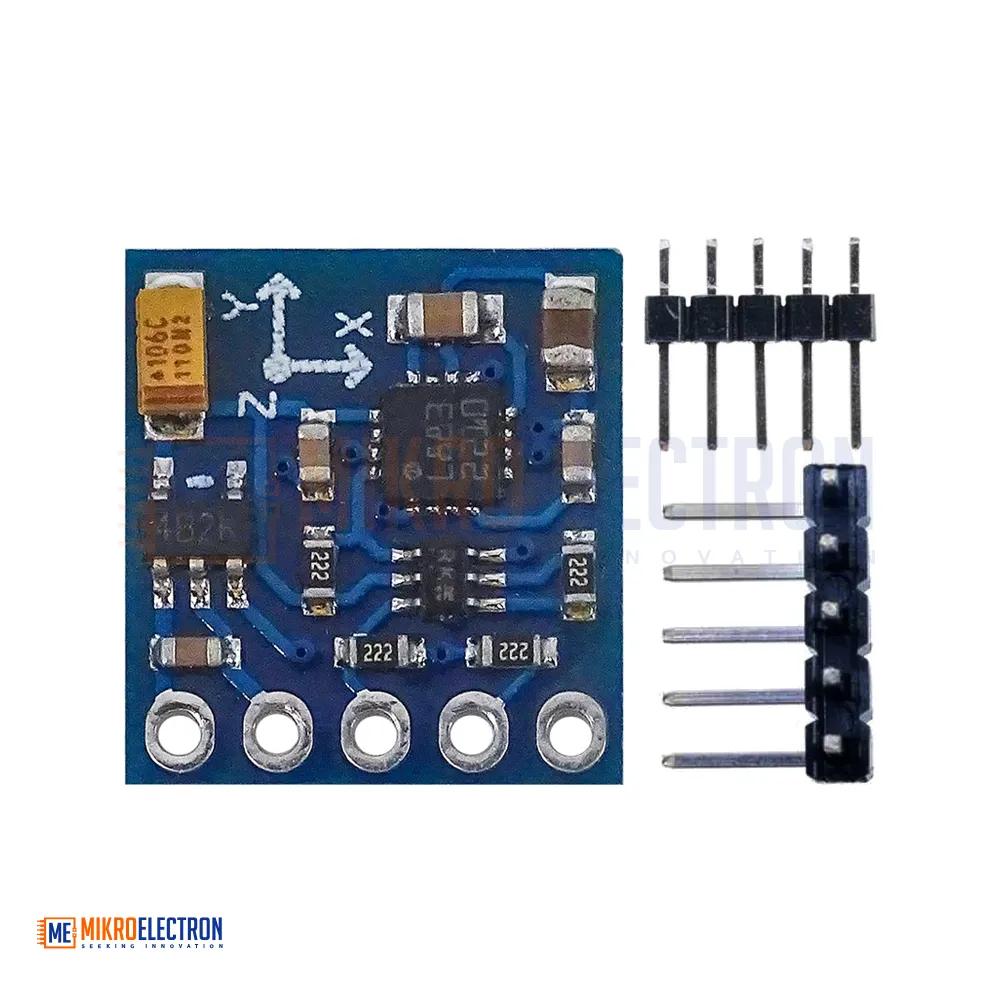

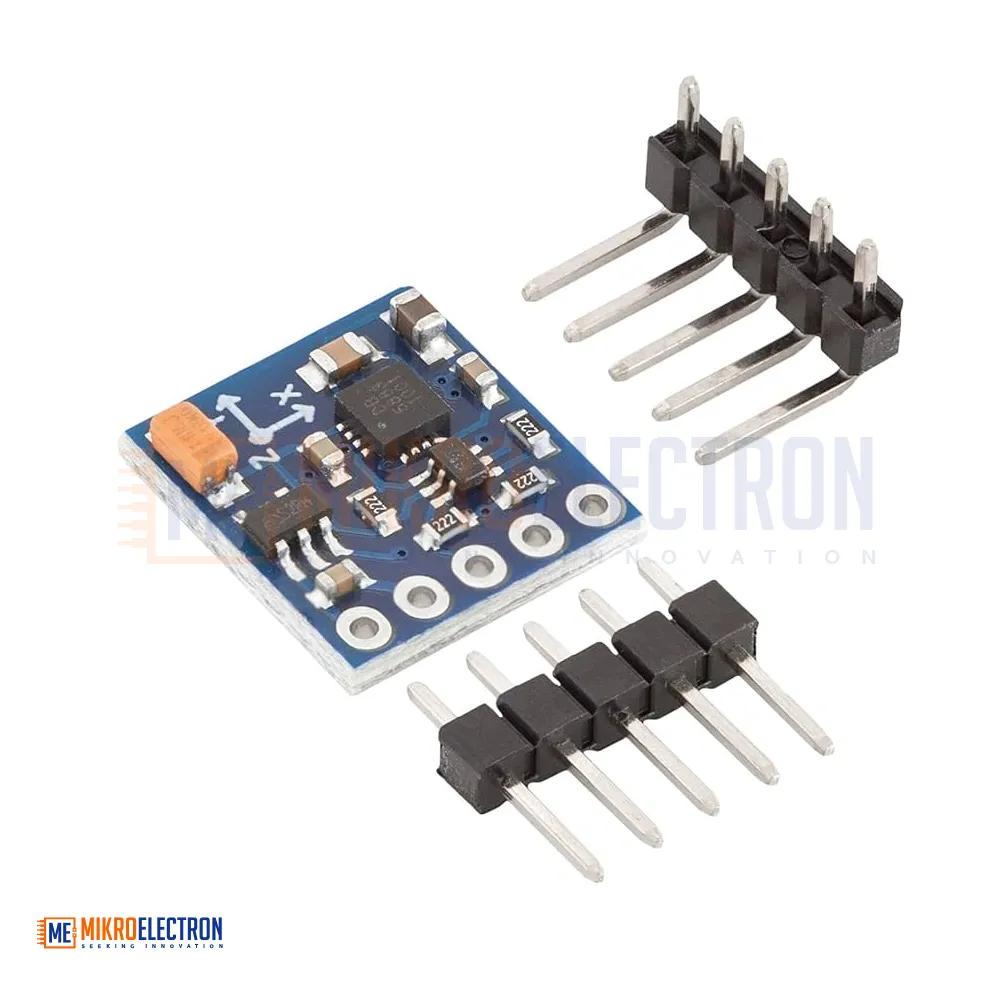

The GY-271 module features the QMC5883L, a 3-axis magnetometer sensor designed to detect the Earth’s magnetic field. It delivers accurate digital output over I2C, enabling applications such as electronic compasses, navigation systems, and orientation tracking. Unlike the original HMC5883L, this version uses a Chinese QMC5883L chip, which is a functionally similar but non-identical replacement. Users must ensure compatibility with the correct library when integrating it into their systems.

Specifications:

Sensor Chip: QMC5883L (Chinese version)

Measurement Axes: 3-axis (X, Y, Z)

Interface: I2C (Default address: 0x0D)

Voltage Range: 3.3V – 5V DC

Operating Current: ~100 µA

Magnetic Field Range: ±8 Gauss

Resolution: 12-bit output

Communication Speed: Up to 400 kHz

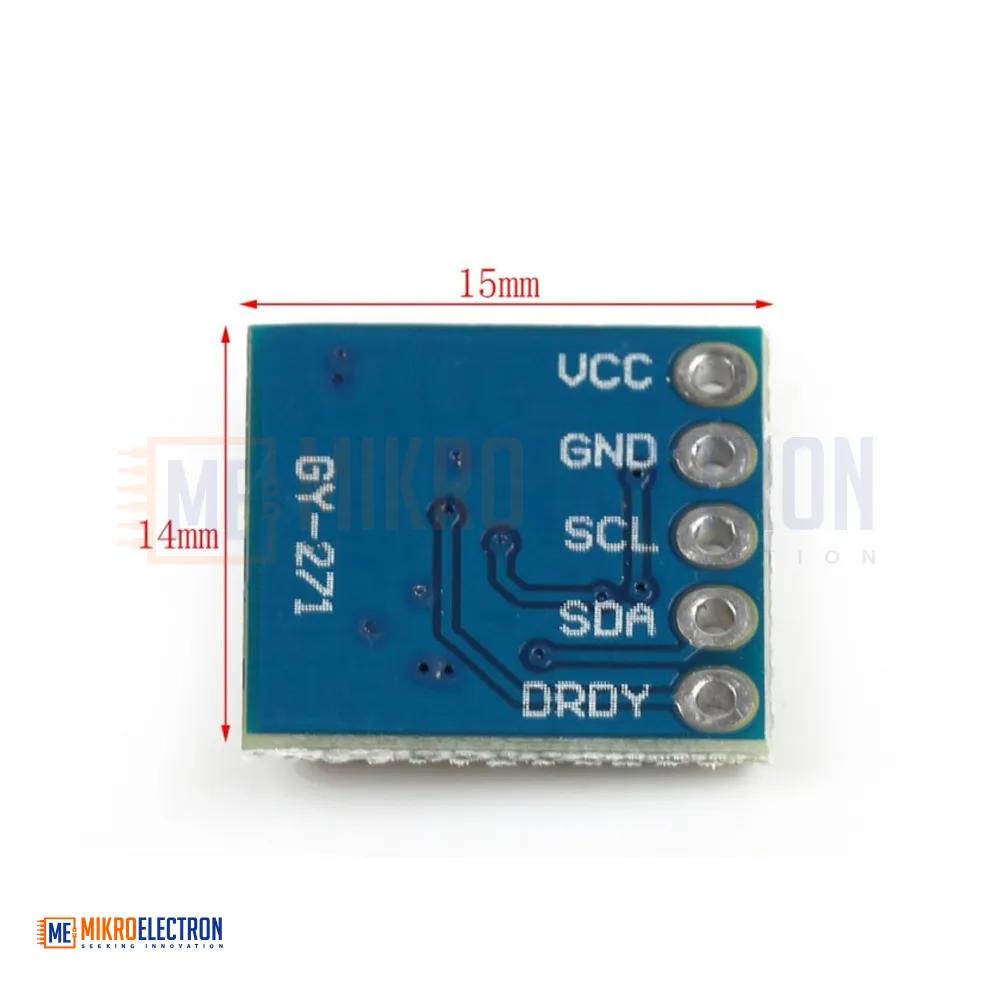

Board Dimensions: Approx. 13.5 mm × 18 mm

Mounting Holes: 4 × M2

Operating Temperature: -40°C to +85°C
