433MHz RF Remote Inter-Locking 24V 2 Channel Relay Module Wireless Remote Control Switch without Battery
This 433MHz RF remote control switch features a 24V 2-channel relay module with inter-locking mode, allowing only one channel to be active at a time. Ideal for applications requiring exclusive control, it offers stable wireless operation. Remote requires 12V battery (not included).
هذا مفتاح تحكم لاسلكي بتردد 433MHz مزوّد بوحدة ريليه ثنائية القناة تعمل بجهد 24V وتدعم وضع القفل المتبادل (Inter-locking) بحيث لا تعمل إلا قناة واحدة في كل مرة. مناسب للتطبيقات التي تحتاج إلى تحكّم حصري ومستقر. يعمل الريموت ببطارية 12V (غير مرفقة).

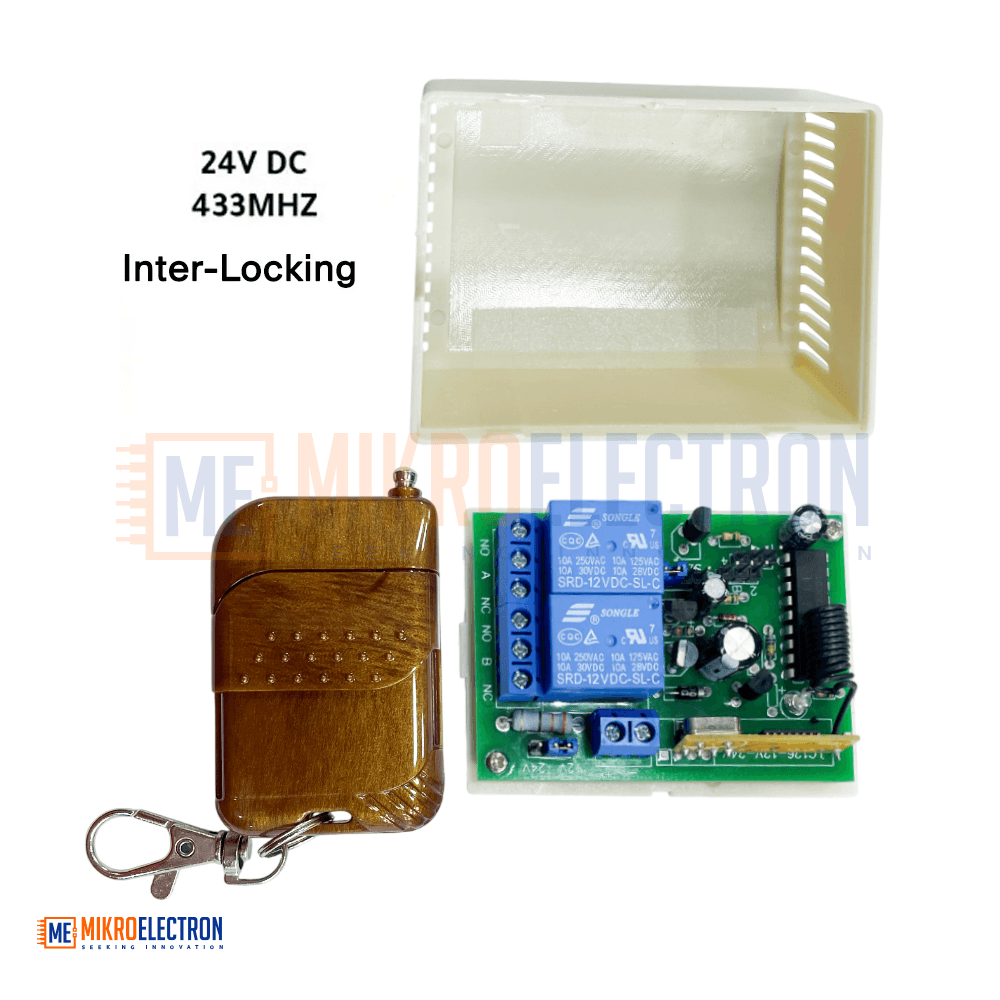

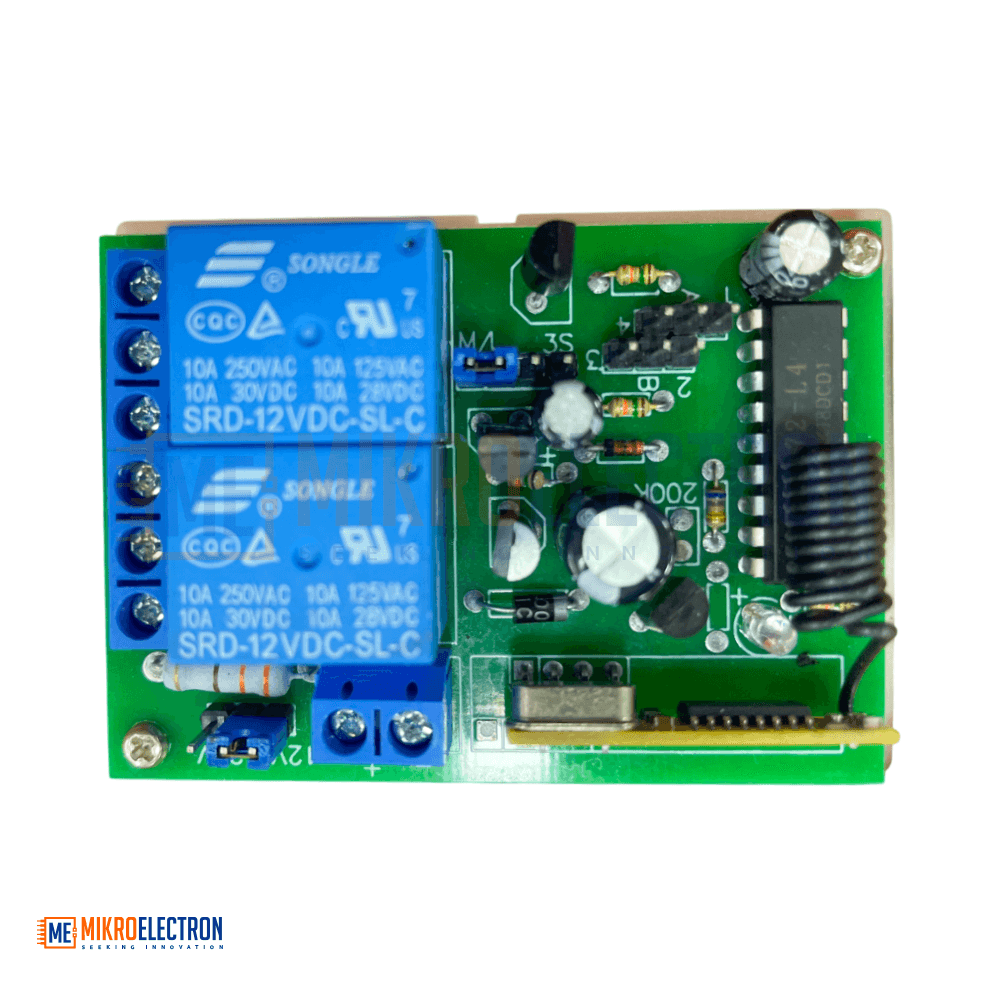

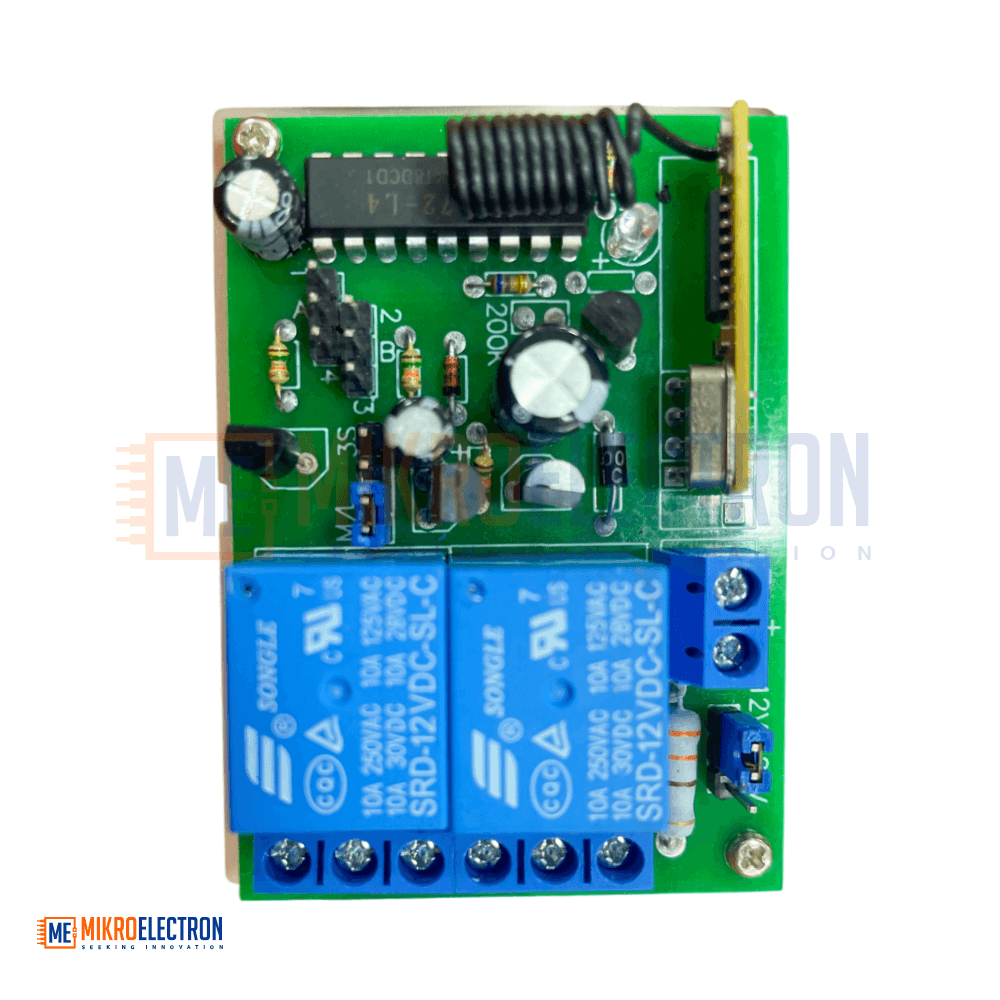

The 433MHz RF Inter-Locking Wireless Remote Control Switch includes a 2-channel relay module designed for 24V DC systems. In inter-locking mode, activating one relay automatically deactivates the other, ensuring only one output is ON at a time. This mode is ideal for motor direction control, switching systems, and safety-critical applications where simultaneous activation is undesirable.

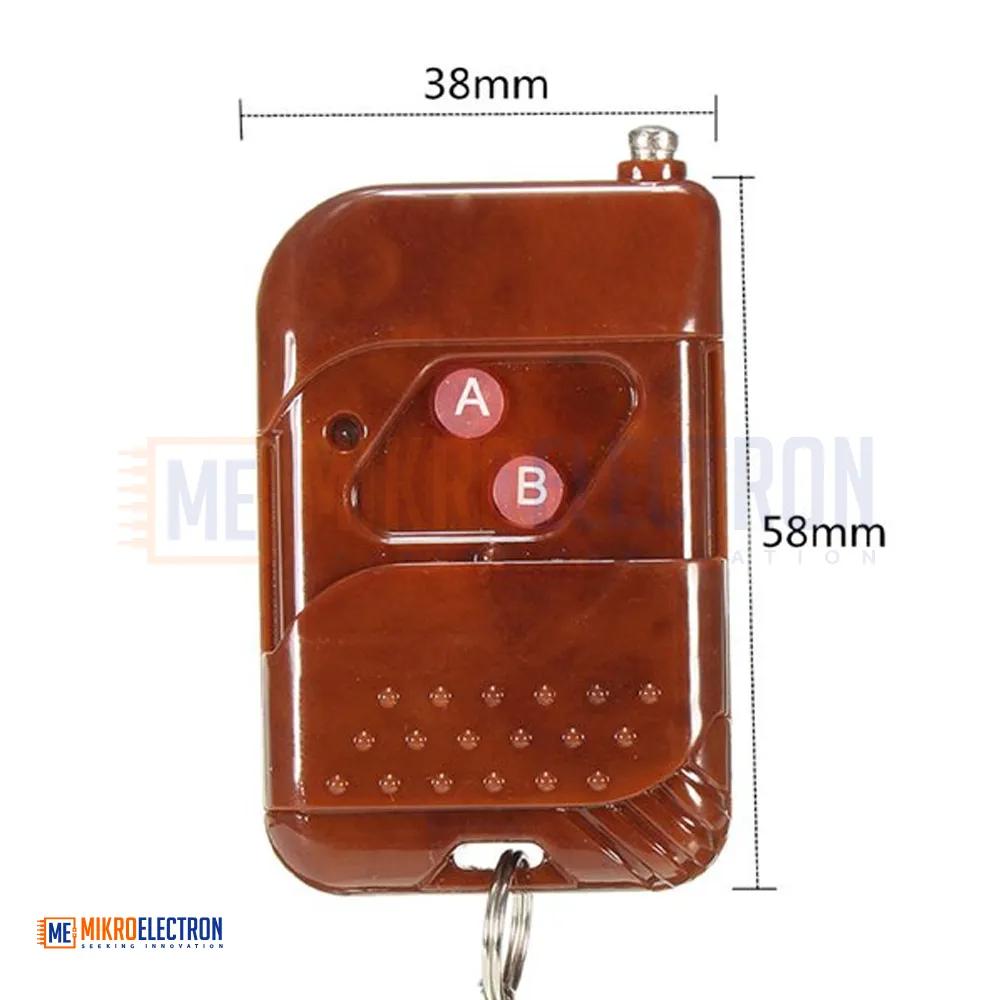

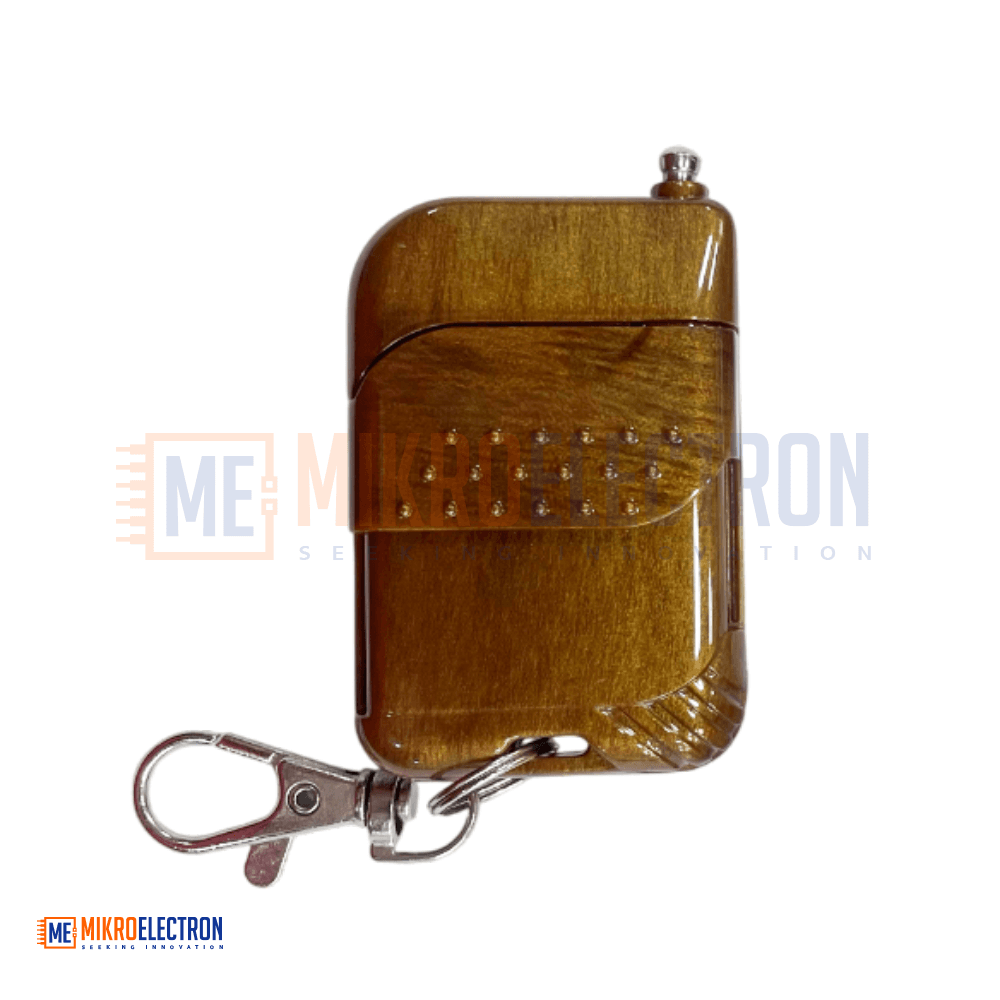

The module communicates via a 433MHz RF signal and pairs with a compact handheld remote (battery not included). It offers reliable signal transmission over long distances and easy pairing with supported remotes. Relay output is suitable for high-voltage AC or DC loads.
Specifications:
Operating Frequency: 433 MHz
Relay Channels: 2 (inter-locking control)
Operating Mode: Inter-locking (activating one relay turns the other OFF)
Input Voltage: 24V DC
Relay Contact Rating: 10A 250V AC / 10A 30V DC
Remote Battery: 12V 23A (not included)
Control Distance: Up to 50 meters (open area)
