DC Motor Gearbox Wheel and Tyre

The DC Motor Gearbox Wheel and Tyre is an integrated robotic drive solution designed for smart cars, toy vehicles, educational robotics, and DIY automation projects. The unit includes a compact DC motor, right-angle reduction gearbox, and a durable rubber-tyred wheel that provides improved traction and stable movement on different surfaces.

Operating within a voltage range of 3V to 6V DC, the motor delivers balanced speed and torque suitable for mobile robotics applications. The built-in gearbox reduces rotational speed while increasing torque, enabling smooth and controlled movement for robotic vehicles.

The lightweight plastic gearbox construction combined with a durable metal motor ensures reliable operation with reduced overall system weight. The wheel can be mounted on either side of the gearbox, and the motor supports both forward and reverse rotation for flexible robotic control.

This unit is widely compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller development systems.

Specifications

• Product Type: DC Motor Gearbox with Wheel and Tyre
• Operating Voltage: 3V – 6V DC
• Operating Current: 80 – 150mA

No Load Speed

• 3V: 125 RPM
• 5V: 200 RPM
• 6V: 230 RPM

Load Speed

• 3V: 95 RPM
• 5V: 160 RPM
• 6V: 175 RPM

Output Torque

• 3V: 0.8 kg.cm
• 5V: 1.0 kg.cm
• 6V: 1.1 kg.cm

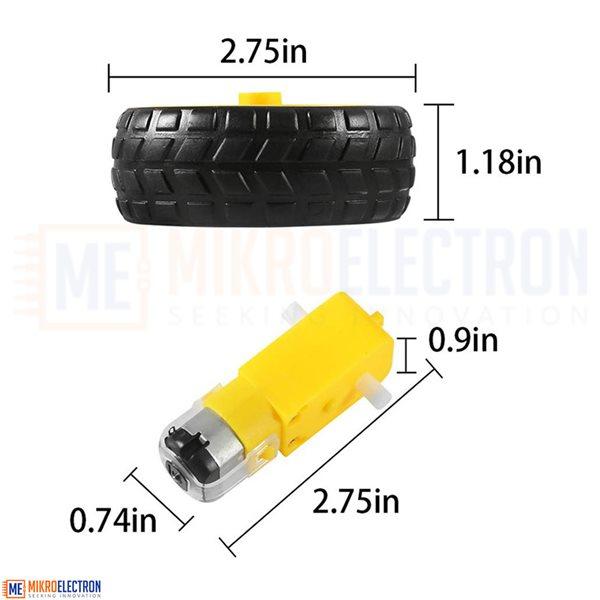

Physical Dimensions

• Wheel Diameter: 65mm (including tyre)
• Wheel Width: 25mm
• Gearbox/Motor Size: 20 × 22 × 65mm
• Weight: 50g

Applications

• Robot smart cars
• Arduino robotics projects
• Educational STEM kits
• DIY robotic vehicles
• Line-following robots
• Obstacle avoidance systems
• Automation projects
• Toy vehicle construction
