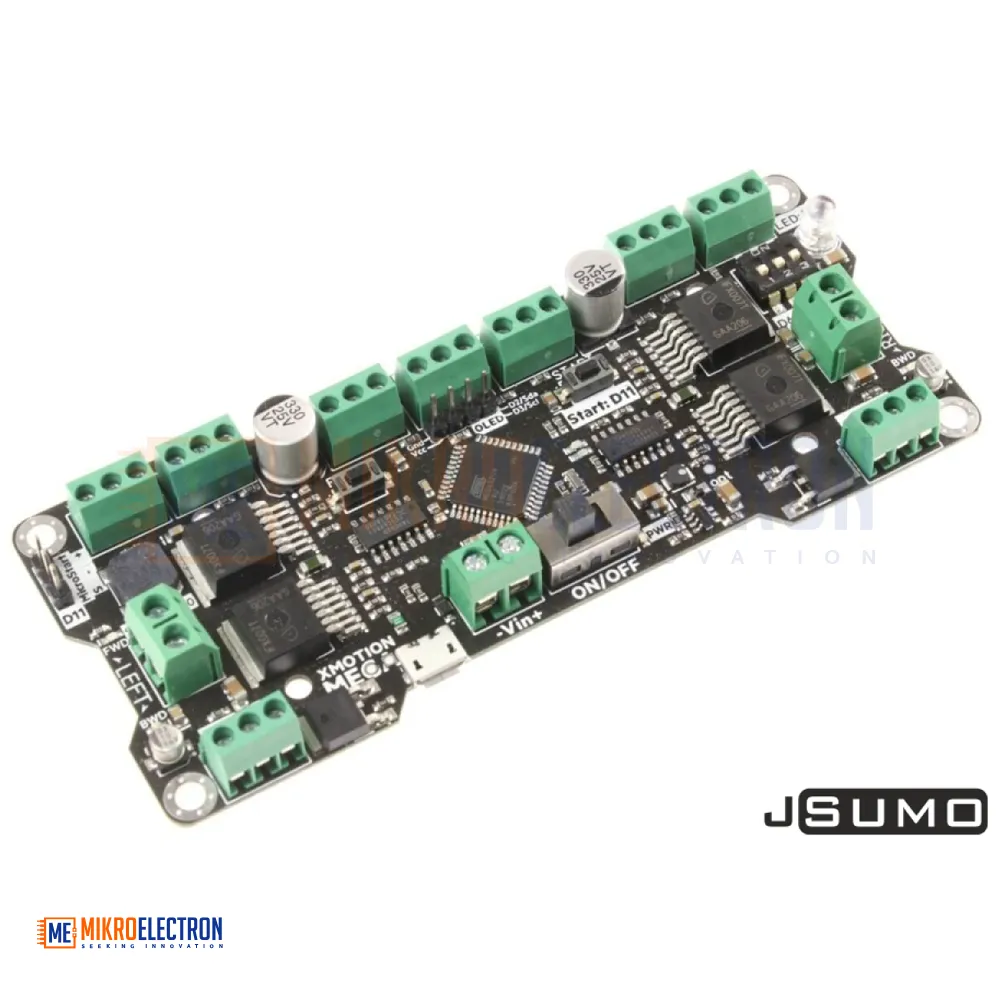

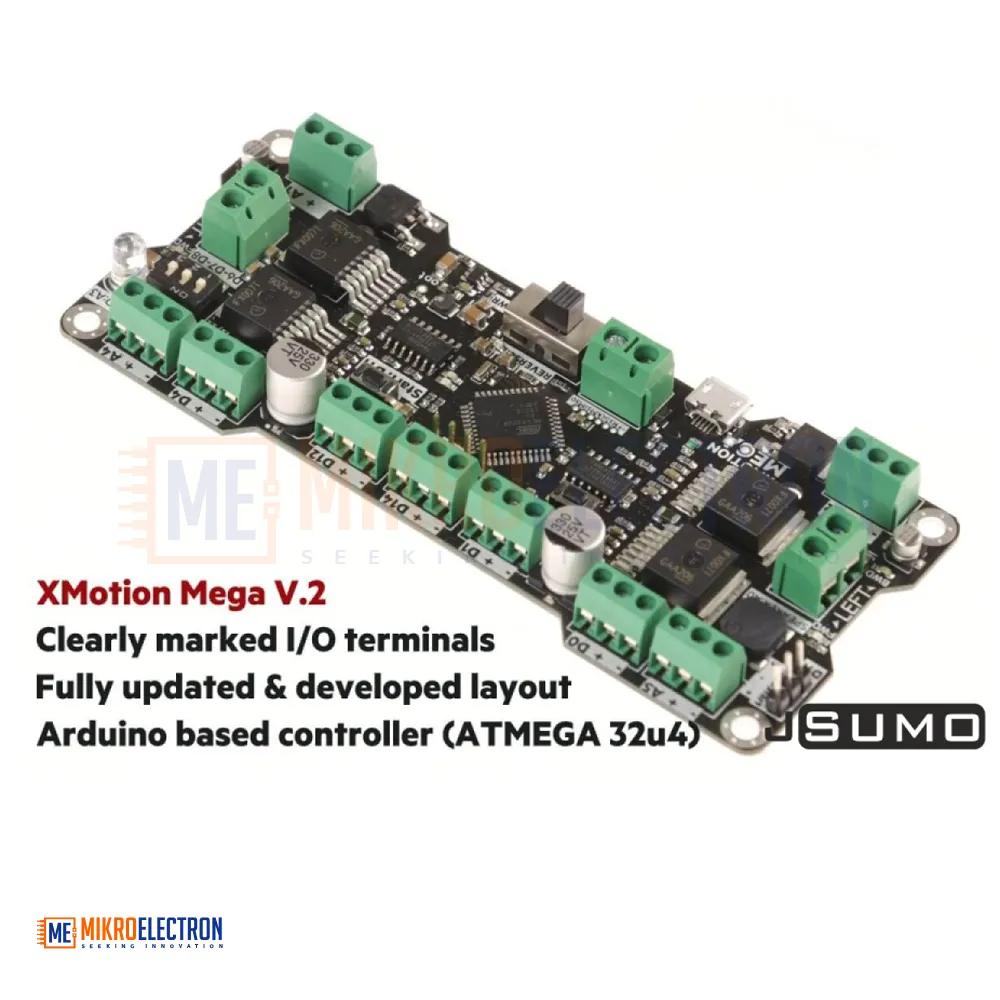

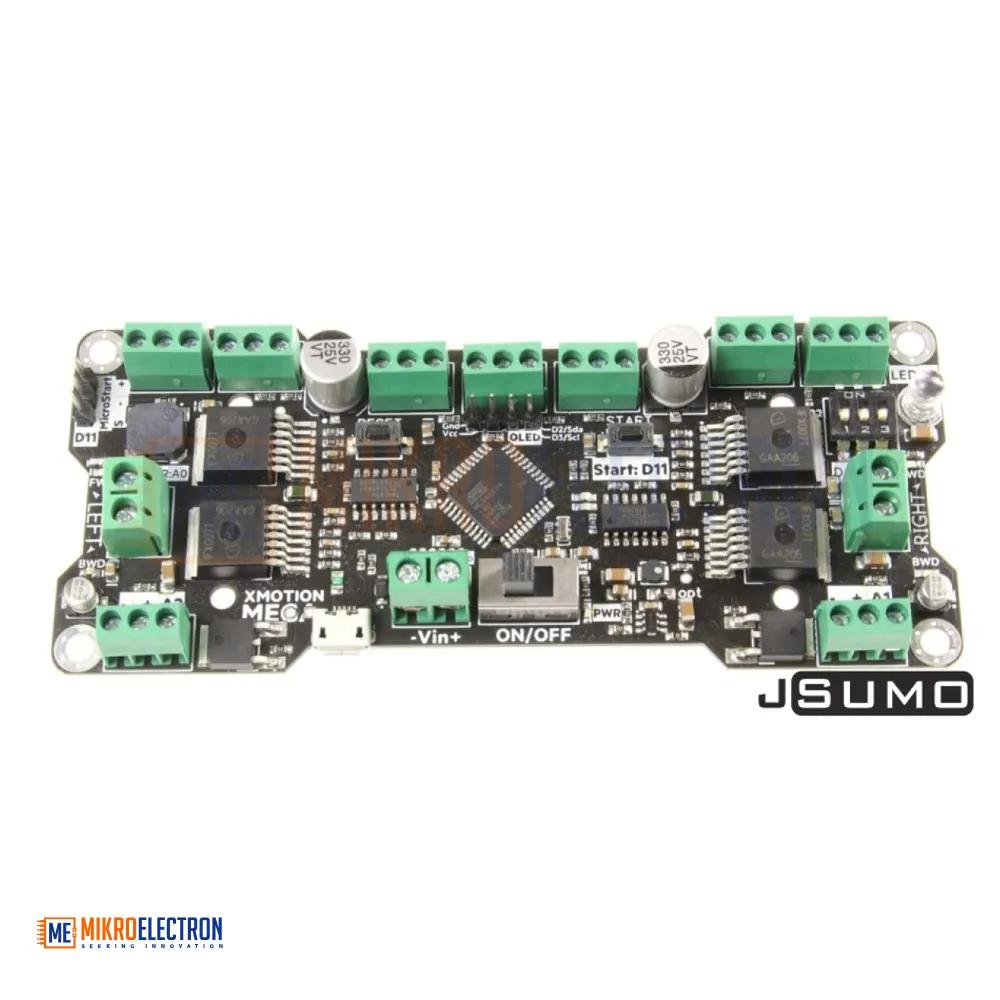

XMotion Mega V2 ( 30A x 2, All In One Controller - BLACK)

The XMotion Mega V2 is a high-performance, all-in-one robotics controller that integrates multiple essential components onto a single board. With dual high-current motor drivers (30A each), an onboard Arduino Mega 2560 core, and comprehensive I/O support, this controller significantly simplifies wiring and reduces setup time.

Built for demanding applications, it supports various sensors, servos, and wireless modules, making it ideal for robotics, mobile platforms, and automated systems. Its compact black PCB design includes screw terminals, expansion headers, and protective features for reliable operation under heavy loads.

Specifications:

Model: XMotion Mega V2

Microcontroller: ATmega2560 (Arduino Mega 2560 compatible)

Motor Driver Channels: 2

Continuous Motor Current: 30A per channel

Peak Motor Current: Up to 60A (short duration)

Motor Voltage Range: 6V – 35V DC

Logic Voltage: 5V

Dimensions: Approx. 105 mm x 90 mm

PCB Color: Black

Connectivity:

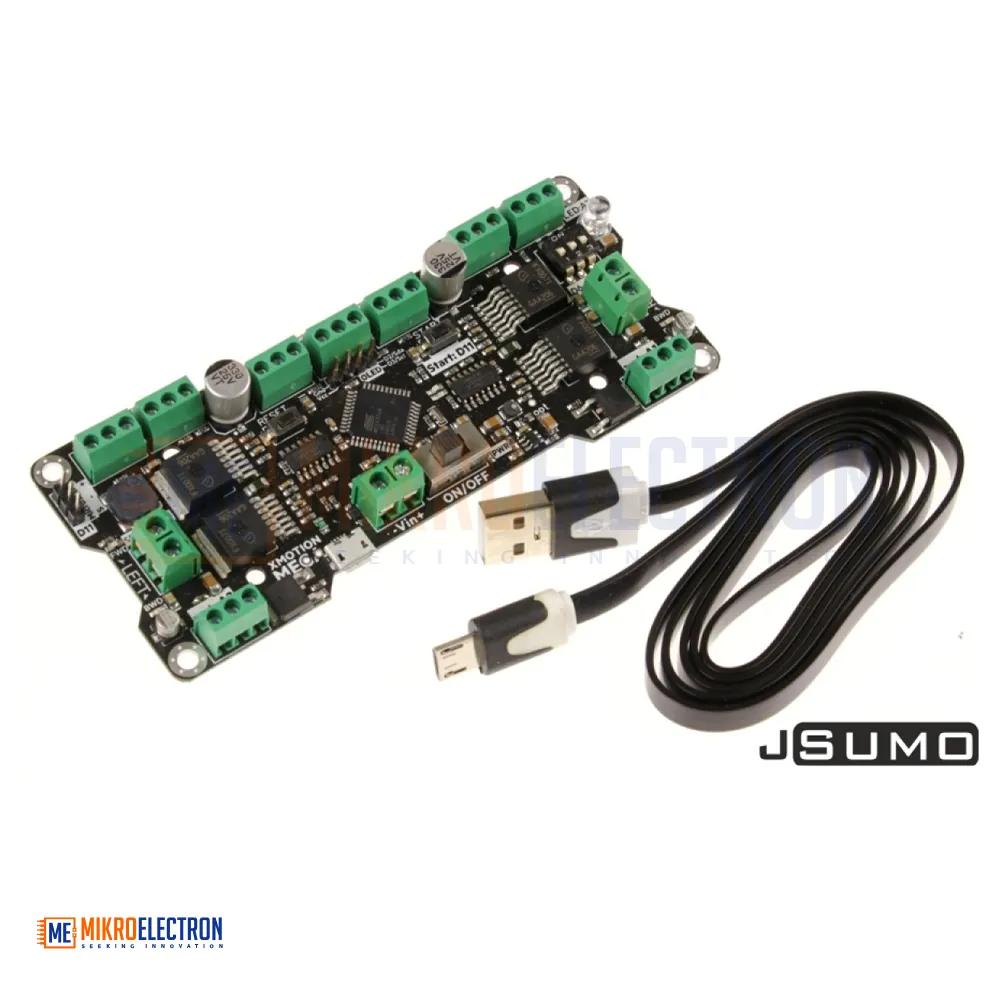

USB (for programming and serial communication)

XBee/WiFi/BT module socket

I2C, SPI, UART support

Sensor Support: Analog, digital, ultrasonic, encoder, IR, and more

Servo Ports: Yes, with dedicated power rail

Protection: Overheat and short circuit protection

Mounting Holes: Standard spacing for enclosures or frames

Compatible Software: Arduino IDE

Applications:

Mobile robots and robotic platforms

Automated guided vehicles (AGVs)

Differential drive systems

Arduino-based smart projects

Heavy-duty robotic arms or traction systems

STEM education and rapid prototyping

DIY CNC or RC platforms
