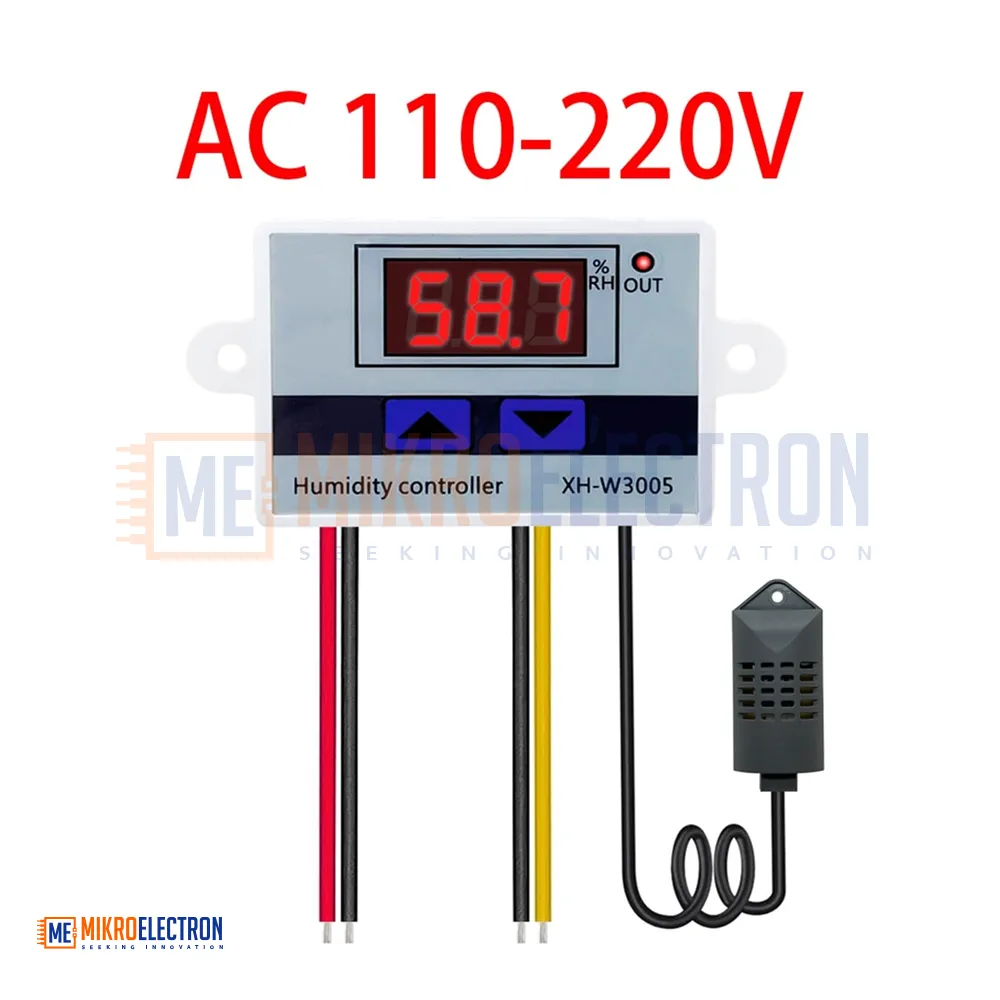

AC 110-220V 1500W Humidity Controller Hygrometer Control Switch XH-W3005
The XH-W3005 humidity controller regulates humidity with a 110–220 V AC power supply and 1500 W load capacity. Ideal for dehumidifiers, humidifiers, and environmental control, it offers digital display, sensor probe, and adjustable setpoints for automatic operation.

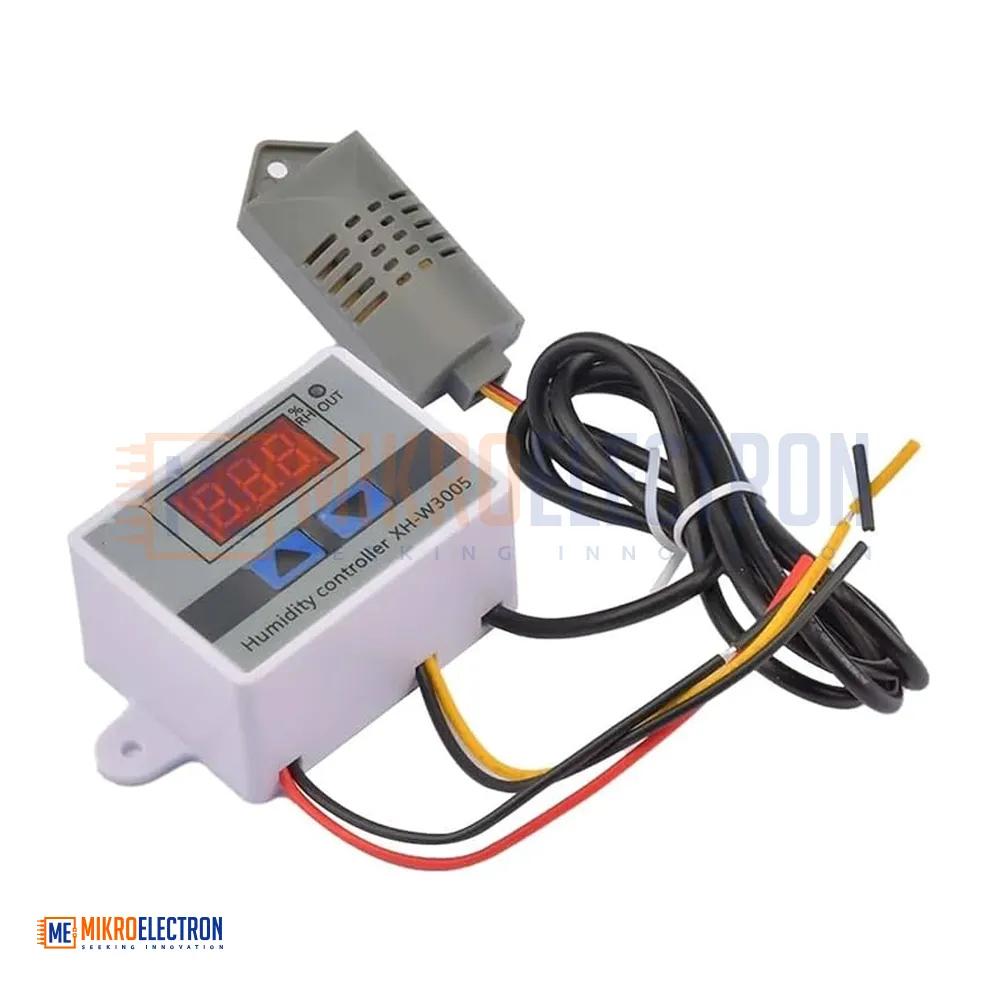

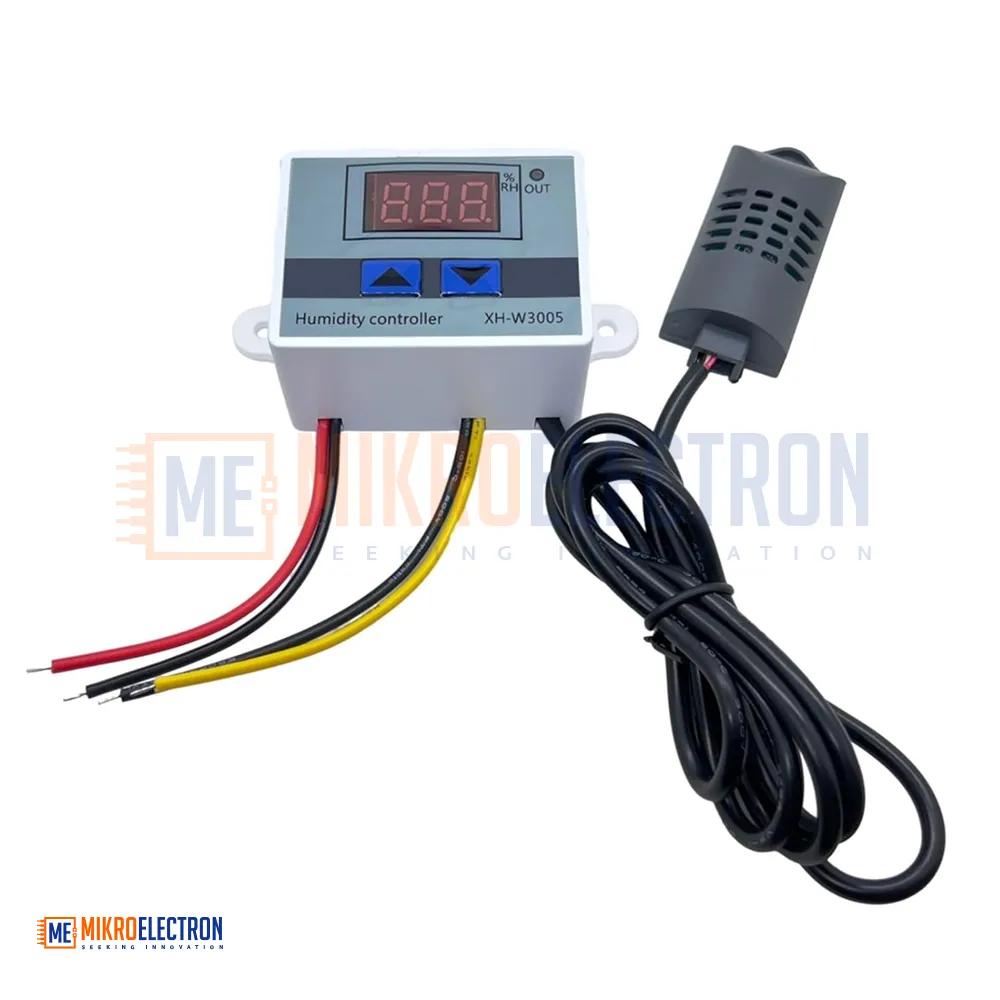

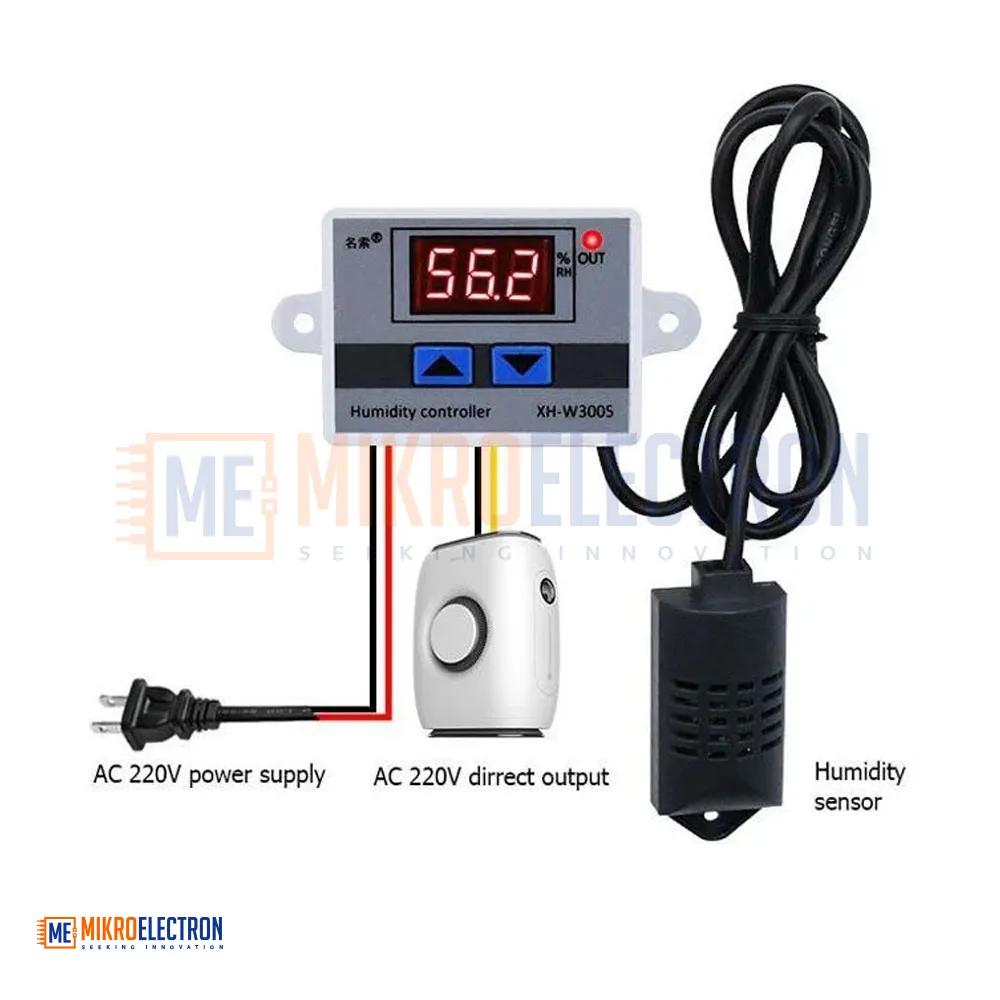

The XH-W3005 is a digital humidity controller designed to monitor and regulate humidity in enclosed spaces. Powered by AC 110–220 V, it supports loads up to 1500 W, making it compatible with most humidifiers or dehumidifiers. It features a digital display, external sensor probe, and adjustable setpoint and hysteresis. Once humidity reaches the set range, the controller automatically switches the connected device ON or OFF to maintain stable humidity levels.
Specifications:
Model: XH-W3005
Power supply: AC 110–220 V
Load capacity: ≤1500 W (resistive load)
Humidity measurement range: 0–100 %RH
Control accuracy: ±1 %RH
Display: Digital LED display (humidity and setpoint)
Sensor: External humidity sensor probe
Control mode: Humidification or dehumidification (configurable)
Adjustable hysteresis: User programmable
Output type: Relay output
