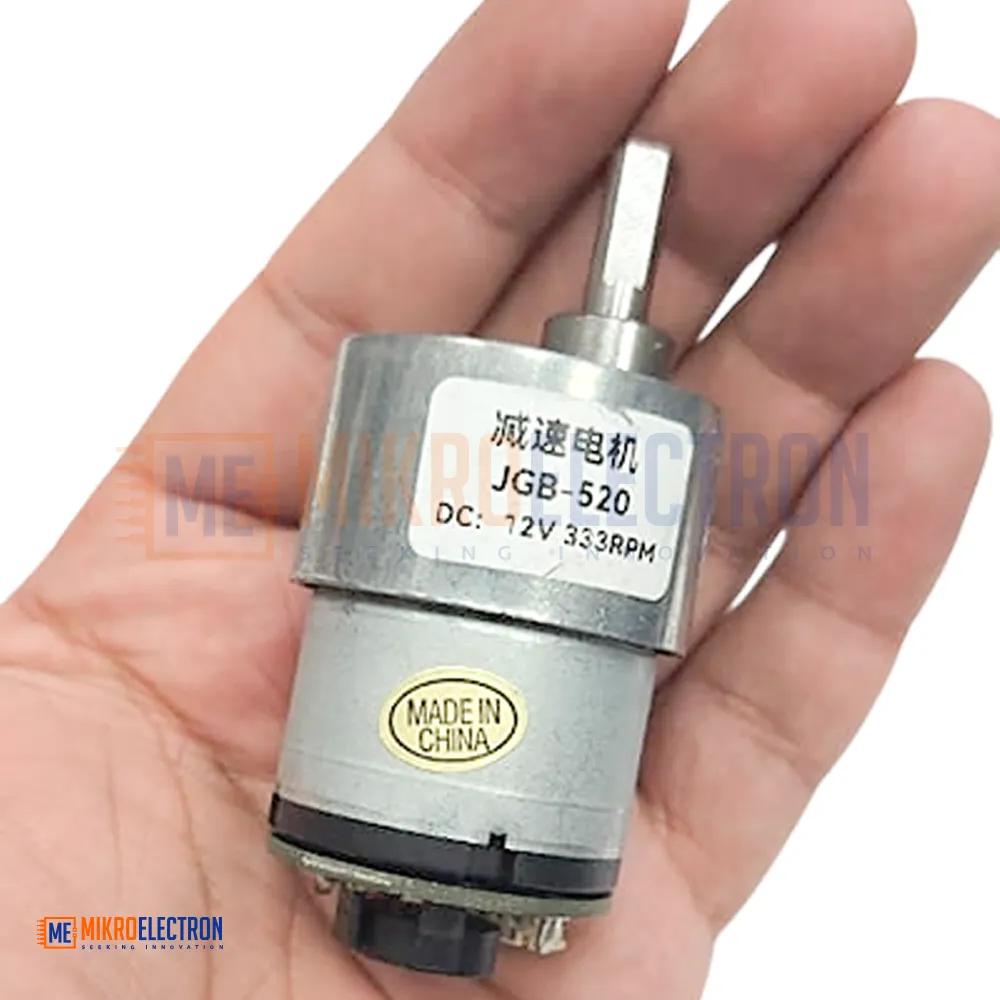

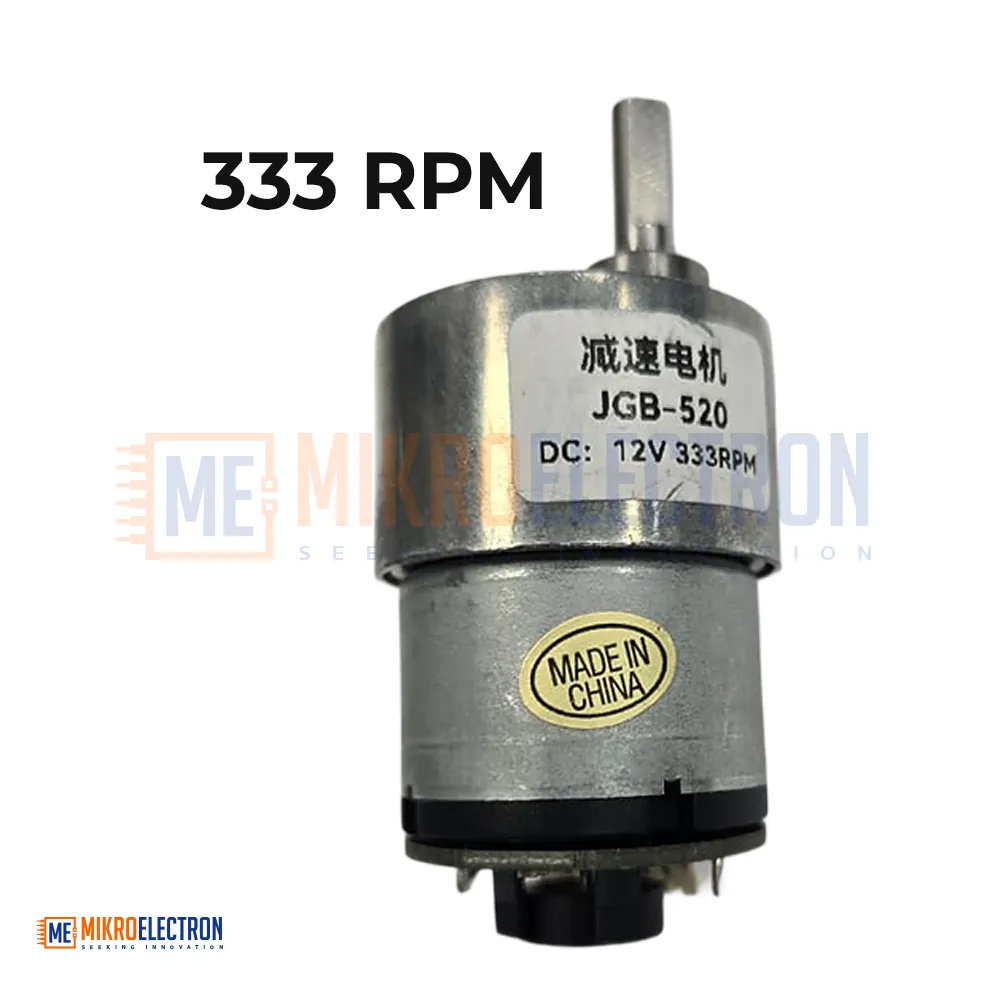

JGB37-520 12V 333RPM DC Gear Motor With Encoder

The JGB37-520 DC gear motor with encoder is a reliable choice for robotics and automation projects. Operating at 12V with 333RPM output speed, it provides strong torque through its durable metal gear reduction system. The built-in encoder allows accurate speed and position monitoring, enabling closed-loop control in advanced applications. Compact and versatile, this motor is ideal for DIY electronics, mobile robots, and industrial prototyping.

Specifications:

Model: JGB37-520

Operating Voltage: 12V DC

Rated Speed: 333 RPM

Motor Type: Brushed DC motor with metal gearbox

Gear Ratio: 1:30 (approx., varies by version)

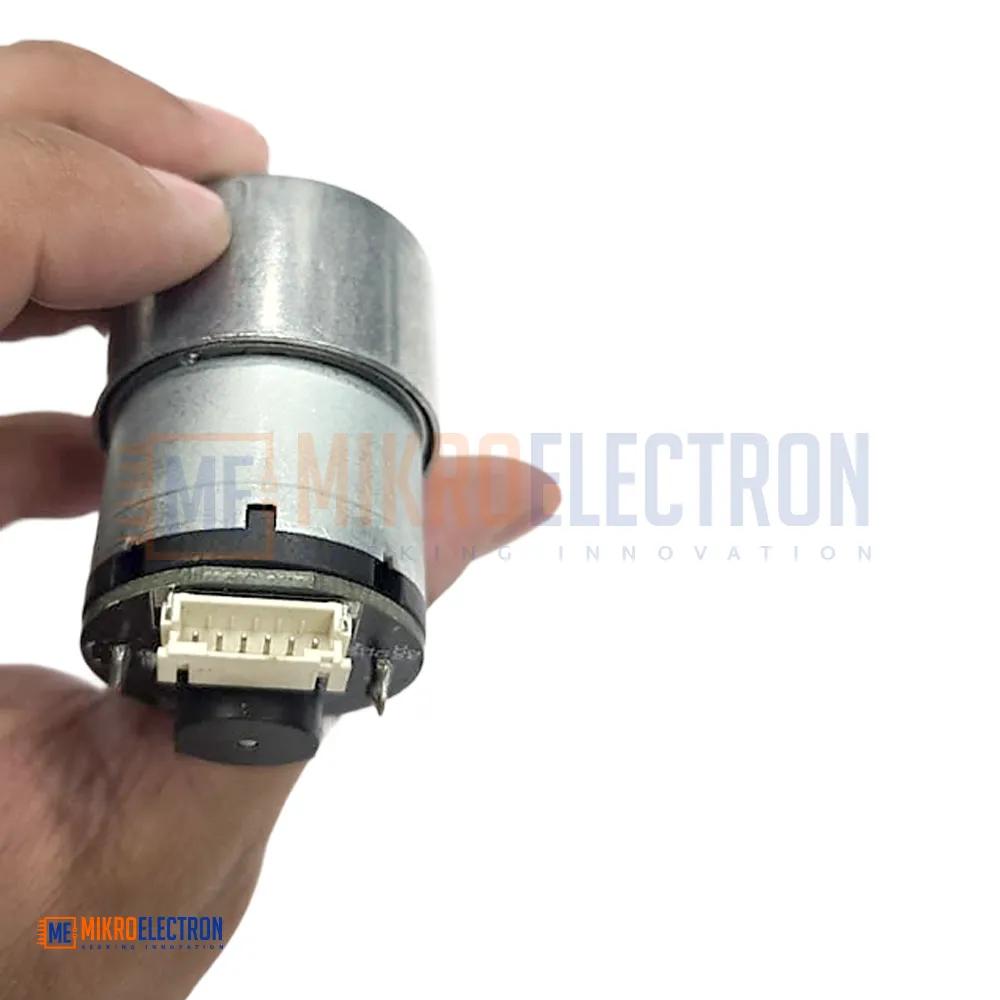

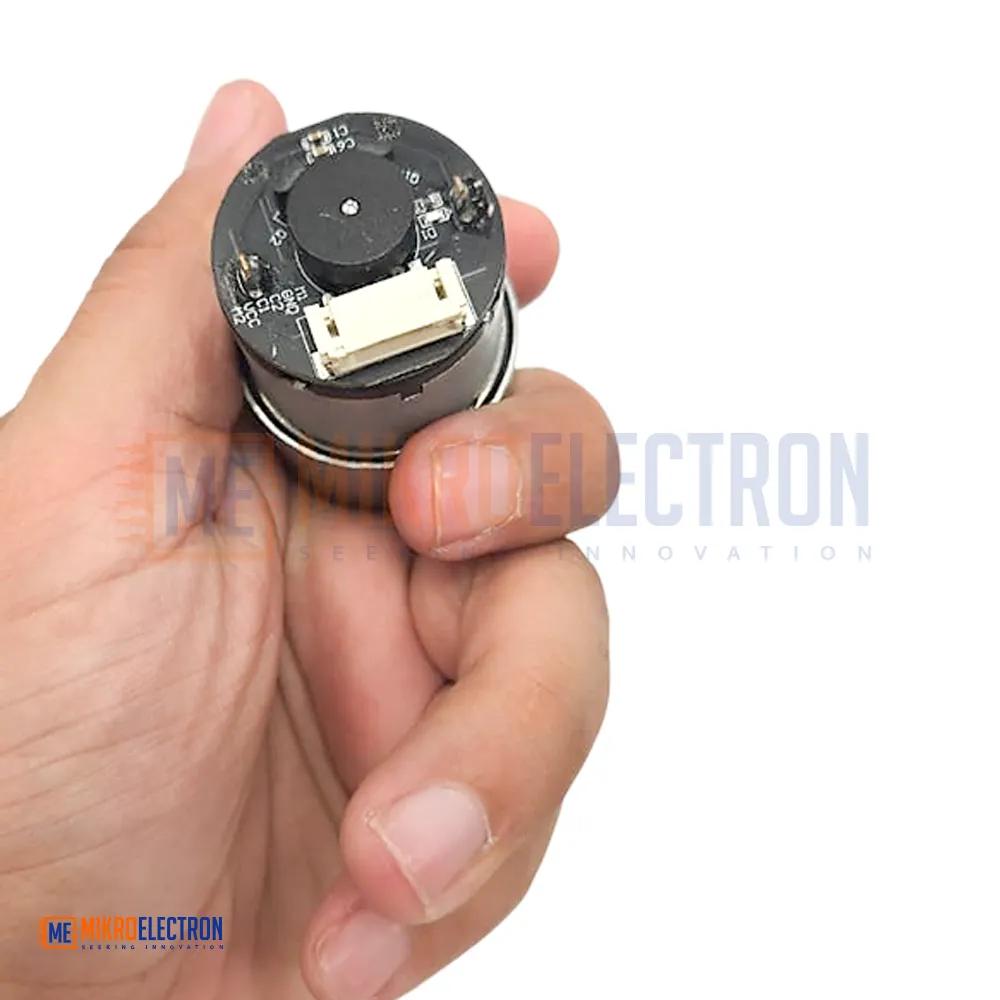

Encoder: Dual channel, provides speed/position feedback

Shaft Diameter: 6mm (D-shape)

Shaft Length: ~15–20mm

Motor Diameter: 37mm

Motor Length: ~50–60mm (excluding shaft)

Torque: High torque output (depends on load)

Direction: Forward/Reverse supported

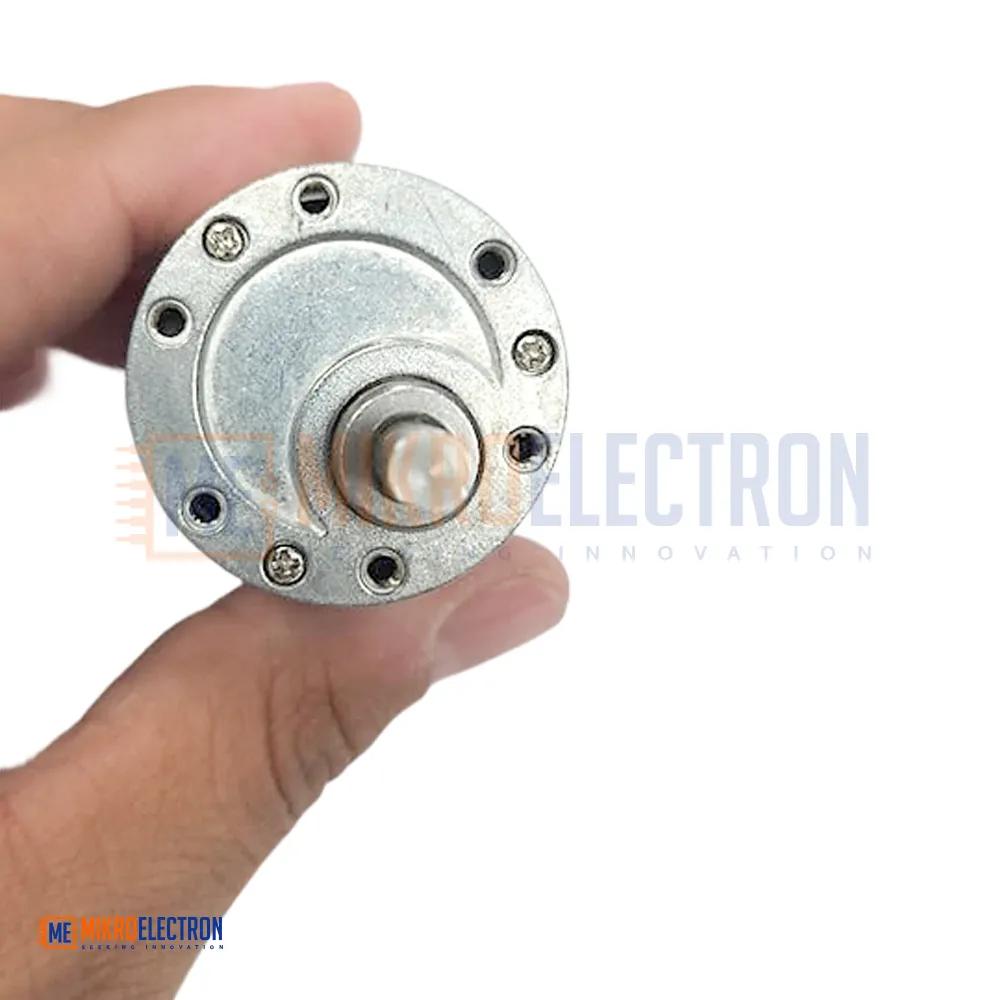

Mounting: Standard M3 threaded holes
