9 Axis IMU L3GD20 Module Compass Acceleration Gyroscope for Arduino
The 9-axis IMU L3GD20 module integrates a gyroscope, accelerometer, and compass for Arduino. It provides precise motion sensing and orientation detection, ideal for robotics, drones, navigation, and IoT projects requiring multi-axis measurement and real-time data acquisition.
وحدة IMU ذات 9 محاور L3GD20 تدمج جيروسكوب، مقياس تسارع، وبوصلة لألواح Arduino. توفر استشعار حركة دقيق واكتشاف الاتجاه، مما يجعلها مثالية للروبوتات، الطائرات بدون طيار، الملاحة، ومشاريع IoT التي تتطلب قياس متعدد المحاور وجمع بيانات في الوقت الحقيقي.

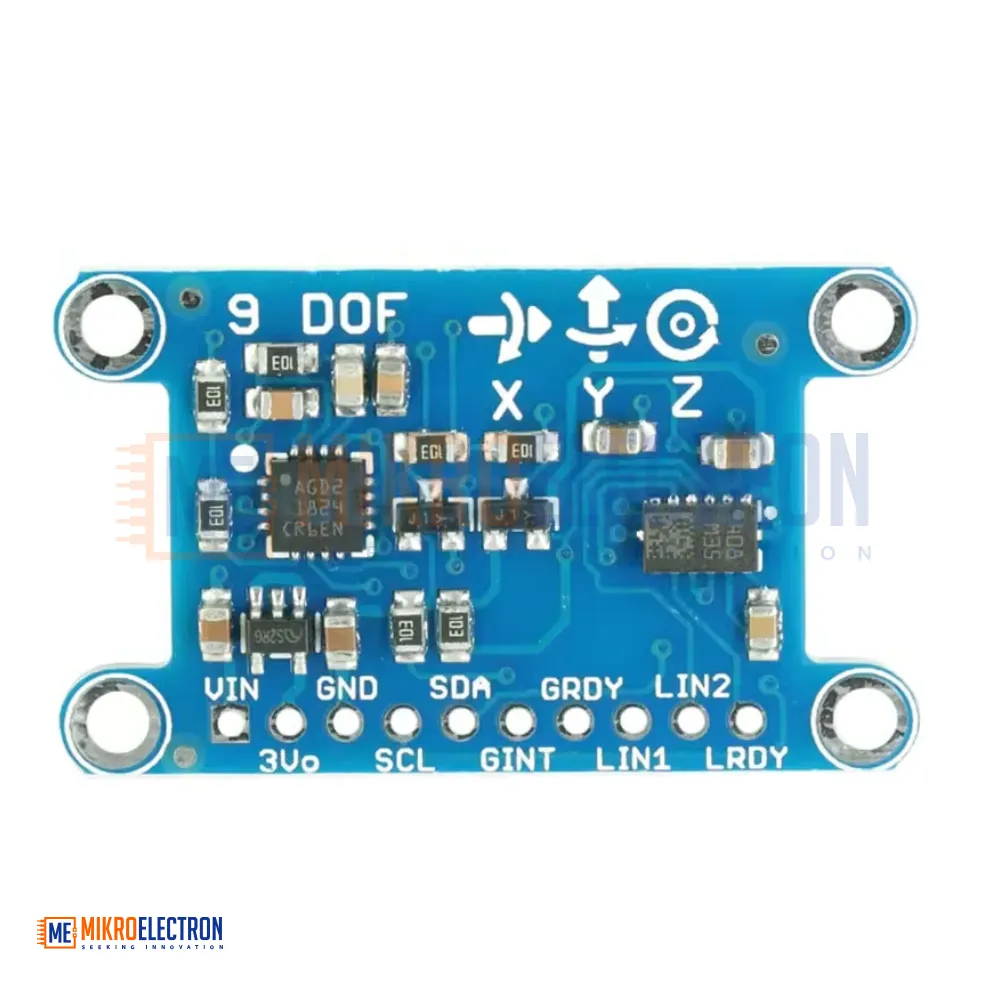

The 9-Axis IMU L3GD20 Module combines three essential sensors—gyroscope, accelerometer, and magnetometer—into a single compact board. Compatible with Arduino and other microcontrollers, it delivers real-time data on angular velocity, acceleration, and magnetic field orientation. The module supports I²C/SPI interfaces, making it easy to integrate into robotics, drones, wearable devices, and navigation systems.
Specifications:
Model: L3GD20 9-Axis IMU Module
Sensors: Gyroscope, Accelerometer, Compass (Magnetometer)
Degrees of Freedom: 9-axis motion sensing
Interface: I²C and SPI compatible
Supply Voltage: 3.3V–5V DC
Output Data: Angular velocity, acceleration, magnetic field readings
Applications: Robotics, drones, IoT devices, navigation, orientation detection
