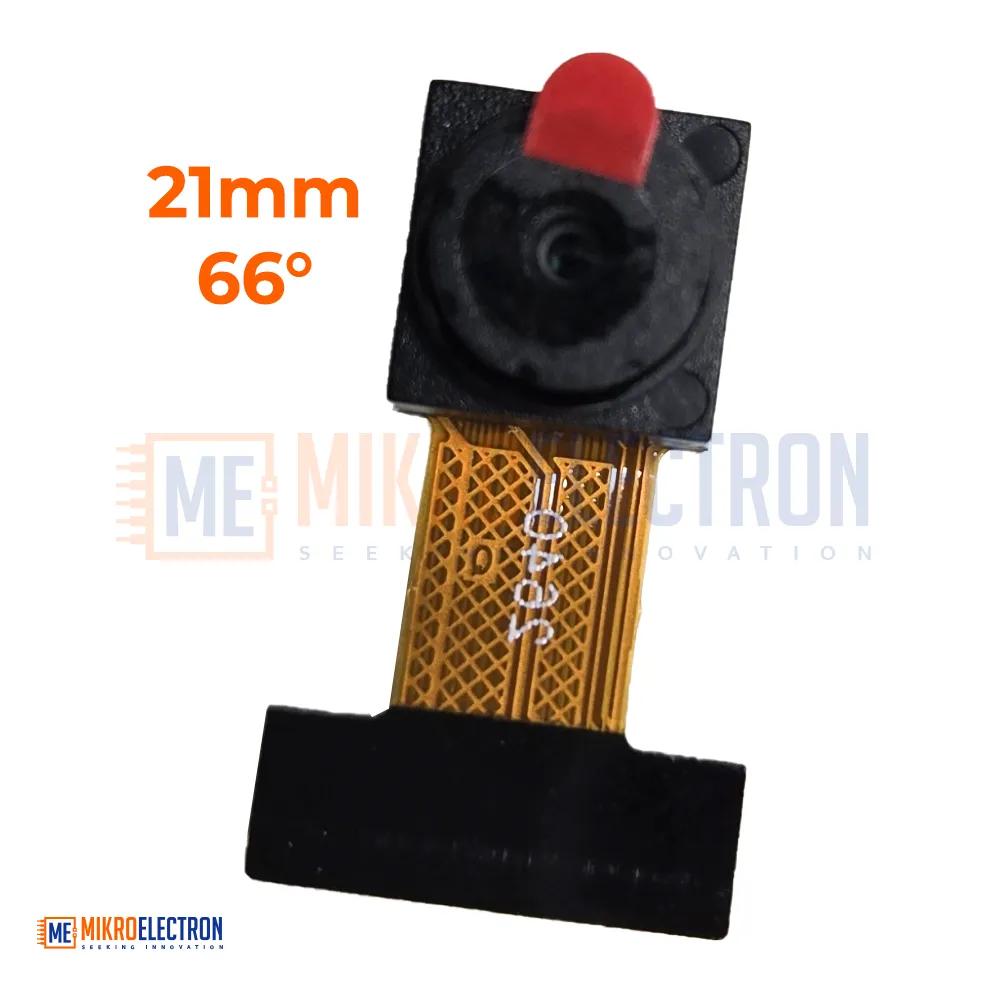

OV2640 Camera Module ESP32-CAM 2MP 21MM Lens 66° Wide Angle DVP 24PIN
Out Of Stock
The OV2640 ESP32-CAM module features a 2MP camera with a 21mm lens and 66° wide-angle view. Compact and versatile, it’s ideal for IoT, image processing, and wireless video streaming applications.
وحدة OV2640 ESP32-CAM مزودة بكاميرا بدقة 2MP وعدسة 21 مم بزاوية رؤية واسعة 66°. صغيرة ومتعددة الاستخدامات، مثالية لتطبيقات IoT، معالجة الصور، وبث الفيديو اللاسلكي.
The OV2640 ESP32-CAM Camera Module integrates a 2MP OV2640 image sensor with a 21mm lens, offering a wide 66° field of view. Designed with a DVP 24PIN interface, it ensures reliable connectivity with ESP32-CAM boards and embedded systems. Its compact size and clear imaging performance make it suitable for IoT, smart surveillance, facial recognition, and wireless streaming projects.
Specifications:
Model: OV2640 ESP32-CAM Module
Image Sensor: OV2640, 2MP
Resolution: Up to 1600x1200 (UXGA)
Lens Size: 21mm
Field of View (FOV): 66° wide angle

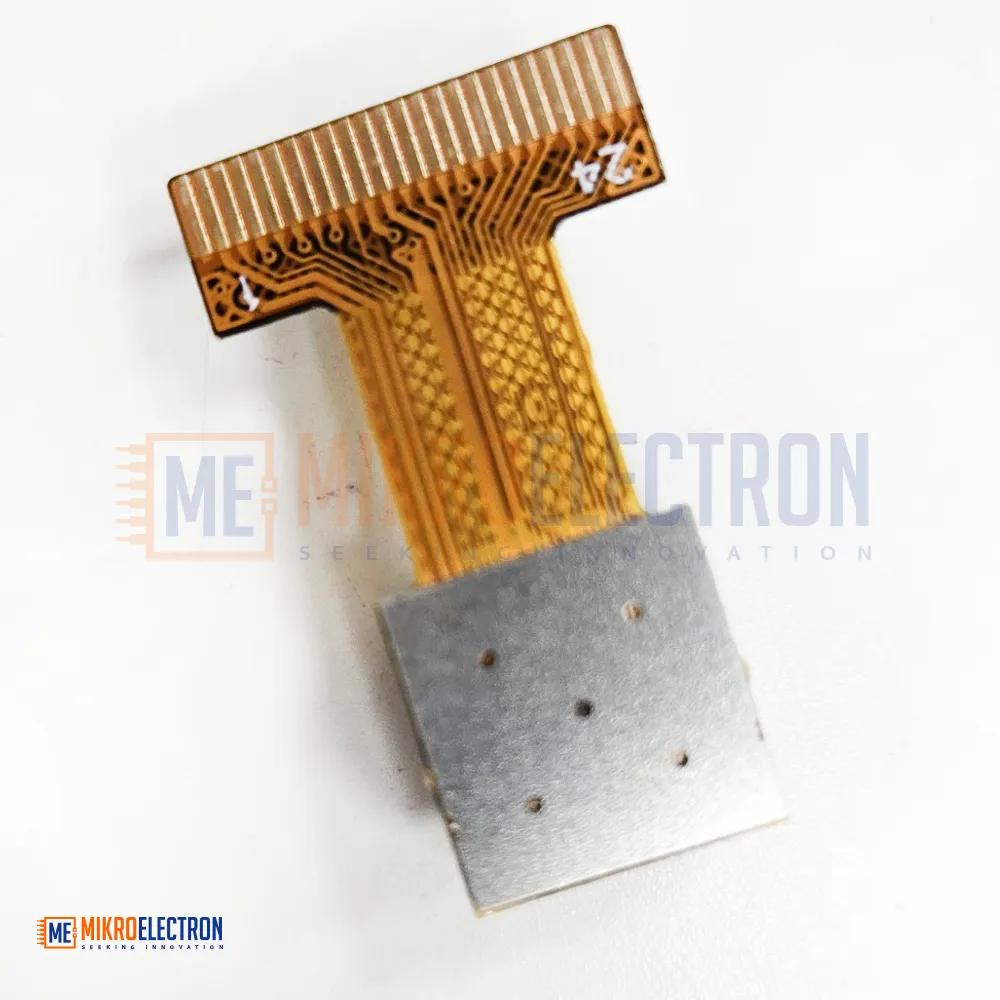

Interface: DVP 24PIN
Pixel Size: 2.2µm x 2.2µm
Operating Voltage: 3.3V (typical with ESP32-CAM boards)
Applications: IoT, security cameras, smart devices, image processing
