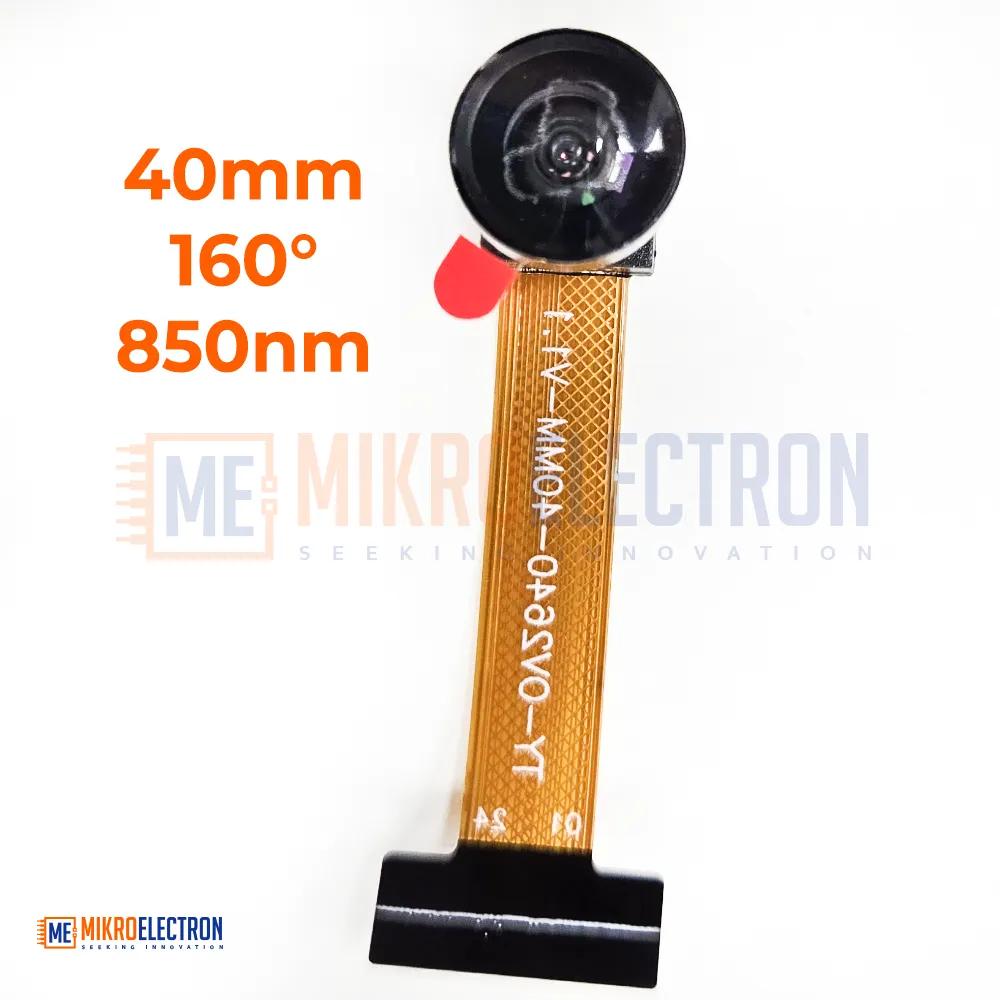

OV2640 Camera Module ESP32-CAM 2MP 40MM Lens 160° 850nm Night Vision DVP 24PIN
The OV2640 ESP32-CAM module features a 2MP camera with a 40mm lens, 160° ultra-wide-angle view, and 850nm night vision capability. Compact and versatile, it’s ideal for IoT, low-light surveillance, and embedded image-processing projects.
وحدة OV2640 ESP32-CAM مزودة بكاميرا بدقة 2MP وعدسة 40 مم بزاوية رؤية واسعة جدًا 160° وقدرة رؤية ليلية 850 نانومتر. صغيرة ومتعددة الاستخدامات، مثالية لتطبيقات IoT، المراقبة في الإضاءة المنخفضة، ومشاريع معالجة الصور المدمجة.
The OV2640 ESP32-CAM Camera Module integrates a 2MP OV2640 image sensor with a 40mm lens providing a 160° wide field of view. With 850nm infrared night vision, it delivers clear images in dark environments. The DVP 24PIN interface allows easy connection to ESP32-CAM boards and microcontroller-based systems. Suitable for IoT cameras, security systems, facial recognition, and night-time monitoring applications.
Specifications:
Model: OV2640 ESP32-CAM Module
Image Sensor: OV2640, 2MP
Lens Size: 40mm
Field of View (FOV): 160° ultra-wide angle
Night Vision: 850nm infrared
Interface: DVP 24PIN
Resolution: Up to 1600x1200 (UXGA)
Operating Voltage: 3.3V typical (with ESP32-CAM boards)
Applications: Night-time surveillance, IoT cameras, wireless streaming, facial recognition
