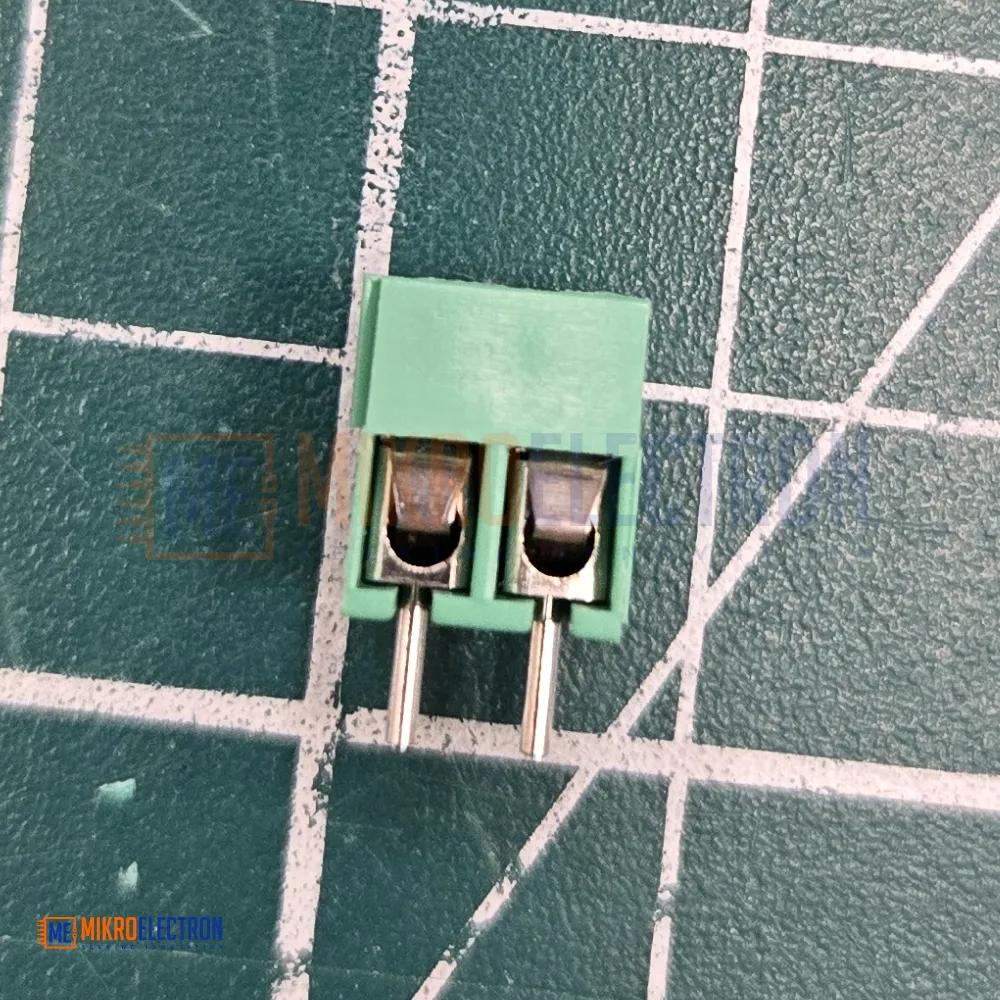

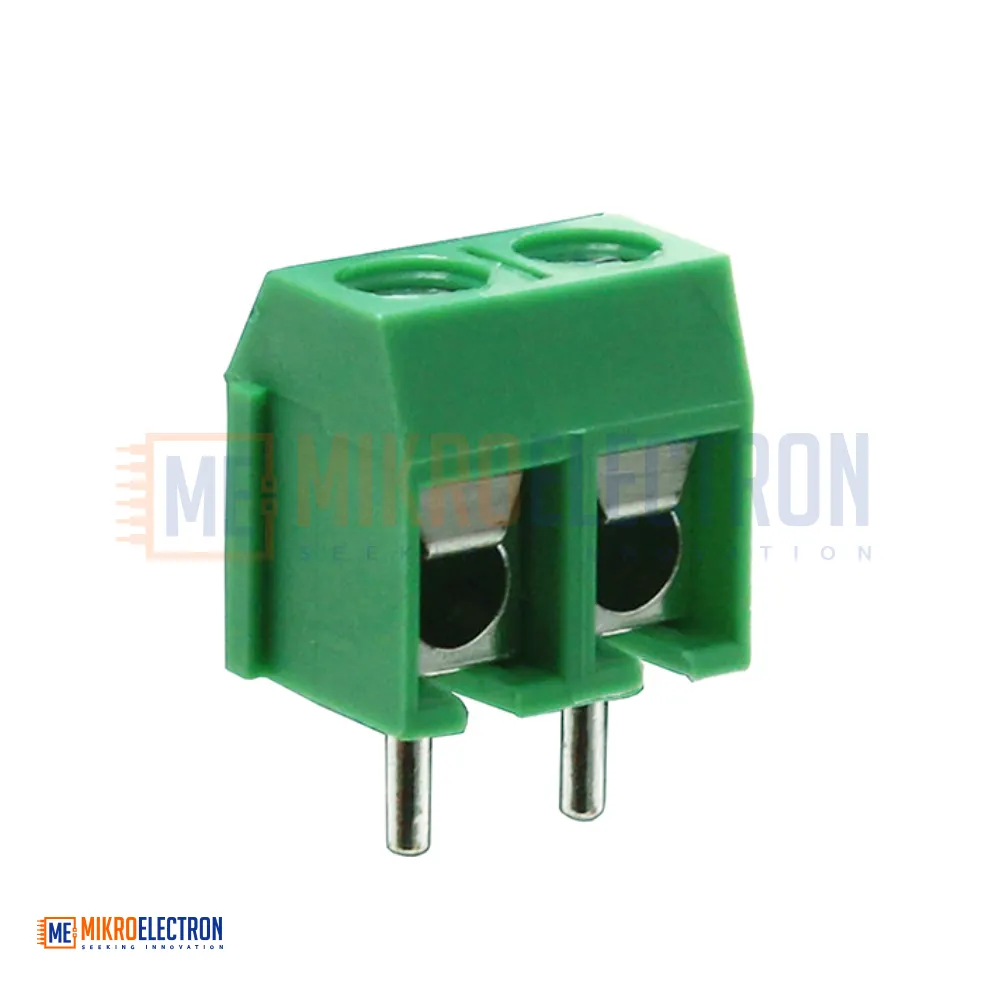

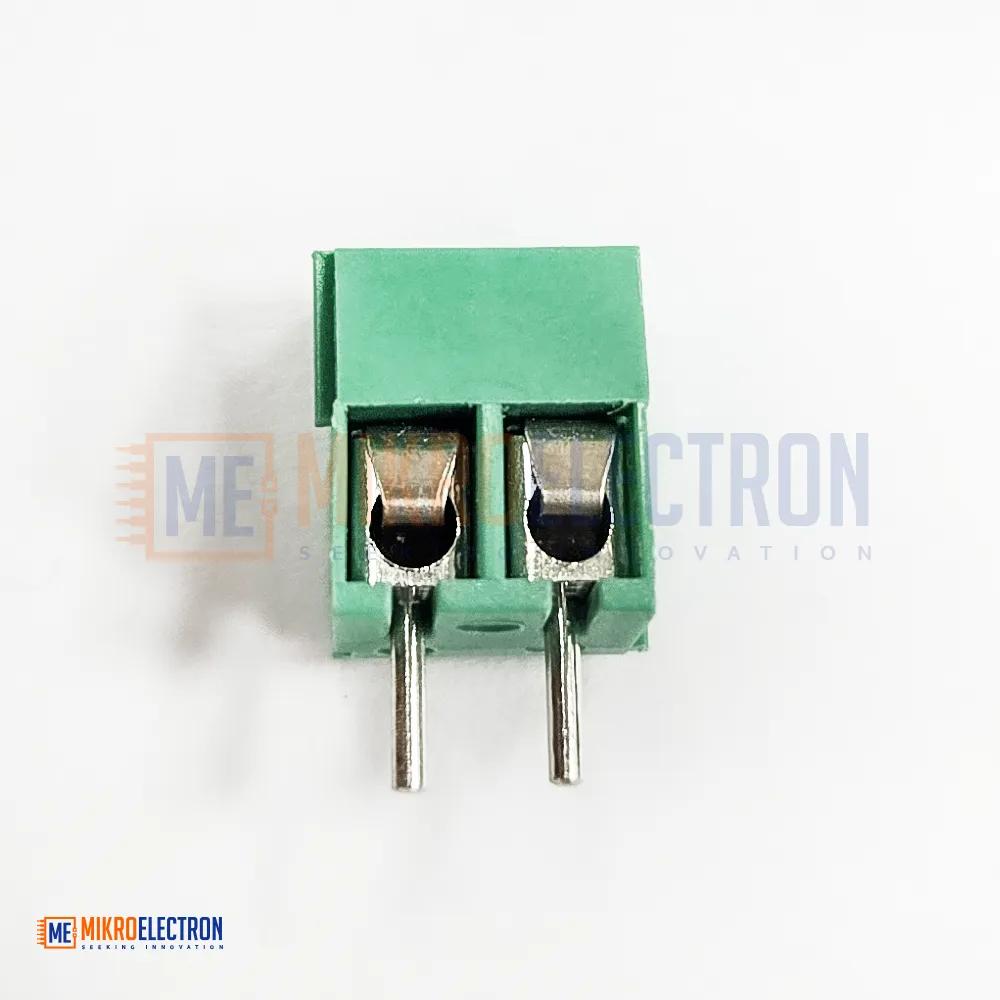

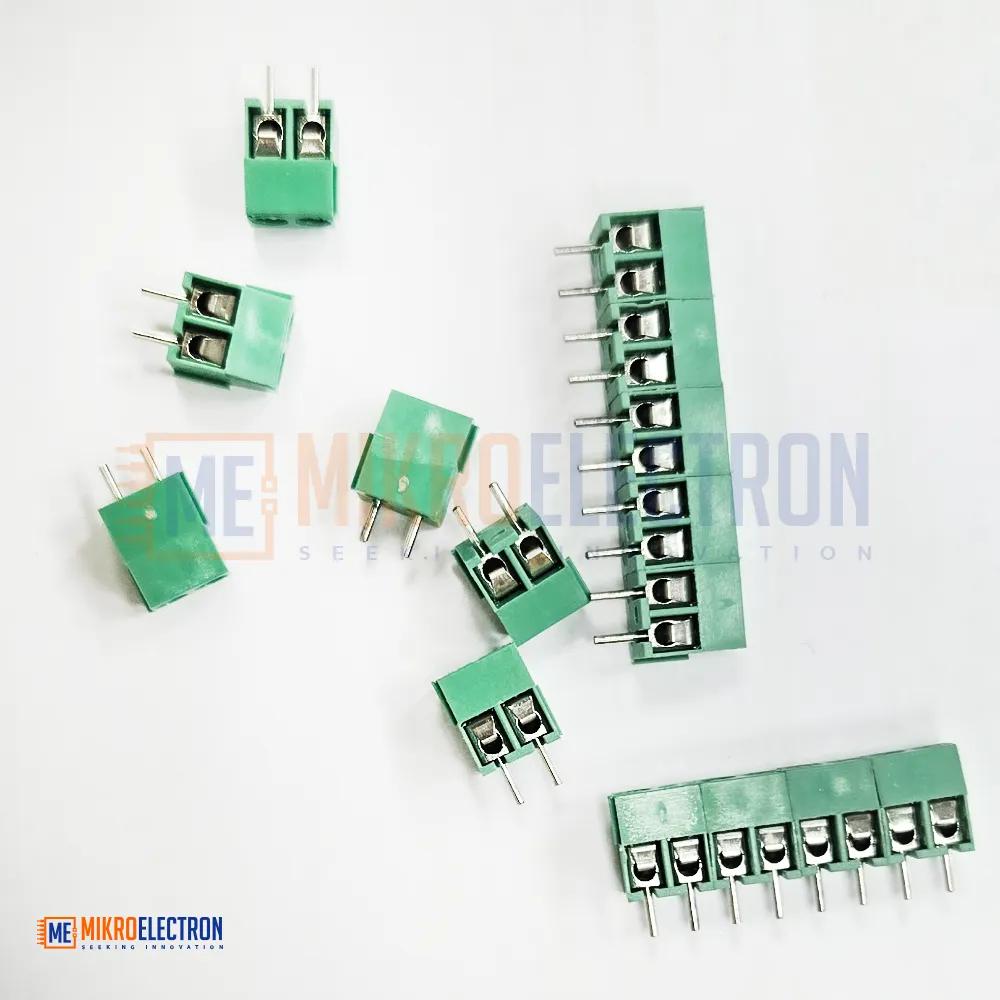

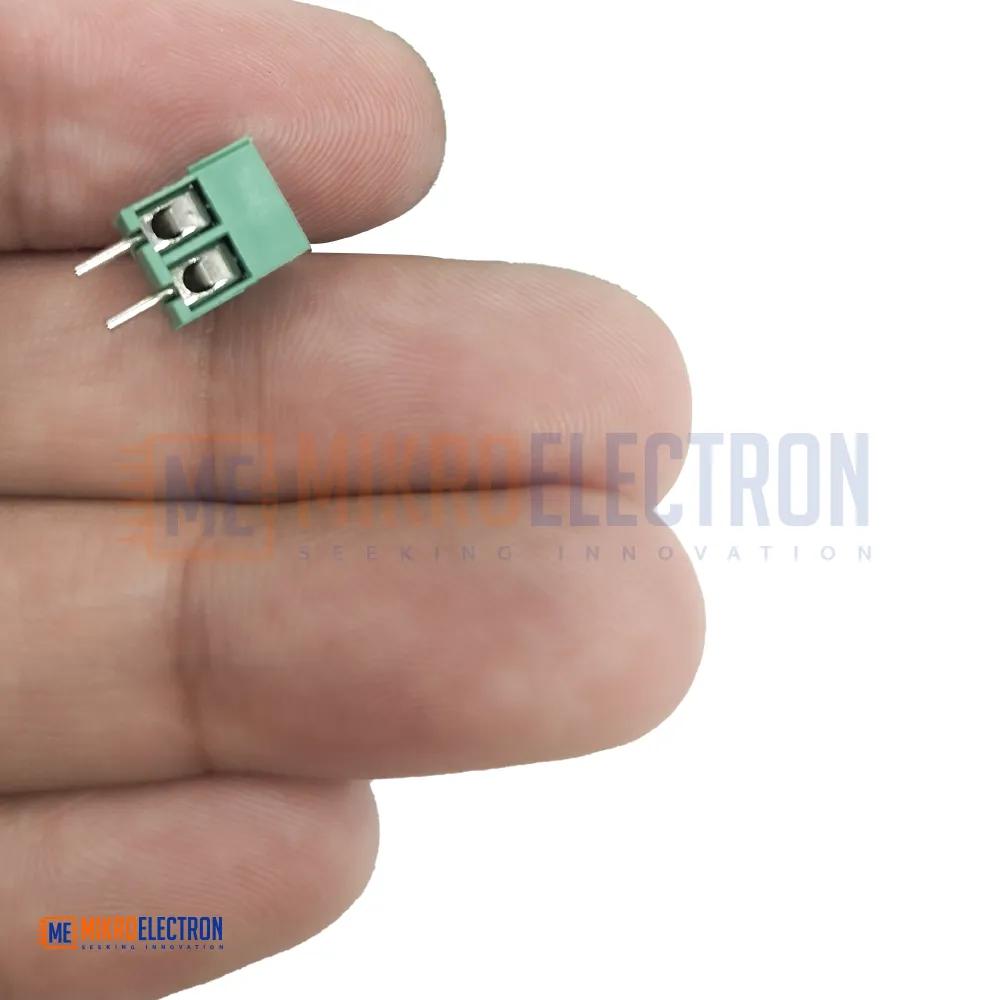

3.5mm 2pin Straight Pin PCB Screw Terminal Block
The 3.5mm 2-pin straight pin PCB screw terminal block is a compact connector used to secure and connect wires to printed circuit boards. It offers a reliable clamping connection for low-voltage and signal applications in control systems, audio devices, and instrumentation.
يُعدّ مِشبك طرفي لولبي (PCB screw terminal block) بمسافة 3.5mm ثنائي السنون (2-pin) مستقيم موصلًا مدمجًا يُستخدم لتثبيت وتوصيل الأسلاك بالدوائر المطبوعة (PCB). يوفّر اتصالًا موثوقًا بالضغط، ويُستخدم في تطبيقات الجهد المنخفض والإشارات مثل أنظمة التحكم، والأجهزة الصوتية، وأجهزة計 القياس.
This PCB screw terminal block provides a simple and secure method to connect wires directly onto a PCB. With a 3.5mm pitch between pins, it is ideal for space-saving designs. Wires are held in place using screws, ensuring solid electrical contact and easy field wiring.
Specifications:
Pitch: 3.5mm
Number of pins: 2 (2P)
Orientation: Straight pin (vertical to PCB)
Mounting: Through-hole PCB mounting
Wire size: Up to 1.5 mm² (approx. 16 AWG)
