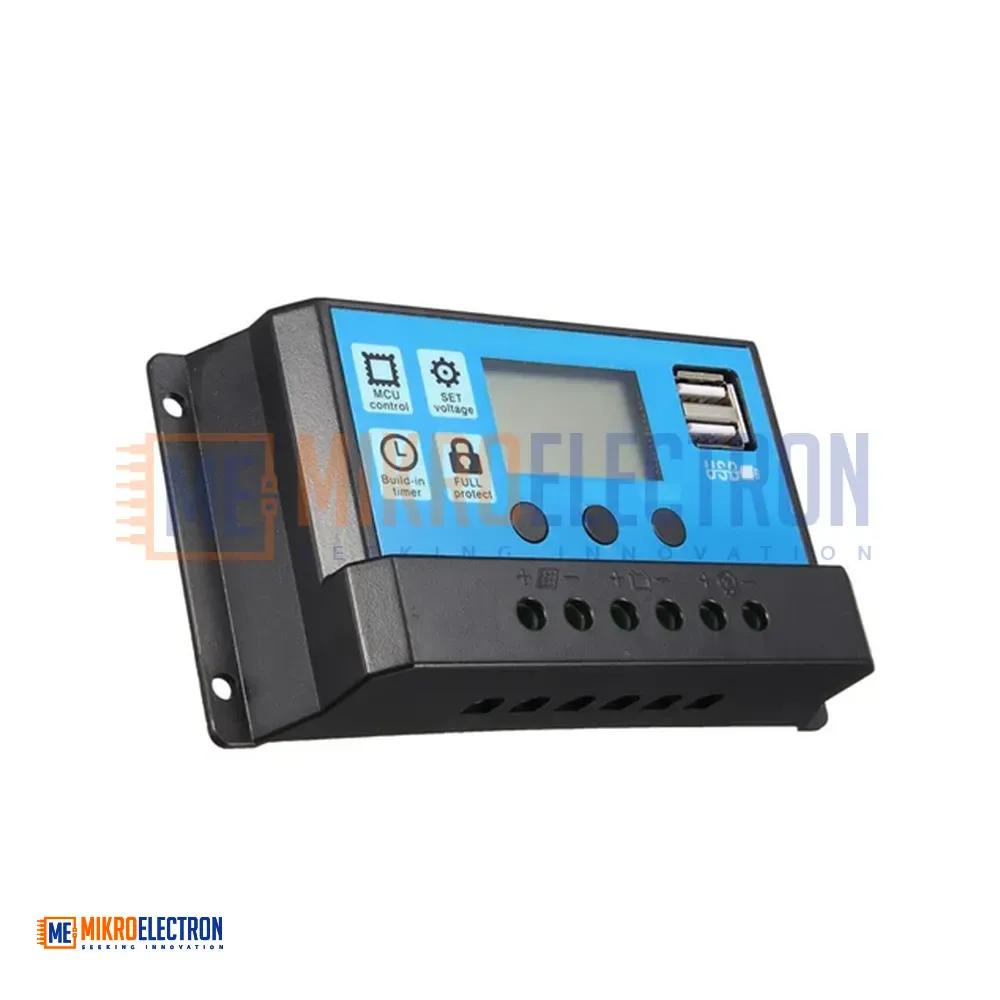

Name: SOLAR CHARGE CONTROLLER | charger, SCL, PWM, SCC
Brand: Mikroelectron
SKU: me-13891
Price: 10.00 JOD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

The Solar Charge Controller 10A (Model: ICharger PWM N1210) is designed for small-scale solar energy systems, providing reliable and efficient battery charging management. It supports automatic 12V/24V detection and is compatible with lead-acid, gel, and configurable lithium batteries. The controller ensures safe operation with advanced protection features and user-friendly monitoring through a large LCD display.&nbsp;<h2>Specifications</h2>Model: ICharger PWM N1210Battery Voltage: 12V / 24V Auto DetectionCharging Current: 10ADischarging Current: 10AMax Solar Input:25V / 120W (for 12V battery)50V / 240W (for 24V battery)Equalization Voltage:14.4V (Sealed)14.2V (Gel)14.6V (Flooded)Float Charge Voltage: 13.7V (adjustable)Discharge Stop Voltage: 10.7V (adjustable)Discharge Reconnect Voltage: 12.6V (adjustable)USB Output: 5V / 3ASelf Consumption: &lt;10mAOperating Temperature: -35°C to +60°C&nbsp;<h2>Applications</h2>Home solar lighting systemsSmall photovoltaic (PV) systemsOff-grid solar setupsOutdoor solar installationsCaravans and mobile solar systemsBackup and emergency power systems<h2>&nbsp;</h2>

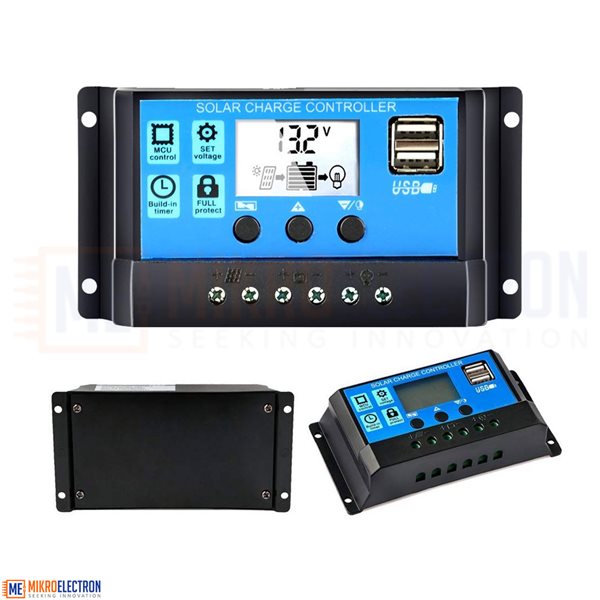

SOLAR CHARGE CONTROLLER 10A

The Solar Charge Controller 10A is a compact and efficient solution for small solar power systems. It features automatic 12V/24V battery detection and supports lead-acid, gel, and configurable lithium batteries. Equipped with a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and parameter adjustment. The advanced 4-stage PWM charging improves battery performance and lifespan. It includes multiple protection functions such as short circuit, overload, reverse polarity, and overcharge protection. Dual MOSFET technology reduces heat. With dual USB output, it is ideal for home lighting and small photovoltaic applications.

منظم الشحن الشمسي 10 أمبير هو حل مدمج وفعال للأنظمة الشمسية الصغيرة. يتميز بالتعرف التلقائي على بطاريات 12 و24 فولت ويدعم بطاريات الرصاص والجل وإمكانية ضبط بطاريات الليثيوم. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وتعديل الإعدادات. يعتمد على تقنية الشحن PWM ذات الأربع مراحل لتحسين أداء البطارية وإطالة عمرها. يوفر عدة وسائل حماية مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. كما أن تقنية MOSFET تقلل من الحرارة، ويحتوي على مخارج USB لشحن الأجهزة.

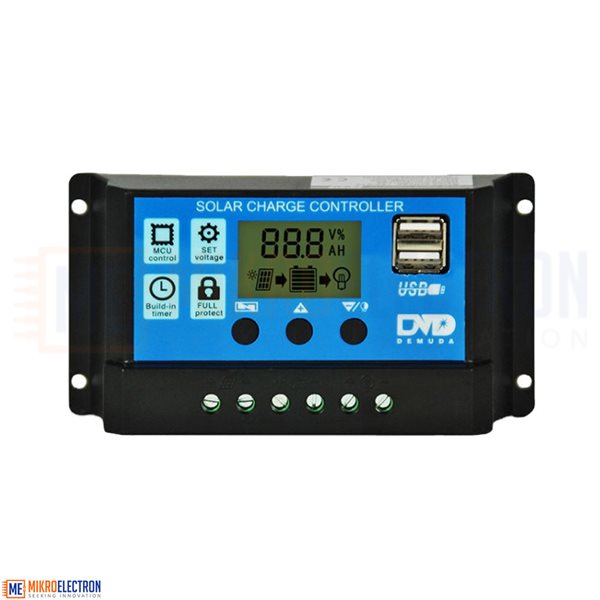

The Solar Charge Controller 20A is a high-performance PWM solar controller designed for medium-scale solar power systems. It automatically detects 12V/24V batteries and ensures efficient energy regulation. With a built-in industrial microcontroller and large LCD display, users can easily monitor and adjust system parameters for optimal performance.&nbsp;<h2>Specifications</h2>Charging Current: 20ABattery Voltage: 12V / 24V Auto DetectionMax Solar Input Voltage: &lt;50VUSB Output: 5V / 3AOperating Temperature: -35°C to +60°CDimensions:Length: 150 mmWidth: 78 mmHeight: 35 mmWeight: 150 gShipping Dimensions: 15 × 8 × 4 cm&nbsp;<h2>Applications</h2>Residential solar systemsMedium-sized photovoltaic (PV) systemsOff-grid solar installationsSolar lighting systemsBackup power solutionsMobile and outdoor solar setups






SOLAR CHARGE CONTROLLER 20A

The Solar Charge Controller 20A is a reliable and efficient PWM controller designed for medium-sized solar systems. It automatically detects 12V and 24V batteries and provides stable charging performance. Equipped with a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and control of system parameters. The advanced 4-stage PWM charging improves battery efficiency and lifespan. It includes multiple protection features such as short circuit, overload, reverse polarity, and open-circuit protection. With dual MOSFET technology for low heat and USB output, it is ideal for home and off-grid solar applications.

منظم الشحن الشمسي 20 أمبير هو جهاز فعال وموثوق مصمم للأنظمة الشمسية متوسطة الحجم. يدعم التعرف التلقائي على بطاريات 12 و24 فولت ويوفر أداء شحن مستقر. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة والتحكم بالإعدادات. يعتمد على تقنية الشحن PWM ذات الأربع مراحل لتحسين كفاءة البطارية وإطالة عمرها. يتضمن عدة أنظمة حماية مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والدائرة المفتوحة. كما تتميز تقنية MOSFET المزدوجة بانخفاض الحرارة، ويحتوي على منفذ USB، مما يجعله مناسبًا للتطبيقات المنزلية والأنظمة خارج الشبكة.

The Solar Charge Controller 30A (Model: AN-SC-DS-30A) is an advanced and efficient solution for regulating solar energy systems. It ensures safe and optimized charging and discharging of batteries while extending battery life. Equipped with a built-in industrial microcontroller and large LCD display, users can easily monitor system performance and adjust parameters.&nbsp;<h2>Specifications</h2>Model: AN-SC-DS-30ABattery Voltage: 12V / 24V Auto DetectionCharging Current: 30ADischarging Current: 10AMax Solar Input:24V (for 12V battery)48V (for 24V battery)Equalization Voltage:14.4V (Sealed)14.2V (Gel)14.6V (Flooded)Float Charge Voltage: 13.7V (adjustable)Discharge Stop Voltage: 10.7V (adjustable)Discharge Reconnect Voltage: 12.6V (adjustable)Charge Reconnect Voltage: 13VUSB Output: 5V / 2A × 2 portsSelf Consumption: &lt;10mAOperating Temperature: -35°C to +60°C<h2>&nbsp;</h2><h2>Applications</h2>Home solar power systemsSmall off-grid systemsSolar lighting systemsRural electrification projectsCaravans and RV solar setupsBackup power systems

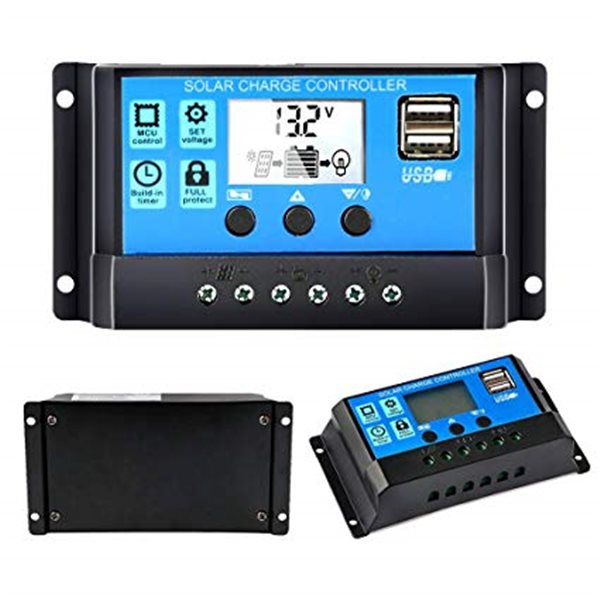

SOLAR CHARGE CONTROLLER 30A

The Solar Charge Controller 30A is a reliable device designed to manage and protect solar power systems efficiently. It features a built-in industrial microcontroller and a large LCD display for easy monitoring and adjustment of parameters. With advanced 4-stage PWM charging, it ensures optimal battery performance and longer lifespan. The controller supports 12V and 24V systems automatically and includes multiple protections such as short circuit, overload, reverse polarity, and overcharge. Dual MOSFET technology reduces heat generation. It also provides USB outputs for device charging, making it ideal for small to medium solar applications.

منظم الشحن الشمسي 30 أمبير هو جهاز موثوق مصمم لإدارة وحماية أنظمة الطاقة الشمسية بكفاءة عالية. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وضبط الإعدادات. يعتمد على تقنية الشحن PWM ذات الأربع مراحل لضمان أداء مثالي للبطارية وإطالة عمرها. يدعم أنظمة 12 و24 فولت بشكل تلقائي، ويحتوي على عدة أنظمة حماية مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. تقنية MOSFET المزدوجة تقلل من الحرارة، كما يوفر مخارج USB لشحن الأجهزة، مما يجعله مناسبًا للتطبيقات الشمسية الصغيرة والمتوسطة.

The Solar Charge Controller 40A (Model: PWM 40A) is a high-capacity PWM controller designed for large solar power systems. It automatically detects 12V/24V batteries and ensures efficient charging and discharging. Equipped with a built-in industrial microcontroller and a large LCD display, it provides easy system monitoring and parameter adjustment.&nbsp;<h2>Specifications</h2>Model: PWM 40ABattery Voltage: 12V / 24V Auto DetectionCharging Current: 40ADischarging Current: 20AMax Solar Input:25V (for 12V battery)50V (for 24V battery)Equalization Voltage:14.4V (Sealed)14.2V (Gel)14.6V (Flooded)Float Charge Voltage: 13.7V (adjustable)Discharge Stop Voltage: 10.7V (adjustable)Discharge Reconnect Voltage: 12.6V (adjustable)Charge Reconnect Voltage: 13VUSB Output: 5V / 3A (Dual USB)&nbsp;<h2>Applications</h2>Large residential solar systemsCommercial solar installationsOff-grid power systemsSolar lighting and backup systemsIndustrial solar applicationsRemote area electrification&nbsp;<h2>Functions &amp; Safety Instructions</h2><ul><li>Supports only lead-acid batteries: OPEN, AGM, GEL (Not compatible with lithium or Ni-MH batteries)</li><li>Automatic shutdown when battery voltage drops below 8V</li><li>LCD display shows system status and allows easy configuration</li><li>Installation sequence is critical:<ol><li>Connect the battery first</li><li>Connect the solar panel</li><li>Connect the load (Reverse order when disconnecting)</li></ol></li><li>Install in a well-ventilated area to avoid overheating</li><li>Use short cables to minimize power loss</li></ul>&nbsp;






40A Intelligent LCD Solar Controller

The Solar Charge Controller 40A is a powerful PWM controller designed for larger solar systems. It automatically detects 12V and 24V batteries and ensures efficient energy regulation. With a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and adjustment of settings. The advanced multi-stage PWM charging improves battery performance and lifespan. It features multiple protection systems including short circuit, overload, reverse polarity, and overcharge protection. Dual MOSFET technology ensures low heat generation. With USB output and high current capacity, it is ideal for residential, commercial, and off-grid solar applications.

منظم الشحن الشمسي 40 أمبير هو جهاز قوي مصمم للأنظمة الشمسية الكبيرة. يدعم التعرف التلقائي على بطاريات 12 و24 فولت ويوفر تنظيم طاقة فعال. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وتعديل الإعدادات. تعتمد تقنية الشحن PWM متعددة المراحل على تحسين أداء البطارية وإطالة عمرها. يتضمن عدة أنظمة حماية مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. كما تقلل تقنية MOSFET المزدوجة من الحرارة. مع منفذ USB وقدرة تيار عالية، فهو مناسب للاستخدامات المنزلية والتجارية والأنظمة خارج الشبكة.

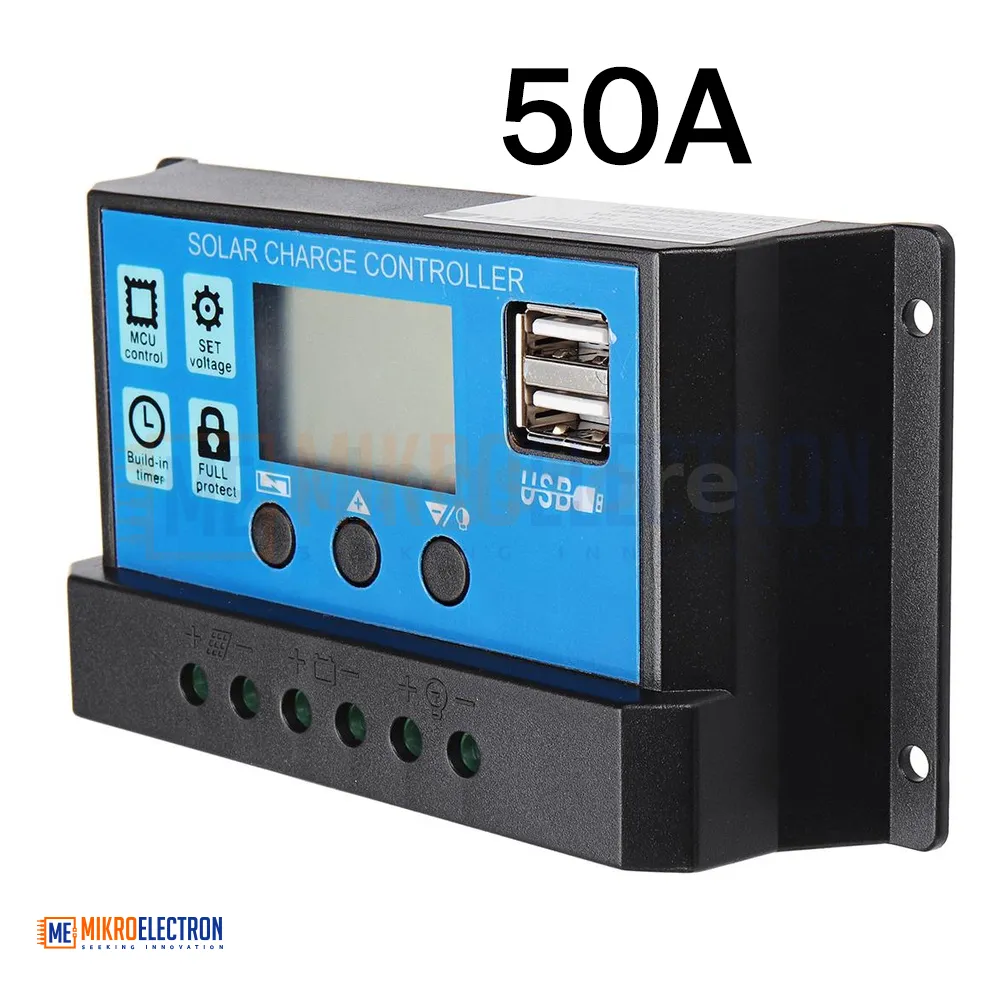

The Solar Charge Controller 50A (Model: PWM 50A) is a high-performance PWM controller built for large-scale solar systems. It automatically detects 12V/24V batteries and ensures efficient charging and discharging management. With a built-in industrial microcontroller and large LCD display, users can easily monitor system performance and configure parameters.&nbsp;<h2>Specifications</h2>Model: PWM 50ABattery Voltage: 12V / 24V Auto DetectionCharging Current: 50ADischarging Current: 30AMax Solar Input:25V (for 12V battery)50V (for 24V battery)Equalization Voltage:14.4V (Sealed)14.2V (Gel)14.6V (Flooded)Float Charge Voltage: 13.7V (adjustable)Discharge Stop Voltage: 10.7V (adjustable)Discharge Reconnect Voltage: 12.6V (adjustable)Charge Reconnect Voltage: 13VUSB Output: 5V / 3A (Dual USB)Dimensions: 148 × 78 mmWeight: 150 g<h2>&nbsp;</h2><h2>Applications</h2>Large residential solar systemsCommercial solar installationsIndustrial solar power systemsOff-grid and backup power systemsRemote area electrificationSolar lighting and outdoor systems&nbsp;<h2>Functions &amp; Safety Instructions</h2>Compatible only with lead-acid batteries: OPEN, AGM, GEL (Not suitable for lithium or Ni-MH batteries)Automatic shutdown when battery voltage drops below 8VLCD display shows system data and allows easy parameter setupCorrect installation sequence is critical:Connect the battery firstConnect the solar panelConnect the load (Reverse order when disconnecting)Install in a well-ventilated area to prevent overheatingKeep battery cables short to reduce power lossDesigned only for photovoltaic solar panels (not for other power sources)






50A Intelligent LCD Solar Controller

The Solar Charge Controller 50A is a high-capacity PWM controller designed for large solar power systems. It supports automatic 12V and 24V battery detection and delivers efficient charging performance. Featuring a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and adjustment of parameters. The advanced multi-stage PWM charging enhances battery efficiency and extends lifespan. It includes comprehensive protection such as short circuit, overload, reverse polarity, and overcharge protection. Dual MOSFET technology ensures low heat generation. With high current capacity and USB output, it is ideal for residential, commercial, and industrial solar applications.

منظم الشحن الشمسي 50 أمبير هو جهاز عالي القدرة مصمم للأنظمة الشمسية الكبيرة. يدعم التعرف التلقائي على بطاريات 12 و24 فولت ويوفر أداء شحن فعال. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وضبط الإعدادات. تعتمد تقنية الشحن PWM متعددة المراحل على تحسين كفاءة البطارية وإطالة عمرها. يتضمن أنظمة حماية متكاملة مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. كما تقلل تقنية MOSFET المزدوجة من الحرارة. بفضل قدرته العالية ومخارج USB، فهو مناسب للاستخدامات المنزلية والتجارية والصناعية.

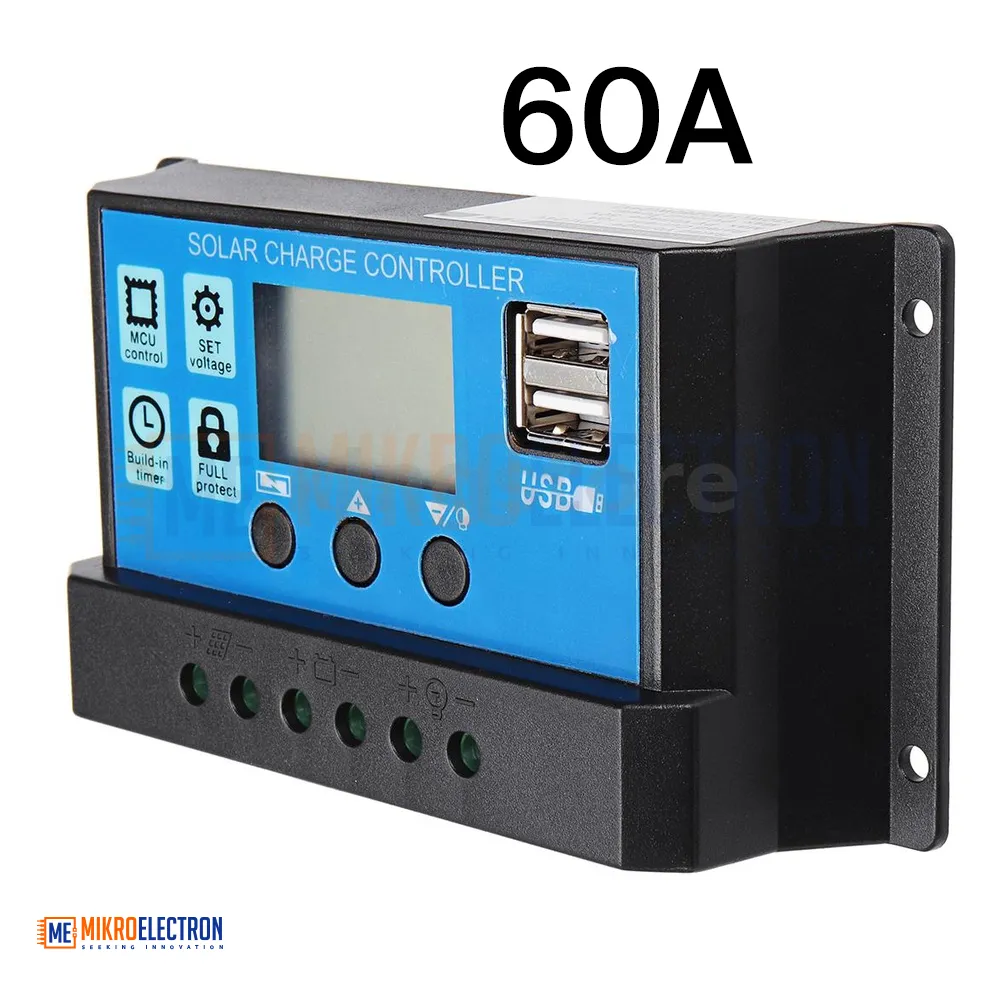

The Solar Charge Controller 60A (Model: PWM 60A) is a high-performance PWM controller designed for large-scale and high-demand solar systems. It automatically detects 12V/24V batteries and provides efficient charging and discharging control. Featuring a built-in industrial microcontroller and a large LCD display, it ensures easy system monitoring and parameter configuration.&nbsp;<h2>Specifications</h2>Model: PWM 60ABattery Voltage: 12V / 24V Auto DetectionCharging Current: 60ADischarging Current: 30AMax Solar Input:25V (for 12V battery)50V (for 24V battery)Equalization Voltage:14.4V (Sealed)14.2V (Gel)14.6V (Flooded)Float Charge Voltage: 13.7V (adjustable)Discharge Stop Voltage: 10.7V (adjustable)Discharge Reconnect Voltage: 12.6V (adjustable)Charge Reconnect Voltage: 13VUSB Output: 5V / 3A (Dual USB)<h2>&nbsp;</h2><h2>Applications</h2>Large residential solar systemsCommercial solar installationsIndustrial solar energy systemsOff-grid and backup power systemsRemote and rural electrificationSolar lighting and outdoor systems&nbsp;<h2>Functions &amp; Safety Instructions</h2>Compatible only with lead-acid batteries: OPEN, AGM, GEL (Not suitable for lithium or Ni-MH batteries)Automatic shutdown when battery voltage drops below 8VLCD display provides system status and allows easy configurationCorrect installation sequence is essential:Connect the battery firstConnect the solar panelConnect the load (Reverse order when disconnecting)Install in a well-ventilated area to prevent overheatingUse short battery cables to reduce energy lossDesigned only for photovoltaic solar panels (not for other power sources)






60A Intelligent LCD Solar Controller

The Solar Charge Controller 60A is a high-capacity PWM controller designed for large and demanding solar systems. It supports automatic 12V and 24V battery detection and ensures efficient power management. Equipped with a built-in industrial microcontroller and a large LCD display, it allows easy monitoring and adjustment of parameters. The advanced multi-stage PWM charging enhances battery performance and extends lifespan. It features full protection including short circuit, overload, reverse polarity, and overcharge protection. Dual MOSFET technology ensures low heat. With high current capacity and USB output, it is ideal for residential, commercial, and industrial applications.

منظم الشحن الشمسي 60 أمبير هو جهاز عالي القدرة مصمم للأنظمة الشمسية الكبيرة والمتقدمة. يدعم التعرف التلقائي على بطاريات 12 و24 فولت ويوفر إدارة طاقة فعالة. يحتوي على متحكم صناعي مدمج وشاشة LCD كبيرة لسهولة المراقبة وضبط الإعدادات. تعتمد تقنية الشحن PWM متعددة المراحل على تحسين أداء البطارية وإطالة عمرها. يتضمن أنظمة حماية كاملة مثل الحماية من القصر، الحمل الزائد، عكس القطبية، والشحن الزائد. كما تقلل تقنية MOSFET المزدوجة من الحرارة. بفضل قدرته العالية ومخارج USB، فهو مناسب للاستخدامات المنزلية والتجارية والصناعية.

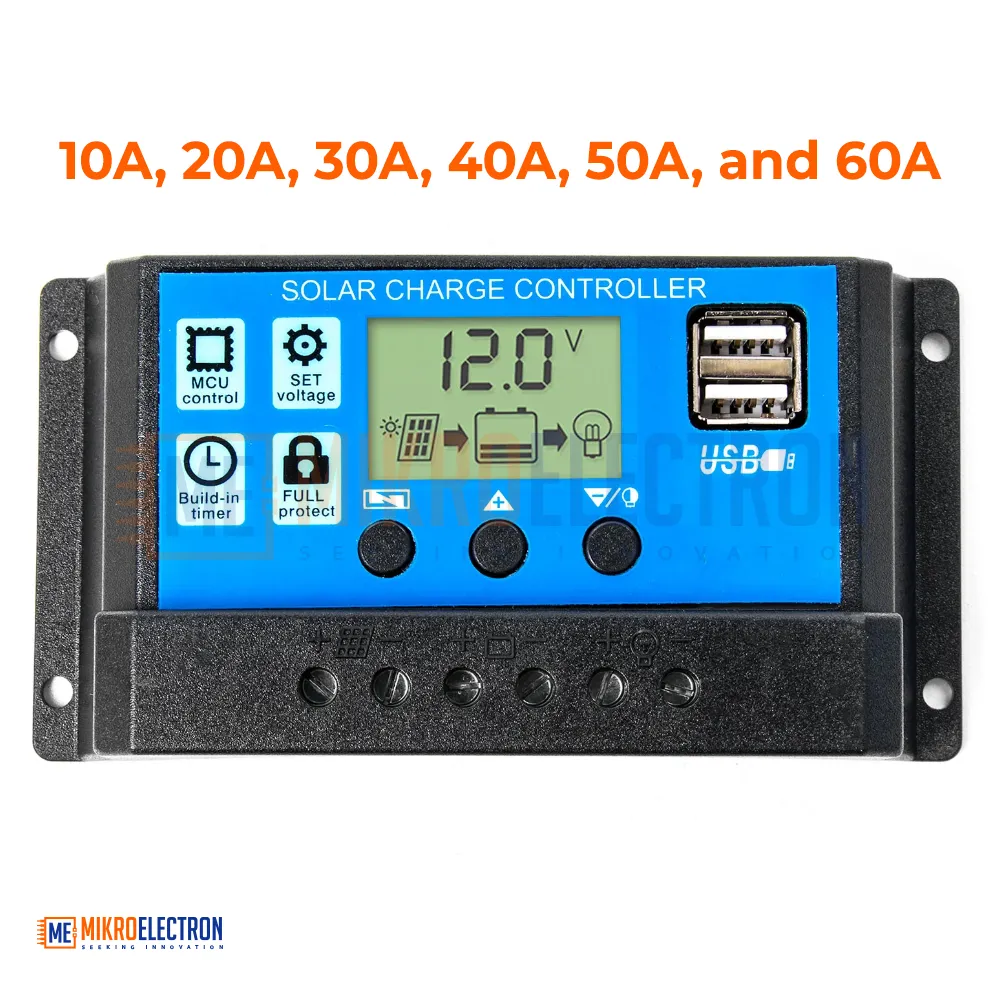

This Solar Charge Controller is designed to offer efficient and reliable control for solar power systems. Available in 10A, 20A, 30A, 40A, 50A, and 60A capacities, it supports a wide range of off-grid and renewable energy applications.The controller features a compact, easy-to-operate design with a large multifunction LCD display that provides real-time system information and allows full adjustment of operating parameters.Equipped with a built-in industrial-grade microcontroller, it delivers stable performance, intelligent control, and a data memory function that automatically saves settings even after power-off—eliminating the need to reconfigure parameters when restarted.<h3>Protection Features:</h3>Short-circuit protectionOpen-circuit protectionReverse polarity protectionOverload protection&nbsp;<figure class="table"><table><tbody><tr><td>Voltage</td><td>12V/24V Auto Adaption</td></tr><tr><td>Current</td><td>10A,20A,30A,40A,50A,60A</td></tr><tr><td>Max PV Power</td><td>1500W</td></tr><tr><td>Max PV Voltage</td><td>50V</td></tr><tr><td>Battery Type</td><td>Lead Acid Battery Charger</td></tr><tr><td>Float Charge</td><td>13.7V(defaul,adjustable)</td></tr><tr><td>Discharge Stop</td><td>10.7V(defaul,adjustable)</td></tr><tr><td>Discharge Reconnect</td><td>12.6V(defaul,adjustable)</td></tr><tr><td>USB</td><td>2 USB</td></tr><tr><td>USB Output</td><td>5V/2A MAX</td></tr><tr><td>Operating Temperature</td><td>-35℃~+60℃</td></tr><tr><td>Application</td><td>Charger Controller, Solar PV System, Lighting Controll</td></tr><tr><td>USB</td><td>2 USB</td></tr></tbody></table></figure>&nbsp;Quality Assurance: Using SMT chip production process quality PCB industrial grade chip, it can operate stably in cold, high temperature, humid environment. LED Display Screen: The controller uses dual LED display instruction setting, timing setting and digital display one-to-one corresponding display. Double USB Socket: Digital standard USB port, compatible with all kinds of digital technology devices on the market USB interface.<img src="https://imgcn.goodao.net/risinenergy/H00f260c329574136881fc692a279a79fA.jpg_.jpg" alt="H00f260c329574136881fc692a279a79fA.jpg_"> &nbsp;







charger, SCL, PWM, SCC

A compact and reliable solar charge controller available in 10A, 20A, 30A, 40A, 50A, and 60A. Features a multifunction LCD display, adjustable parameters, built-in microcontroller, and protection against short-circuit, reverse polarity, and overload. Automatically saves settings with a data-memory function.

منظم شحن طاقة شمسية متوفر بسعات 10A و20A و30A و40A و50A و60A، يتميز بحجم صغير وسهولة التشغيل، وشاشة LCD متعددة الوظائف، وإعدادات قابلة للتعديل، ووحدة تحكم دقيقة مدمجة مع خاصية حفظ الإعدادات، إضافةً إلى حماية ضد القصر والعكس والتحميل الزائد.

Voltage	12V/24V Auto Adaption
Current	10A,20A,30A,40A,50A,60A
Max PV Power	1500W
Max PV Voltage	50V
Battery Type	Lead Acid Battery Charger
Float Charge	13.7V(defaul,adjustable)
Discharge Stop	10.7V(defaul,adjustable)
Discharge Reconnect	12.6V(defaul,adjustable)
USB	2 USB
USB Output	5V/2A MAX
Operating Temperature	-35℃~+60℃
Application	Charger Controller, Solar PV System, Lighting Controll
USB	2 USB

SOLAR CHARGE CONTROLLER

Select Option

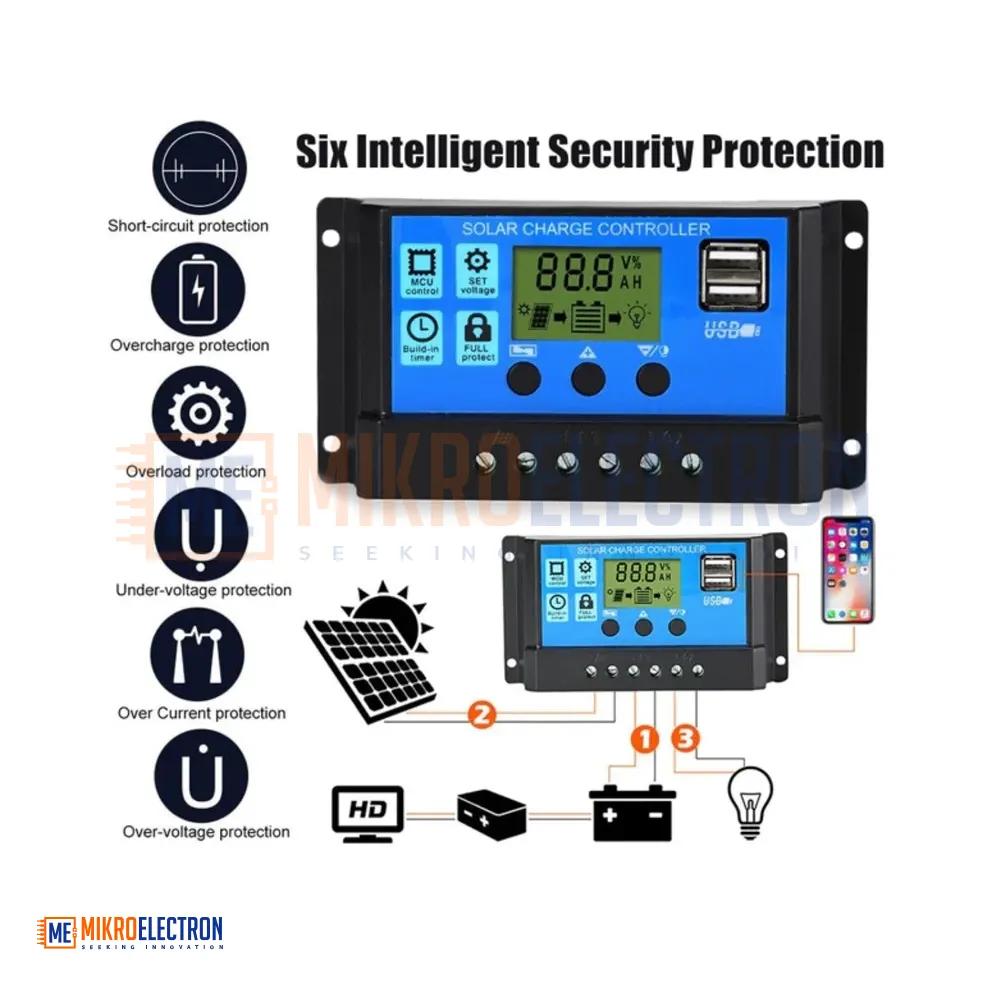

Protection Features:
