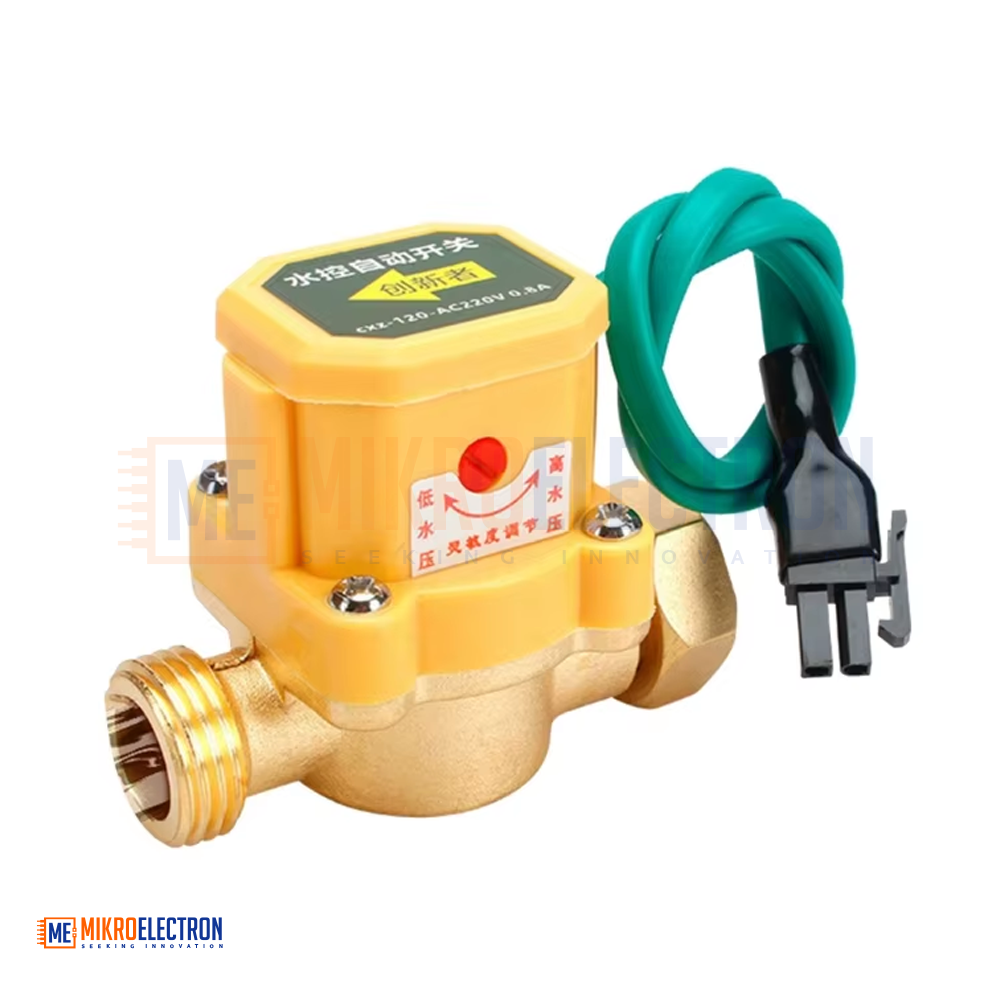

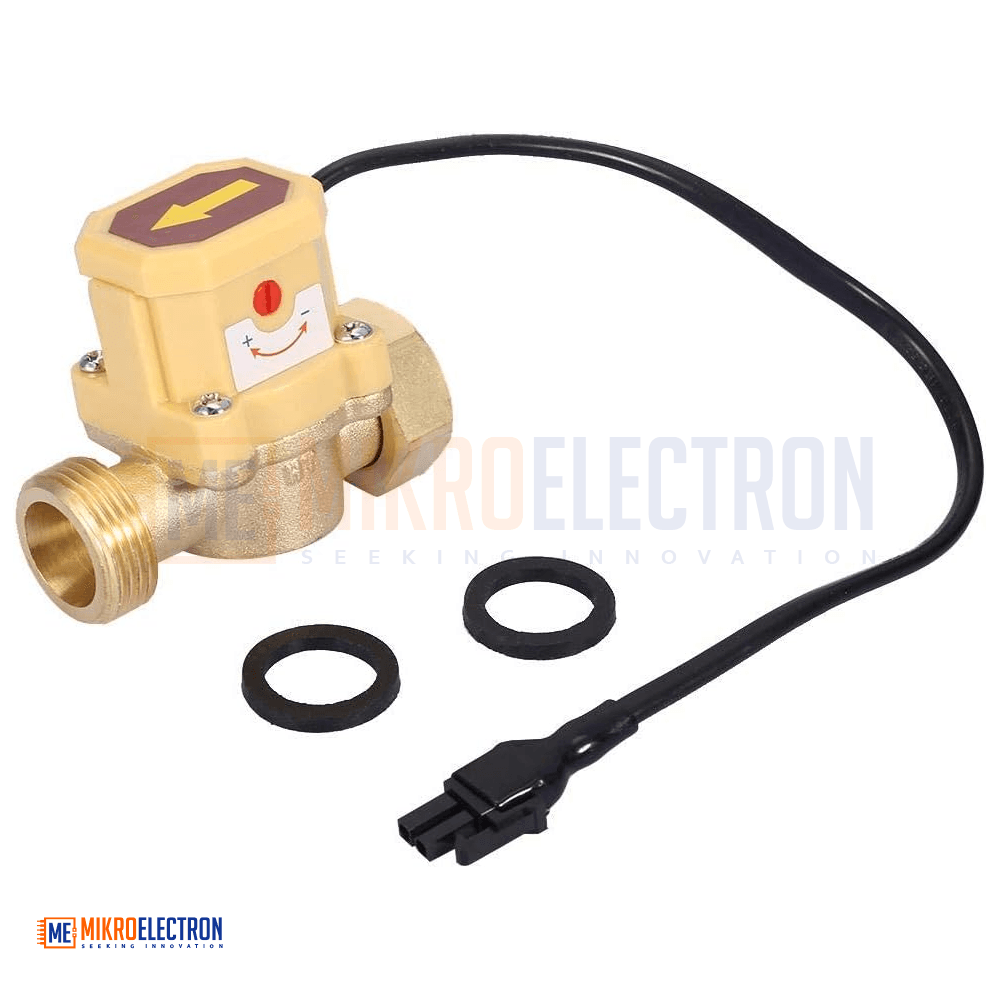

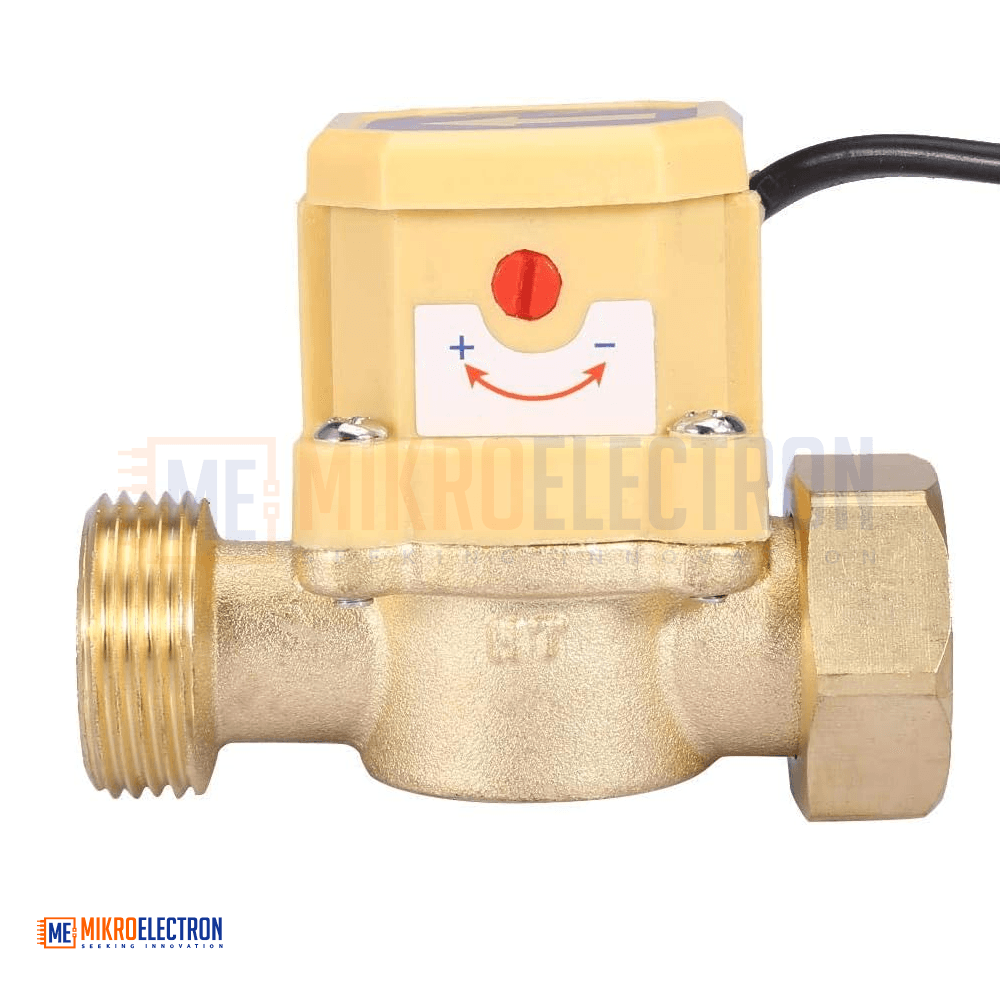

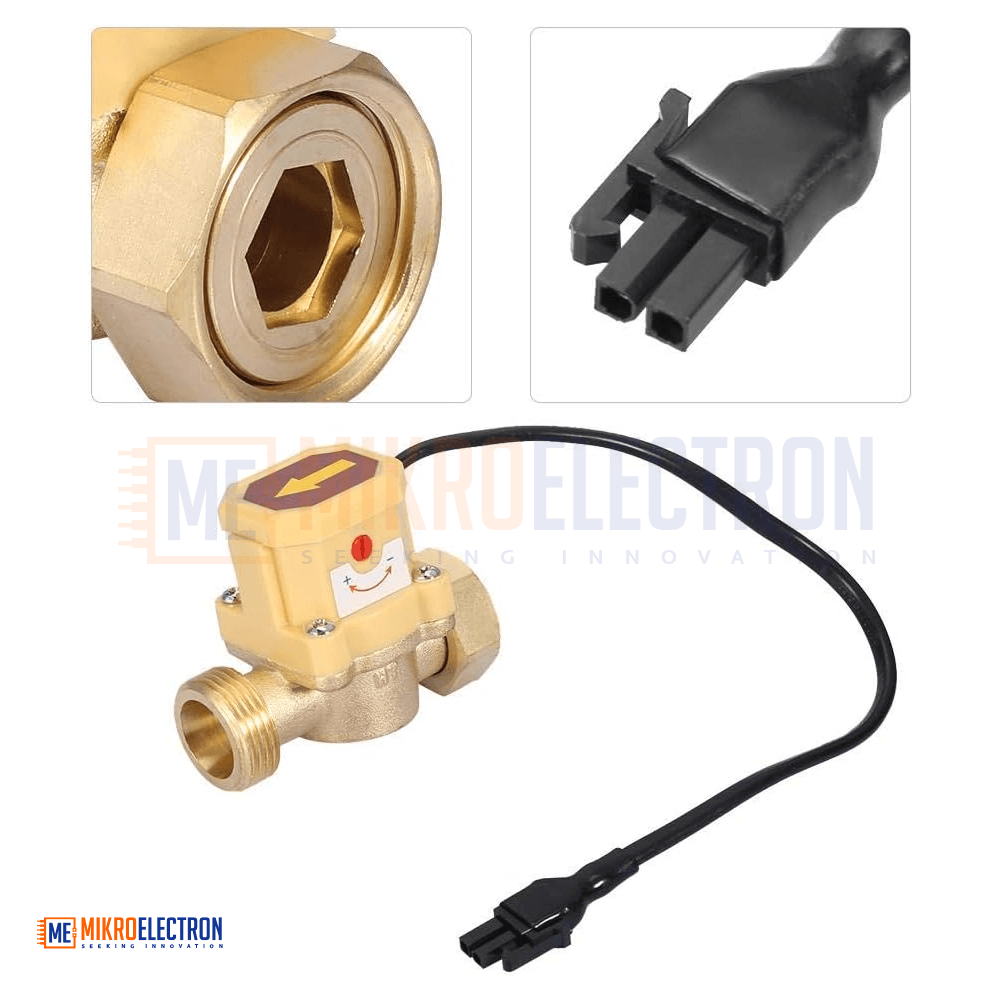

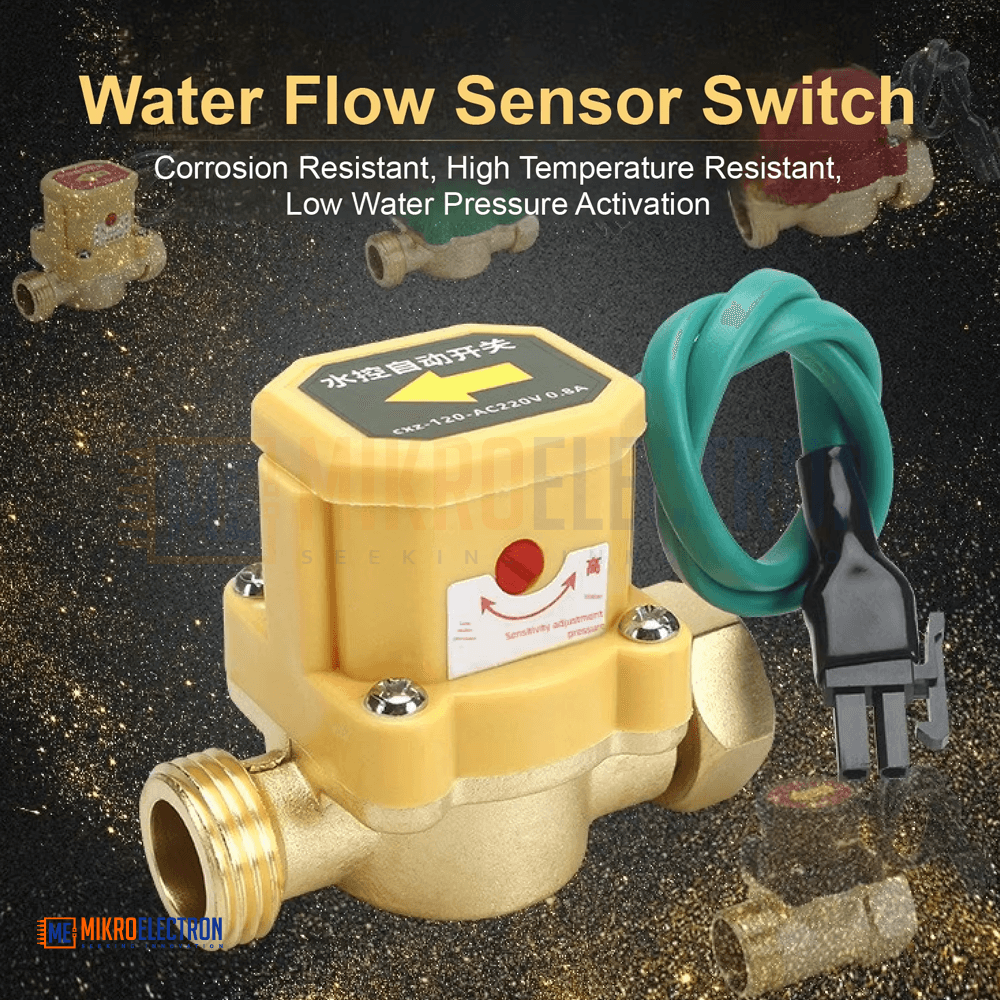

Water Flow Switch Sensor 0.75-0.75 inch Automatic Pump Controller Inline Water Pump Pressure Switch Control 200-300W

The Water Flow Switch Sensor is an automatic inline pump controller designed to manage water pumps based on real-time flow detection. When water starts flowing through the pipeline, the switch activates the pump, and when the flow stops, it automatically shuts the pump off. This protects the pump from dry running and improves system efficiency.

Manufactured with high-temperature-resistant and anti-corrosive materials, the unit is suitable for both hot and cold water systems. Its isolated magnetic control chamber prevents interference from iron debris, ensuring stable and spark-free operation. The flow switch is ideal for residential water booster systems and various industrial applications.

Specifications:

Product Type: Water Flow Switch Sensor / Pump Controller

Power Range: 200–300W

Compatible Pump Power: 60W – 2200W (stainless steel pumps)

Thread Size (Inlet/Outlet): 0.75" / 0.75"

Operation Mode: Automatic water flow sensing (Auto On/Off)

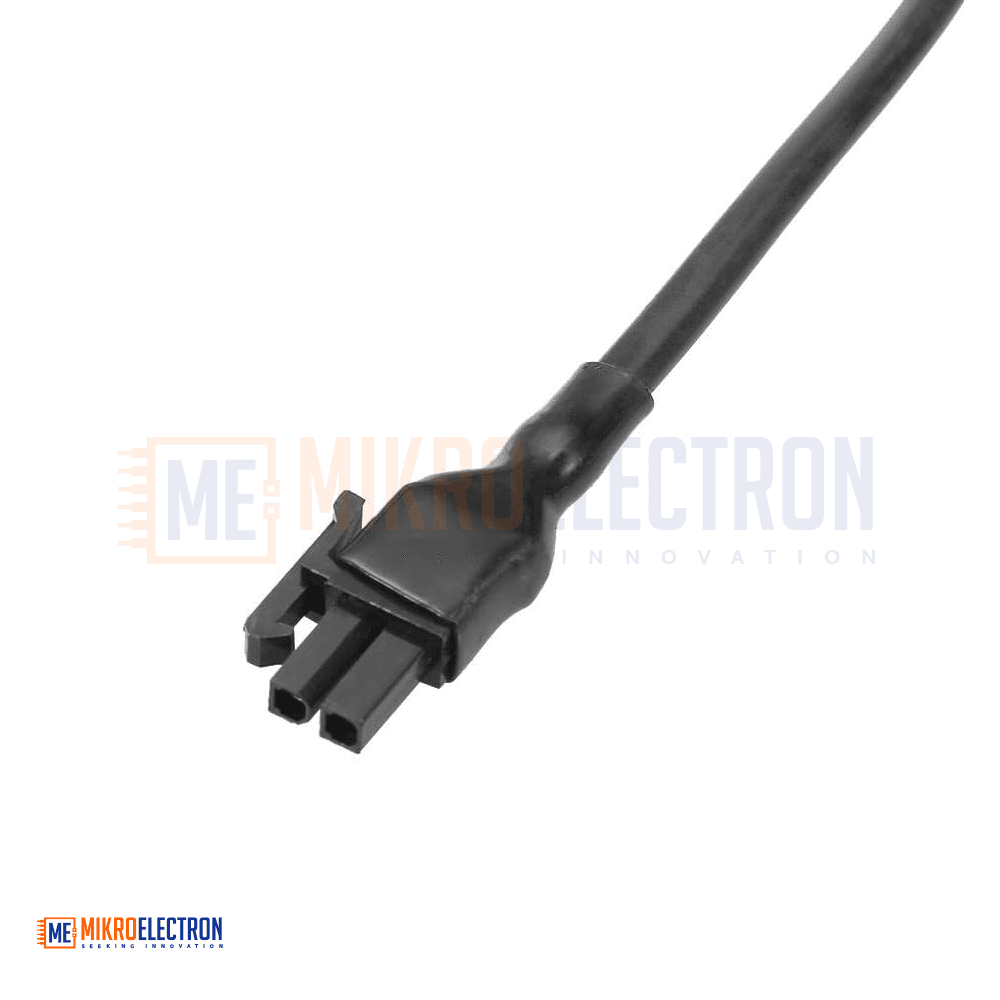

Cable Length: 1.2 m with power plug

Material: High-temperature resistant body with brass base

Water Type: Hot & cold water

Max Current (Optional): Up to 30A

Max Power (Optional): Up to 2.2kW

Important Usage Notes

Ensure installation follows the flow direction arrow on the housing

Install a water filter before the switch to prevent debris blockage

Not suitable for deep well or bucket-type water sources

Always wire in series; incorrect wiring may cause damage

Clean the filter regularly for stable operation

Applications

Home water booster systems

Low-pressure residential water supply

Hot & cold water circulation pumps

Laser machines and CNC equipment

Medical water control systems

Retrofit installations for pumps without built-in switches
