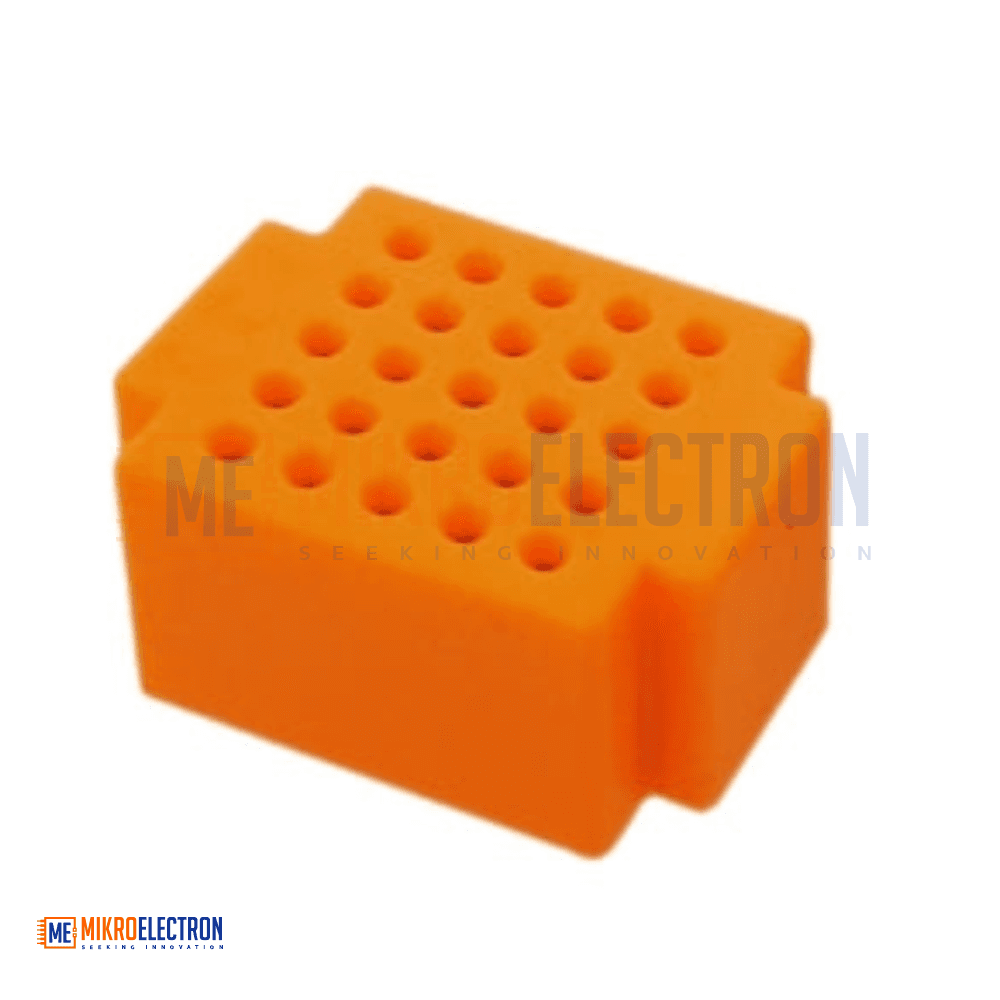

BBOXIM Colorful XF-25 Ultra Mini breadboard Orange

The BBOXIM XF-25 Colorful Ultra Mini Breadboard is designed for compact circuit prototyping, educational use, and creative electronic projects. With its ultra-mini size, it offers excellent functionality while occupying minimal space, making it ideal for portable projects and modular designs.

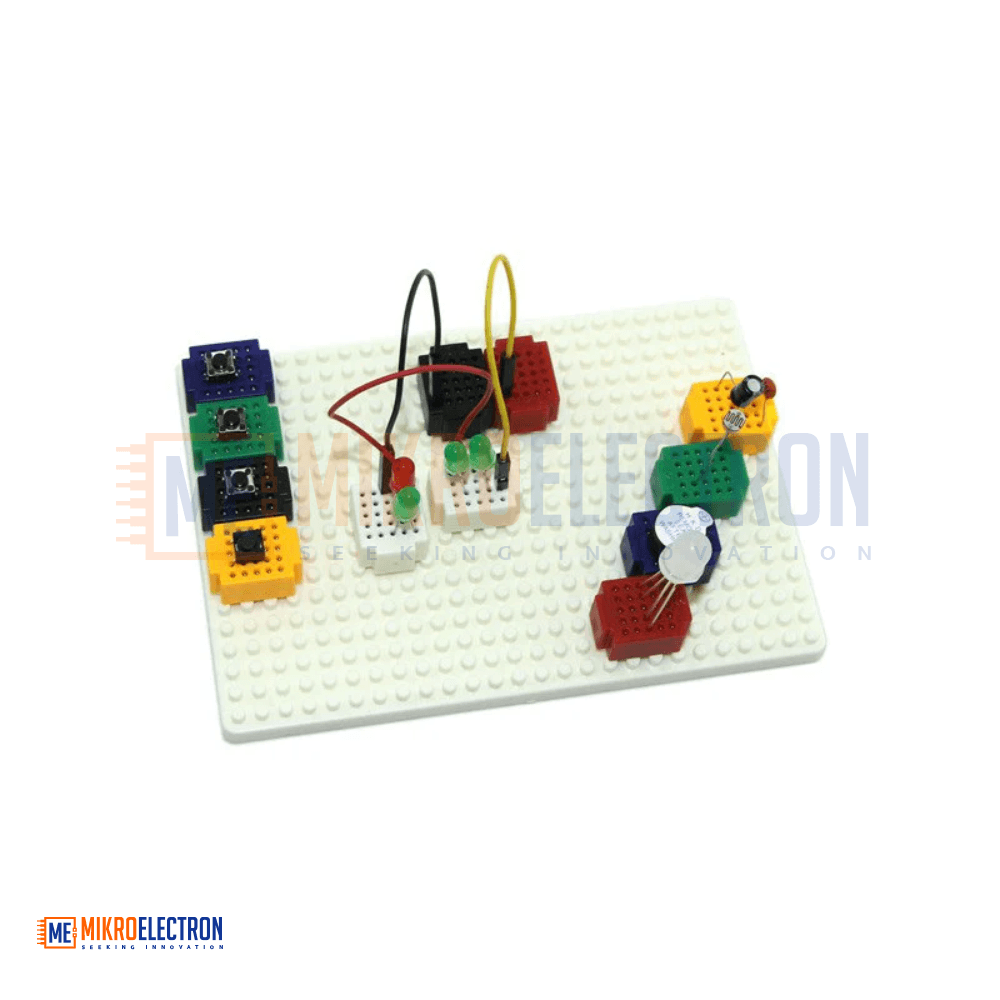

Constructed from high-quality ABS plastic, the XF-25 provides strong durability and reliable electrical contact points. It accepts a wide range of wire sizes and electronic components, including resistors, capacitors, LEDs, diodes, and transistors. The flexible modular structure allows up to 32 mini breadboards to be connected together on a single base plate, giving users full freedom to expand their circuits as needed.

The availability of multiple colors not only adds visual appeal but also improves learning and organization. By assigning different component types to different colored breadboards, educators and learners can easily understand circuit layouts and connections. Compared to standard breadboards, the XF-25 uses less material, making it a more environmentally friendly and efficient choice.

Specifications

Model: XF-25 Ultra Mini Breadboard

Material: ABS Plastic

Dimensions: 20 × 15 × 12 mm (L × W × H)

Tie Points: 25

Terminal Strip: Yes

Wire Compatibility: 29–20 AWG

Modular Connection: Up to 32 boards connectable

Reusable: Yes

Applications

Electronics education and training

DIY electronics projects

Rapid circuit prototyping

STEM learning kits

Portable and modular electronic designs
