SONOFF 2 Gang TX Ultimate Series Magic Size Smart Wi-Fi Wall Touch Switch Size 7*7 RGB Ambient Light T5-2C-86
The SONOFF TX Ultimate T5 Series Smart Touch Wall Switch delivers a premium smart-home experience with a full-surface touch panel, elegant RGB ambient lighting, and advanced multi-sensory feedback. Designed in a modern 7×7 “Magic Size” format, it seamlessly integrates into contemporary interiors while offering intuitive control via touch, the eWeLink app, or voice assistants such as Amazon Alexa and Google Assistant. Available in 1- to 4-gang versions, the T5 Series is ideal for stylish, intelligent lighting control in modern homes.
يوفر مفتاح الحائط الذكي باللمس SONOFF TX Ultimate T5 Series تجربة منزل ذكي فاخرة بفضل لوحة اللمس الكاملة السطح، وإضاءة RGB محيطية أنيقة، ونظام تغذية راجعة حسّية متقدمة.
تم تصميمه بمقاس عصري 7×7 (Magic Size) ليتكامل بسلاسة مع الديكورات الحديثة، مع إمكانية التحكم السلس عبر اللمس أو تطبيق eWeLink أو من خلال المساعدات الصوتية مثل Amazon Alexa وGoogle Assistant.
يتوفر من قناة واحدة حتى 4 قنوات (1–4 Gang)، مما يجعله الخيار المثالي للتحكم الذكي والأنيق في الإضاءة داخل المنازل العصرية.
The SONOFF TX Ultimate T5 Series Smart Touch Wall Switch is a next-generation smart wall control solution designed to combine modern aesthetics, advanced touch technology, and intelligent automation. Featuring a full-surface capacitive touch panel, customizable RGB ambient edge lighting, and multi-sensory feedback (light, sound, and vibration), the T5 Series delivers a premium user experience unmatched by traditional wall switches.
Designed in a 7×7 Magic Size (86 mm standard) format, the switch integrates seamlessly into modern interiors while providing flexible control options through direct touch, smartphone app, or voice commands. The T5 Series is available in 1-gang, 2-gang, 3-gang, and 4-gang versions, making it suitable for controlling single or multiple lighting circuits from one elegant panel.
Using the eWeLink app, users can remotely control lighting from anywhere, set schedules, create automation scenes, and share access with family members. Compatibility with Amazon Alexa and Google Assistant enables hands-free control for maximum convenience. The replaceable decorative front cover allows easy customization to match interior design preferences.
Built with high-quality flame-retardant PC materials and cold-rolled steel, the SONOFF T5 Series ensures durability, safety, and reliable long-term operation in residential and commercial environments.
Available Models
T5-1C-86 – 1 Gang

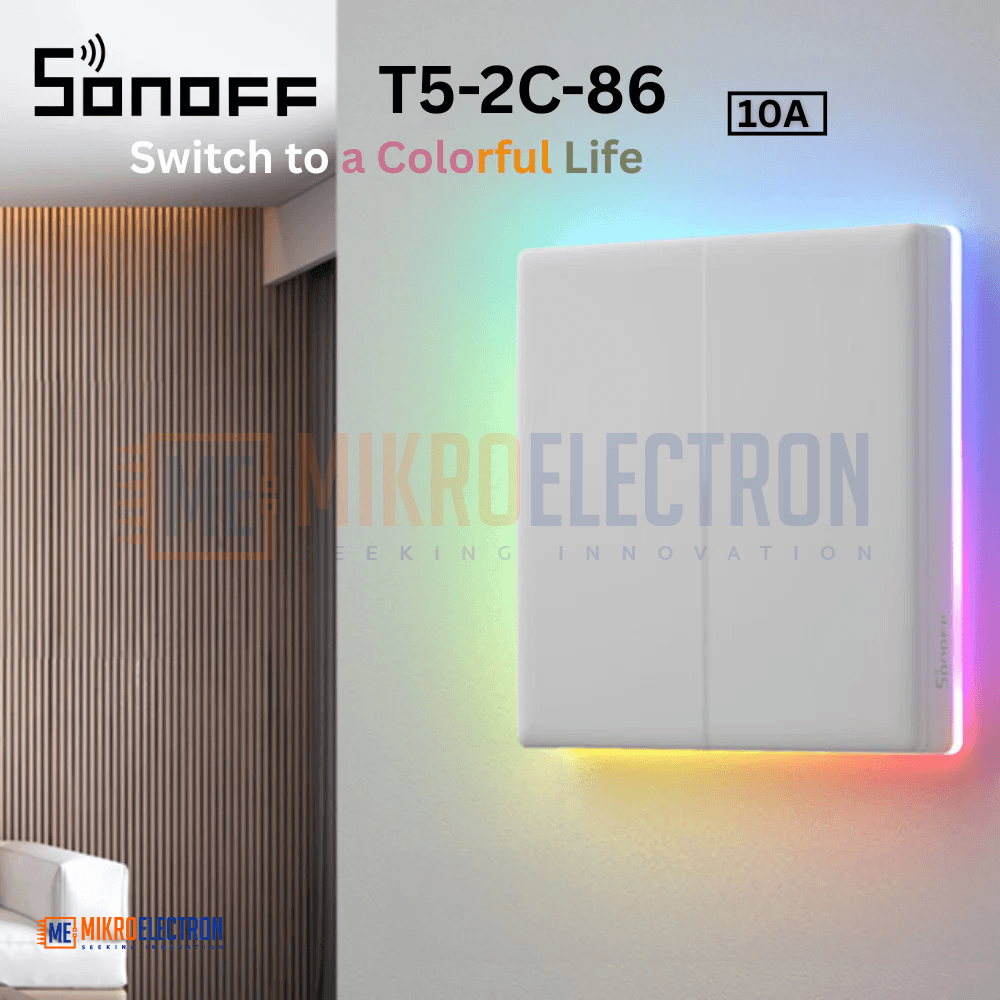

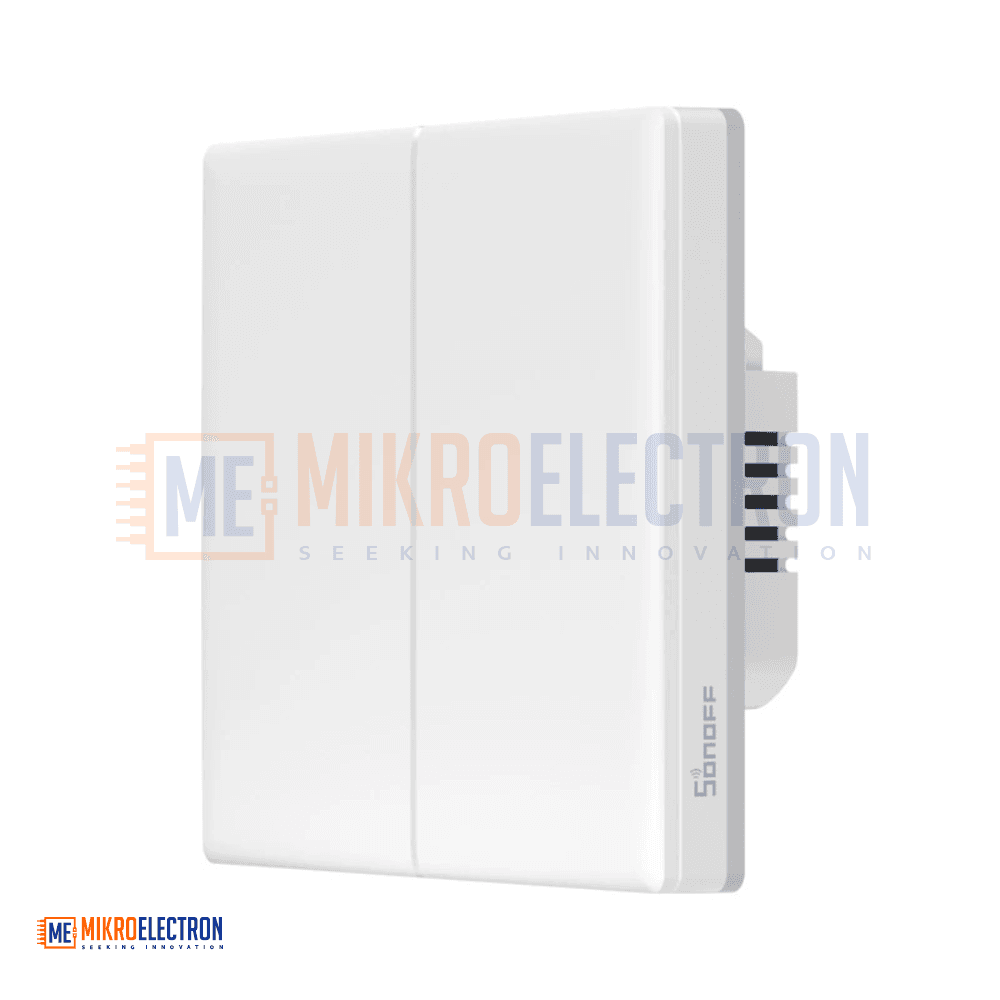

T5-2C-86 – 2 Gang
T5-3C-86 – 3 Gang
T5-4C-86 – 4 Gang
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | SONOFF TX Ultimate T5 |
| Models | T5-1C-86 / T5-2C-86 / T5-3C-86 / T5-4C-86 |
| Gang Count | 1 / 2 / 3 / 4 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Maximum Load | 5A per gang |
| Wi-Fi Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| Control Methods | Touch / App / Voice |
| App | eWeLink (iOS & Android) |
| Voice Assistants | Amazon Alexa, Google Assistant |
| Dimensions | 86 × 86 × 39 mm |
| Casing Material | PC + Cold-Rolled Steel (CRS) |
| Colour | White |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | 5% – 95% RH (non-condensing) |
| Installation | Standard 86 mm wall box |
| Neutral Wire | Required |
Typical Applications
Smart home lighting systems
Living rooms, bedrooms, kitchens, and hallways
Apartments and villas
Hotels and hospitality projects
Smart building renovations
Safety & Usage Notes
Installation must be performed by a qualified electrician.
Ensure power is switched off before installation.
Designed for indoor use only.
Do not exceed the rated load per gang.
Why Choose SONOFF TX Ultimate T5 Series?
The SONOFF TX Ultimate T5 Series is ideal for users who want premium design, intelligent automation, and reliable performance in one product. With its full-touch interface, RGB ambient lighting, app and voice control, and flexible multi-gang options, it is a perfect upgrade for modern smart homes and high-end residential projects.
